80 CFM PTO Driven Air Compressor 4 Cylinder for Tractor 3 Point Linkage
ACPTO4095
AIR COMPRESSOR PTO DRIVEN 4 CYLINDER 80 CFM
Description:
The Millers Falls TWM ACPTO4095 Tractor PTO Driven Air Compressors is designed to revolutionize large volume air production in rural or remote areas. This compressor is specifically designed for tractors over 30HP and offers the convenience of using your tractor’s engine for power and reliability.

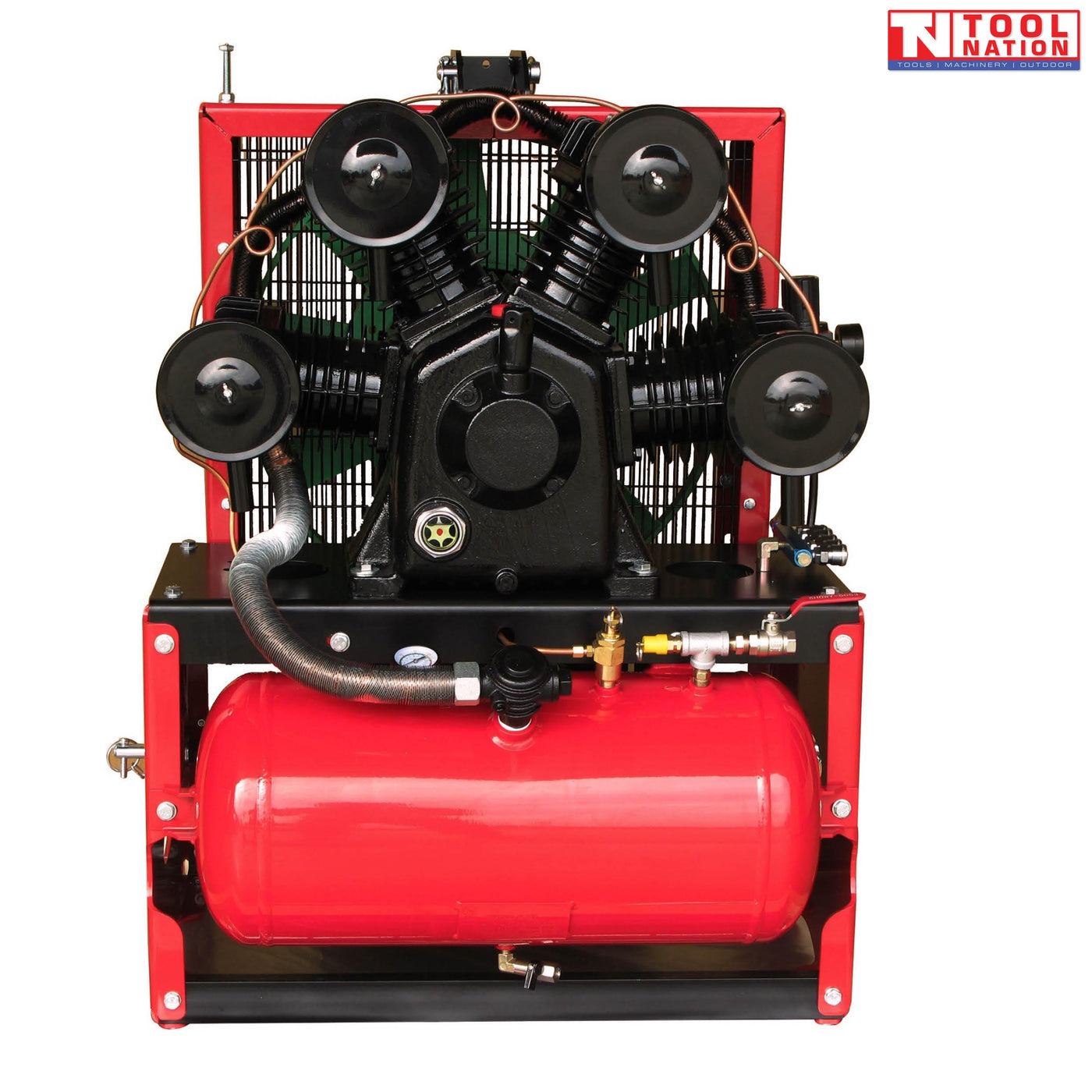

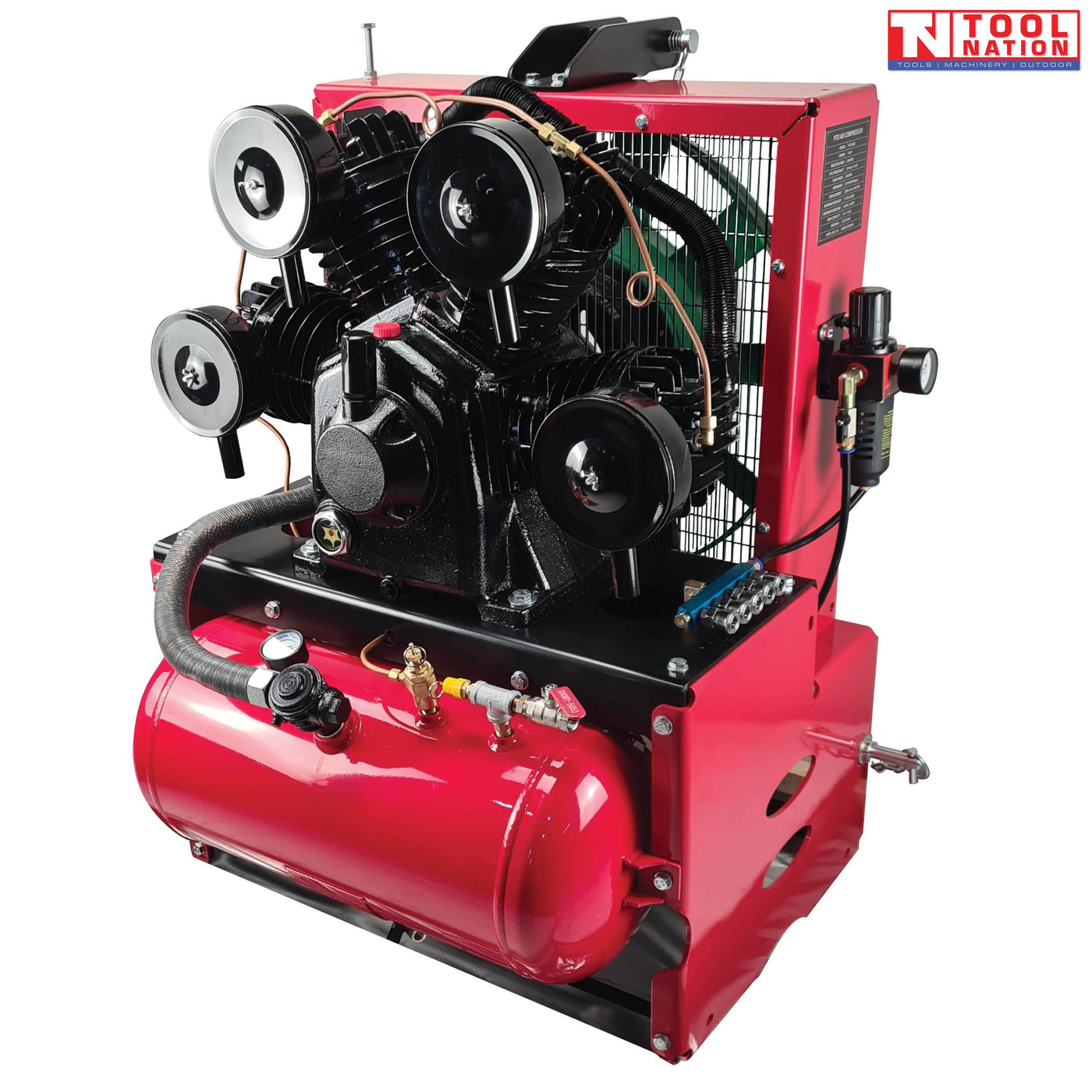

The ACPTO3095 features a 4 Cylinder 80CFM compressor, the unit is fully manufactured in Taiwan, ensuring premium quality and years of trouble-free use, even in the most challenging conditions.
Compact and lightweight, this air compressor can be easily mounted onto the rear of your tractor using the 3-point linkage connection, allowing for easy movement around your work area. It has a small volume of only 0.78 m3 and weigh just 250kg.

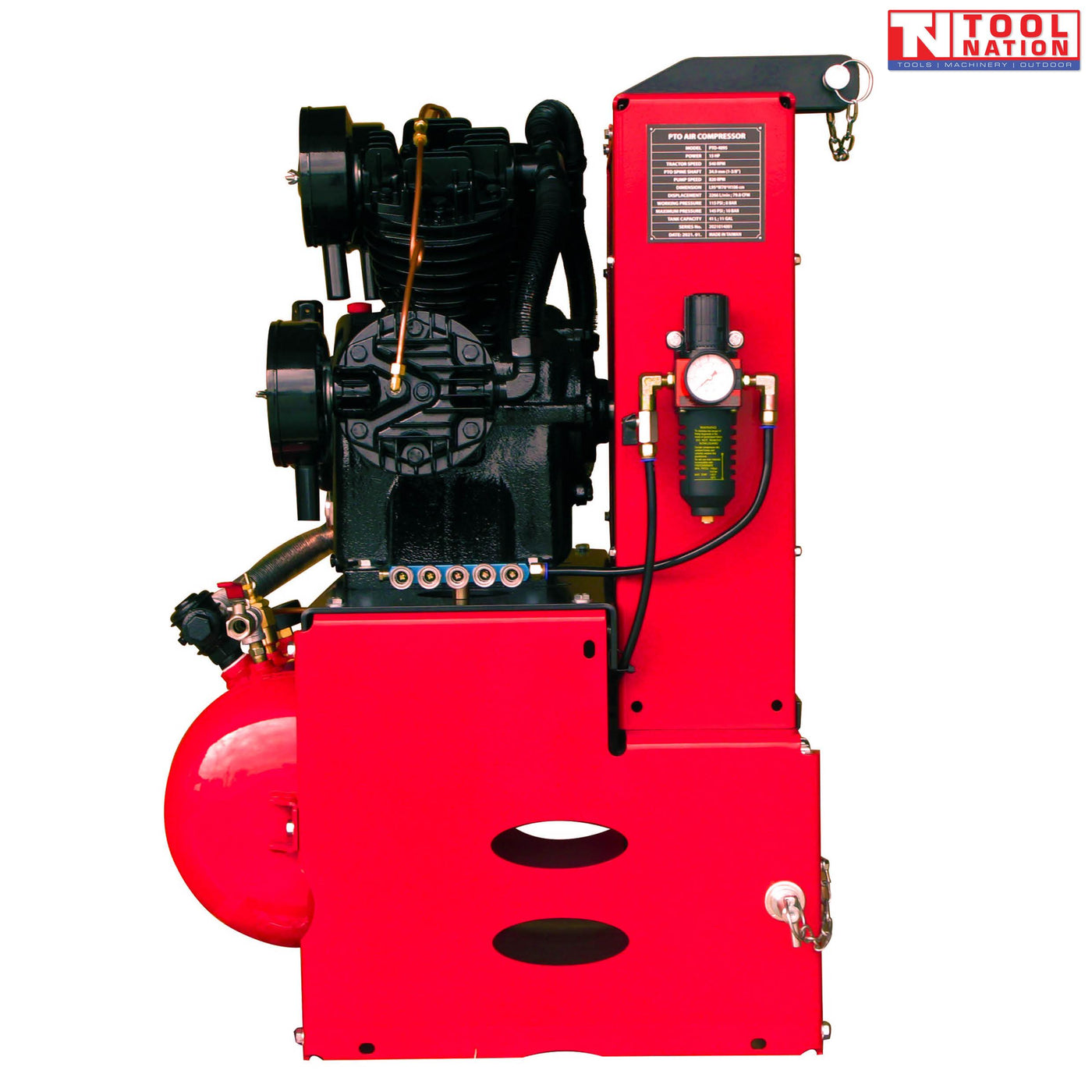

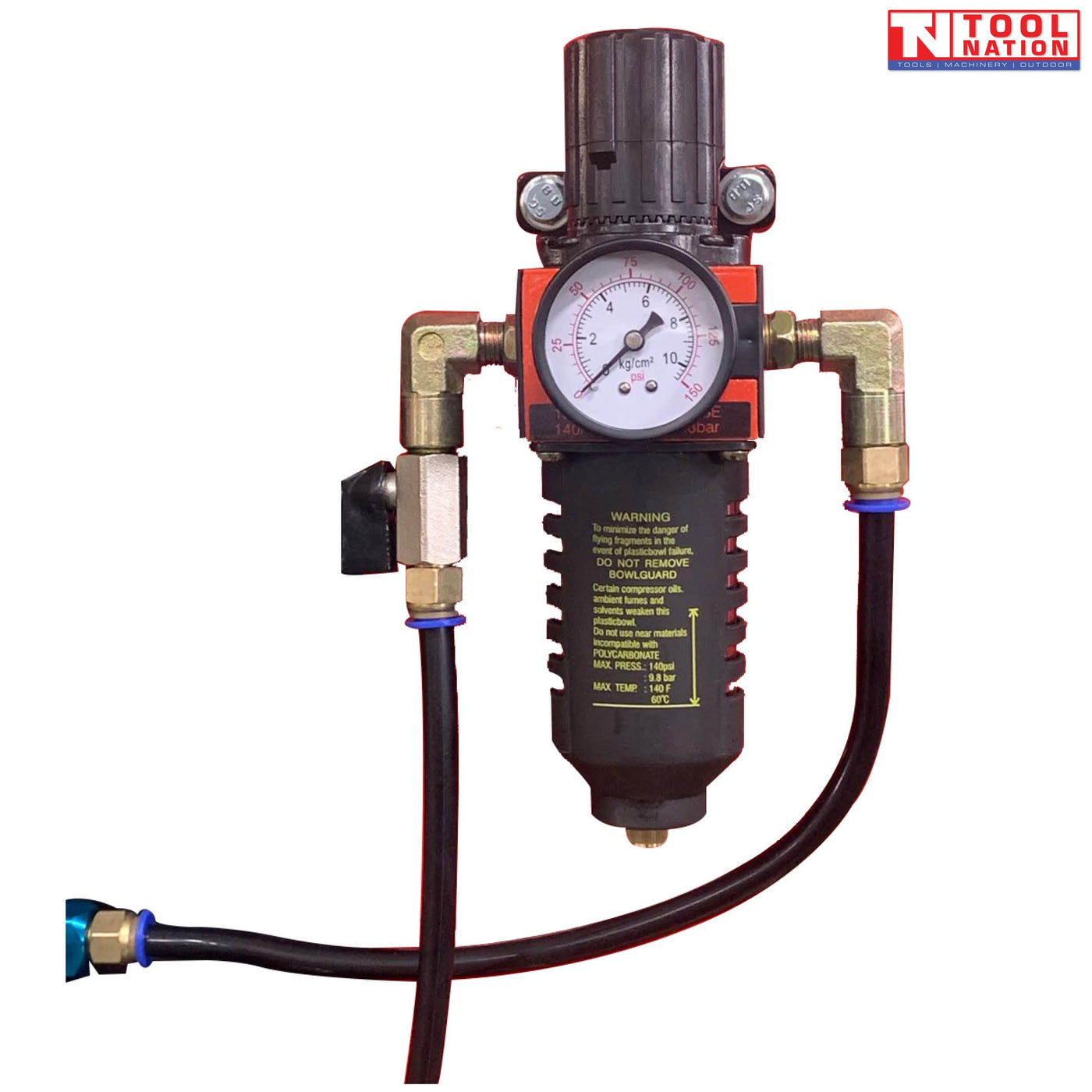

The Millers Falls Tractor PTO Driven Air Compressors come equipped with a Filter Regulator with 5 Quick Connect Couplings, allowing for multiple simultaneous air tool use. Additionally, they feature a large ½” BSP Direct Outlet for a larger volume of air with a high flow rate. Unloader valves are fitted to each cylinder head of the pump, ensuring less strain on the tractor and increased durability of the pump.
To ensure longevity and durability, the heavy-duty chassis and other main compressor components have been powder-coated. This makes them suitable for operation in the harshest working conditions.
This air compressor has a multitude of uses, including blowing out farm machinery, large area sand blasting, air jack hammers and breakers, large air tools, soda blasting, multiple pruning tools, large volume spray painting, and much more. They offer reliable air power for any task, eliminating the need for towing trailer-mounted air compressors or worrying about starting petrol or diesel engines.
Experience the convenience of having compressed air available anywhere with the Millers Falls Tractor PTO Driven Air Compressors. These Taiwanese-made units are new to the Australian market and are set to change the way large volume air production is accomplished in rural or remote settings.
Features:
Suits Tractor 3 Point Linkages Cat 1
Made in Taiwan
Highly Portable
High Quality Components
Powder Coated for extreme weather protection
Nitto Style Quick Release Air Fittings Included

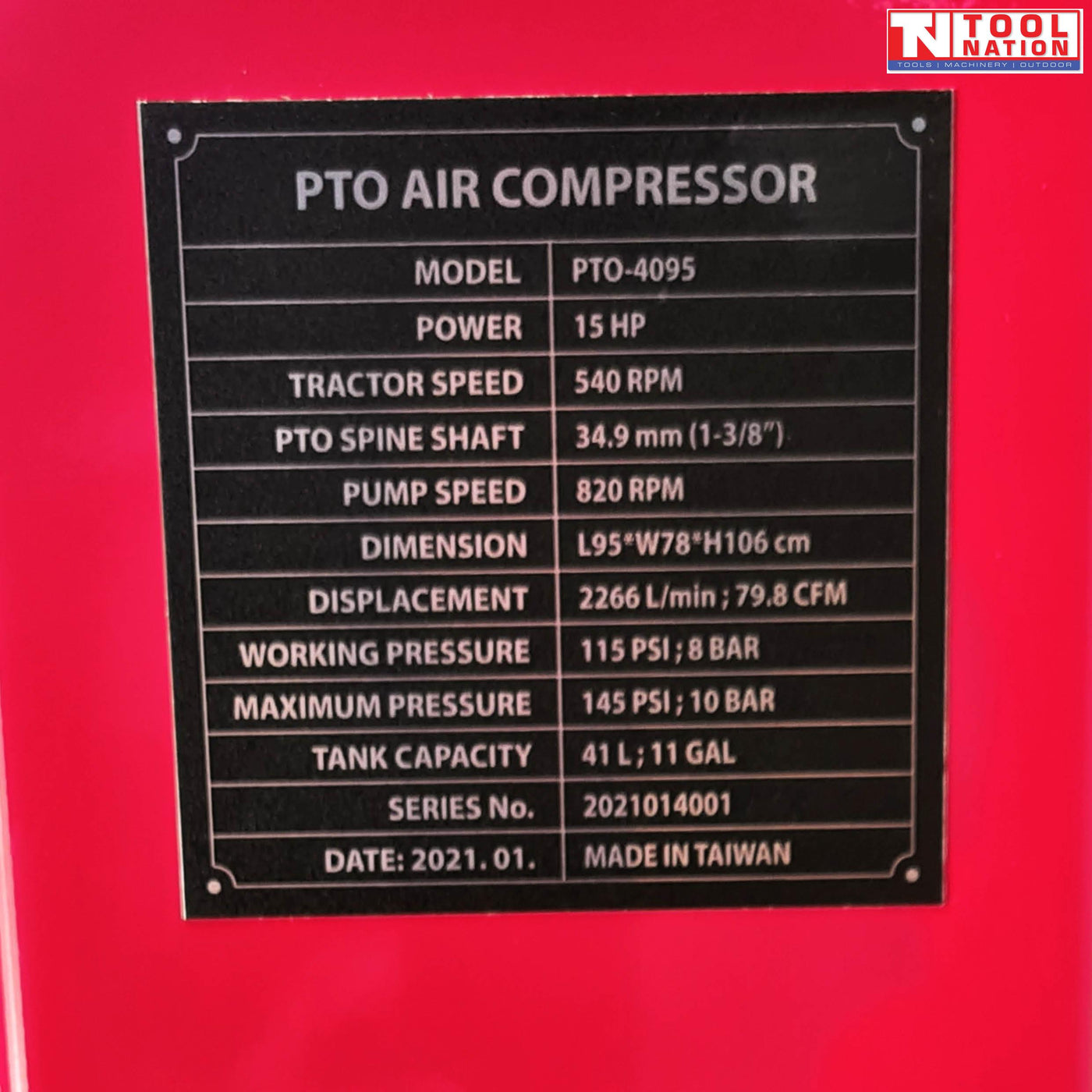

Specifications:
Model: ACPTO4095
Minimum tractor power: 40HP
Air pump: 4 Cylinder Cast Iron
Pump speed: 850 RPM
PTO speed: 540 RPM
Air tank capacity: 41 litres
Maximum air pressure: 145PSI
Working air pressure: 115PSI
Displacement (L/min): 2265
Displacement (CFM): 79.8
Free air delivery (L/min): 1564
Free air delivery (CFM): 55.1
PTO shaft spline: 39.4mm (1.375 inches) PTO shaft not supplied
Overall length: 95cm
Overall width: 78cm
Overall height: 106cm
Dimensions: 95cm x 78cm x 106cm
Net weight: 250kg
Packing dimensions: 107cm x 91cm x 124cm
Packed weight: 305kg
