Air Operated Oil Dispenser Pump Trolley for 220 Litre Drums

VPOP5515

Air Operated Oil Dispenser / Pump Trolley

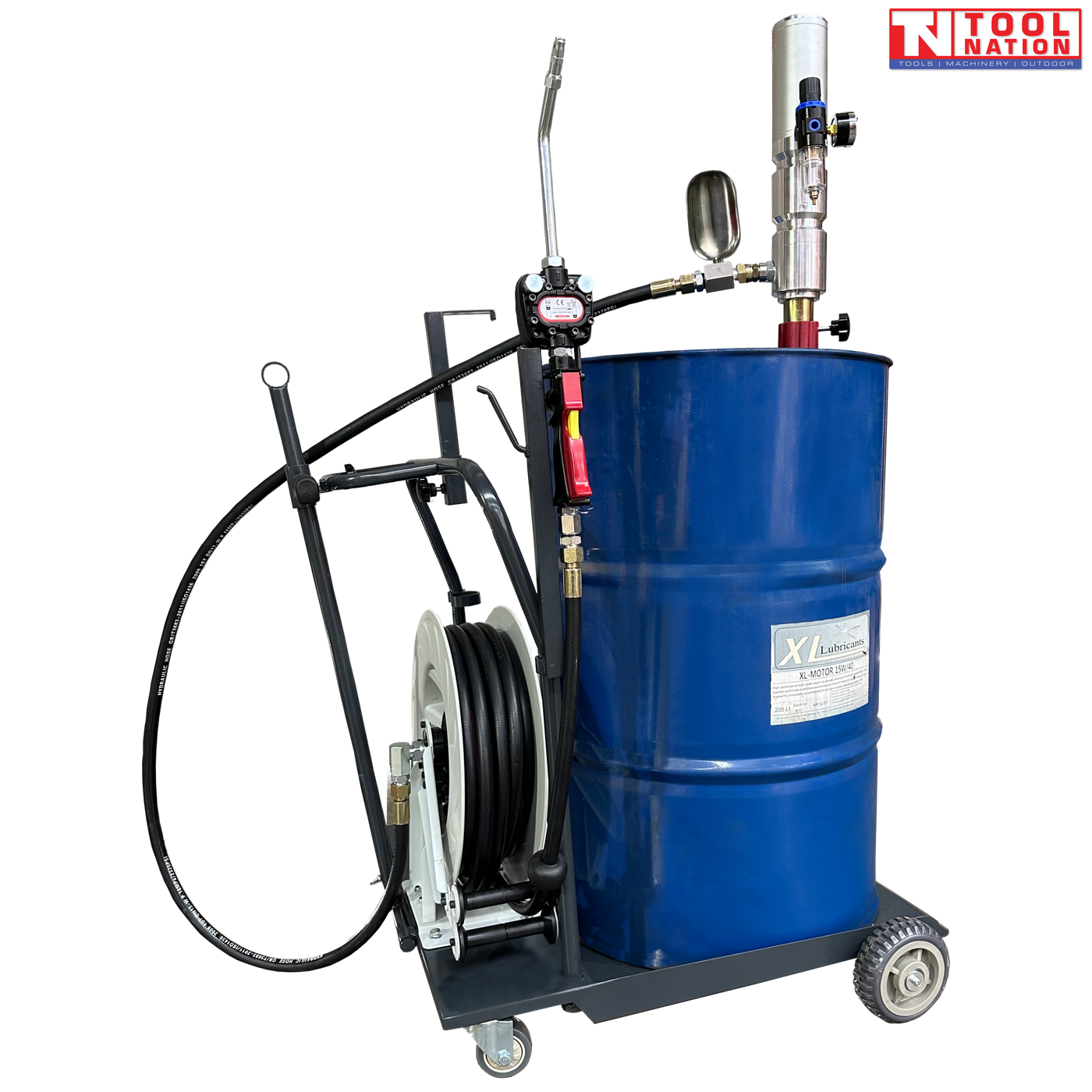

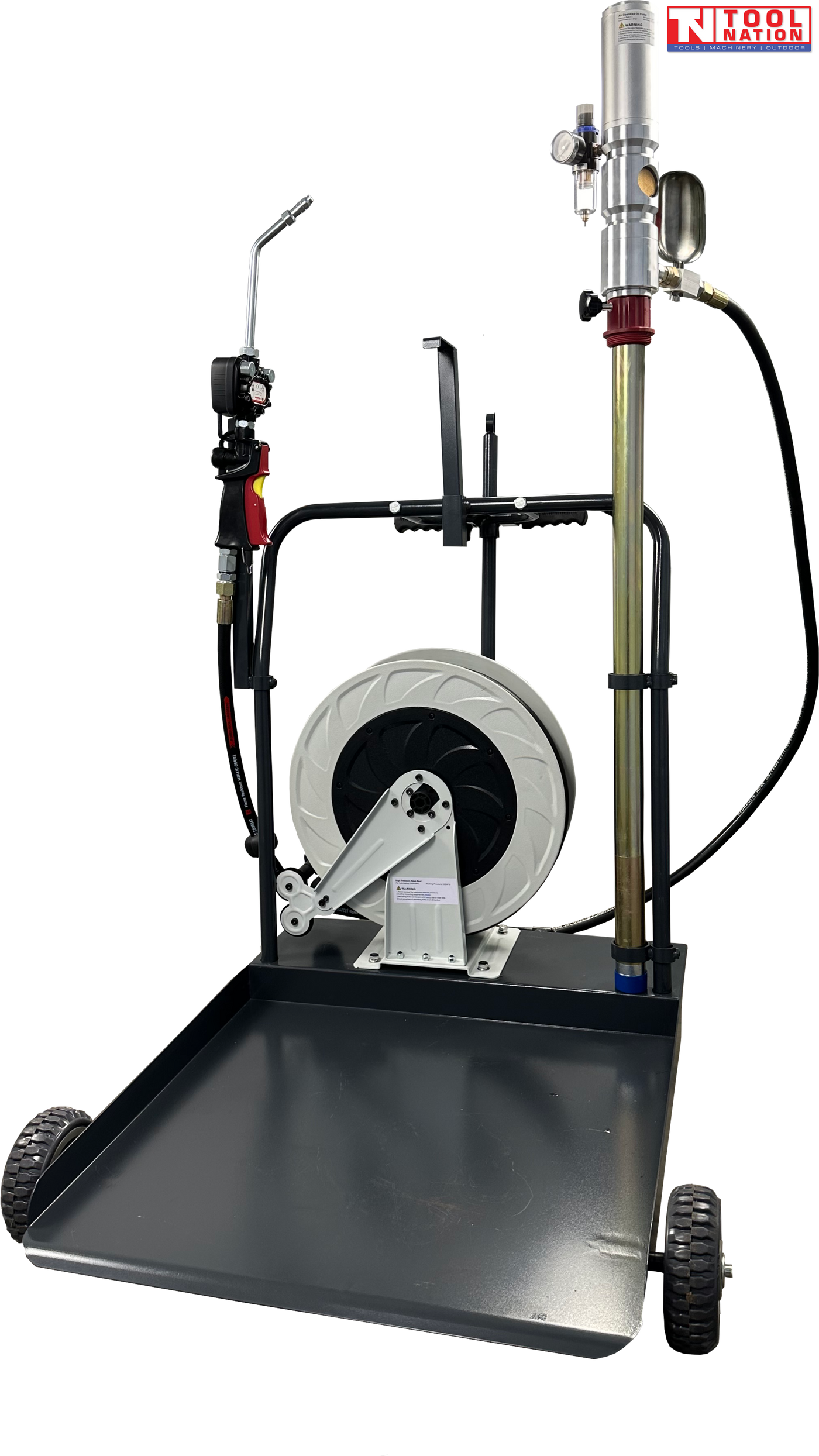

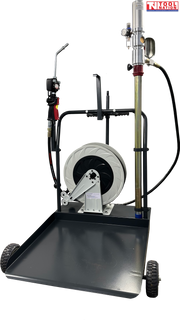

The VPOP5515 Air Operated Oil Dispenser / Pump Trolley is the perfect solution for efficiently dispensing and transferring oils without mess, wastage, or the need to transfer oil into smaller containers. Designed for use with up to 220-litre drums, this trolley features solid industrial steel construction and heavy-duty wheels, ensuring easy mobility and durability. It allows for many oil services before the drum needs replacing, making it an ideal tool for workshops, garages, and service stations.

Equipped with a pneumatic pump, the VPOP5515 delivers a 5:1 pressure ratio, ideal for handling medium to high viscosity oils. It operates with air compressors from 3 to 8 bar (45-115psi) and offers a flow rate of 18 litres per minute. The included pulsation dampener ensures smooth and consistent oil flow for efficient dispensing.

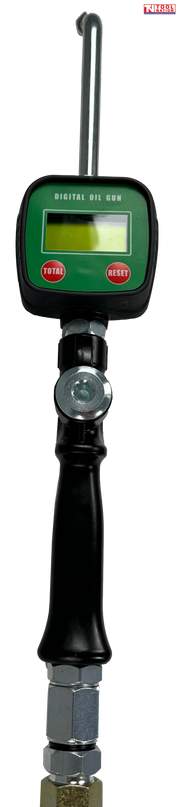

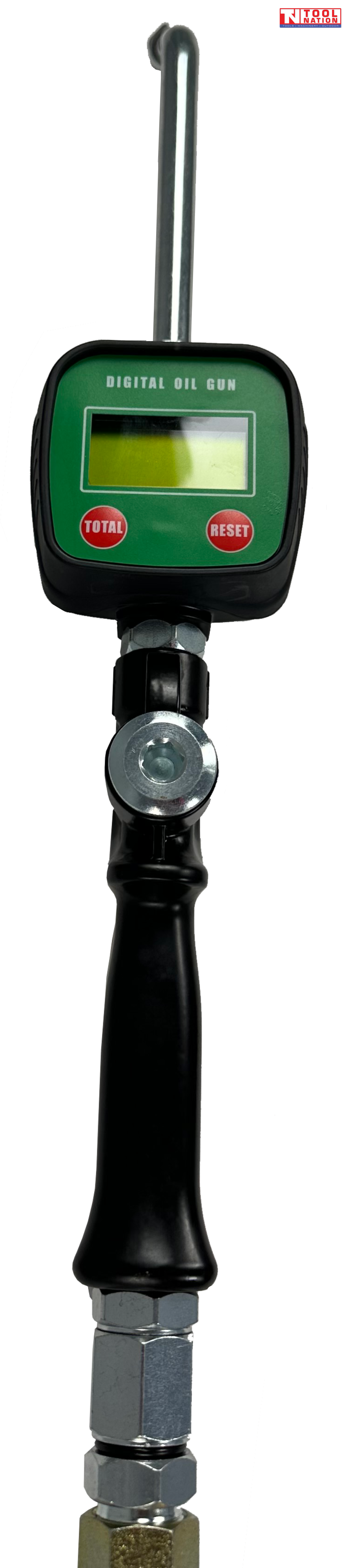

The digital oil flow meter gun provides ±0.5% accuracy and can switch between four units of measure (Litre, Gallon, Pint, and Quart). This makes the dispenser suitable for precise dispensing of oils to engines, tanks, or workshop equipment, improving both the efficiency and accuracy of your operations.

Features:

• Heavy Duty Construction: Solid industrial steel frame and heavy-duty wheels for easy movement and durability.

• Pneumatic Pump: 5:1 pressure ratio for dispensing medium to high viscosity oils, compatible with air compressors (3-8 bar / 45-115psi).

• Flow Rate: Dispenses oil at a rate of 18 litres per minute for efficiency.

• Pulsation Dampener: Ensures smooth oil flow, minimizing pulsations during dispensing.

• Digital Oil Flow Meter Gun: ±0.5% accuracy with the ability to switch between 4 units of measure (Litre, Gallon, Pint, Quart).

• Volume Monitoring: Features a 5-digit easy-to-read digital screen for tracking dispensed oil volume.

• Anti-Drip Nozzle: Prevents spills with a no-mess dispensing design.

• 360° Rotating Spout: Offers a convenient, rotating discharge spout for flexible oil dispensing.

• Oil Viscosity Range: Suitable for oils with viscosities ranging from 10 to 5000 mPas.

• No Drum Transfer Required: Allows taking the drum to the job without transferring oil into smaller containers.

• Cost-Effective: Saves time, effort, and mess while reducing oil purchase wastage.

Specifications:

• Drum Size: Up to 220 Litre

• Pressure Ratio: 5:1 (for medium to high viscosity oils)

• Pulsation Dampener: Included

• Oil Outlet: ½ inch

• Required Air Pressure: 45-115psi (3-8 bar)

• Air Inlet: ¼ inch

• Flow Rate: 18L/min

• Pump Suction Tube Length: 940 mm (37 in)

• Pump Suction Tube Diameter: 42 mm (1.65 in)

• Hose Reel Working Pressure: Up to 2320psi

• Hose Length: 15m

• Hose Diameter: 1/2"

• Digital Oil Meter Gun Accuracy: ±0.5%

• Oil Viscosity Range: 10-5000mPas

• Working Pressure Range for Meter Gun: 8-725psi (0.5-50 bar)

• Unit Conversion: Switch between Litre, Gallon, Pint, Quart

• Volume Monitoring: 5-digit screen for dispensed oil volume

• Power: 2 x AA 1.5V batteries (included)

Packaging Dimensions: 3 x Cartons

• Carton 1: 134cm x 16cm x 17cm (12.5kg)

• Carton 2: 86cm x 81cm x 12cm (24kg)

• Carton 3: 51cm x 23cm x 56cm (19kg)
