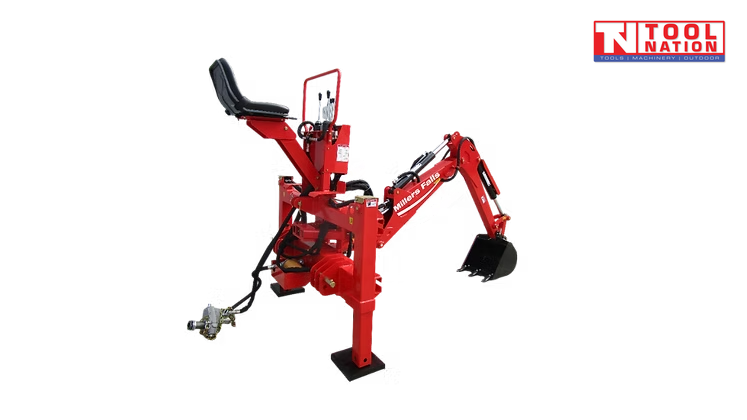

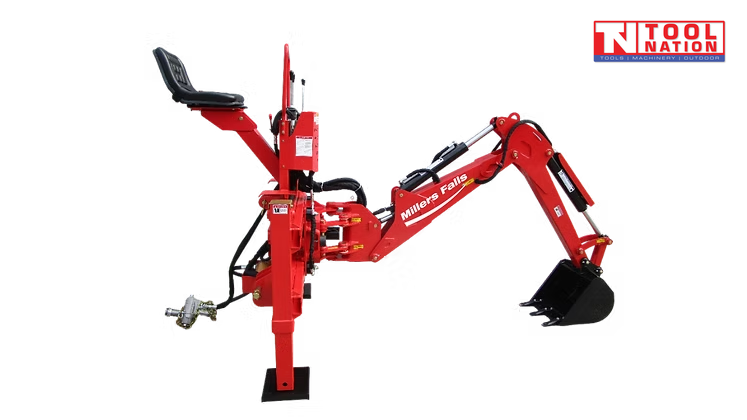

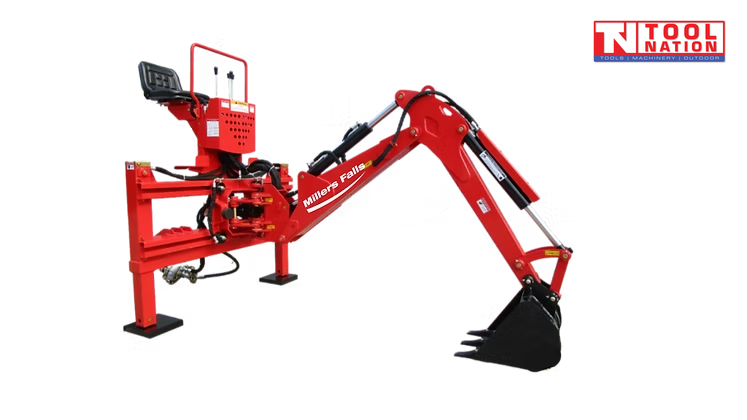

Tractor Backhoe Attachment with Side Shift – 55–90HP, 2600mm dig depth

FIBK260

Tractor Backhoe Attachment with Side Shift suit 3-point Linkage

The Millers Falls FIBK260 tractor side shifting backhoe or attachment excavator is specifically designed to be used with universal tractors in the 55 to 90 horsepower range. It features a Category I/II linkage, making it easy to connect to the tractor. This backhoe is typically mounted on the rear of the tractor and includes a digging bucket, boom, and hydraulic system.

The boom is mounted on a pivot and can be raised, lowered, and extended to reach the desired digging depth. The bucket is attached to the end of the boom and is used to scoop up materials like dirt and rocks. This versatility makes tractor backhoes ideal for construction, landscaping, and agriculture.

Operating the FIBK260 backhoe is simple with its four joysticks, which control its movements from an independent control station. The hydraulic system is smooth thanks to precision Italian-made control valves.

This backhoe attachment is an affordable and high-quality alternative to a mini excavator, as it is designed to handle medium to heavy duty tasks. It utilizes a powerful hydraulic system, allowing for a strong digging force.

The FIBK260 backhoe comes with its own hydraulic tank and pump, eliminating the need to use the tractor's hydraulic system and simplifying installation. It has a compact transportation size, allowing it to remain mounted on the tractor when driving on public roads without obstructing lights or hydraulic stabilizers.

The Millers Falls FIBK260 is a cost-effective, high-quality option for those in need of a smaller excavator. It is built to tackle medium to heavy duty tasks and features a powerful hydraulic system for efficient digging.

This 3 Point Linkage Backhoe is constructed with a high-strength steel frame and reinforced joints, providing added strength and increased downforce for challenging ground conditions. It operates with a top-quality, smooth-valve hydraulic system, its own PTO-driven pump, and dual swing cylinders, enabling fast and powerful digging operations. The hydraulic hose fittings are rated up to 3000 PSI, and accessible grease nipples are located on every pivoting point of the system. The unit is fitted with an adjustable cushioned seat ensures comfort during long hours of operation.

The Side Shift boom feature enhances performance, enabling the backhoe to be shifted to either side of the tractor for digging closer to fence lines and buildings.

The 3 Point Linkage Backhoe is designed for excavating and trenching, making it suitable for a wide range of applications and projects. It is a versatile piece of equipment that can handle various tasks efficiently.

Features:

• Side shifting backhoe with hydraulic shift lock

• Independent hydraulic system, driven by PTO. (oil tank, gear pump)

• Precision Italian made control valves for smooth operation of hydraulic system

• PTO driven hydraulic pump with gearbox for 540RPM PTO Output;

• Replaceable Oil filter included for total hydraulic system protection

• No requirement to have hydraulic remotes on the tractor

• Italian made hydraulic valve provides exceptional durability, performance and smooth operation.

• Left and right supporting feet can be controlled to rise or fall separately or at the same time as required;

• Boom swings 180° left and right;

• Thick and durable high-quality powder coating;

• Adjustable tilt seat.

• CNC laser cutting of entire machine and components achieves perfect alignment of all moving parts, thereby maximising the service life of cylinders, bearings and other components.

• Monoblock Distributor with 40 lt/m flow rate and fingertip control

Uses:

Landscaping and Gardening: Backhoes are ideal for landscaping and gardening projects, such as digging ponds, installing irrigation systems, and leveling uneven ground. They can also be used to remove trees, stumps, and rocks.

Construction and Excavation: Mini backhoes are commonly used in construction and excavation projects, such as digging foundations, trenches, and footings. They can also be used to remove asphalt, concrete, and other materials.

Farming and Agriculture: Mini backhoes are useful machines in farming and agriculture, such as digging trenches for irrigation systems, installing fence posts, and moving manure. They can also be used for landscaping and maintaining pastures.

Demolition: Mini backhoes are also useful for demolition projects, such as clearing driveways, sidewalks, and parking lots. They can also be used to demolish small structures, such as sheds and garages.
