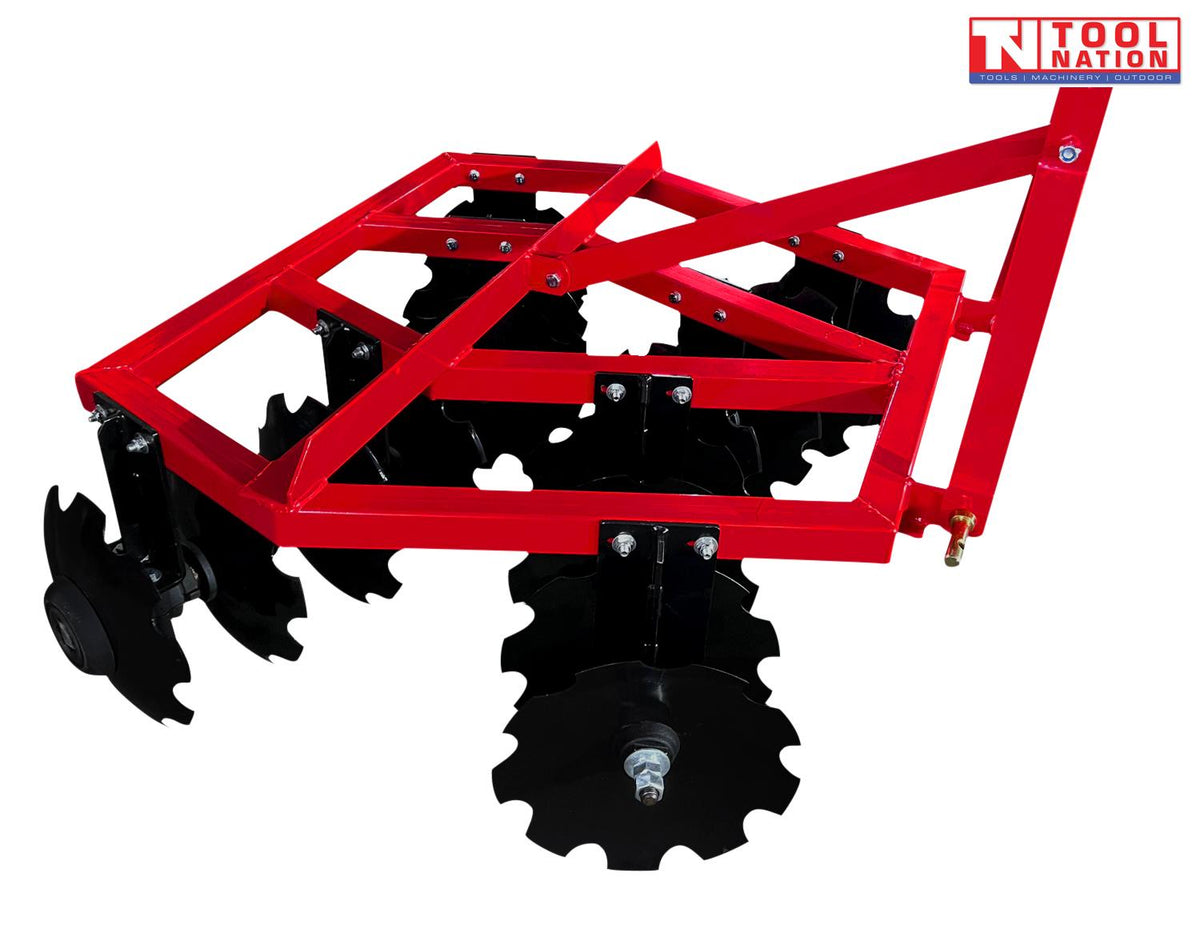

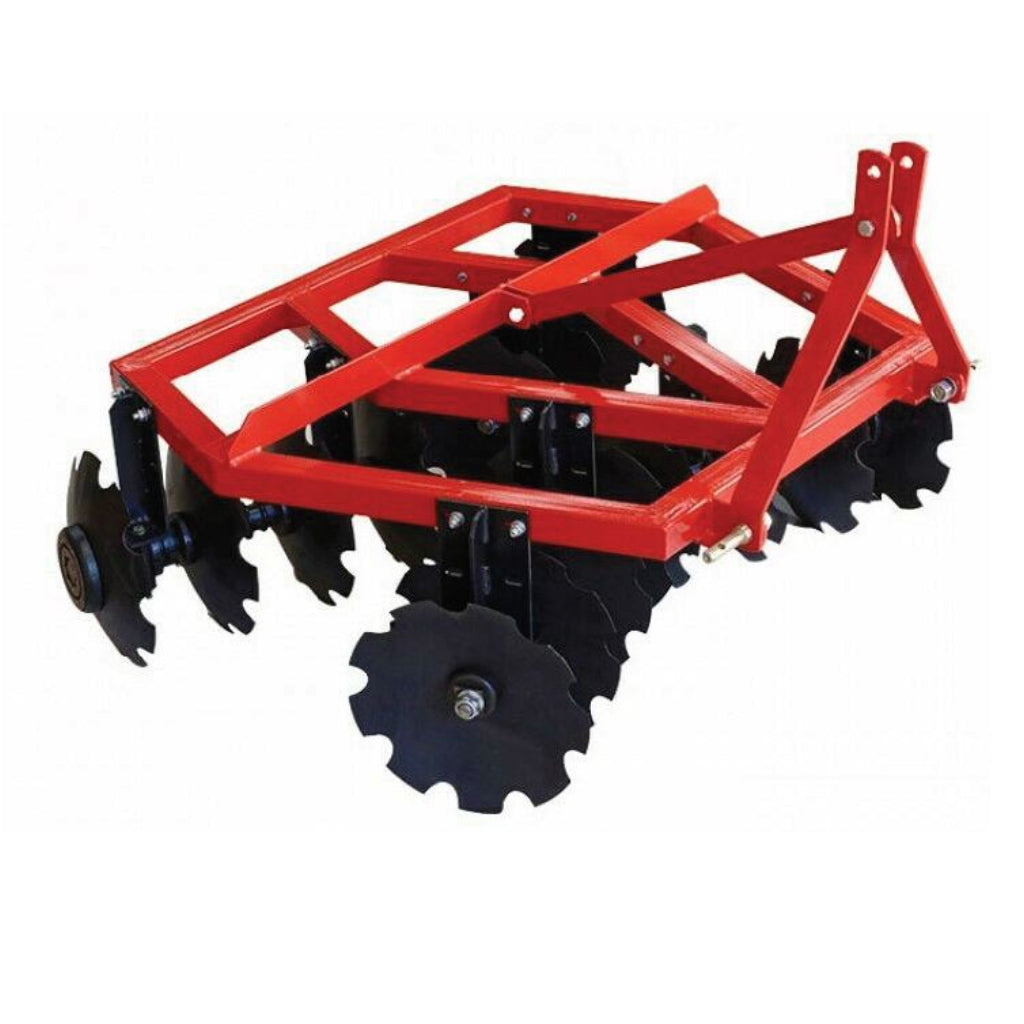

Disc Harrow Offset 1800mm 6’ Fabricated Steel Frame - Fidisch6

Disc Harrow Offset 1800mm 6’ Fabricated Steel Frame - Fidisch6

SKU: ATXFIDISCH6
Out of stock
$10,000.00
Shipping calculated at checkout
FIDISCH6

Disc Harrow Offset 1800mm 6’ Fabricated Steel Frame

The 400mm Notched Disc Harrow is the ideal tool for tilling your land or field and chopping up unwanted weeds or crop debris. The concave discs work to loosen and lift soil as this tool works through your fields turning soil and breaking up crusted ground. Chops unwanted weeds and crop debris with ease.

With the Category 1, 3 Point Disc Harrow, you can easily till up your land to prepare it for planting. The 400mm 16” notched offset discs are perfect for breaking up the ground and ripping through the weeds and unwanted debris. The implements feature four axles of notched discs with 3 or 4 discs on each. Each disc is spaced 190mm apart. These sealed cast iron caps and spools are greaseable to smooth the harrow discs' rotation.

For best results soils should be previously ploughed or damp where greater penetration can be achieved. Offset disc arrangement is considered best for breaking up and moving soil also useful for mixing in fertilisers and soil additives.

The support frame is constructed using 65 x 65mm steel tubing, which is powder-coated to prevent rust and corrosion. The Disc Harrow is designed to attach to your tractor’s Cat 1, 3 Point Hitch. The included 90mm long lower lift pins sit 710mm, centre to centre. This disc harrow is a must-have for anyone looking to turn their soil, break up the crusted ground, and control weeds in their field at an affordable cost.

Features:

  • Designed for Category 1, 3 Point Hitch

  • 40mm offset notched hardened steel discs

  • Discs are spaced 190mm apart

  • Concaved Discs to allow to loosen and lift the soil as it cuts

  • Great for breaking up weeds, roots, crop debris, and remainder

  • Powder-coated steel frame to prevent rust and corrosion

  • Included: Lower lift pins

  • A total of 8 cast grease packed hubs, 4 per row

Specifications:

Tractor Power: 30 - 45HP

Linkage Type: Cat 1

Overall Length: 1700mm

Overall Width: 1870mm

Overall Height: 1210mm

Working Width: 1780mm

Working Depth: 160mm

Number of Discs: 20

Disc Spacing: 190mm

Lower Lift Pin Spacing: 710mm

Packed Dimensions: 186 x 131 x 72 cm

Weight: 278Kg
