SKU: ATXPHDA20A
In stock
$505.00
Shipping calculated at checkout
PHDA6A – PHDA20A (150–500 mm)

Earth Auger Drills for 3-Point Linkage Tractor Post Hole Diggers

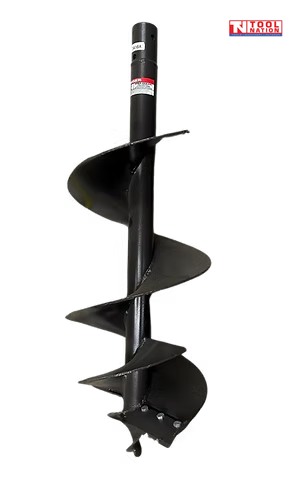

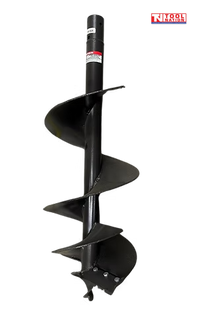

Heavy-duty auger bits to suit tractor post hole diggers with a 2" (50.8 mm) output shaft. Available in diameters from 150 mm to 500 mm (6"–20"), these commercial-grade augers are designed for 30–90 HP 3-point linkage PTO diggers to bore holes for fence posts, decks, tree planting, and construction projects.

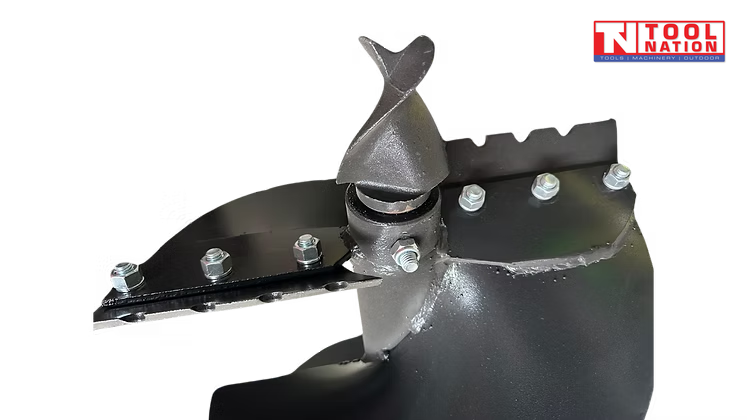

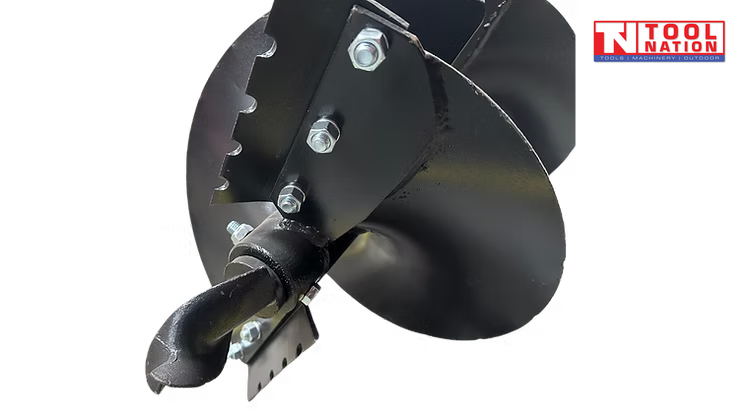

Each auger features a strong, welded steel flight with a spiral design, a bolt-on fishtail lead point, and twin replaceable cutter sets. Driven by two shear/safety bolts (90° offset) for maximum strength and protection. Typical digging depth is up to ~1 m (dependent on the post hole digger).

Overall Auger Height: 1300 mm  |  Flute Depth: 900 mm

Key Features
  • Compatible with 30–90 HP 3-point linkage PTO post hole diggers
  • Works across a wide range of soils; spoils are left loose around the hole
  • Bolt-on fishtail auger point with twin replaceable cutters
  • Heavy-duty welded steel construction, built to last
  • Can dig holes up to ~1 m deep (application dependent)

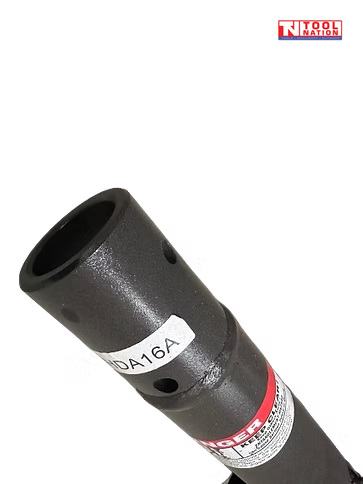

  • Suits 2" output shaft with 2 x shear bolts (90° offset)
Specifications
Model Auger Diameter Length Flute Length Weight Dimensions
PHDA6A 150 mm (6") 1200 mm 900 mm 15 kg 150 mm × 1200 mm
PHDA8A 200 mm (8") 1200 mm 900 mm 16 kg 200 mm × 1200 mm
PHDA9A 230 mm (9") 1200 mm 900 mm 18 kg 230 mm × 1200 mm
PHDA10A 250 mm (10") 1200 mm 900 mm 19 kg 250 mm × 1200 mm
PHDA12A 300 mm (12") 1200 mm 900 mm 22 kg 300 mm × 1200 mm
PHDA14A 350 mm (14") 1200 mm 900 mm 25 kg 350 mm × 1200 mm
PHDA16A 400 mm (16") 1200 mm 900 mm 30 kg 400 mm × 1200 mm
PHDA18A 450 mm (18") 1200 mm 900 mm 33 kg 450 mm × 1200 mm
PHDA20A 500 mm (20") 1200 mm 900 mm 44 kg 500 mm × 1200 mm
