SKU: ATXPRESALR100T
Out of stock
$10,000.00
Shipping calculated at checkout
PRESALR100T

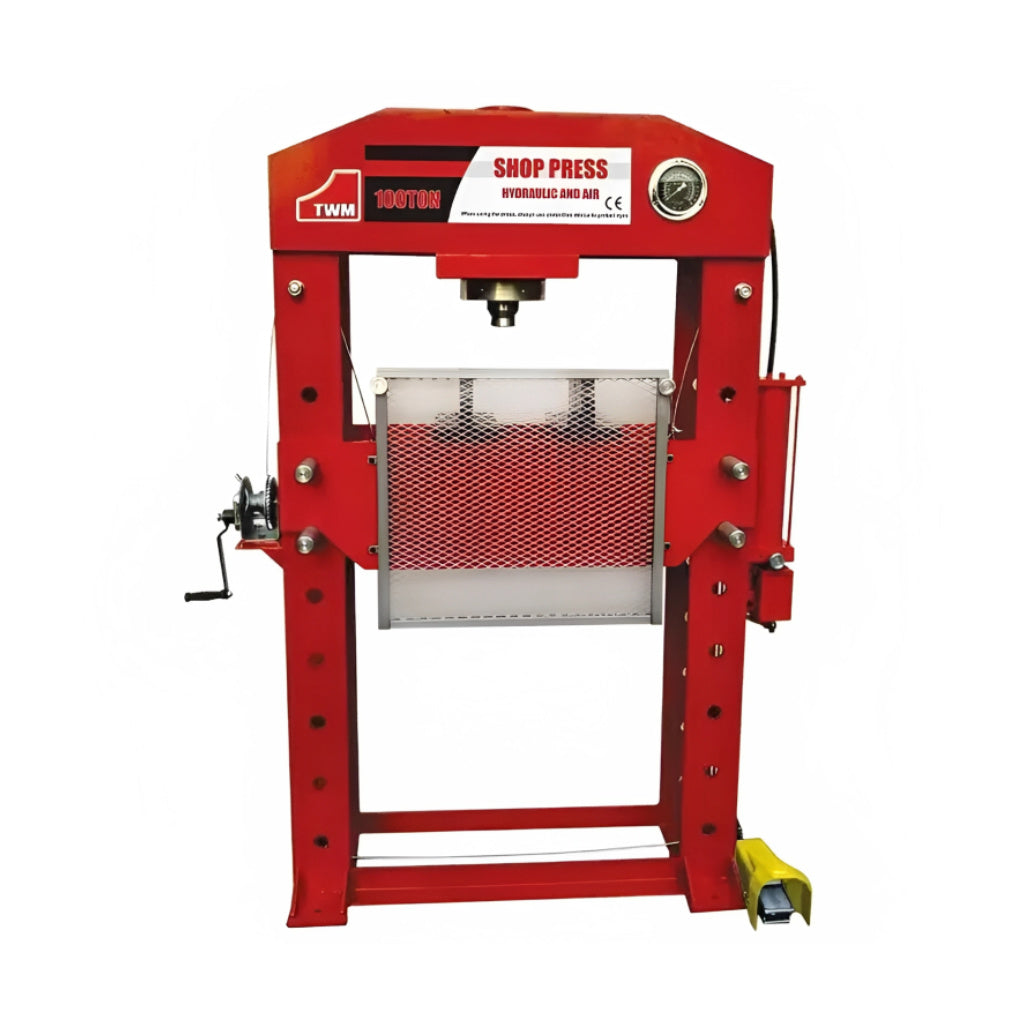

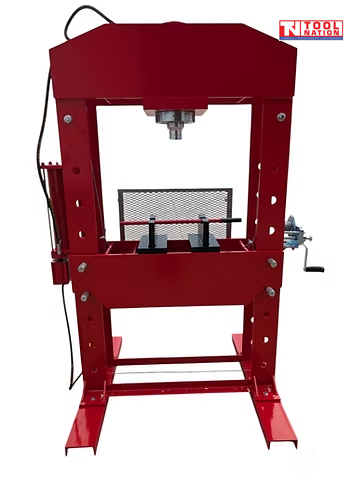

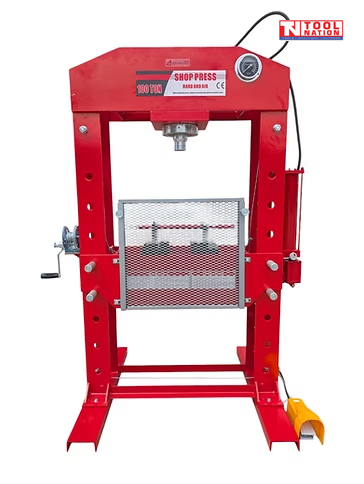

The PRESALR100T 100 Ton Heavy Duty Air Hydraulic Shop Press is a premium-grade industrial press built for precision, strength, and reliability. Designed for heavy-duty applications, it delivers exceptional performance in metal fabrication, automotive repair, and industrial workshops that require substantial pressing force with absolute control.

With its 100-ton capacity, the PRESALR100T can handle large and heavy materials effortlessly. Its adjustable working range (101mm – 1016mm) ensures versatility, accommodating a wide range of workpieces for different tasks. The sliding head adds further convenience, enabling smooth adjustments and precise positioning — ideal for pressing, bending, and forming heavy components with accuracy.

This press operates through both air hydraulic and manual controls, offering flexibility and adaptability. The air hydraulic mode provides high-force, continuous power for industrial-scale jobs, while the manual mode allows for precise control in delicate operations. A 280mm stroke length ensures sufficient space for large materials and efficient workflow.

The inclusion of a foot valve allows hands-free operation, enhancing safety and productivity by freeing the operator to focus on material positioning. With a bed width of 813mm and an air inlet fitting of ¼ inch NPT, this press integrates seamlessly into professional workshops. It operates at 0.75 – 0.85 Mpa, compatible with standard industrial air supplies.

Engineered for performance, efficiency, and long-term durability, the PRESALR100T is the ideal choice for any workshop that demands high power and precision.

Features:
  • Lifting Capacity: 100,000kg (100 tons) for the most demanding industrial applications.
  • Working Range: Adjustable from 101mm to 1016mm, suitable for a variety of pressing tasks.
  • Sliding Head: Smooth, adjustable positioning for convenience and precision.
  • Operation Modes: Dual air hydraulic and manual operation for versatility and control.
  • Stroke: 280mm, offering ample pressing range.
  • Air Pressure: Operates between 0.75 – 0.85 Mpa for industrial compatibility.
  • Air Inlet Fitting: ¼ inch NPT connection for simple setup.
  • Bed Width: 813mm for secure support of large workpieces.

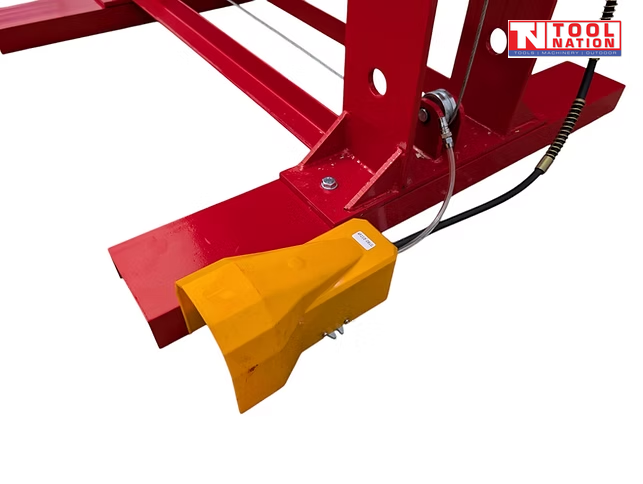

  • Foot Valve: Enables hands-free operation, enhancing safety and productivity.

Dimensions: A - 1400mm, B - 1000mm, C - 1900mm, D - 155mm, E - 820mm, F - 280mm, G - 850mm, H - 255mm.

Specifications:
  • Capacity: 100,000kg (100 tons)
  • Working Range: 101mm – 1016mm
  • Stroke: 280mm
  • Air Pressure: 0.75 – 0.85 Mpa
  • Air Inlet Fitting: ¼ inch NPT
  • Bed Width: 813mm
  • Shipping Dimensions: 210cm x 115cm x 52cm
  • Net Weight: 487kg
  • Shipping Weight: 528kg

Shipping cost is calculated at checkout.
