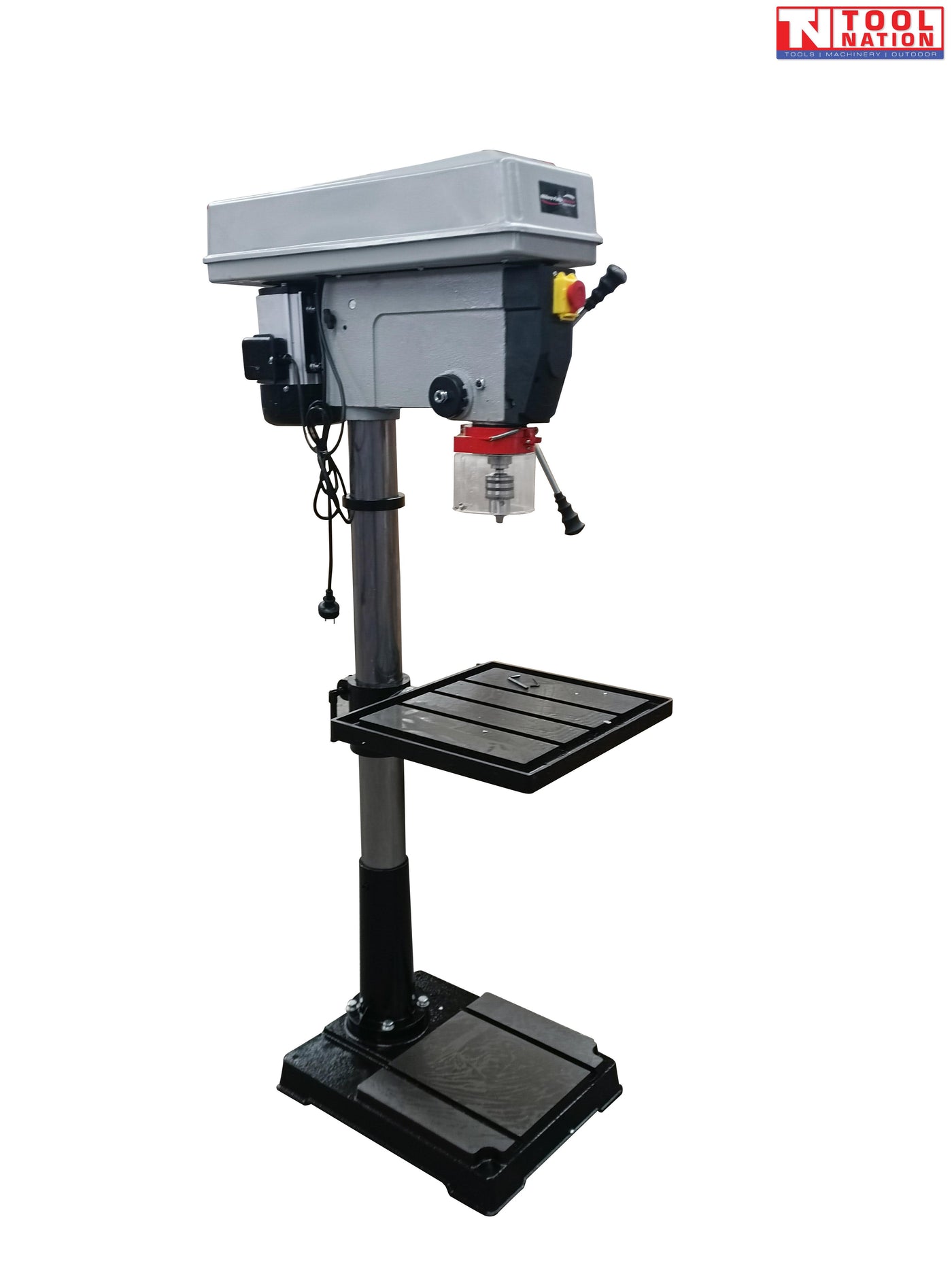

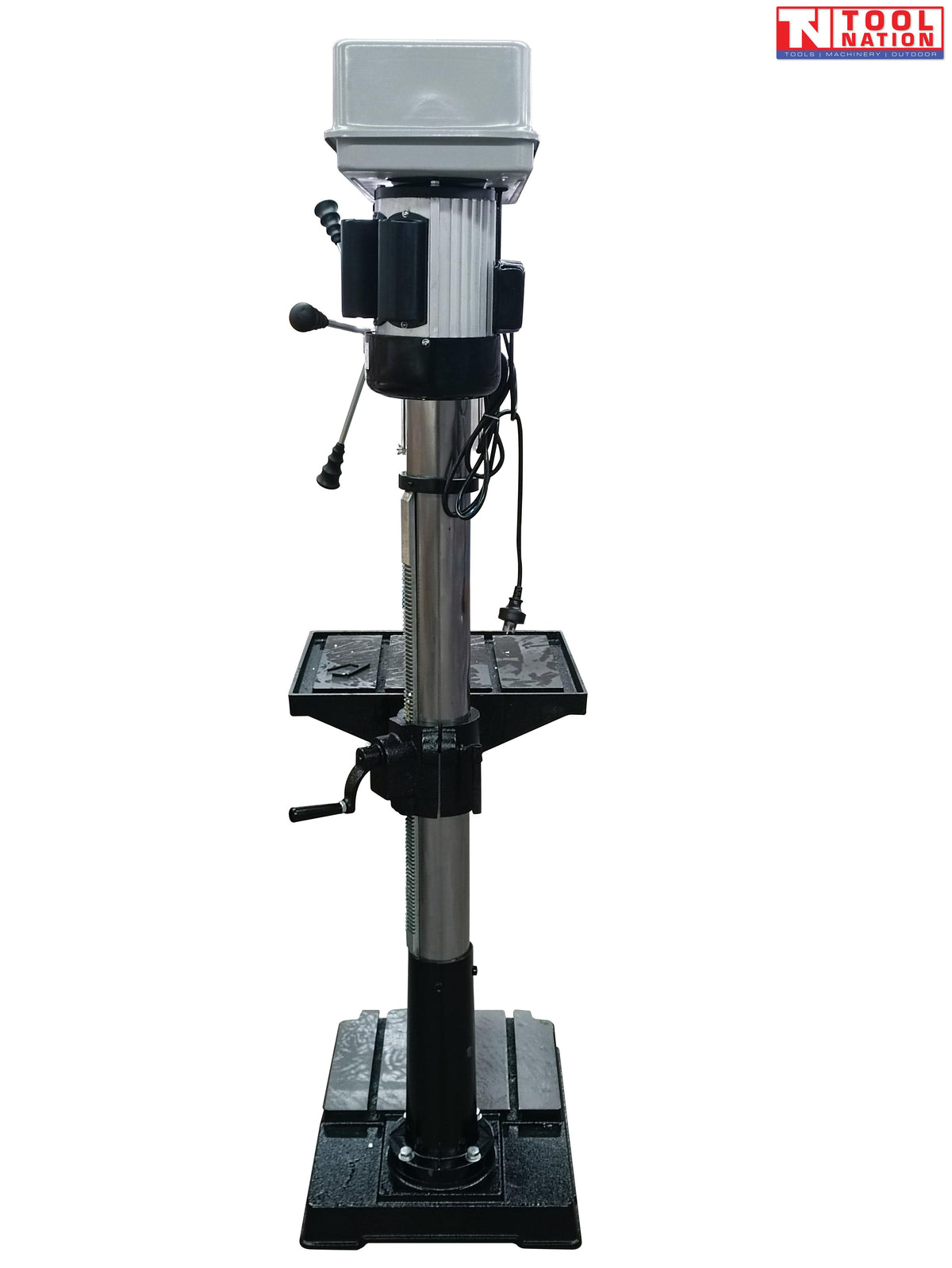

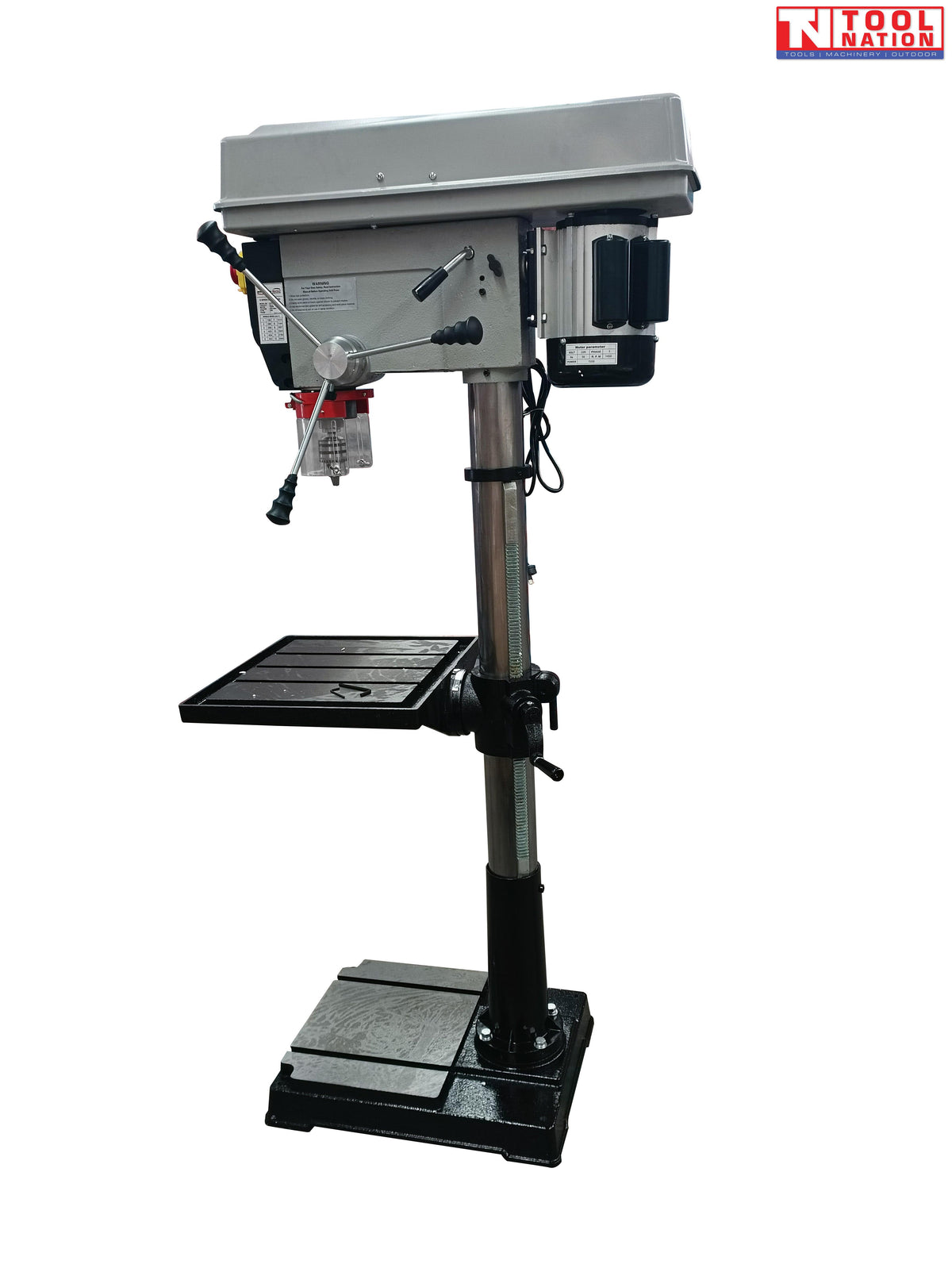

Pedestal Drill 32mm Capacity 1500W Motor Heavy Duty Variable Speed 12 Step

ZJP4132Z

The ZJP4132Z Pedestal Drill is designed for high precision and robust performance, making it an ideal choice for professional workshops and demanding drilling applications. Equipped with a powerful 1500W 4-pole motor operating at 1450 rpm, it delivers reliable and consistent performance. The drill features 12 adjustable spindle speeds ranging from 156rpm to 3049rpm, offering flexibility to handle various materials and tasks. With a drilling capacity of up to 32mm, it is well-suited for a range of heavy-duty applications. The adjustable spindle travel and maximum distance from spindle to table provide ease of use and precision. The ZJP4132Z Pedestal Drill is built to last, ensuring reliable operation for all your drilling needs.

Motor Description:The ZJP4132Z Pedestal Drill is powered by a 1500W 4-pole motor that operates at 1450 rpm, ensuring optimal drilling performance. This motor is designed for high efficiency, providing ample power for a wide range of heavy-duty tasks in both industrial and workshop settings.

Features:

• Motor Wattage: 1500W 4-pole motor for powerful and consistent performance.

• Motor Speed: Operates at 1450 rpm for steady operation during drilling tasks.

• Spindle Speeds: 12 adjustable spindle speeds ranging from 156rpm to 3049rpm for maximum versatility.

• Drilling Capacity: Maximum drilling capacity of 32mm, suitable for a variety of materials and applications.

• Spindle Travel: 120mm spindle travel for precise depth adjustments.

• Table Adjustment: Maximum distance from spindle to table of 450mm, adjustable for a wide range of workpieces.

• Design: Sturdy construction with a 508mm swing and heavy-duty base ensures reliability and durability.

Specifications:

• Model: ZJP4132Z

• Motor Wattage: 1500W, 4-pole

• Motor Speed: 1450 rpm

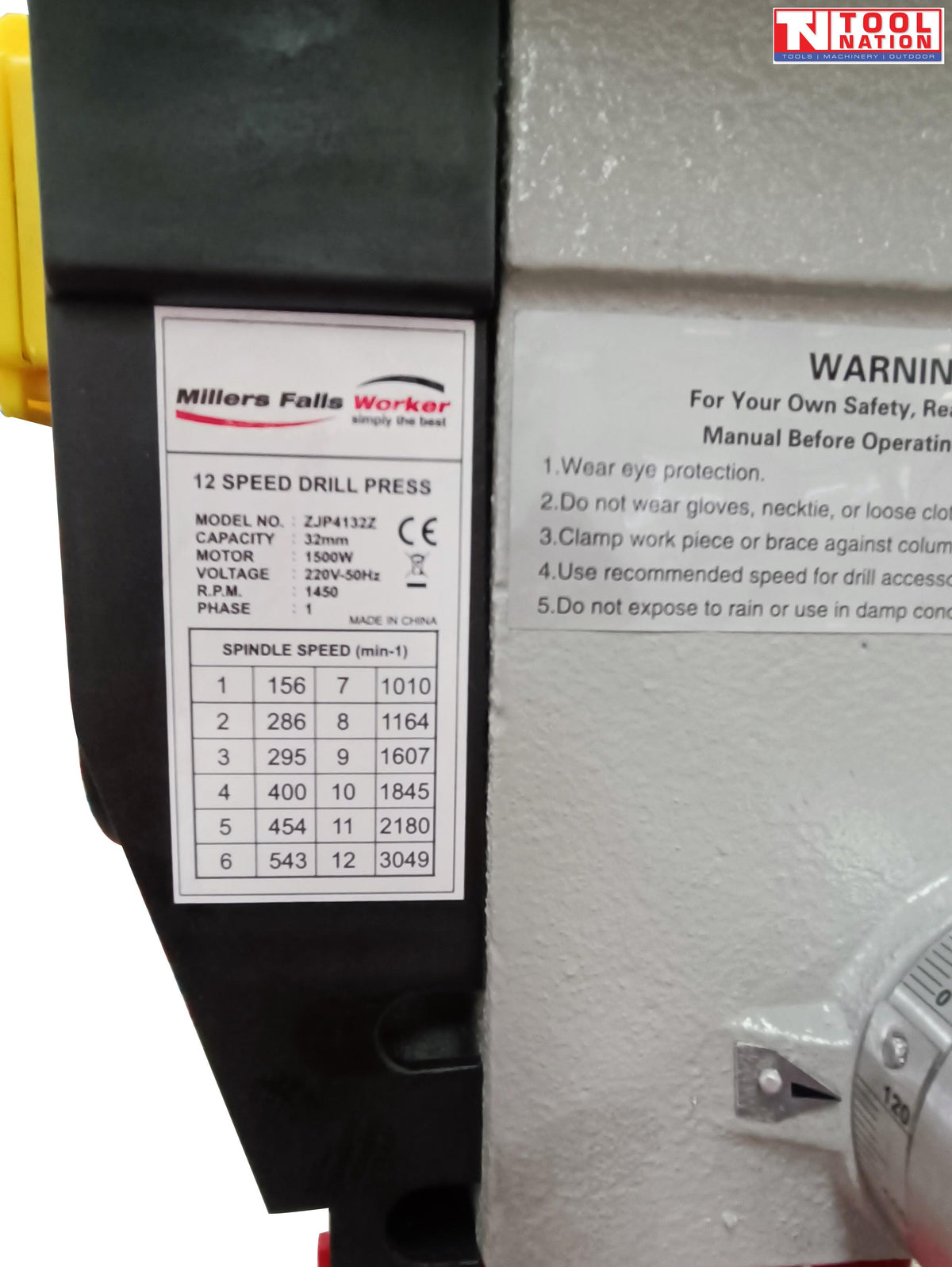

• Spindle Speeds: 12 adjustable speeds, 156rpm - 3049rpm

• Drilling Capacity: 32mm

• Spindle Travel: 120mm

• Max Distance from Spindle to Table: 450mm (adjustable)

• Swing: 508mm

• Base Size: 580mm x 450mm

• Table Size: 470mm x 420mm

• Rack & Pinion: Yes

• Overall Height: 1710mm

• Net Weight: 110kg

• Shipping Dimensions: 1450mm x 688mm x 355mm

• Shipping Weight: 120kg
