Tractor Backhoe Attachment 10-40HP 3-Point Linkage

FIBK145

Tractor Backhoe Attachment suit 3-point Linkage Tractor 15-40HP

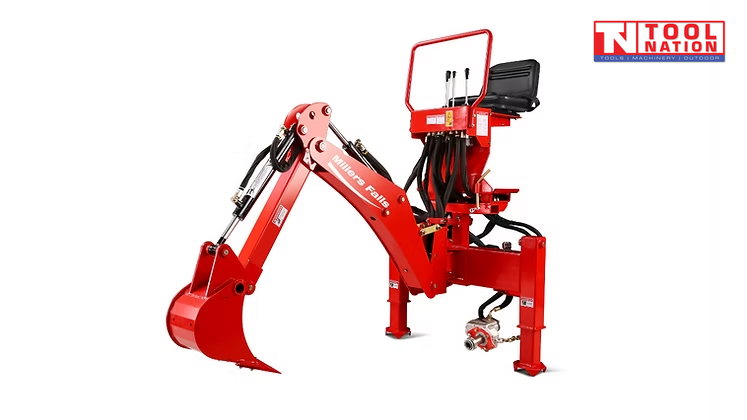

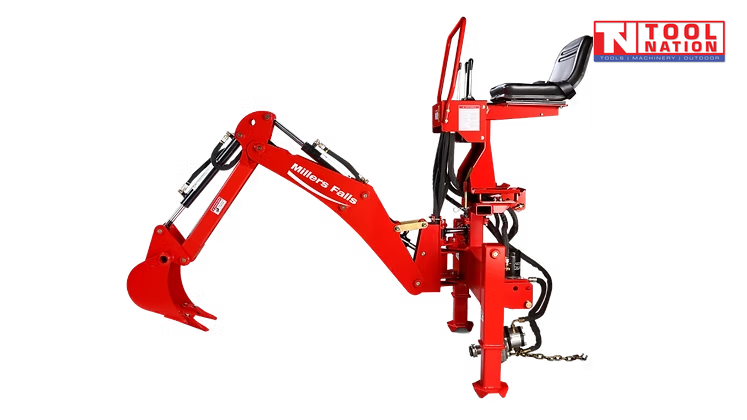

FIBK145 mini backhoe is designed for universal small to medium tractors from 10 to 40hp with category Ⅰ/Ⅱ linkages. The backhoe is a construction machine that is mainly used in earthworks. The FIBK145 backhoe attachment has its own hydraulic tank and pump. It is a perfect digging attachment for compact tractors.

The FIBK145 tractor backhoe is supplied with its own hydraulic pump and hydraulic oil tank alleviating the need to use the tractors hydraulic system, simply connect the supplied pump to the tractors PTO output via a PTO Shaft.

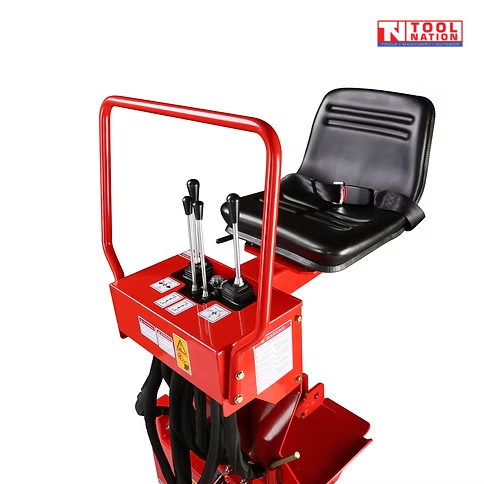

It is easy to operate and controlled by 2 joysticks from its independent control station. The FIBK145 tractor backhoe attachment is an affordable and high-quality alternative to a mini excavator, designed for medium to heavy duty performance and uses a very powerful hydraulic system creating a greater digging force.

Features:

• CNC laser cutting of entire machine and components achieves perfect alignment of all moving parts, thereby maximising the service life of cylinders, bearings and other components.

• 3-point linkage hitch, category 1 and 2;

• Precision Italian made control valves for smooth operation of hydraulic system

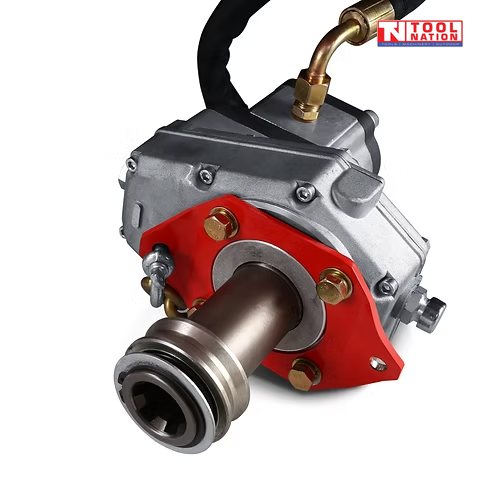

• PTO driven hydraulic pump with gearbox for 540RPM;

• Replaceable Oil filter included for total hydraulic system protection

• No requirement to have hydraulic remotes on the tractor

• Left and right supporting feet can be controlled to rise or fall separately or at the same time as required;

• Boom swings 180° left and right;

• Thick and durable high-quality powder coating;

• Adjustable tilt seat.

Uses:

Landscaping and Gardening: Mini backhoes are ideal for landscaping and gardening projects, such as digging ponds, installing irrigation systems, and leveling uneven ground. They can also be used to remove trees, stumps, and rocks.

Construction and Excavation: Mini backhoes are commonly used in construction and excavation projects, such as digging foundations, trenches, and footings. They can also be used to remove asphalt, concrete, and other materials.

Farming and Agriculture: Mini backhoes are useful machines in farming and agriculture, such as digging trenches for irrigation systems, installing fence posts, and moving manure. They can also be used for landscaping and maintaining pastures.

Demolition: Mini backhoes are also useful for demolition projects, such as clearing driveways, sidewalks, and parking lots. They can also be used to demolish small structures, such as sheds and garages.
