Tractor Backhoe Attachment 25-50HP 3-Point Linkage

FIBK215

Tractor Backhoe Attachment suit 3-point Linkage Tractor 25-50HP

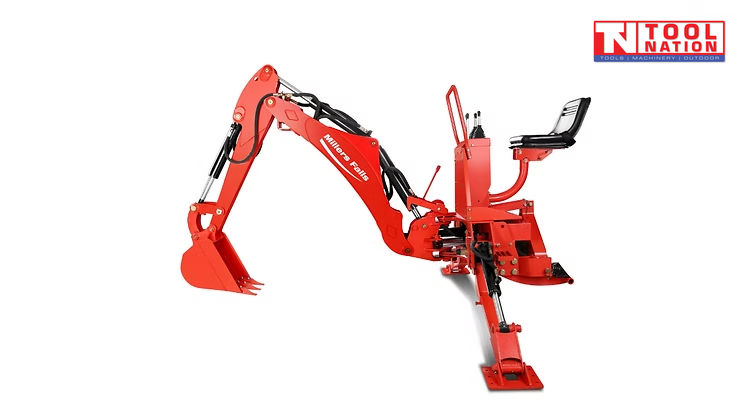

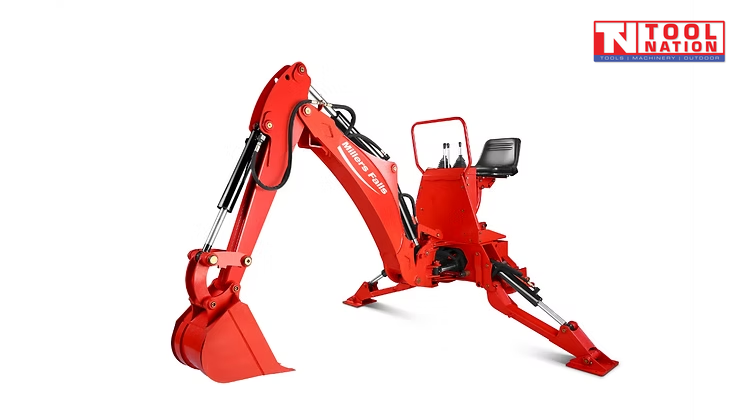

FIBK215 tractor backhoe is designed for universal medium size tractors from 25 to 50hp with category Ⅰ/Ⅱ linkages. The backhoe is a construction machine that is mainly used in earthworks.

It is easy to operate and control with the Italian Made twin joysticks from its independent control station. The FIBK215 tractor backhoe attachment is an affordable and high-quality alternative to a mini excavator, designed for medium to heavy duty performance and uses a very powerful hydraulic system creating a great digging force. It is the perfect attachment for compact to medium tractors.

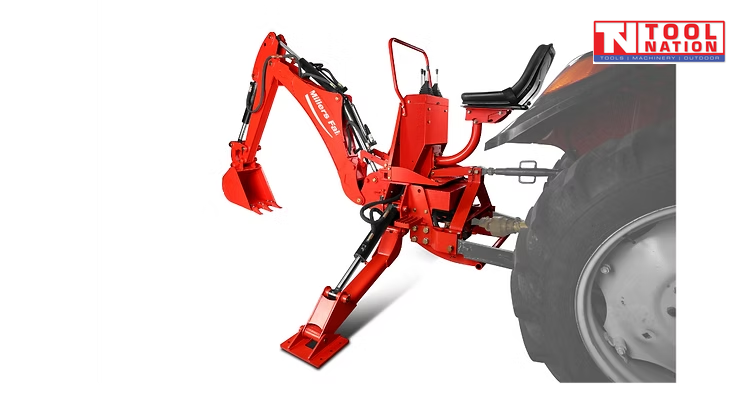

FIBK215 tractor backhoe is supplied with its own hydraulic pump and hydraulic oil tank alleviating the need to use the tractors hydraulic system, simply connect the supplied pump to the tractors PTO output via a PTO Shaft.

Thanks to its compact transportation size and weight the backhoe also can stay mounted to your tractor when you drive on public road.

Features:

• CNC laser cutting of entire machine and components achieves perfect alignment of all moving parts, thereby maximising the service life of cylinders, bearings and other components.

• 3-point linkage hitch, category 1 and 2;

• Precision Italian made control valves for smooth operation of hydraulic system

• PTO driven hydraulic pump with gearbox for 540RPM PTO Output;

• Replaceable Oil filter included for total hydraulic system protection

• No requirement to have hydraulic remotes on the tractor

• Italian made hydraulic valve provides exceptional durability, performance and smooth operation.

• Left and right supporting feet can be controlled to rise or fall separately or at the same time as required;

• Boom swings 180° left and right;

• Thick and durable high-quality powder coating;

• Adjustable tilt seat.

Uses:

Landscaping and Gardening: Backhoes are ideal for landscaping and gardening projects, such as digging ponds, installing irrigation systems, and leveling uneven ground. They can also be used to remove trees, stumps, and rocks.

Construction and Excavation: Mini backhoes are commonly used in construction and excavation projects, such as digging foundations, trenches, and footings. They can also be used to remove asphalt, concrete, and other materials.

Farming and Agriculture: Mini backhoes are useful machines in farming and agriculture, such as digging trenches for irrigation systems, installing fence posts, and moving manure. They can also be used for landscaping and maintaining pastures.

Demolition: Mini backhoes are also useful for demolition projects, such as clearing driveways, sidewalks, and parking lots. They can also be used to demolish small structures, such as sheds and garages.
