SKU: ATXACB75150E
Out of stock
$10,000.00
Shipping calculated at checkout
ACB75150E

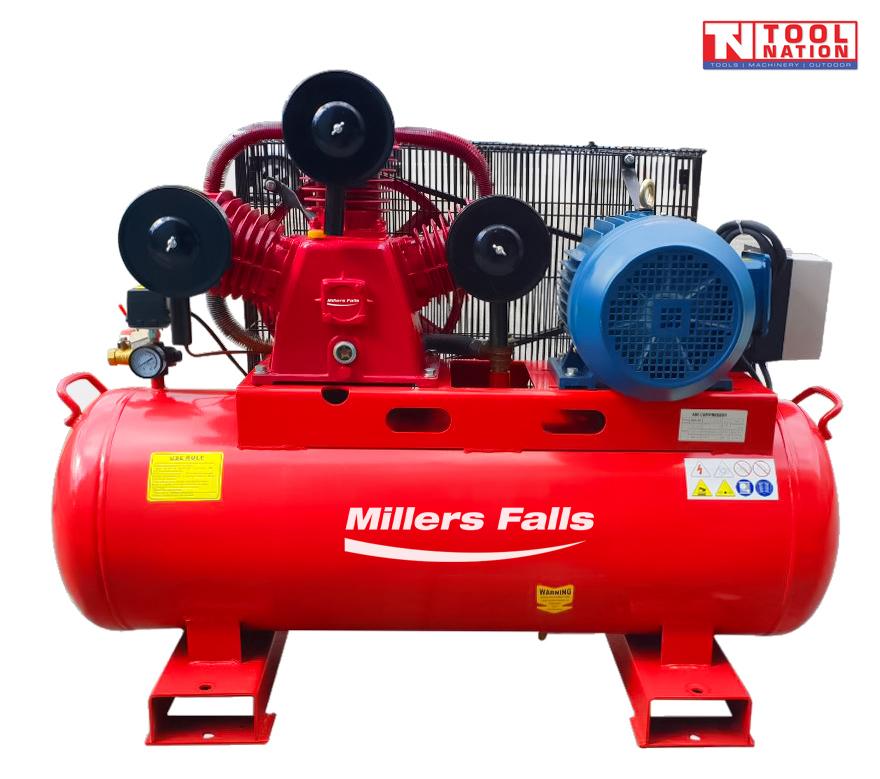

Air Compressor Belt Drive 3 Cylinder 7.5HP 150 Litre Receiver 415 VOLT 3 PHASE

Description:

The Millers Falls Belt Drive Air Compressor with 7.5 HP MEPS Compliant Electric Motor is a highly reliable and powerful unit that is designed to deliver a high volume of compressed air. With its automatic stop/start ultra dependable IP55 rated 7.5kW 415V 3 Phase electric motor, this compressor ensures consistent and efficient performance.

One of the standout features of this compressor is its oversized 150L receiver, which allows it to deliver an impressive 810 litres per minute of free air. Even under demanding loads, it can maintain a strong 115 PSI of pressure. This makes it suitable for a wide range of applications and ensures that it can meet the needs of demanding projects.

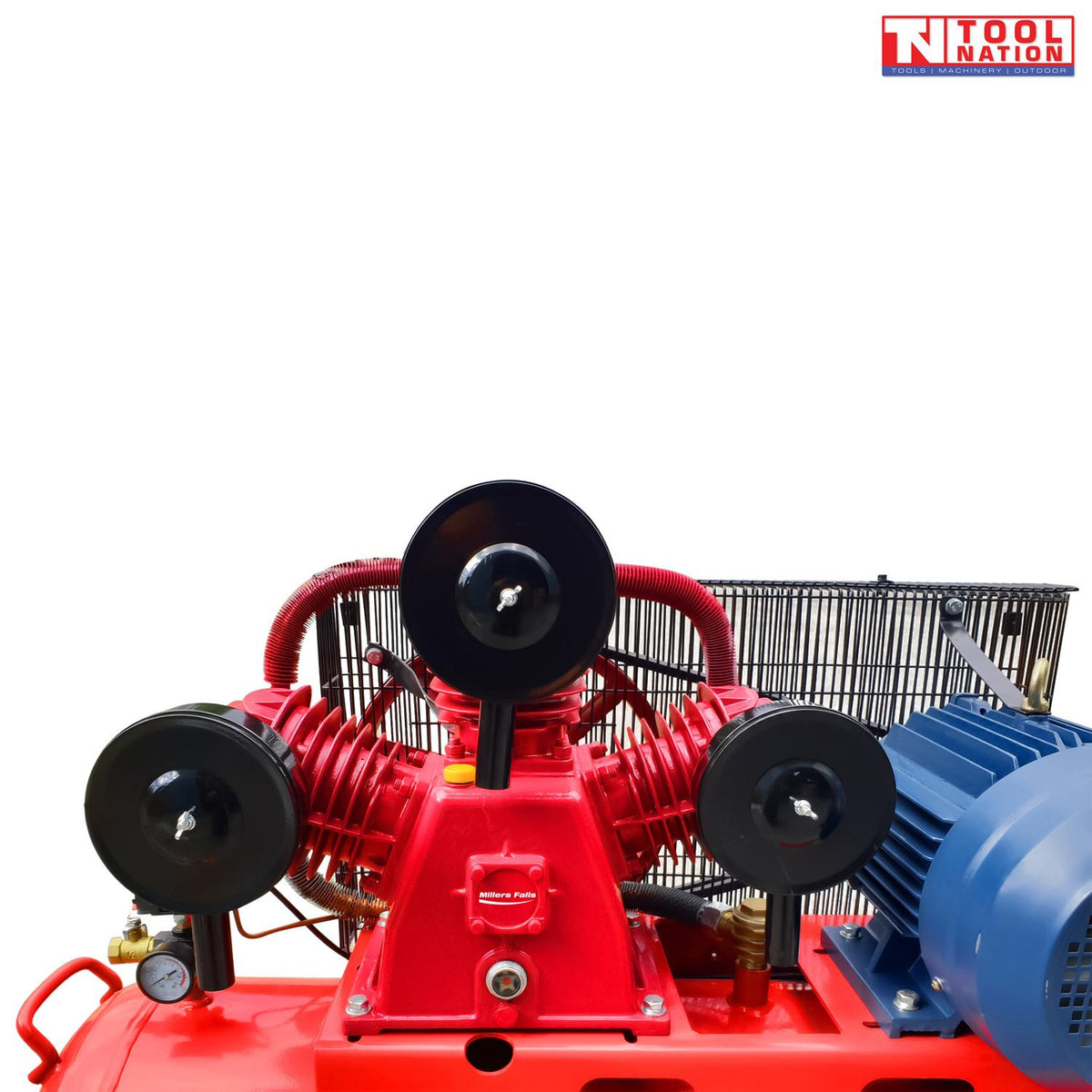

What sets Millers Falls apart from other brands is its unique triple 90mm pump with cast iron sleeves in a Tri-V layout with twin belt drive. This design ensures optimal performance by minimizing moisture and air temperature variations, resulting in lower operating temperatures. The larger pistons operating at a lower speed also reduce moisture and prolong the life of the compressor and air tools. This makes it particularly suitable for spray painting applications where a perfect paint finish is essential.

Constructed from tough cast iron instead of aluminium, the Millers Falls 33CFM electric piston compressor is built to last. Its lower RPM pump allows the pump to run cooler and last longer, while the raised head and multiple cooling fins enhance heat dissipation. The use of copper connecting pipes and stainless-steel reed valves further contributes to the durability and longevity of this compressor. The pressure vessels are designed and built to Australian Standards, ensuring high quality and durability.

In addition to its durability, the Millers Falls Belt Drive Air Compressor with 7.5 HP Electric Motor offers practical features. Its 150L tank capacity provides an efficient flow rate and helps minimize downtime, making it suitable for workshops and factories. The dual gauges clearly display the amount of air in reserve and the delivered pressure, allowing for easy adjustments to suit specific work requirements. The belt-drive layout not only simplifies maintenance but also reduces noise compared to direct-drive units. Furthermore, the addition of rubber dampeners underneath the tank will help prevent mechanical shocks and further reduces noise.

Overall, the Millers Falls Belt Drive Air Compressor with 7.5 HP Electric Motor offers a combination of power, reliability, and durability. With its high air output, efficient tank capacity, and practical features, it is an excellent choice for those in need of a dependable air compressor without the higher price tag.

Features:

  • Slow revolution 3-cylinder full cast iron pump.

  • MEPS Compliant Three Phase Electric Motor 415volt, 5.5KW / 7.5HP.

  • Unique heavy duty high flow belt guards.

  • Certified Australian Standards tank.

  •  1 x ½ bsp air outlet and 1 x 1/4bsp outlet to allow easy connection to an airline or a permanent system.

  • The unit also has a tank pressure gauge and automatic start stop switch fitted.

Specifications:

Model No: ACB75150E

Pump: 3090, 90mm Diameter 3 Pistons

Displacement: 900 L/ min (33 cfm)

Tank Capacity: 150 Litres

Maximum Pressure: 115 PSI 8 Bar

Pump RPM: 780 rpm

Motor: 7.5hp (5.5kw)

Volts/amps: 415v

Shipping Dimensions: 160kg, 130 x 48 x 98cm.
