ACBPUMP2065 Air Compressor – 2-Cylinder Cast Iron, 250L/min 9CFM, 115PSI

SKU: ATXACBPUMP2065
In stock
$176.00
Shipping calculated at checkout
ACBPUMP2065

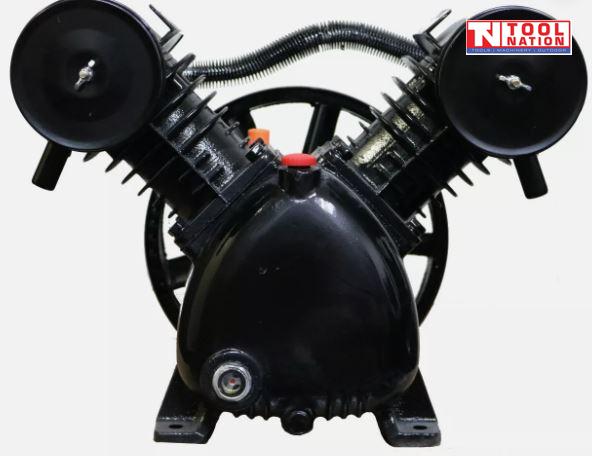

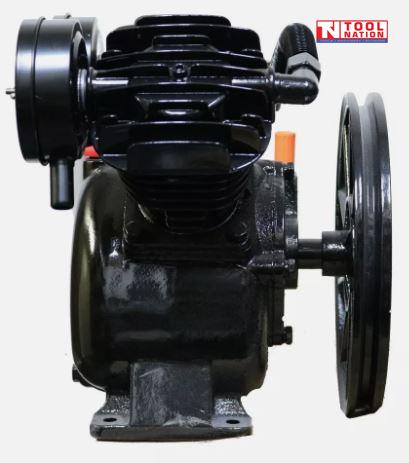

AIR COMPRESSOR PUMP 2 Cylinder Cast Iron V Style

Description:

Millers Falls two cylinder cast iron single stage air compressor pump. This pump is most commonly used on 240 volt or petrol driven air compressors and mounted on an air receiver.  The most common motor sizes used with this pump ranges from 2 to 3 horsepower electric or 5.5-7.5HP Petrol engines. The pump comes complete with intake filters and flywheel.

The Millers Falls Belt Driven Air Compressor pump has a displacement of 250 LPM at 980 RPM. One of the standout features of this model is its comparatively high air output. With about 180 Litres per Minute of actual Free Air Delivery (F.A.D.) at 8 BAR this pump can comfortably run most air tools.

Features:
  • Two Cylinder Cast Iron Pump

  • Cast Iron Cylinder and Crankcase

  • Durable - High quality components & fittings.

Specifications:

Model: ACBPUMP2065

Recommended Working Pressure: 115 PSI

Recommended RPM: 900-1200

Displacement: 250L/min Max (9cfm) @980 RPM

Power Required: 2250W (3.0HP/2.2kW) Electric

Power Required: 5.5 HP – 6.5 HP Petrol

Air Flow @ 8 Bar: 230L/min

Air Flow @ 4 Bar: 280L/min

Noise: 76dB

Pump: 2 x 65mm Cylinders

Flywheel Diameter: 265 mm

Package Size: 39 x 27 x 35 cm

Weight – G.W = 16.5kg   N.W = 15.5kg
