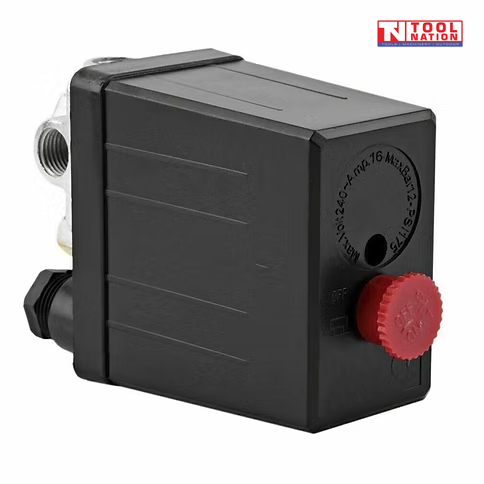

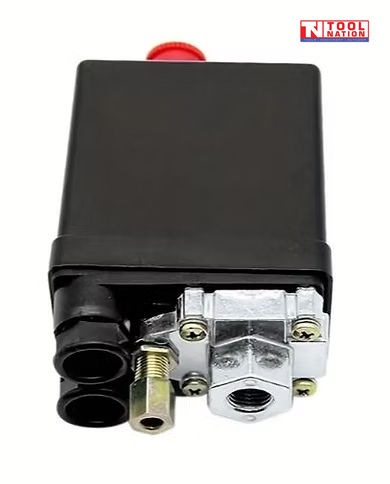

Millers Falls ACS1 Air Compressor Pressure Switch Single Port 240V 175PSI 16A
Millers Falls ACS1 Air Compressor Pressure Switch Single Port 240V 175PSI 16A
Millers Falls ACS1 Air Compressor Pressure Switch Single Port 240V 175PSI 16A
Millers Falls ACS1 Air Compressor Pressure Switch Single Port 240V 175PSI 16A

Millers Falls ACS1 Air Compressor Pressure Switch Single Port 240V 175PSI 16A

SKU: ATXACS1
Out of stock
$32.00
Shipping calculated at checkout
ACS1

AIR COMPRESSOR PRESSURE SWITCH SINGLE PORT 240 Volt

Description:

The Millers Falls single port pressure switch is a durable and versatile option for most air compressors. It features adjustable cut in and cut out pressure settings, making it customizable to meet specific needs. The thicker plastic cover ensures durability and longevity, while the large heavy contacts are designed to last.

The quality alloy casting of the air connections adds to its overall durability. The ACS1 pressure switch is a pressure-operated electric switch that regulates tank pressure on electrically driven air compressors. It offers additional features such as an unloader valve to prevent starting under load and an On-Off button for manual control. The single port manifold style option allows for easy mounting of valves and gauges. Overall, this pressure switch is a high-quality and reliable option for air compressor applications.

Features:
  • 1 x 1/4” BSP female inlet port
  • Unloader 1/4” copper or nylon
  • Pressure range 45-175psi
  • Differential (non Adjustable) 45psi
  • Factory setting 85-115psi
  • Contact Arrangement Normally Closed
  • Auto load/unload
  • ON/OFF switch knob
  • Copper connector
  • Easy to install and convenient to use
  • Durable - High quality components & fittings.
Specifications:
Specification Value
Model ACS1
Maximum Pressure 175 PSI
Maximum Voltage 240V
Current 16A
Dimensions (L × W × H) Approx. 82 × 52 × 135 mm
Weight 200 g
