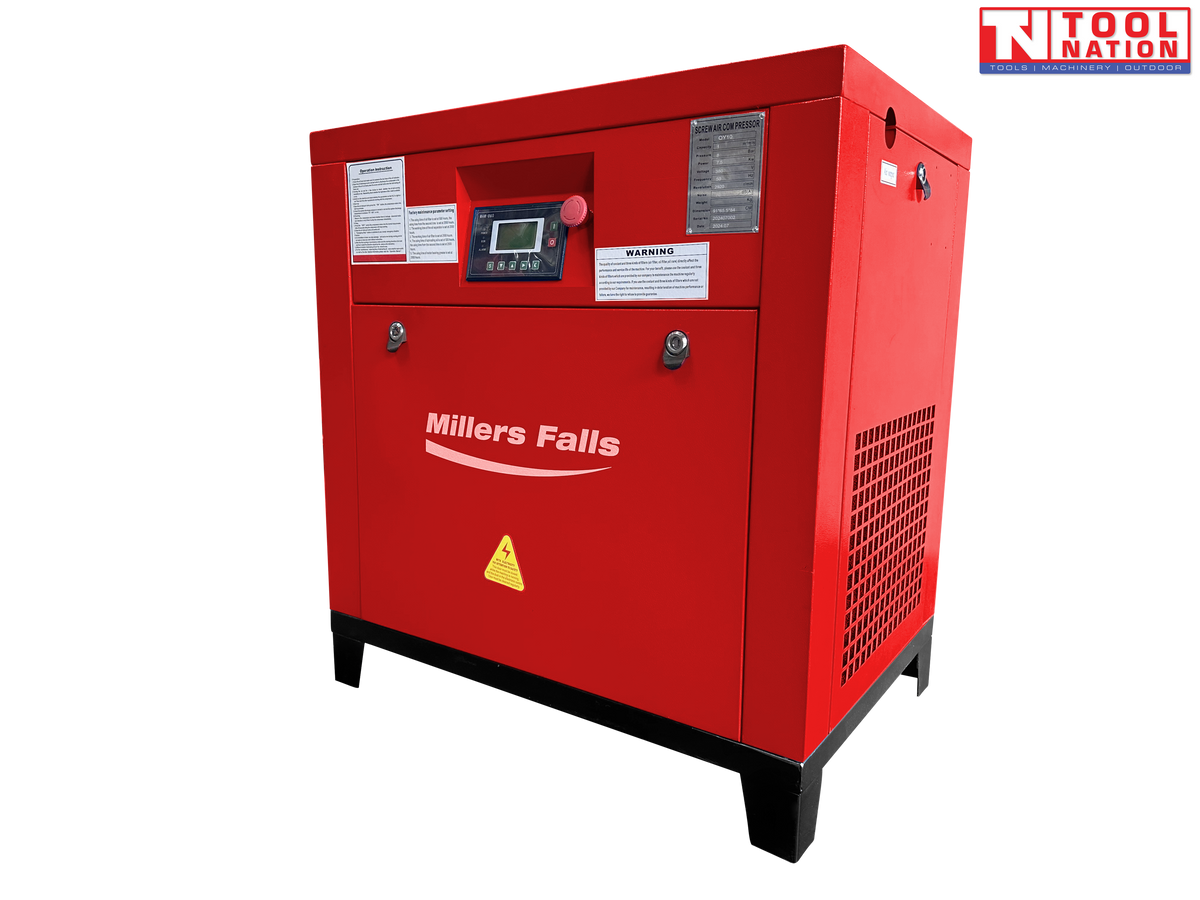

ACSE15-8 – Screw Compressor, 15HP, 8 Bar 115 PSI, 67CFM, 415V 3-Phase VSD

ACSE15-8 – Screw Compressor, 15HP, 8 Bar 115 PSI, 67CFM, 415V 3-Phase VSD

SKU: ATXACSE15-8
Out of stock
$10,000.00
Shipping calculated at checkout
ACSE15-8

Screw Compressor 15HP 8 Bar 115PSI 67CFM

Description:

Screw compressors provide significant advantages over piston compressors, including quieter operation, cooler running temperatures, a consistent airflow supply, and the ability to operate at a 100% duty cycle. They are also more energy-efficient, as they reduce the stop-start current loads typically associated with traditional piston models.

Millers Falls offers an impressive range of air-cooled rotary screw compressors, with motor power options ranging from 2.2 to 15 kW and operating pressures of 8 to 10 bar. This range features high-performing air ends designed to enhance reliability and longevity, complemented by quality valves and separators. The use of permanent magnet electric motors contributes to these compressors achieving high technological standards and energy efficiency.

A standout model, the ACSE15-8, is a single-stage, air-cooled, oil-injected rotary screw air compressor. The compressor pack includes the air end, drive motor, air and oil systems, filters, oil cooler, cooling fan, and electro-pneumatic regulating control. It is engineered for continuous duty, allowing it to deliver full output without compromising its lifespan. This compressor is designed to be used with an existing downstream air tank , dryer and filter sets.

The ACSE15-8 is built for high performance, efficiency, and reliability, making it suitable for diverse applications including: workshops and tyre fitters, industrial manufacturing, panel beaters, maintenance operations and automotive dealerships. Its super-quiet design makes it versatile for installation in numerous settings, and it can be paired with an optional air receiver and mounted dryer. Optional fully packaged units come complete with Refrigerated Dryer, pre filters to protect the dryer and post filters with water separator to protect downstream tools and machinery.

As a 15HP rotary screw air compressor, the ACSE15-8 boasts 67 CFM Variable Speed Drive capabilities, positioning it as a top choice for light industrial applications. This model is not only capable of delivering more pressurised air than lighter models but also operates cooler and quieter due to its enclosed cabinet.

Powered by a 415V three phase high efficiency motor the ACSE15-8 is ideal for indoor and workshop environments. It features a permanent magnet motor that enhances energy savings and is particularly effective for situations where compressed air demand varies significantly. Its robust screw compressor technology enables durability and supports a continuous 100% duty cycle. The permanent magnet energy variable speed system offers superior energy efficiency compared to standard variable speed motors and conventional start-stop non-variable speed motors.

Designed for ease of transport, the ACSE15-8 can be moved with a forklift and has a compact footprint.

Ideal for small businesses or home workshops, the ACSE15-8 delivers impressive airflow with class-leading free air delivery performance and operates at pressures of up to 8 Bar - 115 PSI. It offers flexibility by providing full power for demanding tasks while also accommodating lower output needs for smaller jobs, ensuring efficient use of energy.

Overall, the Millers Falls ACSE15-8 rotary screw compressor epitomises world-class efficiency with its high-quality components and enclosed cabinet unit design, lowering maintenance costs and ensuring superior reliability, making it an excellent choice across various industries for small to medium-sized enterprises.

Features:

  • Quiet, Efficient, Powerful, Reliable and Affordable.

  • Advanced control system allowing easy monitoring, diagnostics, and adjustment of compressor settings

  • Permanent Magnet Variable Frequency Screw Compressor

  • Fast Storage, Fast Flow Supply

  • Suitable For High Temperature and Continuous Work

  • High Efficiency VSD Motor Low Power Consumption

  • Long Working Life

  • Supports Low Voltage Start

  • Low Maintenance Cost

  • Enclosed Cabinet Low noise 63 db

  • Low Vibration

Specifications:

Power Supply:   415V 50Hz

Motor Speed: 2920 rpm

Drive Type: Direct Drive Coupled

Free Air Delivery: 67 CFM / 1900 LPM

Maximum Working Pressure: 115 PSI (8 Bar)

Working Temperature:   0-45 C

Electric Motor: 11 kw 15 HP Permanent Magnet High Efficiency Motor

Noise Level: 63dB at 7 metres

Air Outlet: G ½” threaded female

Net Weight: 290kg

Dimensions: 70 x 67 x 125  cm

Shipping Weight: 310 kg

Shipping Dimensions: 111 x 78 x 111 cm
