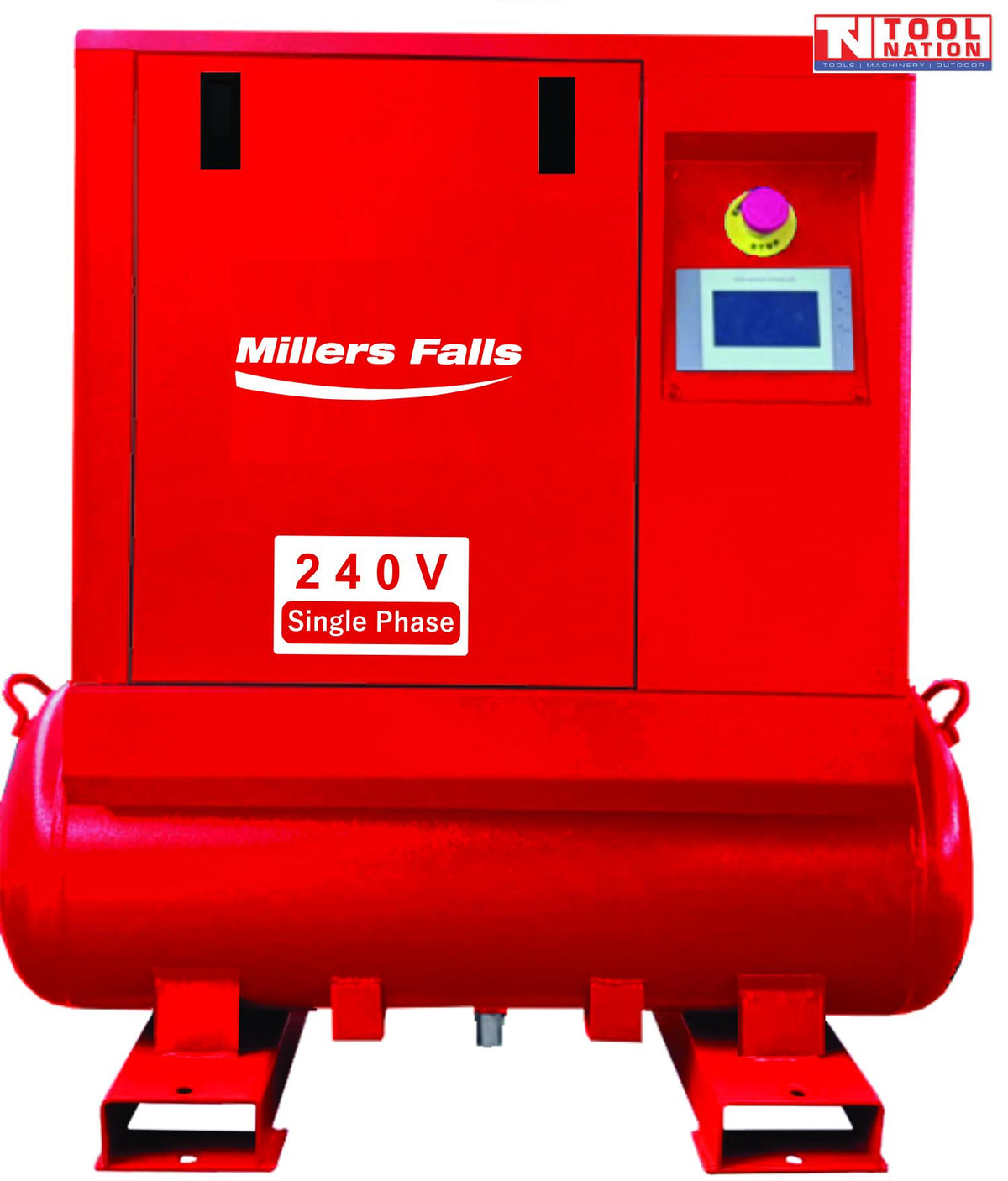

Screw Compressor - 3HP, 100L Tank, 350 LPM 12 CFM, 10 Bar 145 PSI, 240V

Screw Compressor - 3HP, 100L Tank, 350 LPM 12 CFM, 10 Bar 145 PSI, 240V

SKU: ATXACSE30100-10
Out of stock
$10,000.00
Shipping calculated at checkout
ACSE30100-10

Screw Compressor 3HP 10 Bar 13CFM 100L Tank

Description:

Screw compressors are a far better alternative to piston compressors as they are much quieter, run cooler and provide a consistent supply of air and can run continually close to 100% duty cycle. They are also far more energy efficient as they eliminate much of the stop start current loads of traditional piston compressors. The Millers Falls ACSE30100-10 is a single-phase screw compressor providing all the benefits of larger units with the added flexibility of being far more portable (if required) and being able to be connected to a single phase 240-volt power supply.

This screw compressor is ideal for a small sized business or the home workshop, it provides serious airflow has class-leading free air delivery performance suiting multiple applications and at a higher 145PSI of pressure.

The 240-volt single phase compressor is ideal for powering a large range of pneumatic tools, with its quiet operation, rugged design it is suitable for various applications in the construction and automotive industries.

Whether you require full power for demanding tasks or lower output for smaller jobs this unit provides flexibility and efficiency, ensuring you use only the necessary power.

The Millers Falls ACSE30100-10 Compressor is a rotary screw compressor that uses a permanent magnet motor to save energy and is particularly suited to applications with widely fluctuating compressed air demand.  Its screw compressor technology makes it durable and capable for a 100% continuous duty cycle.  The Idle Down feature of the compressor ads to its energy efficiency parameters, it is far more energy efficient than traditional stop start compressors of a similar size.

World class efficiency in an enclosed cabinet unit to enable reduced maintenance costs and ensure superior reliability.

The Millers Falls ACSE30100-10 Compressor is a reliable and versatile compressor specifically designed for workshops, home use or factories requiring a quiet consistent reliable air supply from a 240 volt single phase outlet.

Features:

  • 240 Volt Single Phase Power

  • Idle Down Feature

  • Quiet, Efficient, Powerful, Reliable and Affordable.

  • Fast Storage, Fast Flow Supply

  • Suitable For High Temperature and Continuous Work

  • Low Power Consumption

  • Long Working Life

  • Supports Low Voltage Start

  • Low Maintenance Cost

  • Low noise 63 db

  • Low Vibration

Specifications:

Power Supply:   240V 50Hz

Motor Speed: 2900 rpm

Drive Type: Direct Drive Coupled

Free Air Delivery: 12 CFM / 350 LPM

Maximum Working Pressure: 145 PSI (10 Bar)

Working Temperature:   0-45 C

Electric Motor: 2.2kw 3 HP (High Efficiency Motor)

Noise Level: 63dB at 7 metres

Air Receiver: 100 Litre with Fork Pockets

Air Outlet: G ½” threaded female

Net Weight: 200kg

Shipping Weight: 230 kg

Shipping Dimensions: 143 x 65 x139 cm
