SKU: ATXAFR2000
Out of stock
$10,000.00
Shipping calculated at checkout
AFR2000

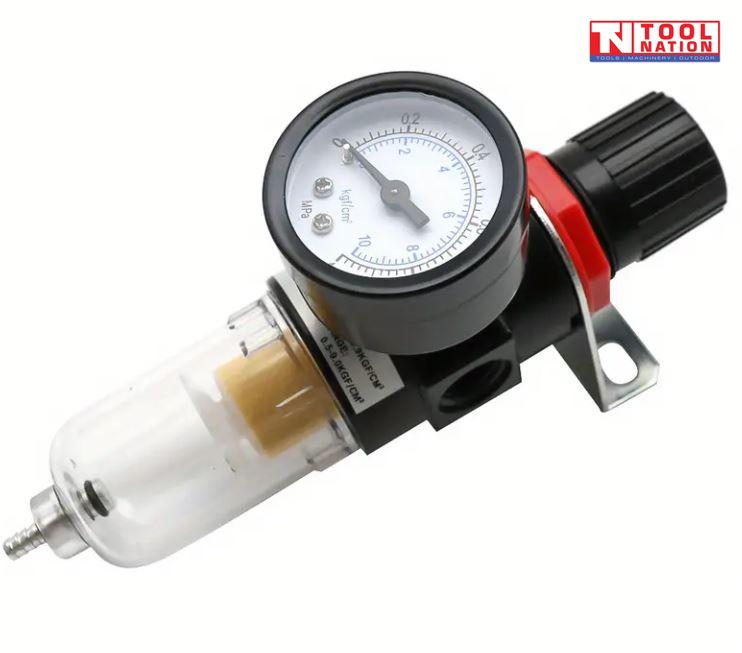

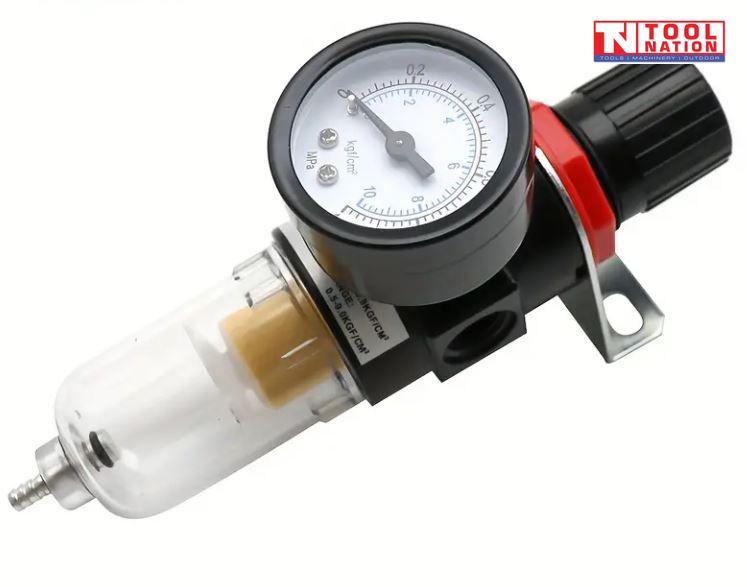

AIR FILTER REGULATOR ¼” BSP

Description:

The Millers Falls combined water trap & regulator with gauge is a must for whenever using air tools or air operated equipment. The water trap removes moisture from the air while the regulator allows the user to set and maintain the desired air pressure. The convenient drain at the bottom of the bowl allows a hose to be fitted to direct water away from the machine. The ¼” BSP ports and the most common on the market and fitting are readily available to suit.

Features:

  • 1/4″ BSP female inlet ports

  • Easy to install and convenient to use

  • Durable - High quality components & fittings.

  • Mounting Bracket Included

Specifications:

Model: AFR2000

Capacity: 60cc

Fitting Size: 1/4″ BSP Female

Max Pressure: 0.99MPA (9.9bar)

Adjustable Pressure Range: 0.05-0.9MPa (0.5-9.0bar)

Operating Temperature Range: 5°C -60°C

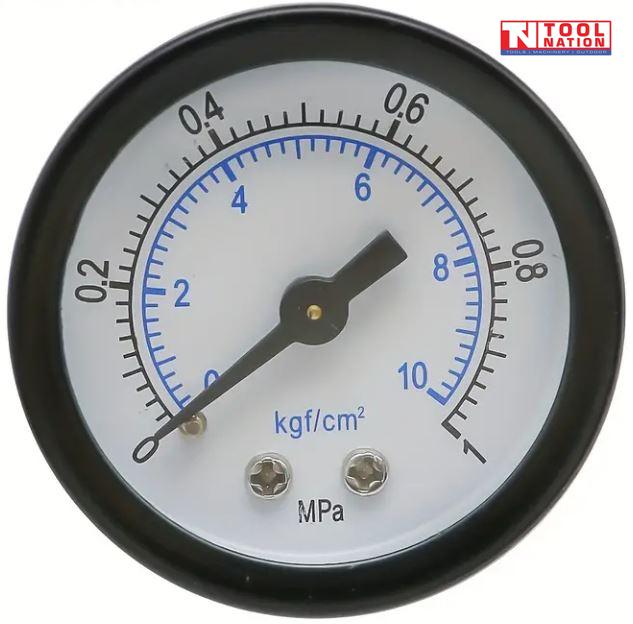

Pressure Gauge Range: 0-1MPa, 0-10kgf / cm2

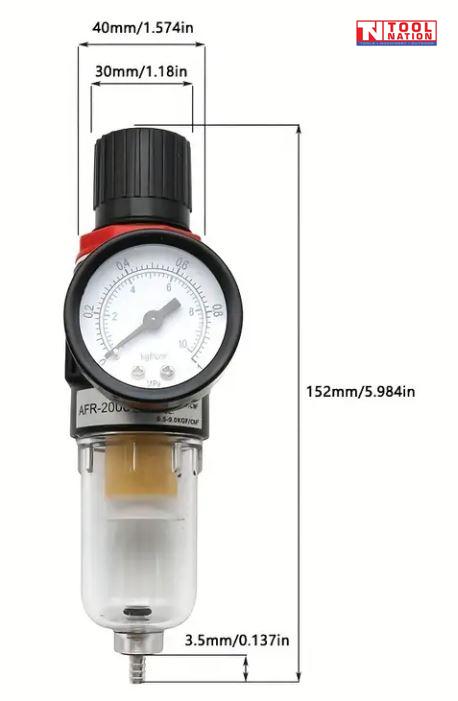

Size: 49x20x52mm

Weight: 0.5 kg

Shipping cost is calculated at checkout.
