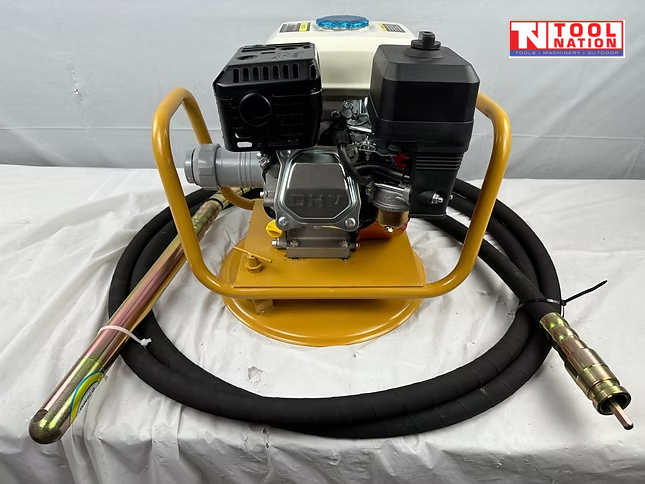

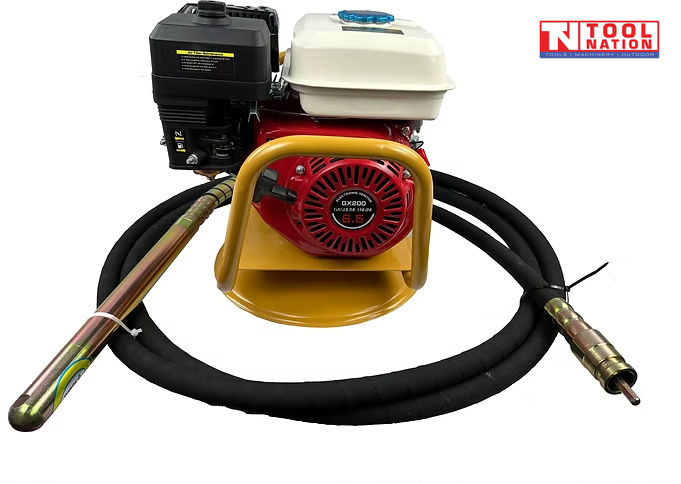

CONVIB 6.5HP Petrol Concrete Vibrator 38mm x 6m Hose Swivel Cradle
CONVIB 6.5HP Petrol Concrete Vibrator 38mm x 6m Hose Swivel Cradle
CONVIB 6.5HP Petrol Concrete Vibrator 38mm x 6m Hose Swivel Cradle
CONVIB 6.5HP Petrol Concrete Vibrator 38mm x 6m Hose Swivel Cradle

CONVIB 6.5HP Petrol Concrete Vibrator 38mm x 6m Hose Swivel Cradle

SKU: ATXCONVIB
Out of stock
$438.00
Shipping calculated at checkout
CONVIB Concrete Vibrator

6.5HP Petrol Powered Concrete Vibrator – 38mm Poker Head with 6m Hose

Description:

The Millers Falls CONVIB 6.5HP concrete vibrator is designed for consolidating and compacting concrete in construction projects. It provides strong vibration to agitate the concrete mixture, eliminating air pockets, reducing voids, and improving durability.

Its robust engine and swivel cradle make it perfect for handling demanding tasks with stiff or high-slump concrete mixes. Simply insert the hose into wet concrete to achieve high-quality results quickly.

Flexible Hose:

Fitted with a 6m flexible hose, the CONVIB offers plenty of reach for large pours and tough-to-access areas.

Swivel Cradle:

The engine sits on a swivel cradle that rotates with the pump cable and can also be locked in position. Built-in handles ensure easy transport and manoeuvrability around the job site.

Universal Coupling:

Features a Japanese-style quick-release coupling with a 10mm hex connection, providing a secure and reliable fit between the inner cable and the engine.

Engine:

Millers Falls engines are known for durability and longevity. With cast iron casing, OHV valve system, and low oil shut-off protection, this engine is built for heavy-duty use on demanding worksites.

Vibrator/Poker Specs:
  • Diameter: 38 mm
  • Length: 6 m
  • Steel Vibrator Head
Engine Specs:
  • Air-cooled
  • OHV valve system
  • Recoil starting system
  • Single cylinder
  • Cast iron casing for increased engine life
  • Automatic low oil alarm & shut-off
  • Shaft Diameter: 19 mm
  • Fuel Tank Capacity: 3.6 Litres
  • Oil Capacity: 0.6 Litres
  • Speed: 3600 RPM
  • Compression Ratio: 8.5:1
  • Displacement: 196 cc
  • Noise Level: 70 dBA
Shipping:
Detail Value
Weight 35 kg
Dimensions (L × W × H) 78 × 66 × 50 cm

Shipping cost is calculated at checkout.
