CR500EL

Swivel Crane - Truck or Ute

Description:

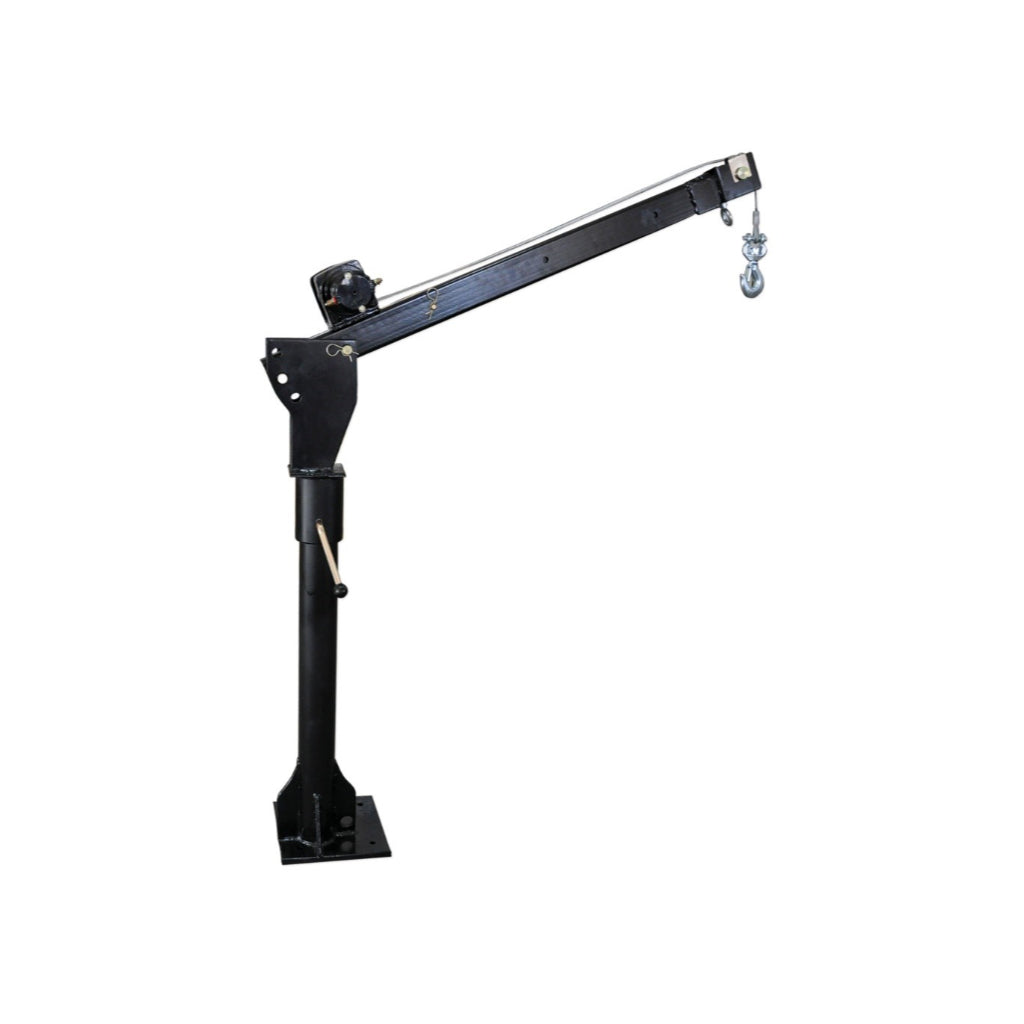

The Millers Falls CR500EL Swivel Crane is a versatile and compact lifting solution, designed for mounting on utes, service bodies, vans, trucks, loading docks, or platforms. Ideal for lifting goods on and off vehicles or platforms, this crane offers efficient and safe lifting with a powerful 12V DC winch. The CR500EL is built to lift up to 800 kg using a double-line lift, or 500 kg with a single-line lift, making it perfect for a variety of heavy-duty tasks. Whether you need to load materials onto a truck or move heavy equipment, this crane’s portability, ease of use, and powerful lifting capacity make it an essential tool for your operations.

With its telescoping boom and multiple lifting positions, the CR500EL offers flexibility to accommodate different lifting requirements. The crane is capable of rotating 360° manually, allowing you to position the load precisely, and it features a quick storage fold for space-saving when not in use.

The CR500EL Swivel Crane is an indispensable tool for lifting, loading, and unloading heavy items with ease, providing flexibility and safety for a wide range of applications. Whether you're working on a truck, ute, or platform, this crane delivers reliable performance and convenience.

Key Features:

  • Lifting Capacity: 800 kg with double-line lifting; 500 kg with single-line lifting.

  • Telescoping Boom: Adjustable positions for different lifting capacities:

    • 500 kg @ 930 mm (single line)

    • 250 kg @ 1180 mm (single line)

    • 100 kg @ 1430 mm (single line)

  • Lifting Winch: 12V DC 125A winch for reliable and consistent power.

  • Boom Elevation: 3 manual elevation angles (3°, 20°, 40°) for flexible lifting.

  • Lifting Speed: 3.6 m/min with no load (single line).

  • 360° Rotation: Continuous manual rotation with sealed thrust bearing for full maneuverability.

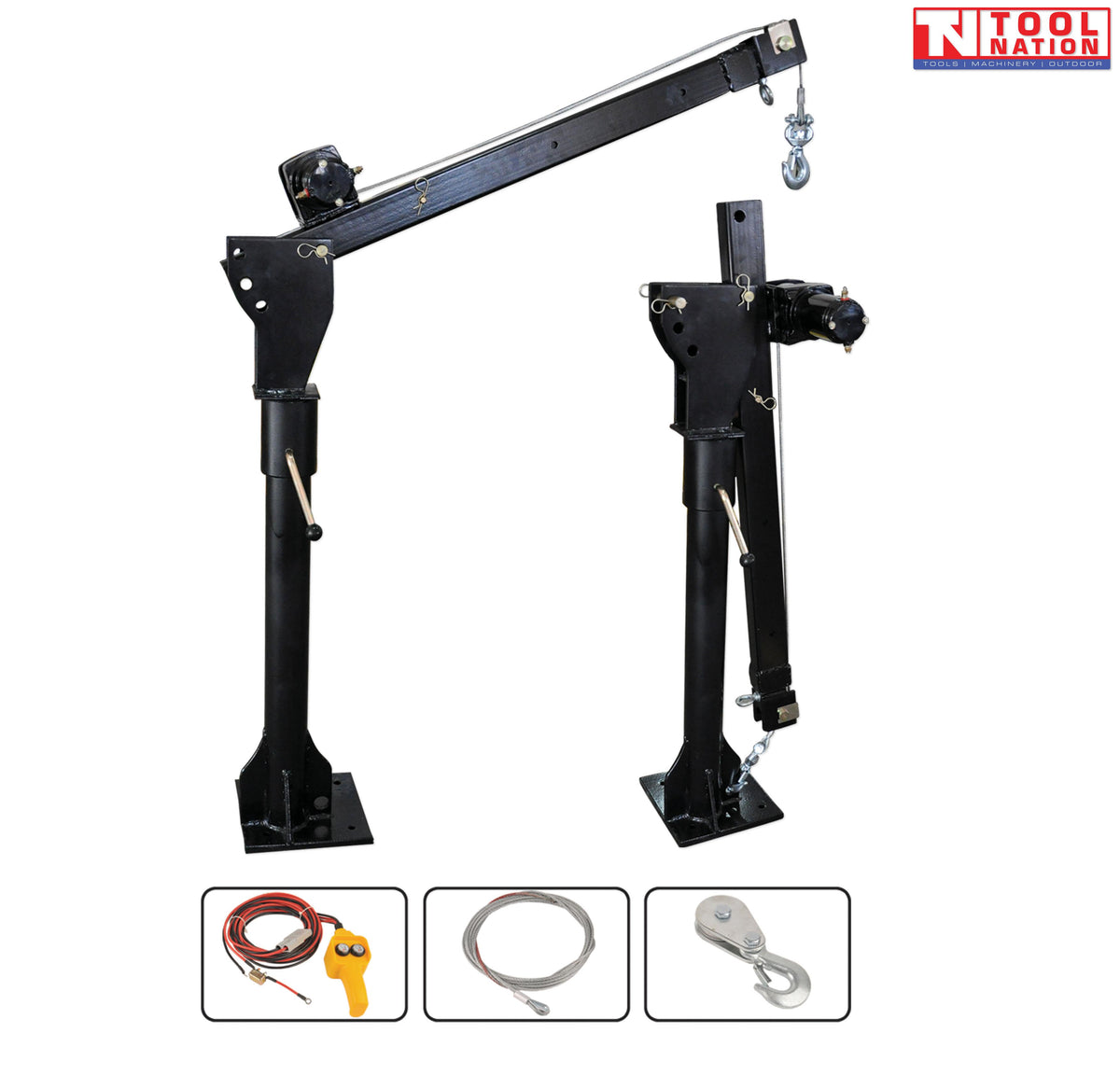

  • Storage: Foldable design for compact storage when not in use.

  • Cable Length: 4.5 meters (single line) and 5.5 meters (double line).

  • Mounting Base Plate: 250 x 250 x 16 mm with 170 x 170 mm bolt hole centers.

  • Hand Control: Comes with a 4.2-meter cable for easy operation.

  • Rotation Lock: Secure hand lock for stable rotation.

Specifications:

Lifting Capacity:

  • 800 kg (Double-line lifting)

  • 500 kg (Single-line lifting)

  • 500 kg @ 930 mm

  • 250 kg @ 1180 mm

  • 100 kg @ 1430 mm

Lifting Winch: 12V DC, 125 amps

Boom Elevation Angles: 3°, 20°, 40° (manual adjustment)

Lifting Speed: 3.6 m/min (no load, single line)

Rotation: 360° continuous manual rotation

Storage Height (Folded): 1300 mm

Lifting Height (Base to Hook): 1940 mm

Single-line Lifting Cable: 4.5 meters

Double-line Lifting Cable: 5.5 meters

Mounting Base Plate: 250 x 250 x 16 mm (bolt hole centers 170 x 170 mm)

Hand Control Cable: 4.2 meters

Shipping Dimensions: 140 cm x 52 cm x 49 cm

Shipping Weight: 73 kg
