Stone Burrier 165cm – gear drive, slip clutch, 35–65HP, 120mm depth
Stone Burrier 165cm – gear drive, slip clutch, 35–65HP, 120mm depth
Stone Burrier 165cm – gear drive, slip clutch, 35–65HP, 120mm depth
Stone Burrier 165cm – gear drive, slip clutch, 35–65HP, 120mm depth

Stone Burrier 165cm – gear drive, slip clutch, 35–65HP, 120mm depth

SKU: ATXFISB165A
In stock
$3,117.00
Shipping calculated at checkout
FISB165A

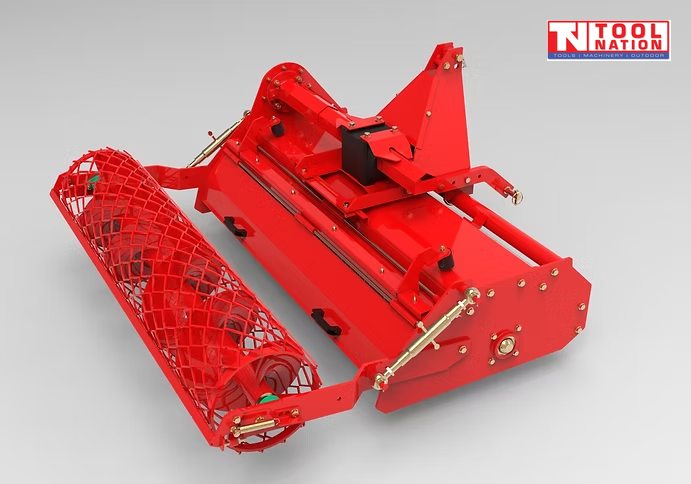

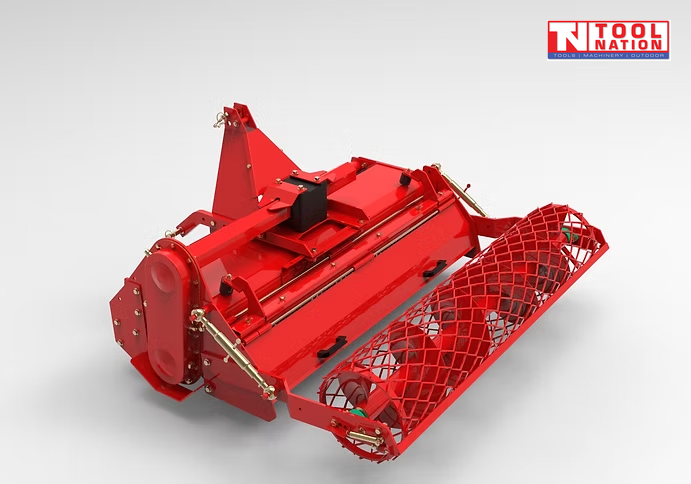

Stone Burrier 165CM Gear Drive with Safety Slip Clutch



The Millers Falls FISB165A Stone Burrier is a versatile and powerful machine that is designed to create a fine and level seedbed in various applications. It is ideal for removing stones, bricks, and unwanted grass, as well as creating green areas around new housing and industrial developments, constructing golf courses, and playing fields.

One of the key features of the Stone Burrier is its ability to handle stony soil effectively. It uses oversized parts that make it tough and dependable, allowing it to withstand demanding soil conditions. It can bury stones and debris up to a maximum width of 165cm and a depth of 120mm, leaving a fine and smooth soil surface.

The Stone Burrier is designed to complete the stone burying process in a single pass, eliminating the need to return to the same row twice. The blades of the machine are hardened to ensure maximum strength, durability, and wear life, even in the toughest soil conditions. It also features an automatic chain tensioner for convenient maintenance and an adjustable rear net roller.

By using the Millers Falls Stone Burrier, you can save time, effort, and money that is usually associated with landscaping or seedbed preparation. It is specifically designed to dig and bury stones, leaving a level and cultivated surface behind. This surface is free from debris and stones, making it perfect for seeding and laying turf.

The Heavy-Duty Stone Burrier is designed for tractors with a horsepower range of 35 to 65 HP, making it suitable for rocky fields and versatile for various applications in agriculture, sports fields, greenhouses, parks, gardens, and golf courses. It is capable of handling heavy soils and hard clay, making it ideal for preparing a smooth seed bed in any type of soil. It is also designed for greenhouse cultivation, preparing the soil for planting in flower beds and gardens.

The Stone Burrier is equipped with a tilling blade shaft that turns opposite to the direction of travel. This ensures thorough soil work and pulverization for the seedbed, resulting in even and high-quality soil conditions for your plants. The reverse direction of the tilling blade shaft throws stones and larger plant waste against very tough digits, separating them from the soil. The rear roller gently compacts the hoed soil, creating a smooth and even surface, providing optimal conditions for your plants to grow.

The Millers Falls FISB165A Stone Burrier is a dependable and efficient machine designed to create a fine and level seedbed. Its versatile capabilities make it suitable for a range of applications, including agriculture, sports fields, greenhouses, parks, gardens, and golf courses. Whether you need to remove stones, prepare soil for seeding or laying turf, or enhance soil preparation in rocky fields, the Stone Burrier can cater to your needs.



Features:

  • Sturdy cast-iron gearbox.

  • PTO Shaft with Safety Clutch included

  • Side skids.

  • Automatic chain tensioner.

  • Adjustable rear net roller.

  • Cage roller.

  • Cat. I and II universal three-point hitch, EC safety guards.

Specifications:

Working Width: 1550mm

Working Depth: 120mm

PTO Speed: 540r/min

Rotor speed: 220 rpm

Tractor Power: 35-65HP

Working Efficiency: 2400-3200㎡/h

PTO Spline: 6x8x700mm

Rotor: flanges: 8

Number of Blades per flange: 4, 2 on each end flange

Blades: quantity: 28

Dimensions: 1760 x 1330 x 920mm

Weight: 410kg
