SKU: ATXGSC23700TWIN
Out of stock
$10,000.00
Shipping calculated at checkout
GSC23700TWIN

23.7kVa Parallel Connected Twin Generator Package

Superior Quality – Unprecedented Functionality – Exceptional Value

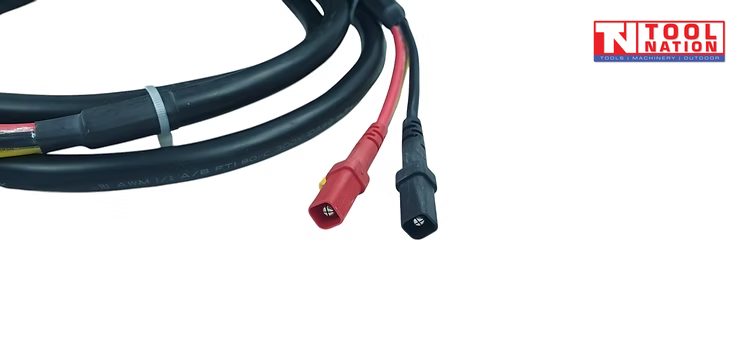

Paralleling is connecting two identical inverter generators to each other via a dedicated parallel kit. This allows the combining of power outputs of each generator into one outlet.

Paralleling generators is best suited when one generator does not produce enough power to run more demanding equipment such as a large air conditioners, workshop equipment, large welders even entire households. It can sometimes be a better choice than buying a larger single generator.

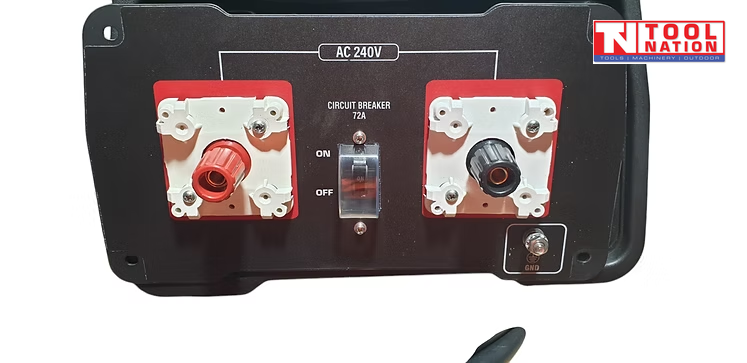

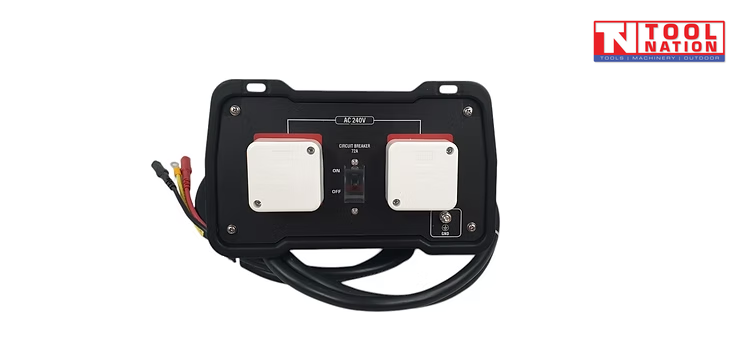

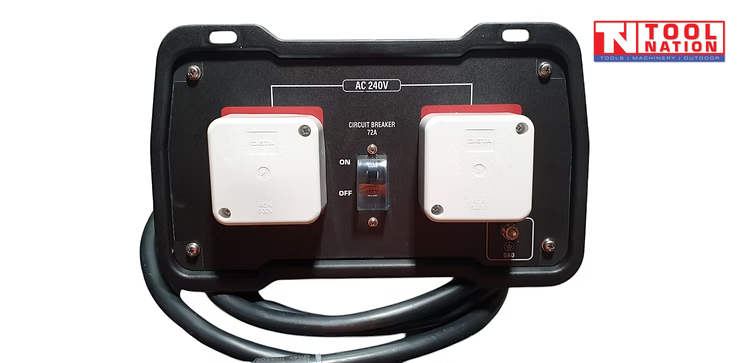

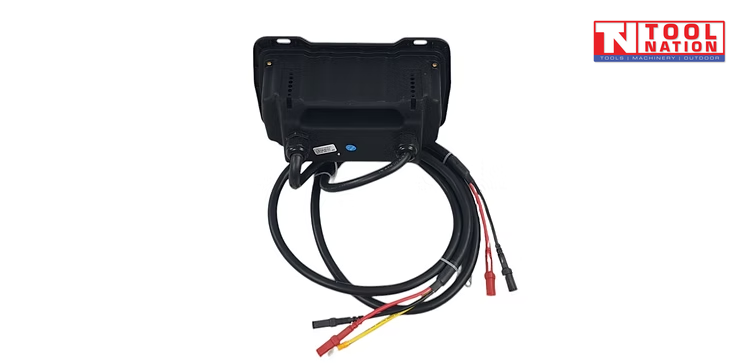

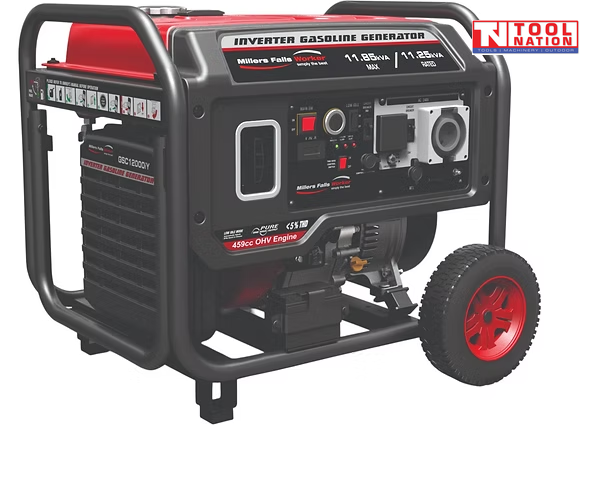

The GSC23700TWIN incorporates two GSC12000iY generators and a Parallel Connector producing an impressive 19kW – 23.7kVa of peak power. Due to the high current output (up to 70 amps) there is no socket supplied with the connector, rather it is designed to be direct wired to the load or fuse board.

Note: THE WIRING OF THE CONNECTOR MUST ONLY BE PERFORMED BY A LICENSED ELECTRICIAN.

The Parallel kit cannot be used with traditional non inverter generators.

This unit is suitable for Millers Falls Inverter Generators models: GSC7500i-B, GSC8500iY, GSC12000iY.

This parallel connector can handle current ranges up to 70 Amps.

Specification Value
Model Number GSC23700TWIN
Amps 72
Volts 240
Frequency 50Hz
Max Power (kVa) 23.7
Rated Power (kVa) 22.5
Max Power (kW) 19
Rated Power (kW) 18
Phase Single
RPM 3700
Fuel Capacity (each) 32L
Dimensions (cm) 82 × 120 × 63
Weight 160 kg
