Millers Falls GSD115CL 110kVA 415V Diesel Generator – Cummins Powered

Millers Falls GSD115CL 110kVA 415V Diesel Generator – Cummins Powered

SKU: ATXGSD115CL
Out of stock
$10,000.00
Shipping calculated at checkout
GSD115CL

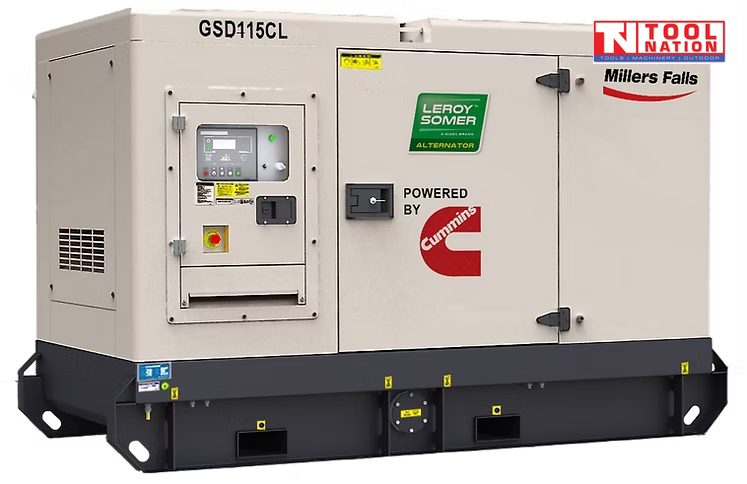

Millers Falls 110 kVA Diesel Generator 415V – Cummins Powered

This Millers Falls 415V three-phase generator is powered by the CUMMINS 6BT5.9, one of the world’s most reliable diesel engines. A 6-cylinder turbocharged 5.9 L engine combined with a Leroy Somer 4-pole brushless alternator delivers a high-performance, cost-effective solution for your power generation requirements.

The Millers Falls 110 kVA three-phase, 4-pole Cummins-powered generator is ideal for commercial, industrial, or backup power. It provides 100 kVA prime load with a 445 L bunded fuel tank for 24 hrs runtime at 75% load. As a standby generator, it delivers 110 kVA silenced power at only 67 dBA (7 m).

Built to Australian standards, the GSD115CL includes earth leakage protection, IP67-protected RCBOs, IP66 outlets, and RCBO-protected hardwire terminals. Its 1500 RPM Cummins engine, Leroy Somer alternator, and lockable silenced canopy ensure reliable performance, even in extreme Australian conditions.

Millers Falls generators deliver consistent, stable output with proven reliability.

Features:
  • Cummins 6-cylinder turbocharged diesel engine.
  • Leroy Somer 4-pole brushless alternator.
  • Robust design with silenced outdoor canopy.
  • Double bunded fuel tank.
  • Drain plugs: water, oil, diesel.
  • Fork slippers & lifting hooks for manoeuvrability.
  • 24 hr fuel tank capacity.
  • 50 °C rated oversize radiator.
  • 24 hrs stable power at 75% load, low 1500 RPM.
  • Silenced operation — 67 dBA at 7 m.
  • Fuel-efficient — 24.7 L/hr at 75% load.
  • Oil pressure & over-temperature shutdown.
  • Interior cabinet light with switch.
  • Emergency E-Stop.
  • Hardwire terminals with RCBO cover.
  • Site-safe lockable canopy.
  • Australian compliant wiring & M.E.N link.
  • Smartgen 6120 controller.
  • 2-wire remote start capable.
  • ATS function connection socket.
  • Remote start 4G capable.
  • Shunt relay auto stop.
  • Complies with Australian safety standards.
Specifications:
Specification Details
Prime Power 80 kW / 100 kVA • 415 V • 153 A
Standby Power 88 kW / 110 kVA
Power Factor 0.8
Alternator Leroy Somer 4-pole brushless synchronous c/w AVR
Phase Voltage Three-phase, 415 V
Frequency 50 Hz
Engine CUMMINS 6BT5.9
RPM 1500/min
Cooling Water-cooled — 50 °C radiator rated
Starting System 12 V electric, heavy-duty battery & charger
Controller Smartgen 6120
Remote Start 2-wire / remote start capable
Over Temp / Current / Low Oil Protection Included
Lockable Battery Isolator Included
Emergency Stop Included
Shunt Relay Auto Stop Included
Noise Level 67 dBA at 7 m
Running Time 24 hrs at 75% load
Fuel Tank Capacity 445 L (with gauge)
Fuel Consumption 24.7 L/hr (75% load)
Cabinet Lockable, sound-deadening, powder-coated
Bunded Fuel Tank Mine Site Ready Included
ATS (Mains Failure) Easy connect plug
Hardwire Terminals Included — RCBO IP67 protected plus cover
Options: Automatic Start Systems

GSM-G4

ATS (Mains Failure Auto Transfer Switch)

2-Wire Remote Start (socket fitted)

Weight: 1570 kg

Dimensions: 311 L × 112 W × 190 H cm
