GSD120FSC

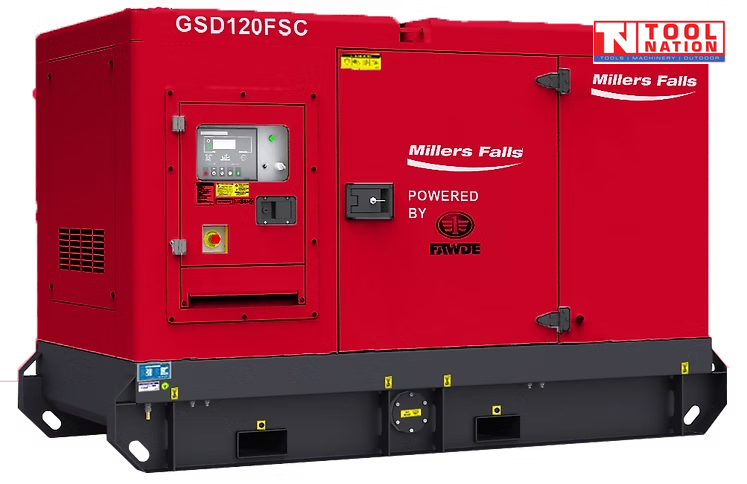

Millers Falls 110 kVA Diesel Generator 415V – FAW Powered

This Millers Falls 415V three-phase generator is powered by the famous and reliable FAW CA6DF2D-14D Chinese diesel engine. A 4-cylinder 6.56-litre turbo-charged diesel engine partnered with a high-quality OEM Stamford Style 4-pole brushless alternator; this generator offers a high-performance, cost-effective solution to your power generation requirements.

The Millers Falls 110 kVA three-phase, 4-pole FAW-powered generator is perfectly suited for commercial or industrial applications as well as backup power for homes or offices. It offers 100 kVA power at prime load and, together with its bunded 411-litre fuel tank, can provide a consistent output of up to 24 hours at 75% prime load. As a standby generator it offers 110 kVA of silenced power, operating at just 67 dBA at 7 metres.

Built to meet the highest Australian standards, the Millers Falls GSD120FSC FAW-powered generator features: earth leakage protection, quality RCBOs (IP67 protected), approved IP66 outlets and industry-leading safety features plus RCBO-protected hardwire terminals.

With its 1500 RPM FAW 4-cylinder turbo-charged industrial engine and Stamford Style OEM alternator contained in a robust, sound-deadened and heat-insulated lockable cabinet, the Millers Falls GSD120FSC is a quality generator you can always depend on. The oversize 50 °C radiator allows the generator to keep performing even in Australia’s extreme temperatures.

The Millers Falls range of generators are known for producing a stable and consistent output with industry-leading reliability.

Features:
  • Famous & reliable FAW turbo-charged 4-cylinder diesel engine.
  • Stamford Style OEM 4-pole brushless alternator c/w AVR.
  • Robust design and built silenced canopy designed for outdoor use.
  • Double bunded fuel tank.
  • Drain plugs fitted: water, oil, diesel.
  • Fork slippers and lifting hooks for ease of manoeuvrability.
  • 24 hr fuel tank.
  • 50 °C temperature rating; oversize radiator allows for extreme temperature conditions.
  • 24 hours continuous stable power at 75% prime load.
  • Low 1500 RPM engine.
  • Silenced operation — 67 dBA at 7 metres.
  • Fuel-efficient 22.81 litres/hour at 75% prime load.
  • Oil pressure shutdown, over-temperature shutdown.
  • Interior cabinet light with switch.
  • Emergency E-Stop.
  • Hardwire terminals with RCBO additional protective cover.
  • Site-safe lockable canopy.
  • Australian compliant wiring and M.E.N link.
  • Easy-to-use Smartgen controller.
  • 2-wire remote start capable.
  • ATS function connection socket.
  • Remote start 4G function capable.
  • Shunt relay auto stop.
  • Australian safety standards compliant.
Specifications:
Specification Details
Prime Power 80 kW / 100 kVA • 415 Volts • 153 Amps
Standby Power 88 kW / 110 kVA
Power Factor 0.8
Alternator Stamford Style OEM 4-pole brushless alternator c/w AVR
Phase Voltage Three phase, 415 Volt
Frequency 50 Hertz
Engine CA6DF2D-14D
RPM 1500/min
Cooling Method Water cooled — 50 °C radiator rated for high temperatures
Starting System 12-volt electric — heavy-duty battery and charger included
Controller Smartgen 6120
Remote Start Capability 2-wire / remote start capable
Over Temperature Protection Yes
Over Current Protection Yes
Low Oil Protection Yes
Lockable Battery Isolator Yes
Emergency Stop Yes
Shunt Relay Auto Stop Yes
Noise Level 67 dBA at 7 metres
Running Time 24 hours at 75% prime load (fuel tank)
Fuel Tank Capacity 411 litres (c/w fuel gauge)
Fuel Consumption 22.81 litres/hour (75% prime load)
Cabinet Lockable; sound-deadening throughout; powder-coated for external use
Bunded Fuel Tank Mine Site Ready Included
ATS (Mains Failure) Easy connect plug
Hardwire Terminals Included — RCBO IP67 protected plus extra cover
Options: Automatic Start Systems

GSM-G4

ATS (Mains Failure Auto Transfer Switch)

2-Wire Remote Start (socket fitted)

Weight: 1950 kg

Dimensions: 325 L × 112 W × 170 H cm
