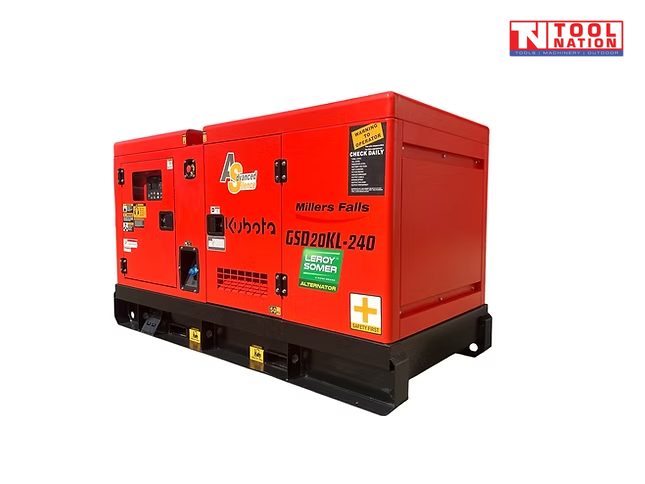

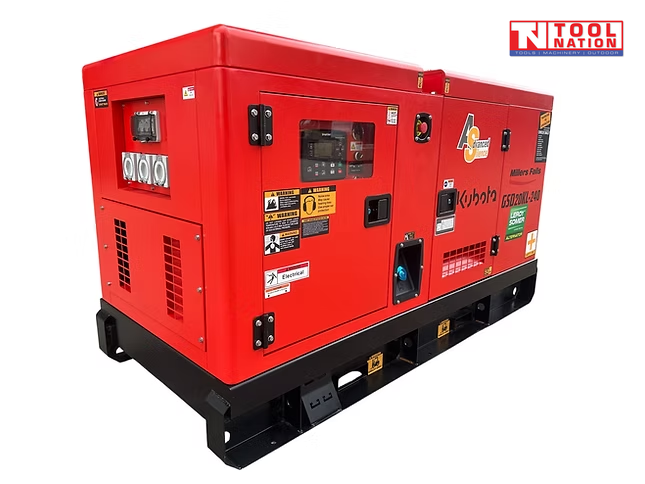

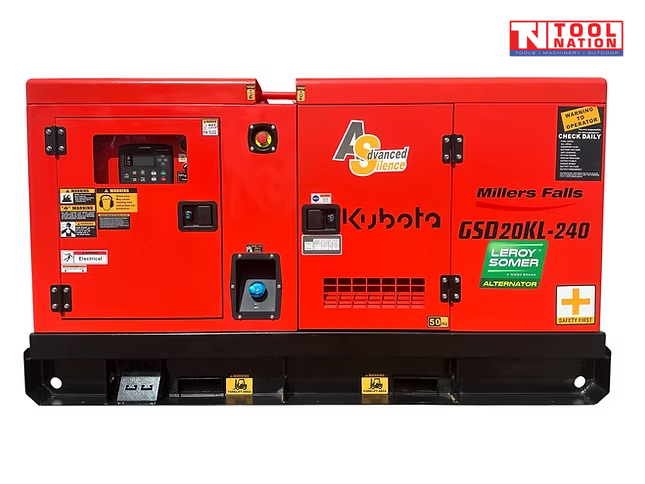

Millers Falls GSD20KL-240 17.6kVA 240V Diesel Generator – Kubota Powered
GSD20KL-240
Millers Falls 17.6 kVA Diesel Generator 240V – KUBOTA Powered
This Millers Falls 240V single-phase generator is powered by the Kubota V2203, one of the most reliable 4-cylinder diesel engines in the world. Paired with a Leroy Somer 4-pole brushless alternator, this unit delivers a cost-effective and high-performance solution for your power requirements.
The 17.6 kVA Kubota-powered generator is suitable for commercial, industrial, and residential backup applications. It provides 16.0 kVA at prime load, and with its 111 L bunded fuel tank, delivers 24 hours of runtime. As a standby generator, it produces 17.6 kVA of silenced power at just 67 dBA (7 m).
Built to Australian standards, the GSD20KL-240 features earth leakage protection, IP67 RCBOs, IP66 outlets, and RCBO-protected hardwire terminals. With its 1500 RPM Kubota engine, Leroy Somer alternator, and lockable silenced cabinet, this generator is engineered for long-term reliability even in harsh Australian conditions.
Millers Falls generators are trusted for stable output and exceptional durability.
Features:

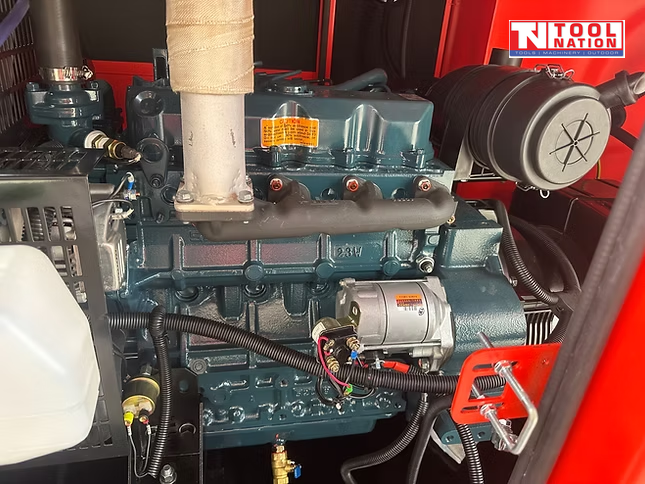

- Kubota V2203 4-cylinder diesel engine.

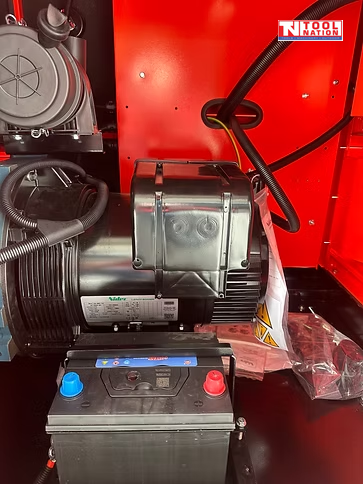

- Leroy Somer world-class 4-pole alternator.
- Robust silenced canopy for outdoor use.
- Double bunded fuel tank.
- Drain plugs for water, oil & diesel.
- Fork slippers & lifting hooks for easy manoeuvrability.
- 24 hr fuel tank capacity.
- 50 °C rated oversize radiator for extreme conditions.
- Stable 24 hr operation at prime load.
- Silenced operation — 67 dBA at 7 m.
- Fuel-efficient — 3.51 L/hr at prime load.
- Oil pressure & over-temperature shutdown.
- Interior cabinet light with switch.
- Emergency E-Stop.
- RCBO-protected hardwire terminals.
- Site-safe lockable canopy.
- Australian compliant wiring & M.E.N link.
- Smartgen 6120 controller.
- 2-wire remote start capable.
- ATS connection socket.
- Remote start 4G capable.
- Shunt relay auto stop.
- Complies with Australian safety standards.
Specifications:
| Specification | Details |
|---|---|
| Prime Power | 16 kW / 16 kVA • 240 V • 67 A |
| Standby Power | 17.6 kW / 17.6 kVA |
| Power Factor | 1.0 |
| Alternator | Leroy Somer 4-pole brushless synchronous c/w AVR |
| Phase Voltage | Single-phase, 240 V |
| Frequency | 50 Hz |
| Engine | Kubota V2203, 4-cylinder diesel |
| RPM | 1500/min |
| Cooling | Water-cooled, 50 °C radiator |
| Starting System | 12 V electric, heavy-duty battery & charger |
| Controller | Smartgen 6120 |
| Remote Start | 2-wire remote start capable |
| Protections | Over temperature, over current, low oil pressure |
| Lockable Battery Isolator | Included |
| Emergency Stop | Included |
| Shunt Relay Auto Stop | Included |
| Noise Level | 67 dBA at 7 m |
| Running Time | 24 hrs prime load fuel tank |
| Fuel Tank Capacity | 111 L (with gauge) |
| Fuel Consumption | 3.51 L/hr (prime load) |
| Cabinet | Lockable, sound-deadening, powder-coated |
| Bunded Fuel Tank Mine Site Ready | Included |
| ATS (Mains Failure) | Easy connect plug |

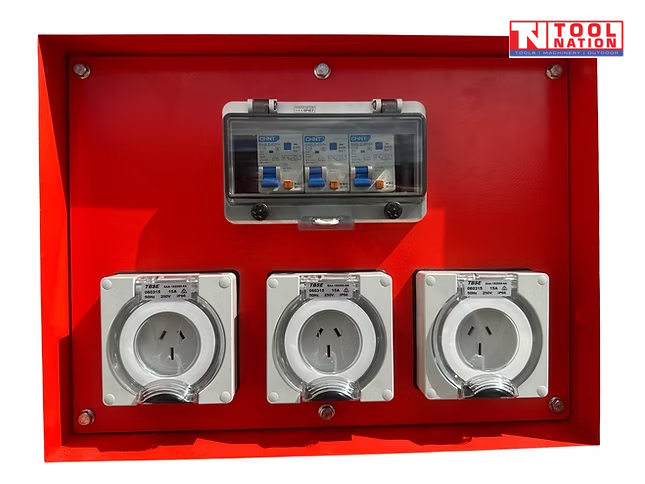

| Single-Phase Outlets | 3 × 15A IP66 |
| Hardwire Terminals | Included |
| RCD / RCBO | Australian Standard (IP67 enclosed) |

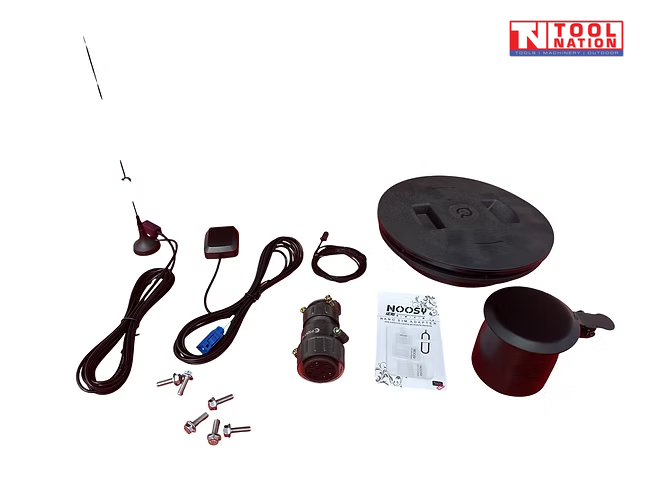

Options: Automatic Start Systems
GSM-G4
ATS (Mains Failure Auto Transfer Switch)
2-Wire Remote Start (socket fitted)
Weight: 620 kg
Dimensions: 220 L × 94 W × 115 H cm
