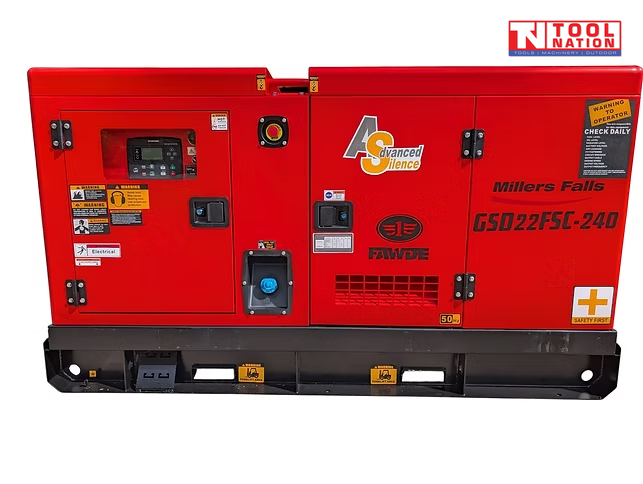

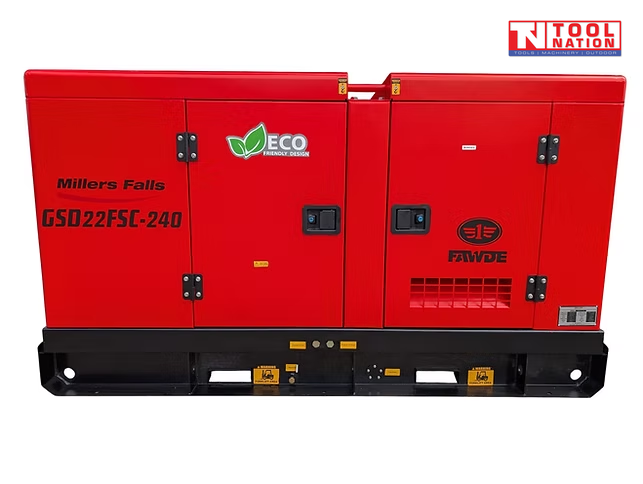

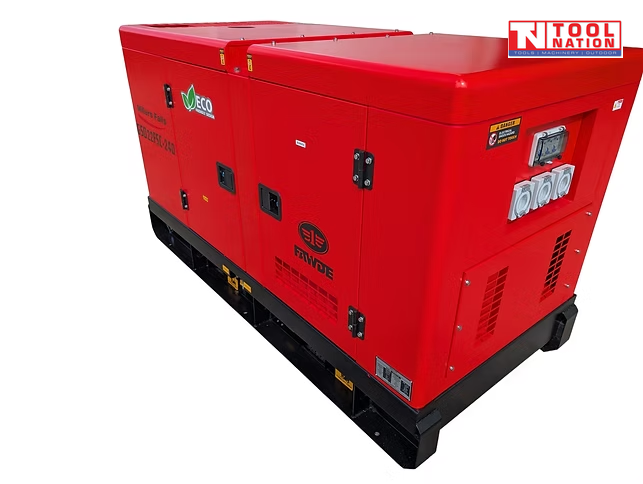

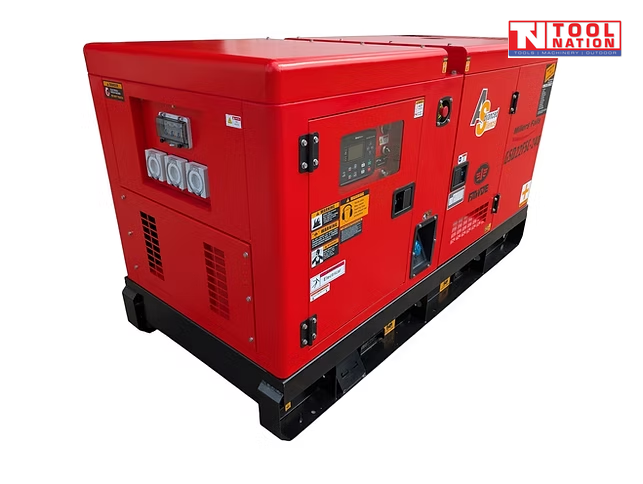

Millers Falls GSD22FSC-240 17.6kVA 240V Diesel Generator – FAW Powered
GSD22FSC-240
Millers Falls 17.6 kVA Diesel Generator 240V – FAW Powered

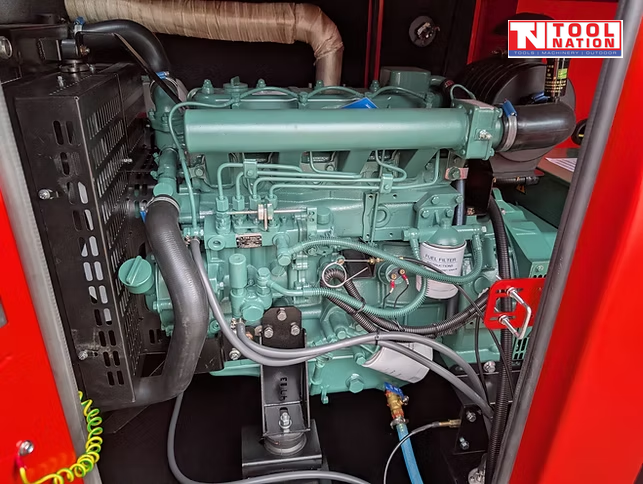

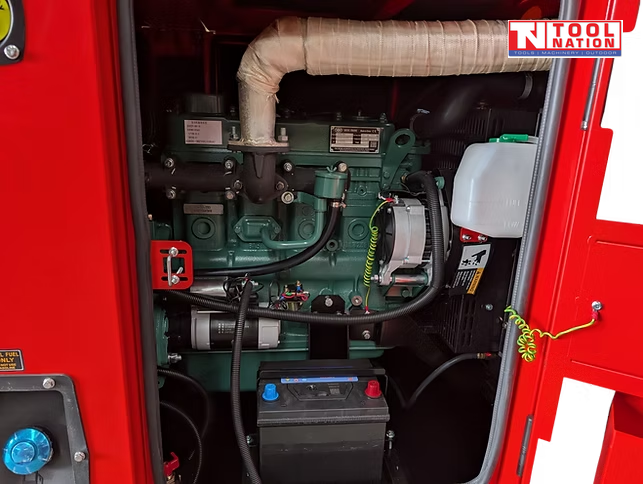

This Millers Falls 240V single-phase generator is powered by the FAW 4DW91-29D, a proven and reliable 4-cylinder diesel engine. Paired with a Stamford Style OEM 4-pole brushless alternator, it delivers a cost-effective, high-performance solution for your power needs.
The 17.6 kVA FAW-powered generator is ideal for commercial, industrial, or backup use in homes or offices. Offering 16.0 kVA prime load and a 53 L bunded fuel tank, it provides 24 hours of runtime. As a standby generator, it supplies 17.6 kVA silenced power at just 67 dBA (7 m).
Built to Australian standards, the GSD22FSC-240 includes earth leakage protection, IP67 RCBOs, IP66 outlets, and RCBO-protected hardwire terminals. With its 1500 RPM FAW engine, OEM alternator, and lockable silenced cabinet, it’s engineered for dependable performance in Australia’s toughest conditions.
Millers Falls generators are renowned for stable output and long-term reliability.
Features:
- FAW 4-cylinder diesel engine.
- Stamford Style OEM 4-pole brushless alternator.
- Robust silenced canopy for outdoor use.
- Double bunded fuel tank.
- Drain plugs for water, oil & diesel.

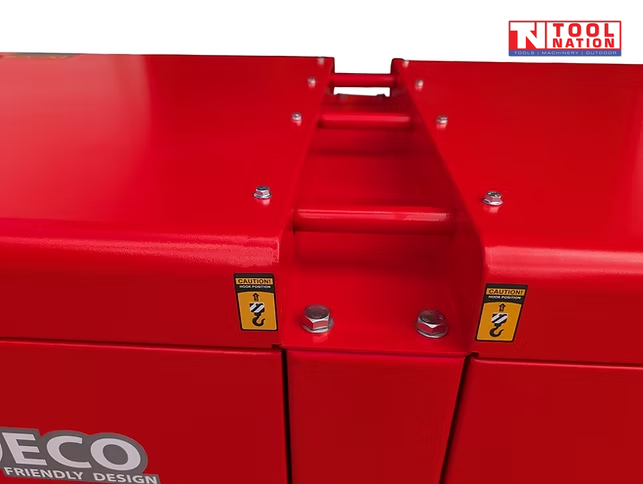

- Fork slippers & lifting hooks for manoeuvrability.
- 24 hr fuel tank capacity.
- 50 °C rated oversize radiator for extreme conditions.
- Stable 24 hr operation at prime load.
- Silenced operation — 67 dBA at 7 m.
- Fuel-efficient — 2.93 L/hr at prime load.
- Oil pressure & over-temperature shutdown.
- Interior cabinet light with switch.
- Emergency E-Stop.
- RCBO-protected hardwire terminals.
- Site-safe lockable canopy.
- Australian compliant wiring & M.E.N link.

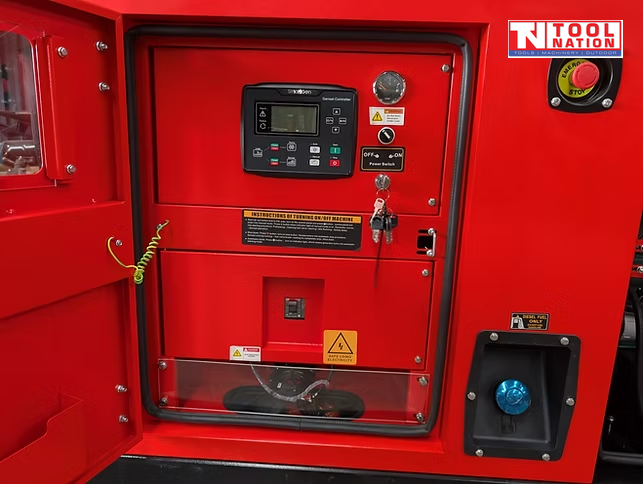

- Smartgen 6120 controller.
- 2-wire remote start capable.
- ATS connection socket.
- Remote start 4G capable.
- Shunt relay auto stop.
- Complies with Australian safety standards.
Specifications:
| Specification | Details |
|---|---|
| Prime Power | 16 kW / 16 kVA • 240 V • 67 A |
| Standby Power | 17.6 kW / 17.6 kVA |
| Power Factor | 1.0 |
| Alternator | Stamford Style OEM 4-pole brushless c/w AVR |
| Phase Voltage | Single-phase, 240 V |
| Frequency | 50 Hz |
| Engine | FAW 4DW91-29D |
| RPM | 1500/min |
| Cooling | Water-cooled, 50 °C radiator |
| Starting System | 12 V electric, heavy-duty battery & charger |
| Controller | Smartgen 6120 |
| Remote Start | 2-wire remote start capable |
| Over Temp / Current / Low Oil Protection | Included |
| Lockable Battery Isolator | Included |
| Emergency Stop | Included |
| Shunt Relay Auto Stop | Included |
| Noise Level | 67 dBA at 7 m |
| Running Time | 24 hrs prime load fuel tank |
| Fuel Tank Capacity | 53 L (with gauge) |
| Fuel Consumption | 2.93 L/hr (prime load) |
| Cabinet | Lockable, sound-deadening, powder-coated |
| Bunded Fuel Tank Mine Site Ready | Included |
| ATS (Mains Failure) | Easy connect plug |
| Single-Phase Outlets | 3 × 15A IP66 |
| Hardwire Terminals | Included |
| RCD / RCBO | Australian Standard (IP67 enclosed) |
Options: Automatic Start Systems
GSM-G4
ATS (Mains Failure Auto Transfer Switch)
2-Wire Remote Start (socket fitted)
Weight: 745 kg
Dimensions: 225 L × 98 W × 115 H cm
