SKU: ATXGSD35CL
In stock
$17,168.00
Shipping calculated at checkout
GSD35CL

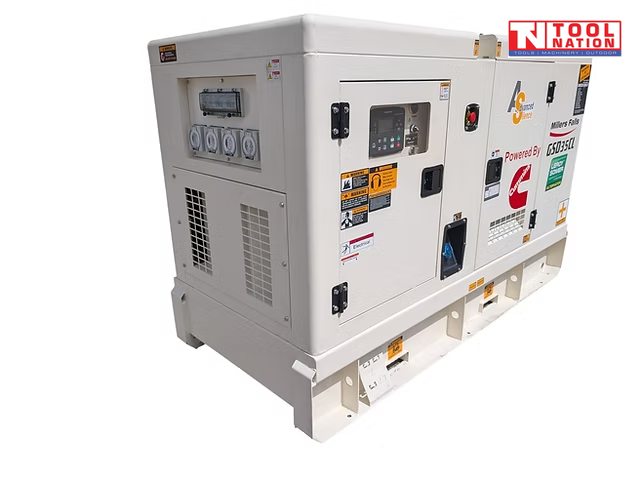

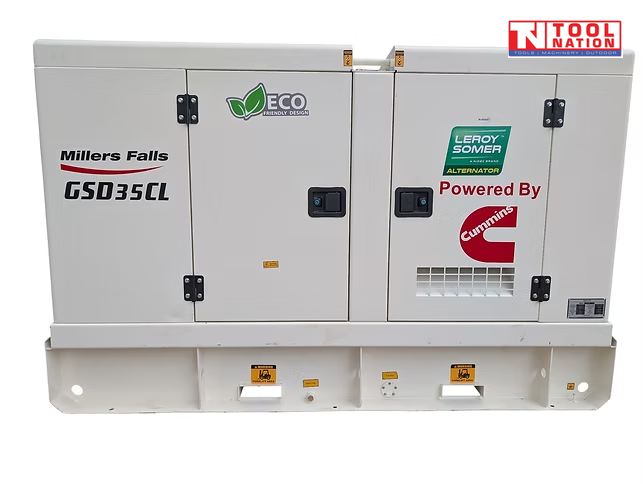

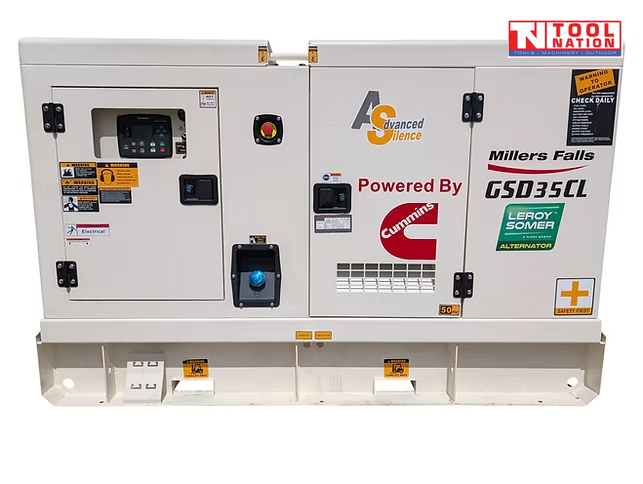

Millers Falls 30 kVA Diesel Generator 415V – CUMMINS Powered

This Millers Falls 415V three-phase generator is powered by one of the most famous and reliable diesel engines in the world — the CUMMINS 4B3.9-G1. A 4-cylinder 3.9-litre diesel engine partnered with a high-quality Leroy Somer 4-pole brushless alternator; this generator offers a high-performance, cost-effective solution to your power generation requirements.

The Millers Falls 30 kVA three-phase, 4-pole CUMMINS-powered generator is perfectly suited for commercial or industrial applications as well as backup power for homes or offices. It offers 27.5 kVA power at prime load and, together with its bunded 128-litre fuel tank, can provide a consistent output of up to 24 hours at 75% prime load. As a standby generator it offers 30 kVA of silenced power, operating at just 67 dBA at 7 metres.

Built to meet the highest Australian standards, the Millers Falls GSD35CL Cummins-powered generator features: earth leakage protection, quality RCBOs (IP67 protected), approved IP66 outlets and industry-leading safety features plus RCBO-protected hardwire terminals.

With its 1500 RPM Cummins 4-cylinder industrial engine and Leroy Somer alternator housed in a robust, sound-deadened and heat-insulated lockable cabinet, the Millers Falls GSD35CL is a quality generator you can depend on. The oversize 50 °C radiator allows the generator to keep performing even in Australia’s extreme temperatures.

The Millers Falls range of generators are known for producing a stable and consistent output with industry-leading reliability.

Features:
  • Fitted with a world-famous, reliable CUMMINS 4-cylinder diesel engine.
  • Leroy Somer world-leading high-quality alternator.
  • Robust design and built silenced canopy designed for outdoor use.
  • Double bunded fuel tank.
  • Drain plugs fitted: water, oil, diesel.
  • Fork slippers and lifting hooks for ease of manoeuvrability.
  • 24 hr fuel tank.
  • 50 °C temperature rating; oversize radiator allows for extreme temperature conditions.
  • 24 hours continuous stable power at 75% prime load. The low 1500 RPM engine generates a more stable operation.
  • Silenced operation — 67 dBA at 7 metres.
  • Fuel-efficient 7.1 litres/hour at 75% prime load.
  • Oil pressure shutdown, over-temperature shutdown.
  • Interior cabinet light with switch.
  • Emergency E-Stop.
  • Hardwire terminals with RCBO additional protective cover.
  • Site-safe lockable canopy.
  • Australian compliant wiring and M.E.N link.
  • Easy-to-use Smartgen controller.
  • 2-wire remote start capable.
  • ATS function connection socket.
  • Remote start 4G function capable.
  • Shunt relay auto stop.
  • Australian safety standards compliant.
Specifications:
Specification Details
Prime Power 22 kW / 27.5 kVA • 415 Volts • 41.7 Amps
Standby Power 24 kW / 30 kVA
Power Factor 0.8
Alternator Leroy Somer quality 4-pole brushless synchronous (c/w AVR)
Phase Voltage Three phase, 415 Volt
Frequency 50 Hertz

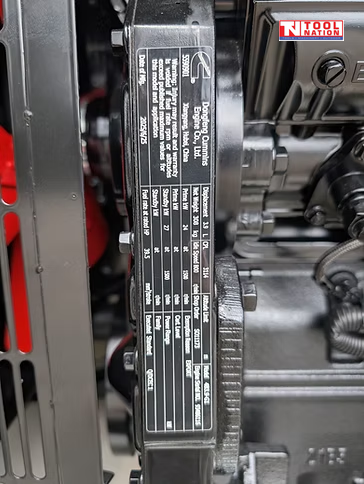

Engine CUMMINS 4B3.9-G1
RPM 1500/min
Cooling Method Water cooled — 50 °C radiator rated for high temperatures
Starting System 12-volt electric — heavy-duty battery and charger included

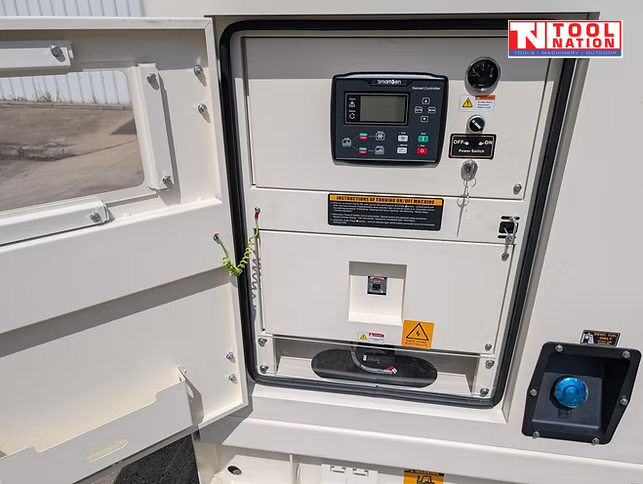

Controller Smartgen 6120
Remote Start Capability 2-wire / remote start capable
Over Temperature Protection Yes
Over Current Protection Yes
Low Oil Protection Yes
Lockable Battery Isolator Yes
Emergency Stop Yes
Shunt Relay Auto Stop Yes
Noise Level 67 dBA at 7 metres
Running Time 24 hours at 75% prime load (fuel tank)
Fuel Tank Capacity 128 litres (c/w fuel gauge)
Fuel Consumption 7.1 litres/hour (75% prime load)
Cabinet Lockable; sound-deadening throughout; powder-coated for external use
Bunded Fuel Tank Mine Site Ready Included
ATS (Mains Failure) Easy connect plug

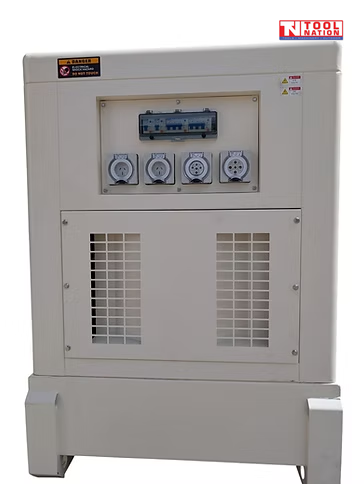

Outlets
  • Single phase: 2 × 15 Amp IP66
  • Three phase: 1 × 20 Amp IP66
  • Three phase: 1 × 32 Amp IP66
Hardwire Terminals Included — RCBO IP67 protected plus extra cover.
Options: Automatic Start Systems

GSM-G4

ATS (Mains Failure Auto Transfer Switch)

2-Wire Remote Start (socket fitted)

Weight: 920 kg

Dimensions: 225 L × 98 W × 150 H cm
