Millers Falls GSD38FSC 33kVA 415V Diesel Generator – FAW Powered

SKU: ATXGSD38FSC
Out of stock
$10,000.00
Shipping calculated at checkout
GSD38FSC
Millers Falls 33 kVA Diesel Generator 415V – FAW Powered

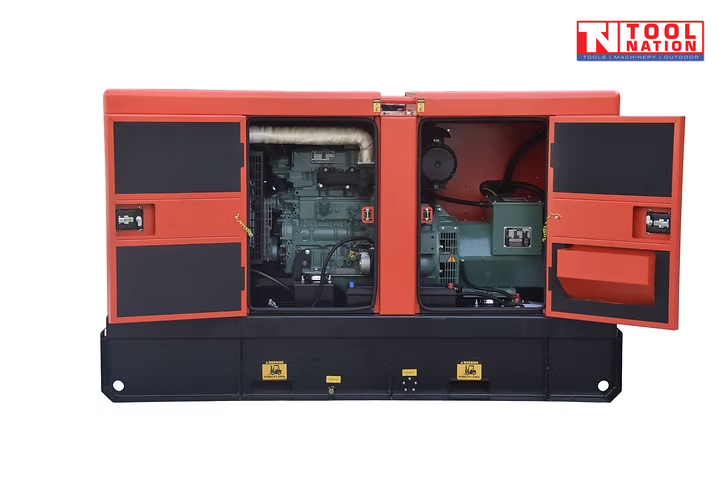

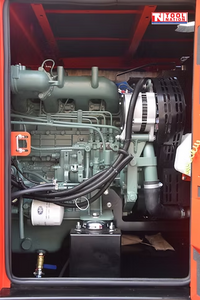

This Millers Falls 415V three-phase generator is powered by the reliable FAW 4DW92-39D engine. A 4-cylinder, 2.5 L turbocharged diesel engine paired with a Leroy Somer 4-pole brushless alternator delivers a high-performance, cost-effective solution to your power needs.

The Millers Falls 33 kVA three-phase, 4-pole FAW-powered generator is perfect for commercial or industrial applications, or as backup power for homes or offices. It provides 30 kVA prime load, with a 142 L bunded fuel tank giving up to 24 hours at 75% load. As a standby generator, it delivers 33 kVA silenced power at just 67 dBA at 7 m.

Built to Australian standards, the GSD38FSC includes earth leakage protection, IP67-protected RCBOs, IP66 outlets, and RCBO-protected hardwire terminals. Its 1500 RPM FAW engine, Stamford-style alternator, and lockable silenced canopy ensure durability even in extreme Australian conditions.

Millers Falls generators are renowned for consistent output and reliability.

Features:
  • FAW turbo-charged 4-cylinder diesel engine.
  • Stamford Style OEM 4-pole brushless alternator with AVR.
  • Robust design with silenced outdoor canopy.
  • Double bunded fuel tank.
  • Drain plugs: water, oil, diesel.
  • Fork slippers & lifting hooks for easy handling.
  • 24 hr fuel tank capacity.
  • 50 °C oversize radiator for extreme conditions.
  • 24 hrs stable power at 75% load, low 1500 RPM operation.
  • Silenced operation — 67 dBA at 7 m.
  • Fuel-efficient — 7.88 L/hr at 75% load.
  • Oil pressure & over-temperature shutdown.
  • Interior cabinet light with switch.
  • Emergency E-Stop.
  • Hardwire terminals with RCBO cover.
  • Site-safe lockable canopy.
  • Australian compliant wiring & M.E.N link.

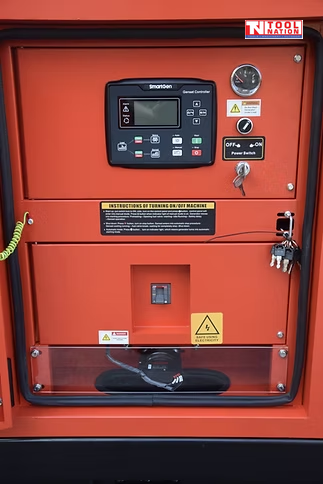

  • Smartgen 6120 controller.
  • 2-wire remote start capable.
  • ATS function connection socket.
  • Remote start 4G capable.
  • Shunt relay auto stop.
  • Complies with Australian safety standards.
Specifications:
Specification Details
Prime Power 24 kW / 30 kVA • 415 V • 45.9 A
Standby Power 26.4 kW / 33 kVA
Power Factor 0.8
Alternator Stamford Style OEM 4-pole brushless
Phase Voltage Three-phase, 415 V
Frequency 50 Hz
Engine FAW 4DW92-39D
RPM 1500/min
Cooling Water-cooled, 50 °C radiator rated
Starting System 12 V electric, heavy-duty battery & charger
Controller Smartgen 6120
Remote Start 2-wire remote start capable
Over Temp / Current / Low Oil Protection Yes
Lockable Battery Isolator Yes
Emergency Stop Yes
Shunt Relay Auto Stop Yes
Noise Level 67 dBA at 7 m
Running Time 24 hrs at 75% load
Fuel Tank Capacity 142 L (with gauge)
Fuel Consumption 7.88 L/hr (75% load)
Cabinet Lockable, sound-deadening, powder-coated
Bunded Fuel Tank Mine Site Ready Included
ATS (Mains Failure) Easy connect plug
Outlets
  • Single-phase: 2 × 15 A IP66
  • Three-phase: 1 × 20 A IP66
  • Three-phase: 1 × 32 A IP66
Hardwire Terminals Included — RCBO IP67 protected plus cover
Options: Automatic Start Systems

GSM-G4

ATS (Mains Failure Auto Transfer Switch)

2-Wire Remote Start (socket fitted)

Weight: 880 kg

Dimensions: 225 L × 98 W × 161 H cm
