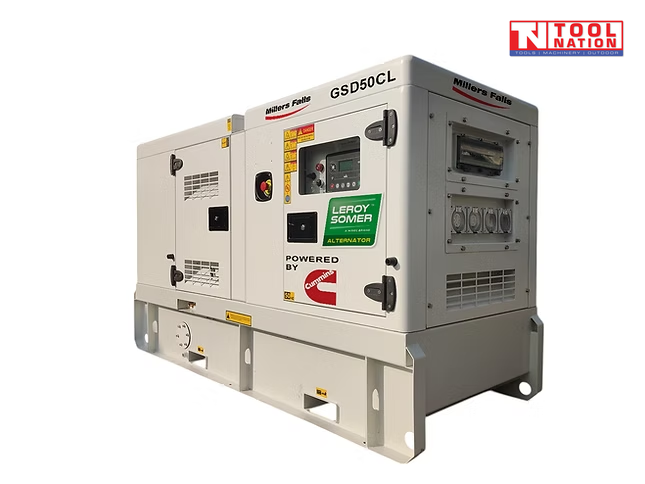

Millers Falls GSD50CL 44kVA 415V Diesel Generator – Cummins Powered

Millers Falls GSD50CL 44kVA 415V Diesel Generator – Cummins Powered

SKU: ATXGSD50CL
Out of stock
$10,000.00
Shipping calculated at checkout
GSD50CL
Millers Falls 44 kVA Diesel Generator 415V – Cummins Powered

This Millers Falls 415V three-phase generator is powered by one of the most famous and reliable diesel engines in the world — the CUMMINS 4BT3.9-G1. A 4-cylinder turbo-charged 3.9-litre engine partnered with a high-quality Leroy Somer 4-pole brushless alternator; this generator offers a high-performance, cost-effective solution to your power generation requirements.

The Millers Falls 44 kVA three-phase, 4-pole Cummins-powered generator is perfectly suited for commercial or industrial applications as well as backup power for homes or offices. It offers 40 kVA prime load output and, together with its 167-litre bunded fuel tank, delivers up to 24 hours at 75% prime load. As a standby generator, it provides 44 kVA silenced power at just 67 dBA at 7 metres.

Built to meet the highest Australian standards, the GSD50CL Cummins-powered generator features: earth leakage protection, IP67-protected RCBOs, IP66 outlets, industry-leading safety features, plus RCBO-protected hardwire terminals.

With its 1500 RPM Cummins 4-cylinder industrial engine, Leroy Somer alternator, and robust lockable sound-deadened canopy, the Millers Falls GSD50CL is a generator you can always depend on. The oversize 50 °C radiator ensures performance in Australia’s extreme temperatures.

The Millers Falls generator range is known for stable, consistent output and industry-leading reliability.

Features:
  • World-famous Cummins 4-cylinder turbo-charged diesel engine.
  • Leroy Somer world-leading alternator.
  • Robust design with built silenced canopy for outdoor use.
  • Double bunded fuel tank.
  • Drain plugs fitted: water, oil, diesel.
  • Fork slippers and lifting hooks for easy manoeuvrability.
  • 24 hr fuel tank.
  • 50 °C rating, oversize radiator for extreme conditions.
  • 24 hrs continuous power at 75% prime load with stable 1500 RPM engine.
  • Silenced operation — 67 dBA at 7 metres.
  • Fuel-efficient — 9.3 L/hr at 75% prime load.
  • Oil pressure & over-temperature shutdown.
  • Interior cabinet light with switch.
  • Emergency E-Stop.
  • Hardwire terminals with RCBO cover.
  • Site-safe lockable canopy.
  • Australian compliant wiring and M.E.N link.
  • Easy-to-use Smartgen controller.
  • 2-wire remote start capable.
  • ATS function connection socket.
  • Remote start 4G function capable.
  • Shunt relay auto stop.
  • Complies with Australian safety standards.
Specifications:
Specification Details
Prime Power 32 kW / 40 kVA • 415 Volts • 61.2 Amps
Standby Power 35.2 kW / 44 kVA
Power Factor 0.8
Alternator Leroy Somer quality 4-pole brushless synchronous c/w AVR
Phase Voltage Three phase, 415 Volt
Frequency 50 Hertz
Engine Cummins 4BT3.9-G1
RPM 1500/min
Cooling Method Water cooled — 50 °C radiator rated
Starting System 12-volt electric, heavy-duty battery & charger included
Controller Smartgen 6120
Remote Start 2-wire / remote start capable
Over Temperature / Current / Low Oil Protection Included
Lockable Battery Isolator Included
Emergency Stop Included
Shunt Relay Auto Stop Included
Noise Level 67 dBA at 7 metres
Running Time 24 hrs at 75% prime load
Fuel Tank Capacity 167 L (c/w fuel gauge)
Fuel Consumption 9.3 L/hr (75% load)
Cabinet Lockable, sound-deadening, powder-coated for external use
Bunded Fuel Tank Mine Site Ready Included
ATS (Mains Failure) Easy connect plug
Outlets
  • Single phase: 2 × 15 Amp IP66
  • Three phase: 1 × 20 Amp IP66
  • Three phase: 1 × 32 Amp IP66
Hardwire Terminals Included — RCBO IP67 protected plus cover
Options: Automatic Start Systems

GSM-G4

ATS (Mains Failure Auto Transfer Switch)

2-Wire Remote Start (socket fitted)

Weight: 1020 kg

Dimensions: 230 L × 106 W × 150 H cm
