Millers Falls GSD60FSC 56kVA 415V Diesel Generator – FAW Turbo Powered
GSD60FSC
Millers Falls 56 kVA Diesel Generator 415V – FAW Powered
This Millers Falls 415V three-phase generator is powered by the reliable FAW 4DX22-65D turbocharged 4-cylinder diesel engine. Paired with a Stamford Style 4-pole brushless alternator, it delivers a cost-effective, high-performance power solution.
The 56 kVA FAW-powered generator is ideal for commercial, industrial, or backup power applications. It provides 50 kVA prime power, running for 24 hours at 75% load with its 219 L bunded fuel tank. As a standby unit, it delivers 56 kVA silenced power at just 67 dBA (7 m).
Built to meet Australian standards, the GSD60FSC includes earth leakage protection, IP67 RCBOs, IP66 outlets, and RCBO-protected hardwire terminals. The 1500 RPM FAW engine, combined with an oversized 50°C-rated radiator, ensures stable operation even in Australia’s harshest climates.
Millers Falls generators are known for consistent output and industry-leading reliability.
Features:

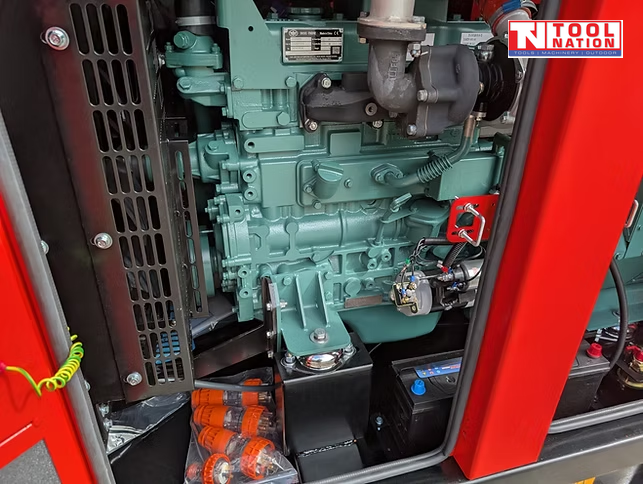

- FAW Turbocharged 4-cylinder 3.86 L diesel engine.

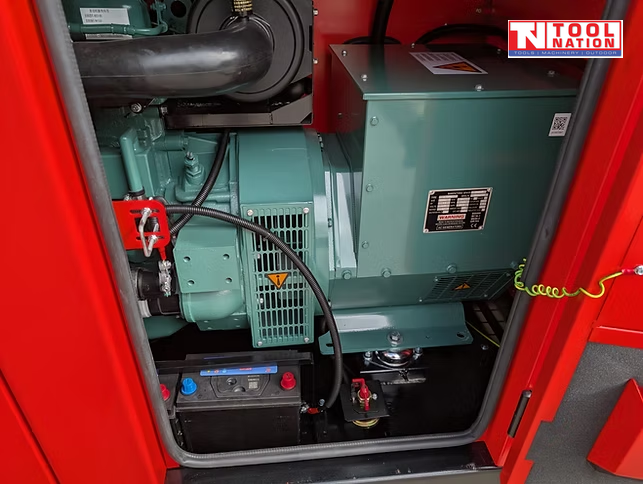

- Stamford Style OEM 4-pole brushless alternator.
- Robust silenced canopy for outdoor use.
- Double bunded 219 L fuel tank with gauge.
- Drain plugs for water, oil & diesel.
- Fork slippers & lifting hooks for manoeuvrability.
- 24 hr runtime at 75% prime load.
- Oversize 50°C radiator for extreme conditions.
- Silenced operation — 67 dBA at 7 m.
- Fuel-efficient — 12.14 L/hr at 75% load.
- Automatic shutdown: oil pressure & over temperature.
- Interior cabinet light with switch.
- Emergency E-Stop.
- RCBO-protected hardwire terminals.
- Site-safe lockable canopy.
- Australian compliant wiring & M.E.N link.

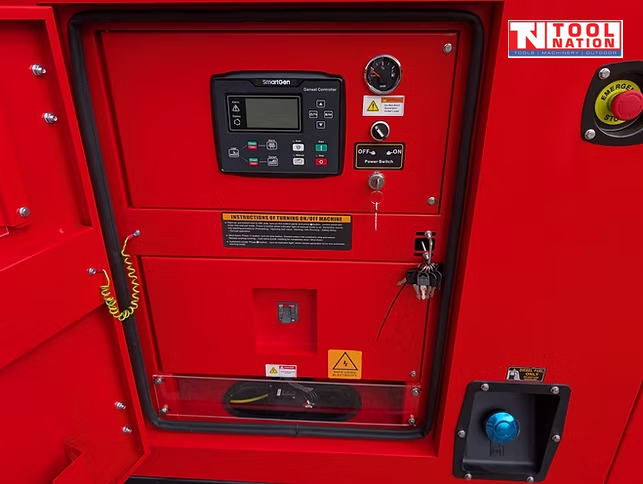

- Smartgen 6120 controller.
- 2-wire remote start capable.
- ATS function socket.
- Remote start 4G capable.
- Shunt relay auto stop.
- Complies with Australian safety standards.
Specifications:
| Specification | Details |
|---|---|
| Prime Power | 40 kW / 50 kVA • 415 V • 69.6 A |
| Standby Power | 44 kW / 56 kVA |
| Power Factor | 0.8 |
| Alternator | Stamford Style OEM 4-pole brushless c/w AVR |
| Phase Voltage | Three-phase, 415 V |
| Frequency | 50 Hz |
| Engine | FAW 4DX22-65D Turbocharged |
| RPM | 1500/min |
| Cooling | Water-cooled, 50 °C radiator |
| Starting System | 12 V electric, heavy-duty battery & charger |
| Controller | Smartgen 6120 |
| Protections | Over temp, over current, low oil pressure |
| Battery Isolator | Lockable, included |
| Emergency Stop | Included |
| Shunt Relay Auto Stop | Included |
| Noise Level | 67 dBA at 7 m |
| Running Time | 24 hrs at 75% prime load |
| Fuel Tank Capacity | 219 L (with gauge) |
| Fuel Consumption | 12.14 L/hr (75% load) |
| Cabinet | Lockable, sound-deadening, powder-coated |
| Bunded Fuel Tank Mine Site Ready | Included |
| ATS (Mains Failure) | Easy connect plug |

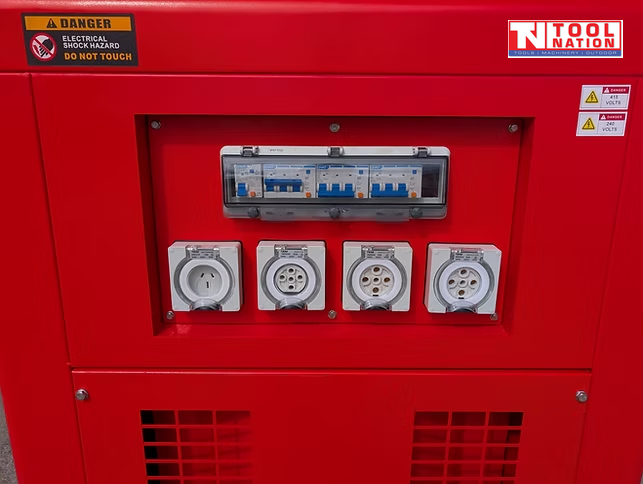

| Outlets |
• 1 × Single Phase 15A IP66 • 1 × Three Phase 20A IP66 • 2 × Three Phase 32A IP66 |
| Hardwire Terminals | RCBO IP67 protected with extra cover |
Options: Automatic Start Systems
GSM-G4
ATS (Mains Failure Auto Transfer Switch)
2-Wire Remote Start (socket fitted)
Weight: 1140 kg
Dimensions: 225 L × 98 W × 130 H cm
