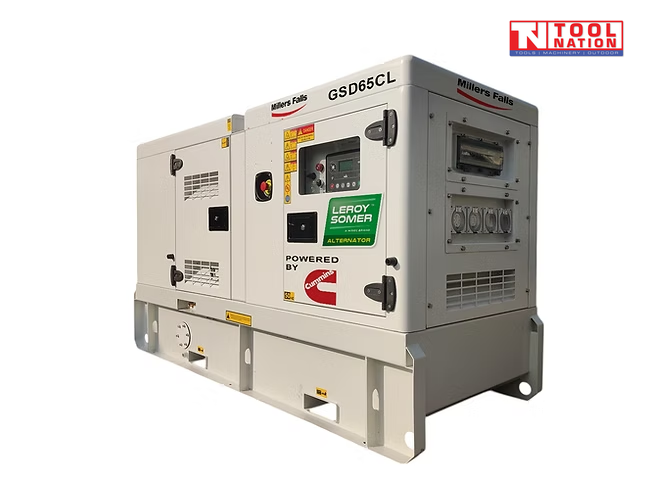

Millers Falls GSD65CL 55kVA 415V Diesel Generator – Cummins Powered

Millers Falls GSD65CL 55kVA 415V Diesel Generator – Cummins Powered

SKU: ATXGSD65CL
Out of stock
$10,000.00
Shipping calculated at checkout
GSD65CL
Millers Falls 55 kVA Diesel Generator 415V – Cummins Powered

This Millers Falls 415V three-phase generator is powered by the reliable CUMMINS 4BTA3.9-G2. A 4-cylinder turbo-charged 3.9-litre diesel engine, partnered with a high-quality Leroy Somer 4-pole brushless alternator, provides a high-performance, cost-effective solution to your power generation requirements.

The Millers Falls 55 kVA three-phase, 4-pole Cummins-powered generator is ideal for commercial, industrial, or backup power for homes and offices. It delivers 50 kVA prime load and, with its 180-litre bunded fuel tank, provides up to 24 hours at 75% prime load. As a standby generator, it produces 55 kVA silenced power at only 67 dBA at 7 metres.

Built to meet the highest Australian standards, the GSD65CL Cummins-powered generator includes: earth leakage protection, IP67-protected RCBOs, IP66 outlets, industry-leading safety features, and RCBO-protected hardwire terminals.

With its 1500 RPM Cummins 4-cylinder engine, Leroy Somer alternator, and robust lockable sound-deadened canopy, the GSD65CL is dependable even in Australia’s harshest climates. An oversize 50 °C radiator ensures performance in extreme conditions.

Millers Falls generators are known for consistent, stable power and proven reliability.

Features:
  • Cummins 4-cylinder turbo-charged diesel engine.
  • Leroy Somer world-class alternator.
  • Robust design with built silenced canopy for outdoor use.
  • Double bunded fuel tank.
  • Drain plugs fitted: water, oil, diesel.
  • Fork slippers & lifting hooks for easy manoeuvrability.
  • 24 hr fuel tank.
  • 50 °C rated oversize radiator for extreme conditions.
  • 24 hrs continuous power at 75% prime load with stable 1500 RPM engine.
  • Silenced operation — 67 dBA at 7 metres.
  • Fuel-efficient — 10.0 L/hr at 75% load.
  • Oil pressure & over-temperature shutdown.
  • Interior cabinet light with switch.
  • Emergency E-Stop.
  • Hardwire terminals with RCBO cover.
  • Site-safe lockable canopy.
  • Australian compliant wiring and M.E.N link.
  • Smartgen 6120 controller.
  • 2-wire remote start capable.
  • ATS function connection socket.
  • Remote start 4G function capable.
  • Shunt relay auto stop.
  • Complies with Australian safety standards.
Specifications:
Specification Details
Prime Power 40 kW / 50 kVA • 415 V • 76.5 A
Standby Power 44 kW / 55 kVA
Power Factor 0.8
Alternator Leroy Somer 4-pole brushless synchronous c/w AVR
Phase Voltage Three-phase, 415 V
Frequency 50 Hz
Engine Cummins 4BTA3.9-G2
RPM 1500/min
Cooling Method Water cooled — 50 °C radiator rated
Starting System 12V electric, heavy-duty battery & charger included
Controller Smartgen 6120
Remote Start 2-wire / remote start capable
Over Temperature / Current / Low Oil Protection Included
Lockable Battery Isolator Included
Emergency Stop Included
Shunt Relay Auto Stop Included
Noise Level 67 dBA at 7 metres
Running Time 24 hrs at 75% prime load
Fuel Tank Capacity 180 L (with gauge)
Fuel Consumption 10 L/hr (75% load)
Cabinet Lockable, sound-deadening, powder-coated for external use
Bunded Fuel Tank Mine Site Ready Included
ATS (Mains Failure) Easy connect plug
Outlets
  • Single phase: 2 × 15 Amp IP66
  • Three phase: 1 × 20 Amp IP66
  • Three phase: 1 × 32 Amp IP66
Hardwire Terminals Included — RCBO IP67 protected plus cover
Options: Automatic Start Systems

GSM-G4

ATS (Mains Failure Auto Transfer Switch)

2-Wire Remote Start (socket fitted)

Weight: 1070 kg

Dimensions: 230 L × 106 W × 170 H cm
