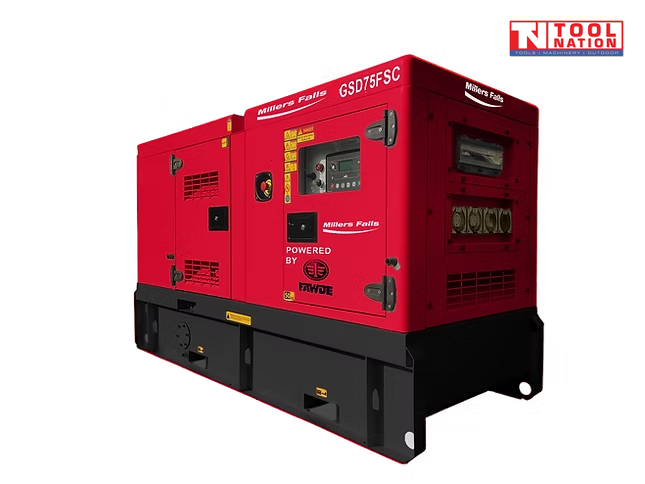

Millers Falls GSD75FSC 69kVA 415V Diesel Generator – FAW Powered

Millers Falls GSD75FSC 69kVA 415V Diesel Generator – FAW Powered

SKU: ATXGSD75FSC
Out of stock
$10,000.00
Shipping calculated at checkout
GSD75FSC
Millers Falls 69 kVA Diesel Generator 415V – FAW Powered

This Millers Falls 415V three-phase generator is powered by the famous and reliable FAW 4DX23-78D Chinese diesel engine. A 4-cylinder 3.86-litre turbo-charged, intercooled engine partnered with a high-quality OEM Stamford Style 4-pole brushless alternator; this generator offers a high-performance, cost-effective solution to your power generation requirements.

The Millers Falls 69 kVA three-phase, 4-pole FAW-powered generator is perfectly suited for commercial or industrial applications as well as backup power for homes or offices. It offers 62.5 kVA at prime load and, with its bunded 232-litre fuel tank, provides a consistent output of up to 24 hours at 75% prime load. As a standby generator it delivers 68.8 kVA of silenced power, operating at just 67 dBA at 7 metres.

Built to meet the highest Australian standards, the Millers Falls GSD75FSC FAW-powered generator features: earth leakage protection, quality RCBOs (IP67 protected), approved IP66 outlets and industry-leading safety features, plus RCBO-protected hardwire terminals.

With its 1500 RPM FAW 4-cylinder turbo-charged industrial engine and Stamford Style OEM alternator housed in a robust, sound-deadened and heat-insulated lockable cabinet, the Millers Falls GSD75FSC is a quality generator you can always depend on. The oversize 50 °C radiator allows the generator to perform even in Australia’s extreme temperatures.

The Millers Falls range of generators are known for producing stable and consistent output with industry-leading reliability.

Features:
  • Famous & reliable FAW turbo-charged 4-cylinder diesel engine.
  • Stamford Style OEM 4-pole brushless alternator c/w AVR.
  • Robust design and built silenced canopy designed for outdoor use.
  • Double bunded fuel tank.
  • Drain plugs fitted: water, oil, diesel.
  • Fork slippers and lifting hooks for ease of manoeuvrability.
  • 24 hr fuel tank.
  • 50 °C temperature rating; oversize radiator handles extreme conditions.
  • 24 hours continuous stable power at 75% prime load.
  • Low 1500 RPM engine.
  • Silenced operation — 67 dBA at 7 metres.
  • Fuel-efficient 12.87 litres/hour at 75% prime load.
  • Oil pressure & over-temperature shutdown protection.
  • Interior cabinet light with switch.
  • Emergency E-Stop.
  • Hardwire terminals with RCBO protective cover.
  • Site-safe lockable canopy.
  • Australian compliant wiring and M.E.N link.
  • Easy-to-use Smartgen controller.
  • 2-wire remote start capable.
  • ATS function connection socket.
  • Remote start 4G function capable.
  • Shunt relay auto stop.
  • Australian safety standards compliant.
Specifications:
Specification Details
Prime Power 50 kW / 62.5 kVA • 415 Volts • 95.6 Amps
Standby Power 55 kW / 68.8 kVA
Power Factor 0.8
Alternator Stamford Style OEM 4-pole brushless alternator c/w AVR
Phase Voltage Three phase, 415 Volt
Frequency 50 Hertz
Engine FAW 4DX23-78D
RPM 1500/min
Cooling Method Water cooled — 50 °C radiator rated for high temperatures
Starting System 12-volt electric — heavy-duty battery and charger included
Controller Smartgen 6120
Remote Start Capability 2-wire / remote start capable
Over Temperature Protection Included
Over Current Protection Included
Low Oil Protection Included
Lockable Battery Isolator Included
Emergency Stop Included
Shunt Relay Auto Stop Included
Noise Level 67 dBA at 7 metres
Running Time 24 hours at 75% prime load (fuel tank)
Fuel Tank Capacity 232 litres (c/w fuel gauge)
Fuel Consumption 12.87 litres/hour (75% prime load)
Cabinet Lockable; sound-deadening; powder-coated for external use
Bunded Fuel Tank Mine Site Ready Included
ATS (Mains Failure) Easy connect plug
Outlets
  • Single phase: 1 × 15 Amp IP66
  • Three phase: 1 × 20 Amp IP66
  • Three phase: 2 × 32 Amp IP66
Hardwire Terminals Included — RCBO IP67 protected plus extra cover
Options: Automatic Start Systems

GSM-G4

ATS (Mains Failure Auto Transfer Switch)

2-Wire Remote Start (socket fitted)

Weight: 1215 kg

Dimensions: 240 L × 98 W × 138 H cm
