12T Air Hydraulic Jack – Heavy Duty Bottle Jack,12,000kg Capacity,Safety Valve

12T Air Hydraulic Jack – Heavy Duty Bottle Jack,12,000kg Capacity,Safety Valve

SKU: ATXLHJ12
Out of stock
$10,000.00
Shipping calculated at checkout
LHJ12

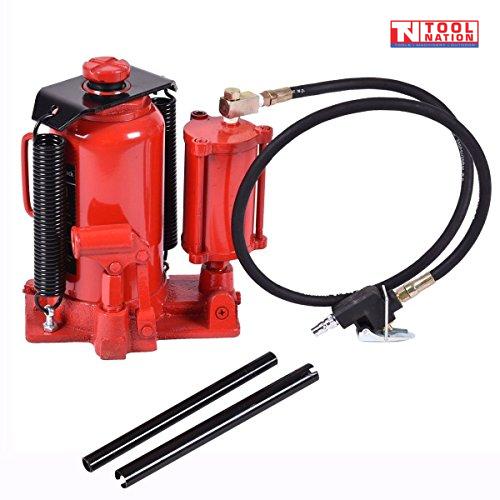

12T AIR HYDRAULIC JACK

Description:

The air hydraulic bottle jack is a powerful tool designed for heavy-duty lifting, capable of handling up to 12 tonnes (26,455 lbs) of weight. It features an adjustable height range from 9.8 inches (250 mm) to 19.5 inches (495 mm), making it versatile for a wide range of lifting tasks, such as lifting heavy machinery, trucks, and other large vehicles.

One of its key features is the extension screw, which provides an additional lift of up to 3.1 inches (80 mm). This allows for precise height adjustments, making it ideal for lifting objects with higher ground clearance or those requiring fine-tuned lifting positions.

For easy operation, the air hydraulic bottle jack connects to an air compressor using the included hose and 20 PM connector. Once connected, the lifting process is initiated with a simple press of the pneumatic switch, removing the manual strain associated with traditional jacks. This feature is particularly useful for heavy lifting operations, improving efficiency and ease of use.

The jack also boasts a heavy-duty design, incorporating double springs that allow for quick and stable resetting, enhancing overall work efficiency and ensuring that the jack can be quickly readied for subsequent lifts. Its construction includes high-quality welding and seals to prevent oil leakage, ensuring reliable and durable performance over time.

Safety is a top priority, with a built-in safety valve that prevents overloading and minimizes the risk of accidents during operation. This safety feature ensures that the jack operates within its rated capacity, providing added peace of mind during heavy lifting tasks. Additionally, the integrated hydraulic cylinder and piston rod design, along with a rust-resistant outer coating, ensure the jack’s durability and long-lasting performance.

Portability is another key advantage of this air hydraulic bottle jack. It features a compact design with a built-in handle, making it easy to carry and transport. It’s important to store the jack in a clean, dry environment when not in use, away from excessive heat and corrosive substances to maintain its functionality.

Finally, regular maintenance is essential for optimal performance. The jack should be periodically lubricated with appropriate hydraulic fluid or oil to ensure smooth operation and to extend the lifespan of the tool.

This 12-tonne air hydraulic bottle jack is designed to make heavy lifting simpler, safer, and more efficient, combining strength, ease of use, and portability into a single powerful tool.

Features:

  • 12-Tonne Capacity: Lifts up to 12 tonnes (12,000 kg), ideal for heavy-duty tasks.

  • Adjustable Height: Lifting range of 250 mm to 495 mm with 80 mm extension screw for fine adjustments.

  • Effortless Operation: Connects to an air compressor with pneumatic switch for easy lifting.

  • Leakage-Proof: Robust welding and high-quality seals prevent oil leakage.

  • Safety Features: Built-in safety valve to prevent overloading and ensure secure lifting.

  • Durable & Portable: Corrosion-resistant coating and compact design with built-in handle for easy transport.

Specifications:

Model: LHJ12

Capacity: 12,000 kg

Min height: 250 mm

Max height: 495 mm

Adjustable height: 80 mm

Lifting height: 165 mm

Package dimensions: 24 x 20 x 30 cm carton

Weight: 12 kg
