LHTJM2510

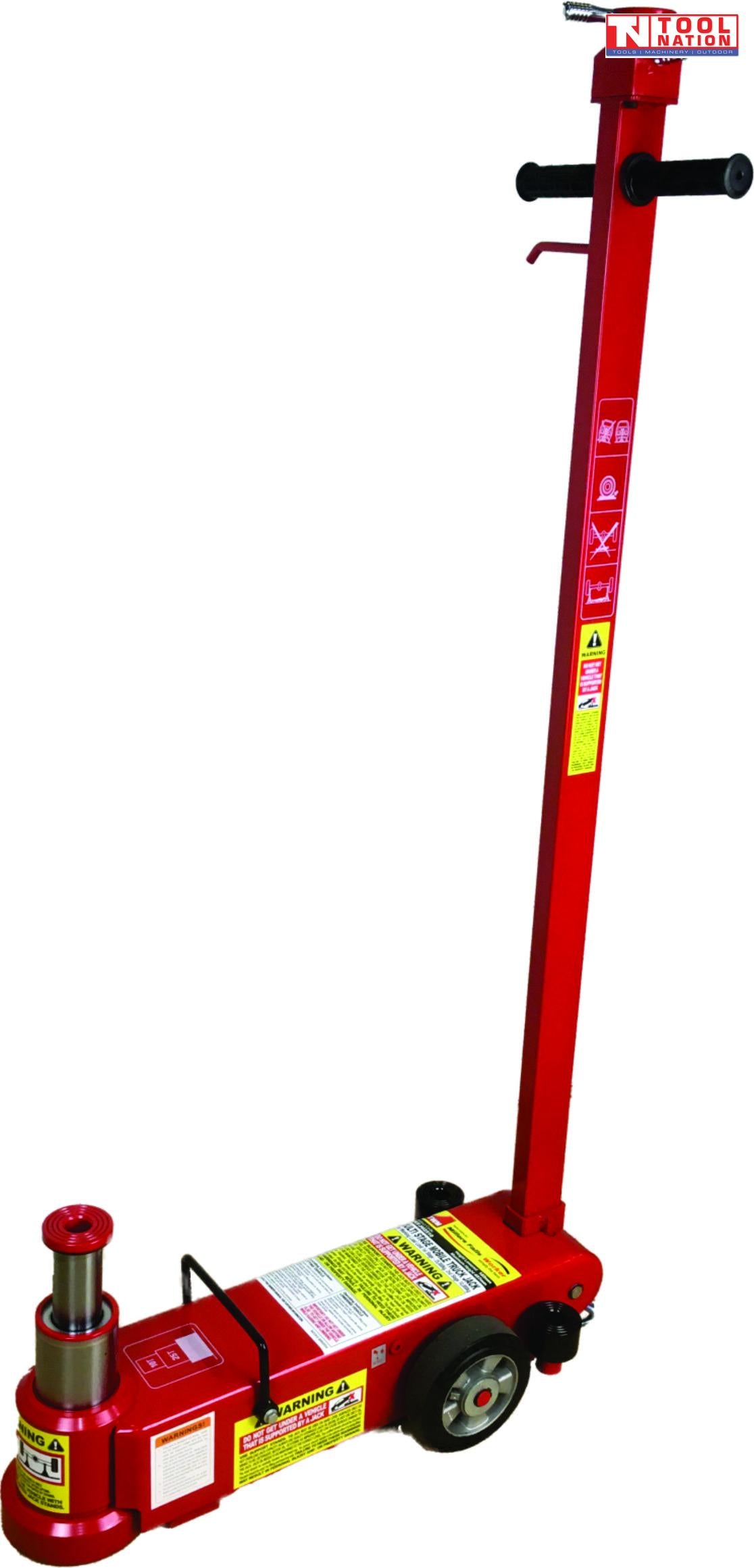

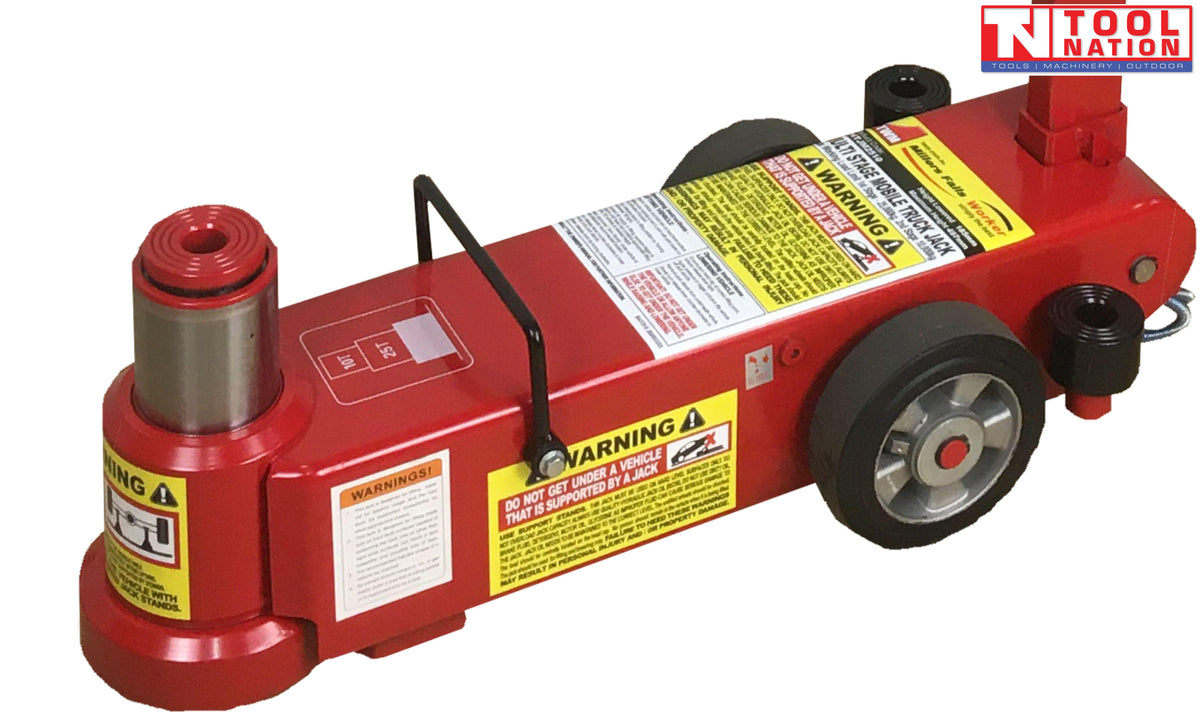

MULTI STAGE TRUCK JACK 25/10

Description:

The LHTJM2510 - MULTI STAGE TRUCK JACK 25/10T is a powerful, air-powered hydraulic jack designed to handle heavy-duty lifting tasks for trucks, buses, and industrial machinery. With a dual-stage hydraulic system, it offers 25,000 kg lifting capacity in the first stage and 10,000 kg in the second stage, making it ideal for a wide range of vehicles and heavy equipment.

One of the standout features of the LHTJM2510 is its quieter operation compared to traditional truck jacks. The air-powered hydraulic system is engineered to produce less noise, making it a more pleasant and safer option in busy workshop environments where noise reduction is important for both comfort and safety.

The LHTJM2510 provides a 97 mm hydraulic lift in the first stage and a 95 mm lift in the second stage, with an adjustable lifting range from 185 mm to 497 mm. The included adaptors, 75 mm and 45 mm, provide additional flexibility for vehicles with varying ground clearances.

This multi-stage jack is built for durability, with a nett weight of 53 kg and dimensions of 770 x 282 x 185 mm for the chassis. Despite its powerful performance, it remains portable with a handle length of 1380 mm and a package size of 840 x 300 x 270 mm. The LHTJM2510 operates at an air pressure range of 0.9-1.2 MPa (145-175 psi), ensuring fast and efficient lifting with reduced manual effort and operator fatigue.

The LHTJM2510 - MULTI STAGE TRUCK JACK 25/10T is the ideal solution for heavy-duty lifting with a focus on performance and noise reduction. Whether you are lifting trucks, buses, or industrial machinery, this multi-stage air hydraulic jack provides the lifting power, precision, and quieter operation needed for a safer, more efficient work environment.

The LHTJM2510 - MULTI STAGE TRUCK JACK 25/10T combines high lifting capacity, versatile functionality, and quieter operation, making it an essential tool for any workshop that requires reliable, efficient, and noise-reduced lifting solutions.

Key Features:

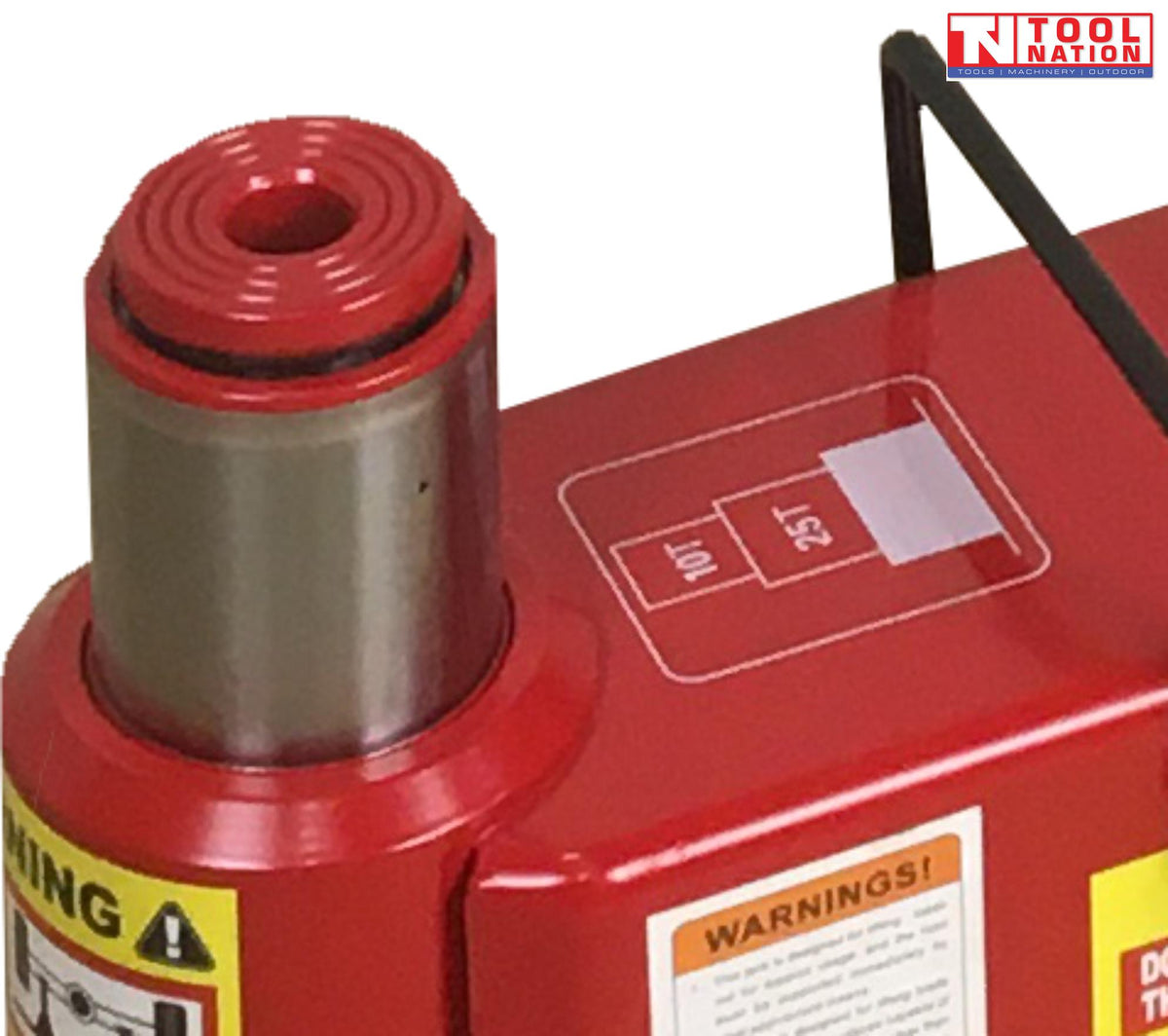

  • First Stage Capacity: Lifts up to 25,000 kg (25T), perfect for heavy trucks and large machinery.

  • Second Stage Capacity: Lifts up to 10,000 kg (10T), offering flexibility for different lifting applications.

  • Hydraulic Lifts: 97 mm lift in the first stage and 95 mm lift in the second stage.

  • Lifting Range: Min height: 185 mm, Max height: 497 mm, providing an adjustable range for different vehicles.

  • Quieter Operation: The LHTJM2510 is much quieter than regular truck jacks, offering a more comfortable and safer work environment.

  • Adaptors Included: Includes 75 mm and 45 mm adaptors for versatile lifting options.

  • Air-Powered System: Operating air pressure range of 0.9-1.2 MPa (145-175 psi), allowing for fast, efficient, and smooth lifting.

  • Durable Construction: Built to withstand heavy-duty use, ensuring reliable performance in tough environments.

  • Portable & Easy to Use: Weighs 53 kg with a handle length of 1380 mm, and features package dimensions of 840 x 300 x 270 mm for convenient transport and storage.

  • Handle Box: Includes a handle box measuring 1390 x 280 x 110 mm for easy storage.

Specifications:

Model: LHTJM2510

First Stage Capacity: 25,000 kg (25T)

Second Stage Capacity: 10,000 kg (10T)

First Stage Hydraulic Lift: 97 mm

Second Stage Hydraulic Lift: 95 mm

Minimum Height: 185 mm

Maximum Height: 497 mm

Adaptors: 75 mm and 45 mm

Handle Length: 1380 mm

Operating Air Pressure: 0.9-1.2 MPa (145-175 psi)

Chassis Dimensions: 770 x 282 x 185 mm

Nett Weight: 53 kg

Package Size: 840 x 300 x 270 mm

Gross Weight: 59 kg

Handle Box Dimensions: 1390 x 280 x 110 mm
