SKU: ATXLS22BD
In stock
$1,404.00 $2,449.00 Sale
Shipping calculated at checkout
LS22BD

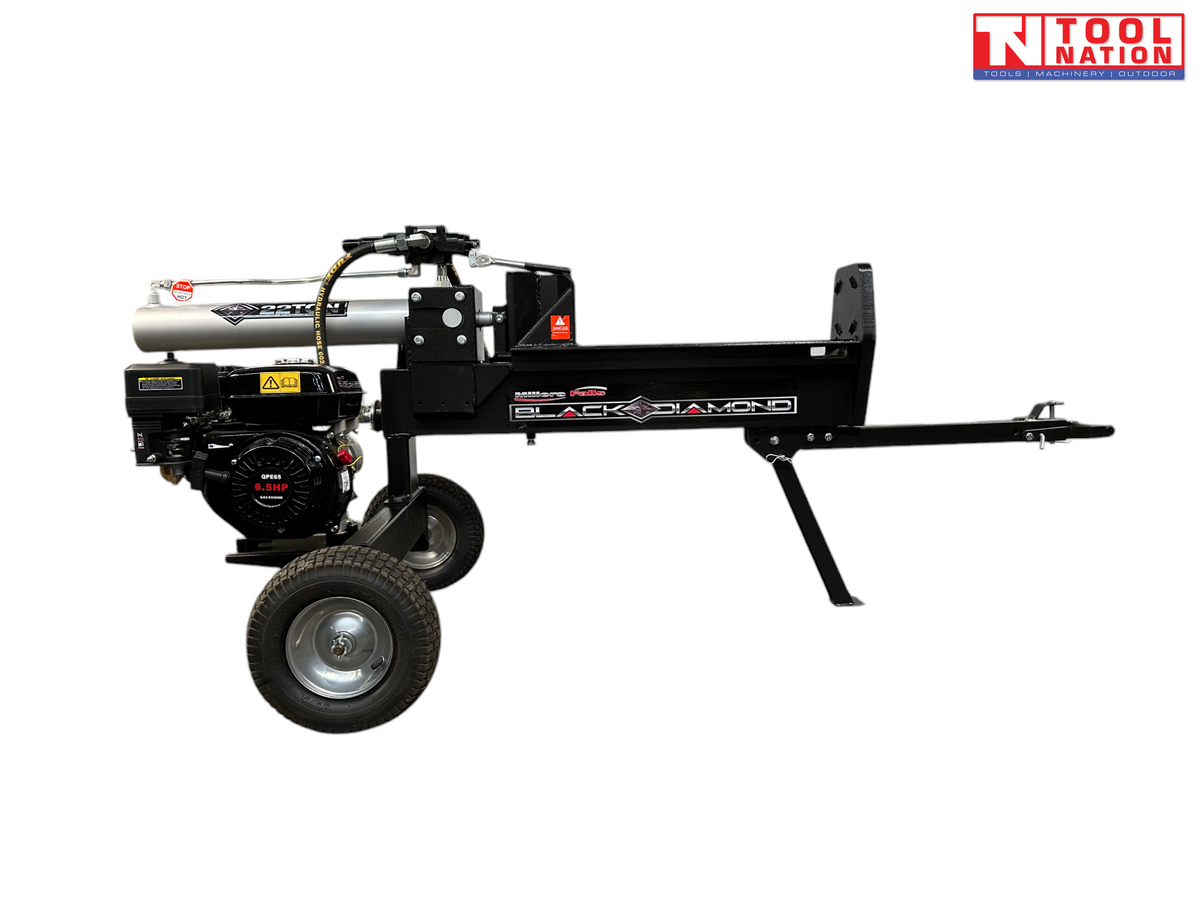

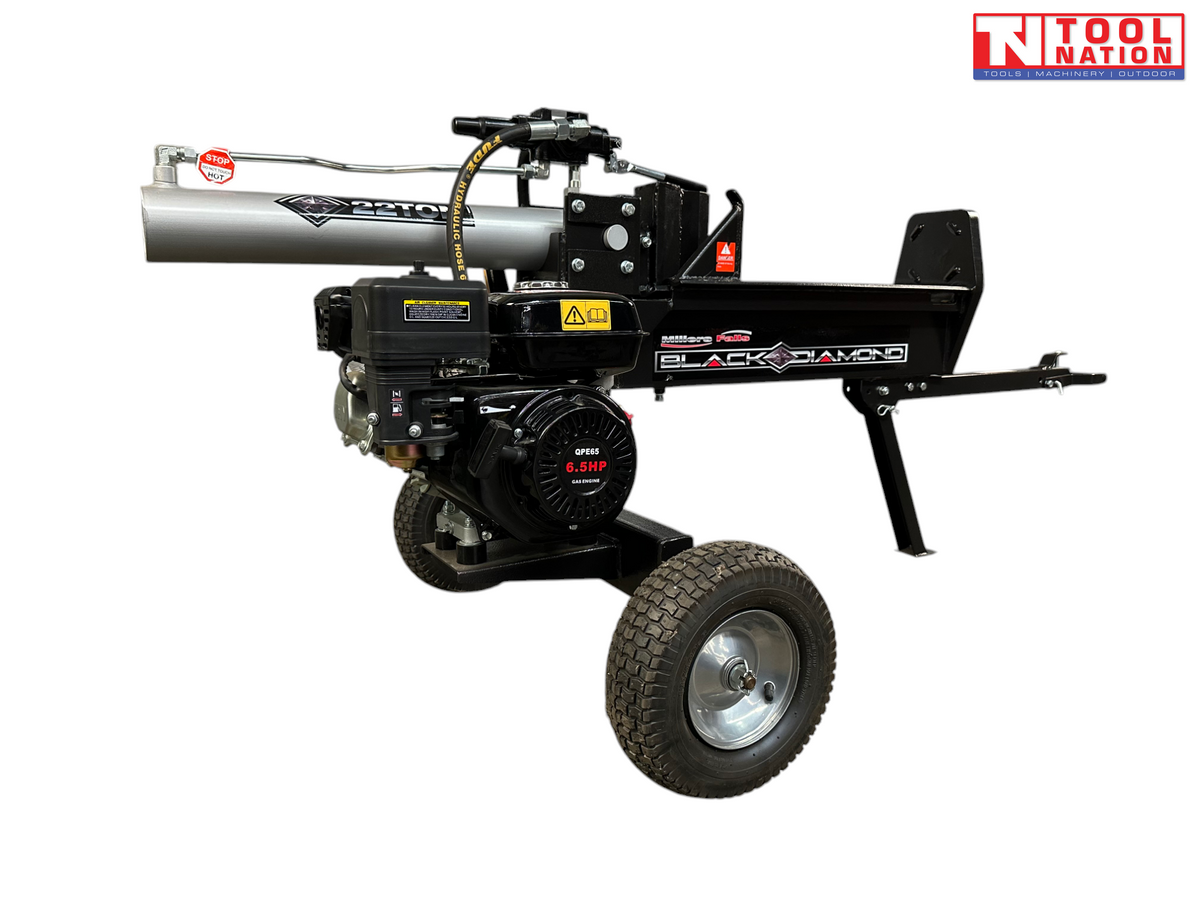

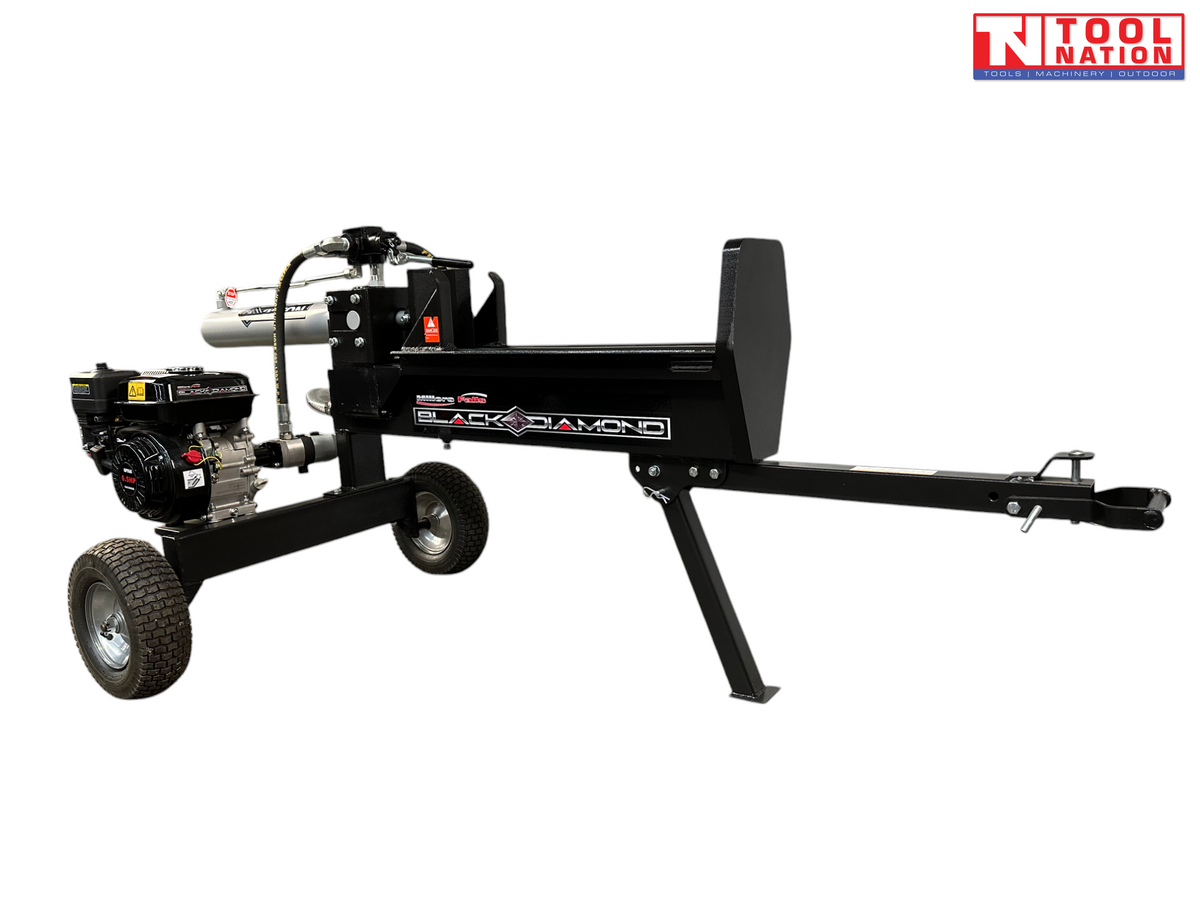

22-Ton Manual Start Hydraulic Log Splitter

The 22-Ton Manual Start Hydraulic Log Splitter (Model: LS22BD) is engineered to provide impressive power and efficiency in splitting wood, with less effort required than you might expect. Featuring a 6.5HP Petrol Engine and advanced hydraulic components, this splitter makes light work of even the toughest Australian hardwoods. Designed for durability and reliability, it ensures exceptional performance year after year in tough conditions.

This splitter combines a compact design with powerful, innovative features to deliver outstanding performance. Its 22-ton splitting force and wearproof hardened cast steel splitting wedge allow it to handle even the most demanding logs with ease. The innovative 2-stage gear pump enables faster splitting cycles, saving you time and increasing productivity.

One of the standout features of the LS22BD is its automatic return control valve, which retracts the ram automatically when the lever is released, reducing loading time between splits. The large 90mm x 574mm hydraulic cylinder, powered by the 6.5HP OHV 4-stroke engine, builds maximum pressure at lightning speed, making the log splitting process quicker and more efficient.

For portability, the LS22BD is fitted with large 13-inch pneumatic tyres and a 50mm cast steel coupler on the drawbar, making it easy to move across your property to where the wood is located. This feature minimizes the need to move the wood to the splitter, saving effort and time.

Whether you're splitting logs for firewood or larger projects, this 22-Ton Manual Start Hydraulic Log Splitter is the perfect choice for reliable and powerful log splitting.

Features:

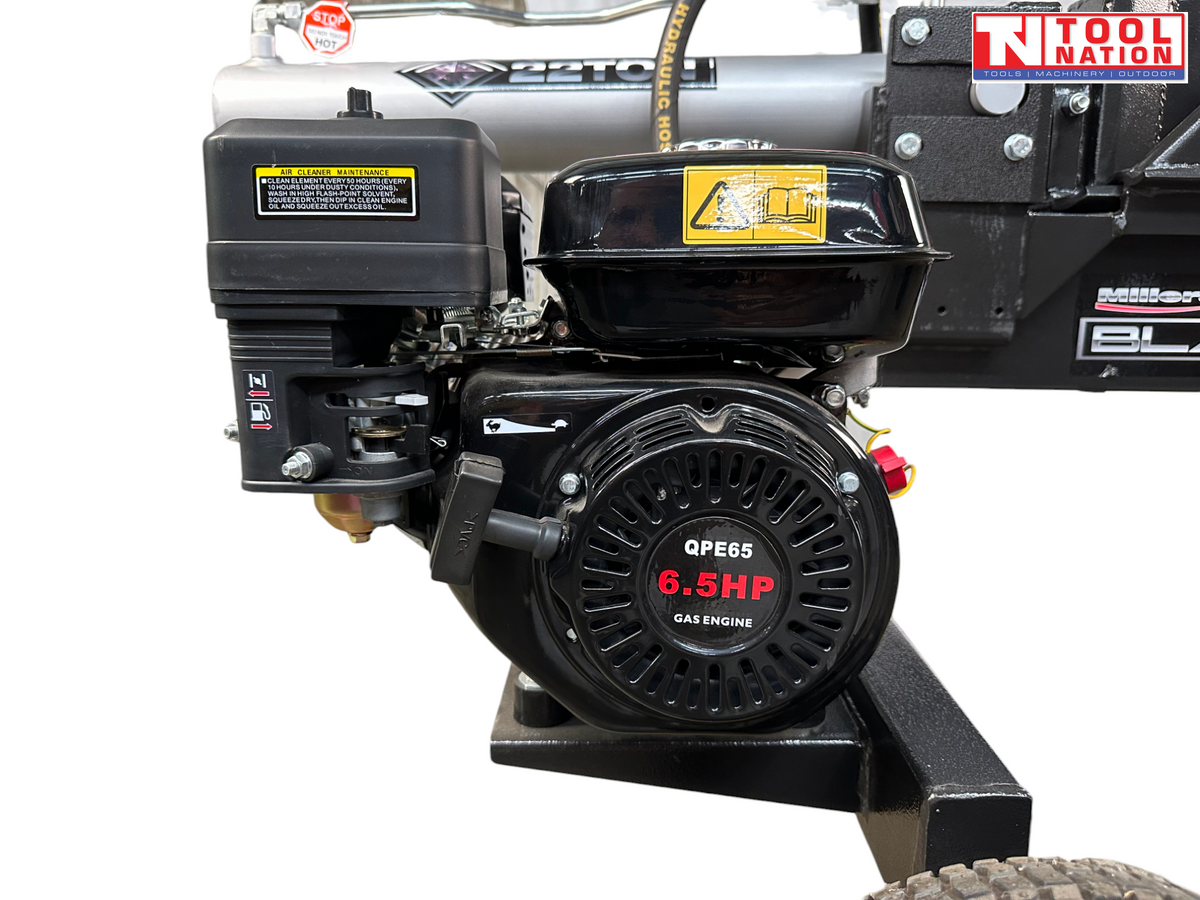

  • Engine: 6.5 horsepower, OHV 4-stroke, air-cooled petrol engine

  • Start: Manual recoil start

  • Hydraulic Cylinder: 90mm diameter x 574mm stroke for fast pressure build-up

  • Maximum Splitting Force: 22 tons

  • Splitting Wedge: 178mm hardened cast steel for superior durability

  • Cycle Time: Split and return in just 14 seconds

  • Maximum Log Length: 610mm

  • Working Position: Horizontal only

  • Wheels and Tires: 13-inch pneumatic tires for easy mobility

  • Auto Return Control Valve: Automatically retracts the ram when the lever is released

  • Towing Speed: Maximum recommended towing speed of 8 km/h

  • Towing & Mobility: 50mm cast steel coupler and support leg for enhanced portability

Specifications:

  • Model: LS22BD

  • Engine: 6.5HP, 4-Stroke, OHV Petrol, Air Cooled

  • Hydraulic Oil: Supplied with 5 Litres

  • Hydraulic Oil Capacity: 9 Litres ISO32 or 46

  • Hydraulic Cylinder Size: 90mm x 574mm

  • Maximum Splitting Force: 22 Tons

  • Wedge Height: 178mm (7 inches)

  • Cycle Time: 14 seconds

  • Max Log Length: 610mm (24 inches)

  • Working Position: Horizontal only

  • Wheels: 13-inch pneumatic

  • Towing Speed: Max 8 km/h

  • Shipping Dimensions: 168cm x 42cm x 69cm

  • Shipping Weight: 160kg
