SKU: ATXLS22ESBD
In stock
$1,524.00
Shipping calculated at checkout
LS22ESBD

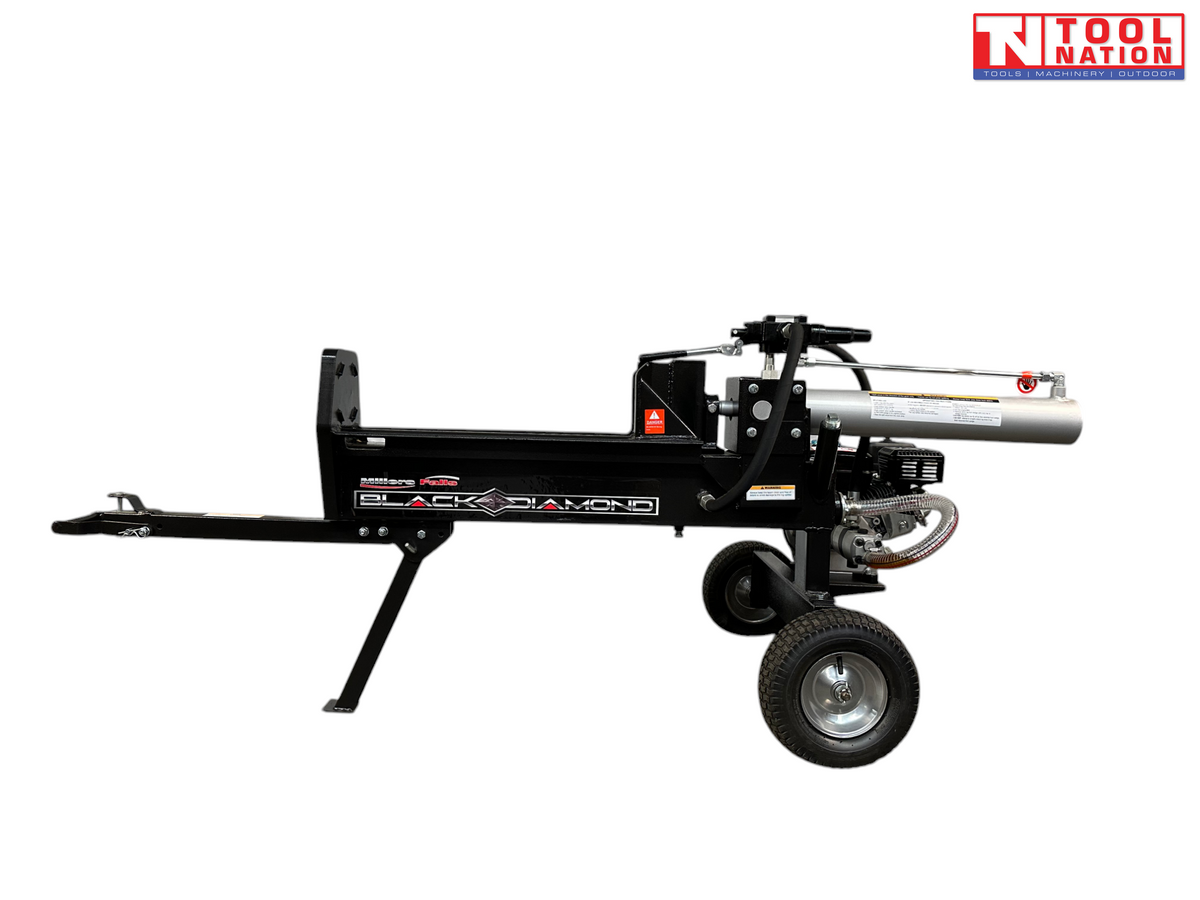

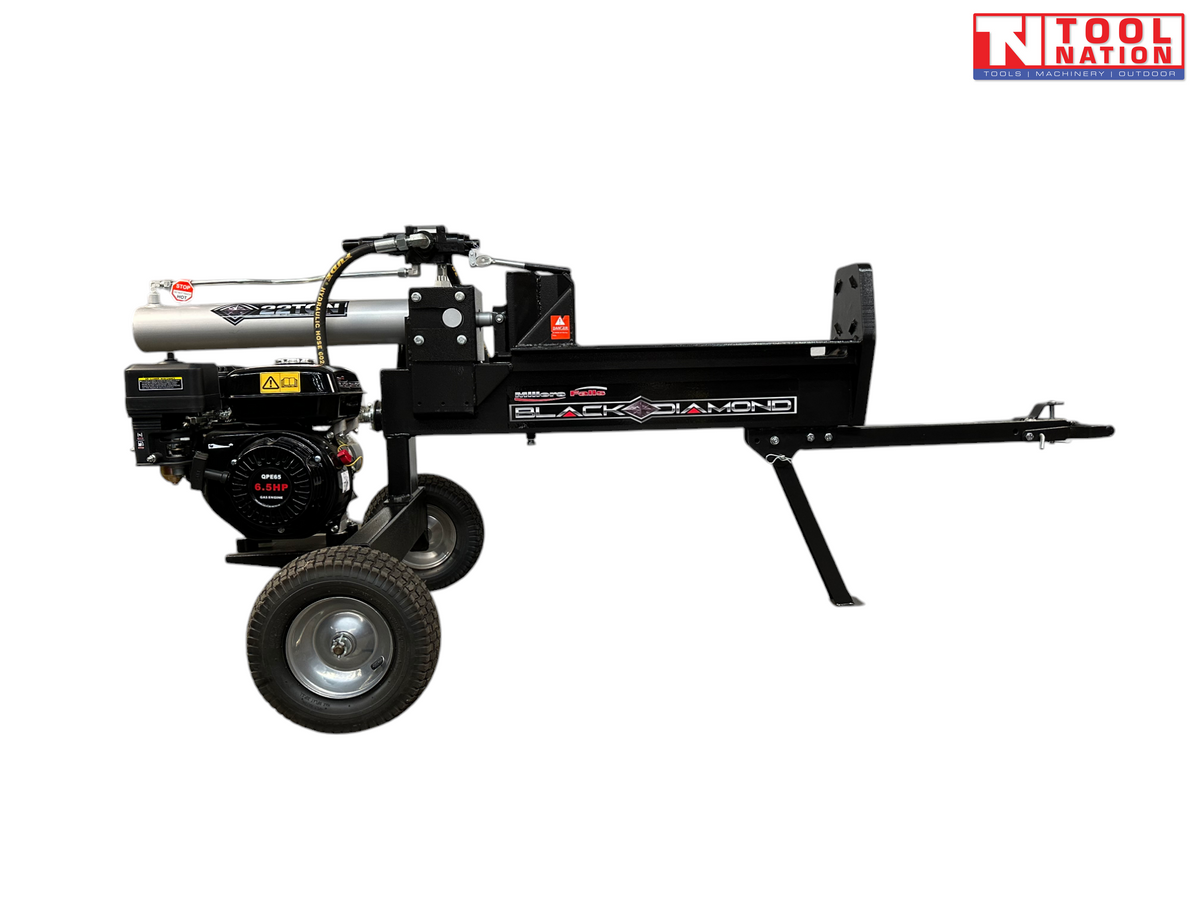

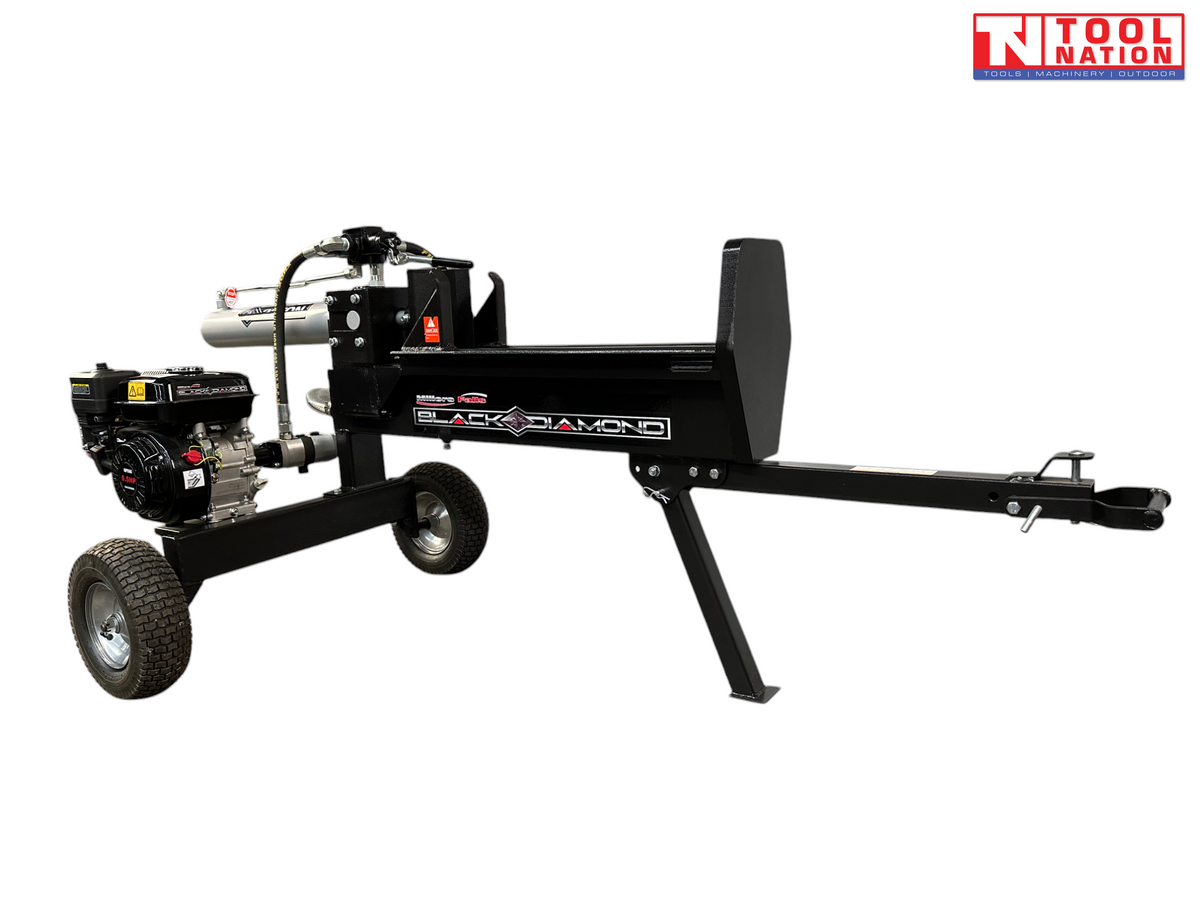

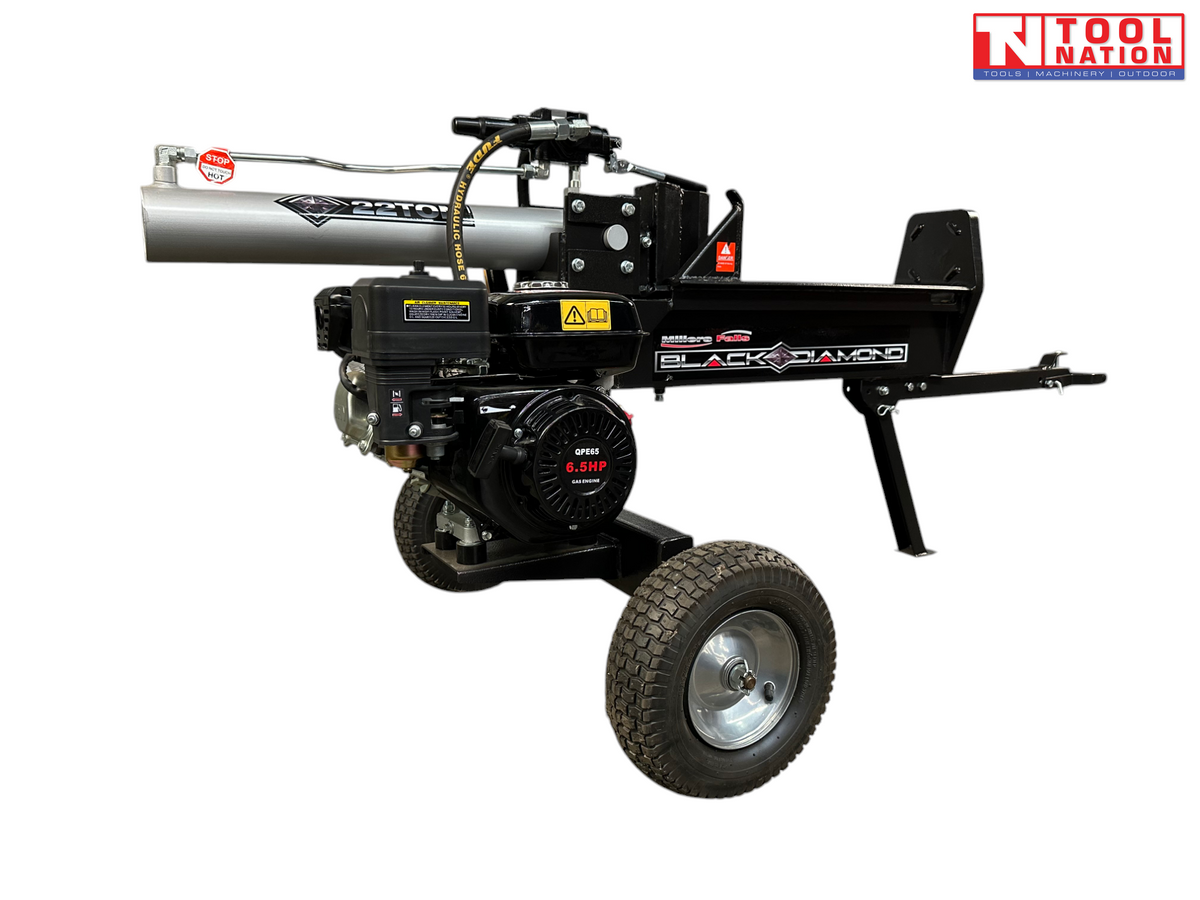

22-Ton Electric Start Hydraulic Log Splitter

The 22-Ton Electric Start Hydraulic Log Splitter (Model: LS22ESBD) is designed to make wood splitting quicker and easier than ever before. Powered by a 6.5HP petrol engine, this powerful splitter offers 22 tons of splitting force, allowing you to tackle even the toughest hardwoods with minimal effort. Engineered for durability, this log splitter provides consistent, high-performance splitting, making it the perfect tool for residential, farm, and commercial wood cutting needs.

The electric start feature ensures effortless operation, and the advanced hydraulic system makes the entire splitting process faster and more efficient. The 178mm wearproof hardened cast steel splitting wedge and automatic return control valve allow for quick loading and efficient splitting, minimizing downtime and increasing productivity. The high-quality hydraulic components ensure fast and effective operation with each cycle, and the 90mm x 574mm hydraulic cylinder, powered by the 6.5HP OHV 4-stroke engine, builds maximum pressure rapidly.

The large 13-inch pneumatic tyres and durable 50mm cast steel coupler on the drawbar make it easy to move the splitter to wherever the timber is located. The splitter’s compact design and heavy-duty construction ensure long-lasting performance even in demanding environments.

Perfect for homeowners, farms, and small businesses, the LS22ESBD Electric Start Hydraulic Log Splitter takes the hard work out of chopping and splitting firewood, making it an ideal solution for efficient and reliable wood cutting.

Features:

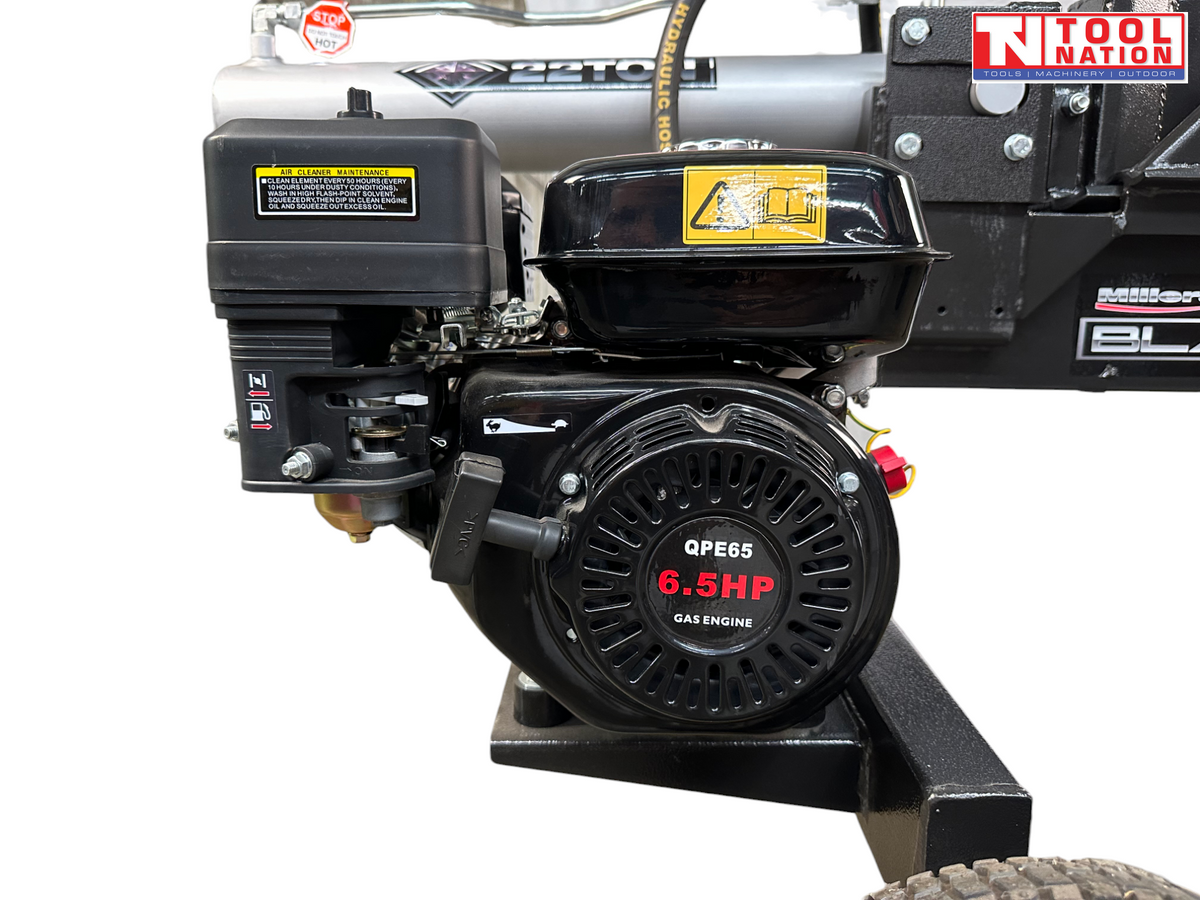

  • Engine: 6.5 horsepower, OHV 4-stroke, air-cooled petrol engine

  • Start: Electric key start for convenience

  • Hydraulic Cylinder: 90mm diameter x 574mm stroke for rapid pressure build-up

  • Maximum Splitting Force: 22 tons

  • Splitting Wedge: 178mm hardened cast steel for superior durability

  • Cycle Time: Split and return in just 14 seconds

  • Maximum Log Length: 610mm

  • Working Position: Horizontal only

  • Wheels and Tires: 13-inch pneumatic tyres for easy mobility

  • Auto Return Control Valve: Automatically retracts the ram when the lever is released

  • Towing Speed: Maximum recommended towing speed of 8 km/h

  • Towing & Mobility: 50mm cast steel coupler and support leg for easy transportation

Specifications:

  • Model: LS22ESBD

  • Engine: 6.5HP, 4-Stroke, OHV Petrol, Air Cooled

  • Hydraulic Cylinder Size: 90mm x 574mm

  • Hydraulic Oil: Supplied with 5 Litres

  • Hyd Oil Capacity: 9 Litres ISO32 or 46

  • Maximum Splitting Force: 22 Tons

  • Wedge Height: 178mm (7 inches)

  • Cycle Time: 14 seconds

  • Max Log Length: 610mm (24 inches)

  • Working Position: Horizontal only

  • Wheels: 13-inch pneumatic

  • Towing Speed: Max 8 km/h

  • Shipping Dimensions: 168cm x 42cm x 69cm

  • Shipping Weight: 165kg
