SKU: ATXLS30LTBD
In stock
$2,462.00
Shipping calculated at checkout
LS30LTBD

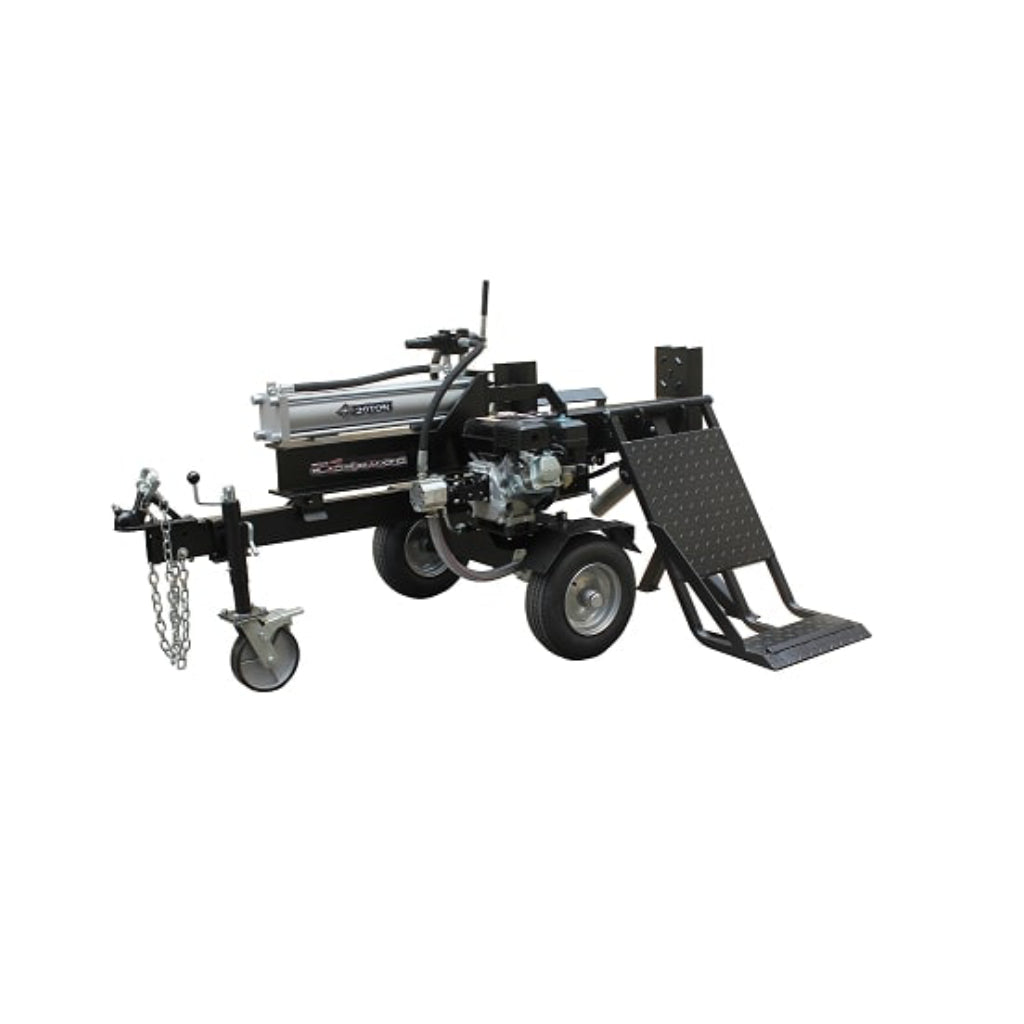

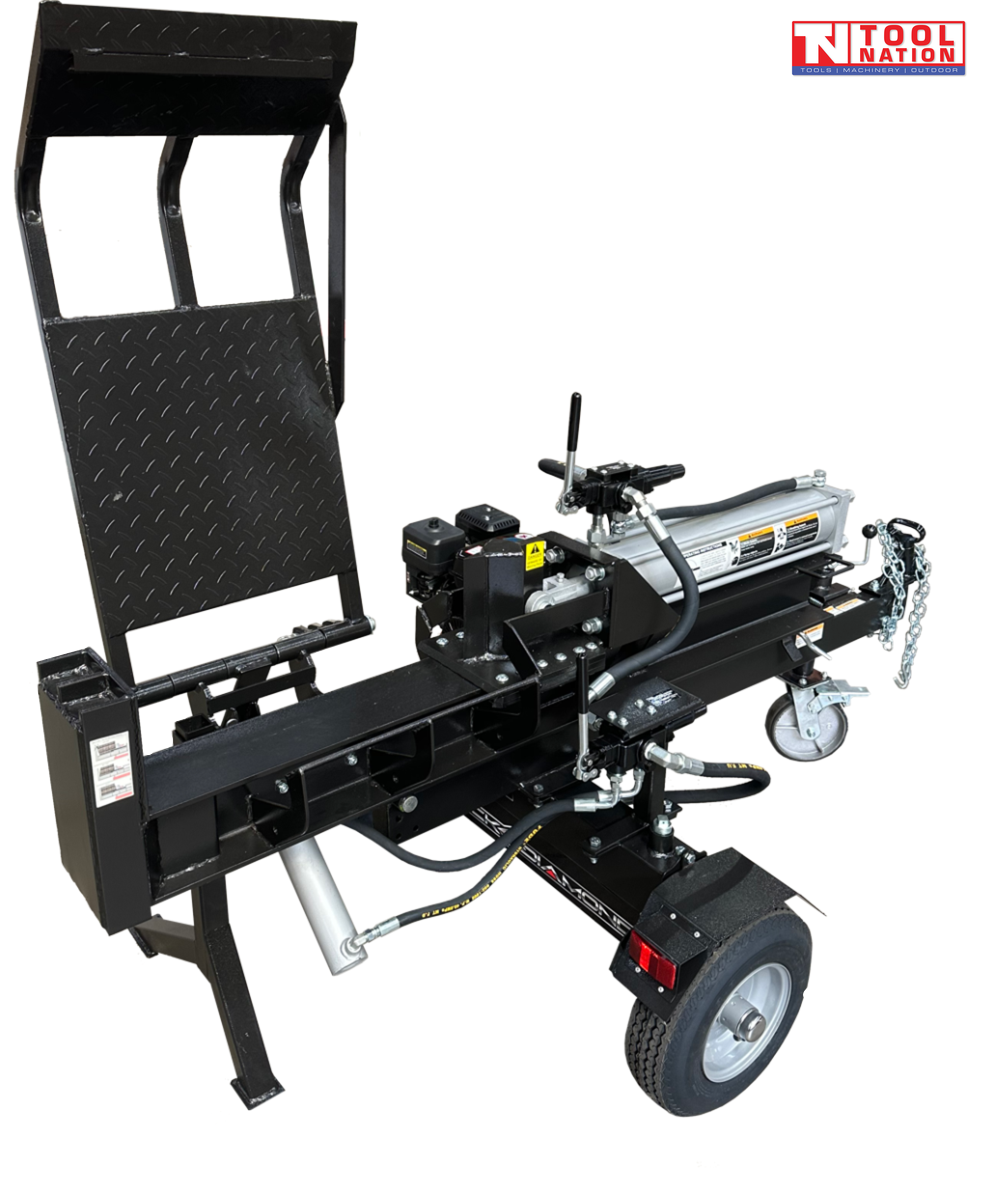

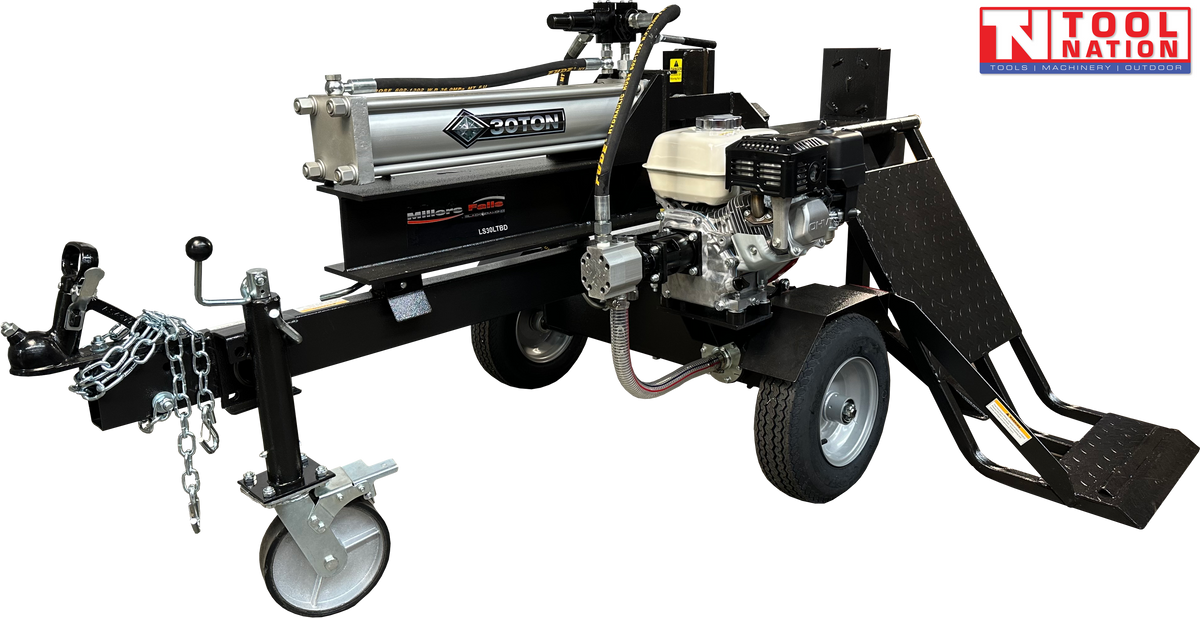

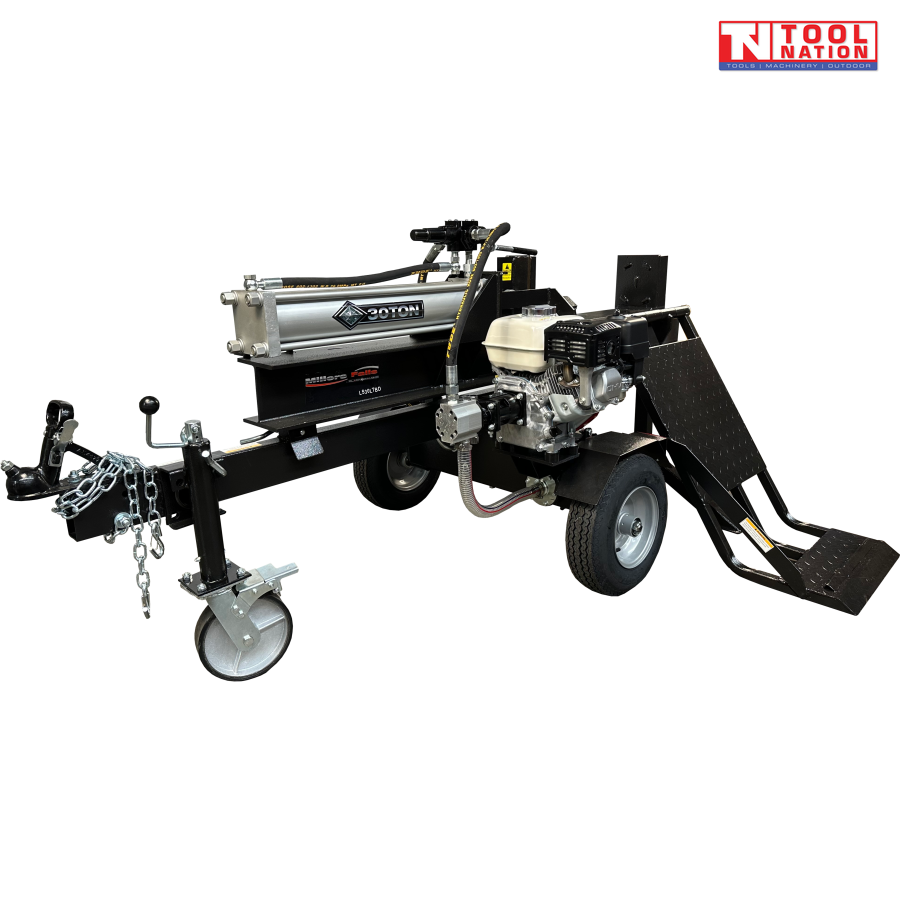

30 Ton Manual Start Log Splitter with Hydraulic Lift Table

The LS30LTBD Log Splitter is designed for ultimate strength and efficiency, built to tackle tough logs with ease. Powered by a 6.5 horsepower, 4-stroke OHV engine, this splitter delivers 30 tons of splitting force. The manual recoil start ensures quick and easy ignition, while the heavy-duty 100mm x 580mm hydraulic cylinder provides fast and powerful operation.

This splitter is equipped with a reliable 178mm hardened steel wedge to split logs up to 610mm in length and 305mm in diameter, making it ideal for both smaller and larger logs. With the flexibility to operate in both horizontal and vertical positions, the LS30LTBD offers versatility for different log sizes and conditions.

The hydraulic lifting table is a standout feature, allowing easy loading and unloading of logs. This feature minimizes the need for bending and lifting heavy logs, saving your back from unnecessary strain. Additionally, the auto return valve ensures the ram retracts automatically when you release the lever, making it more efficient to load the next log.

The 16-inch pneumatic wheels and jockey wheel make this log splitter easily portable across your property, so you don't need to bring the wood to the splitter. With a maximum recommended towing speed of 72 km/h, this machine is designed to move quickly and efficiently around your land.

The LS30LTBD is built to perform in the toughest conditions, ideal for the Australian market where durability, reliability, and high performance are essential. This splitter ensures years of reliable service for homeowners, farmers, and firewood processors alike.

Features:

  • Engine: 6.5 horsepower, 4 stroke, OHV, air cooled

  • Manual (Recoil) Start

  • Hydraulic Cylinder Size: 100mm diameter x 580mm stroke

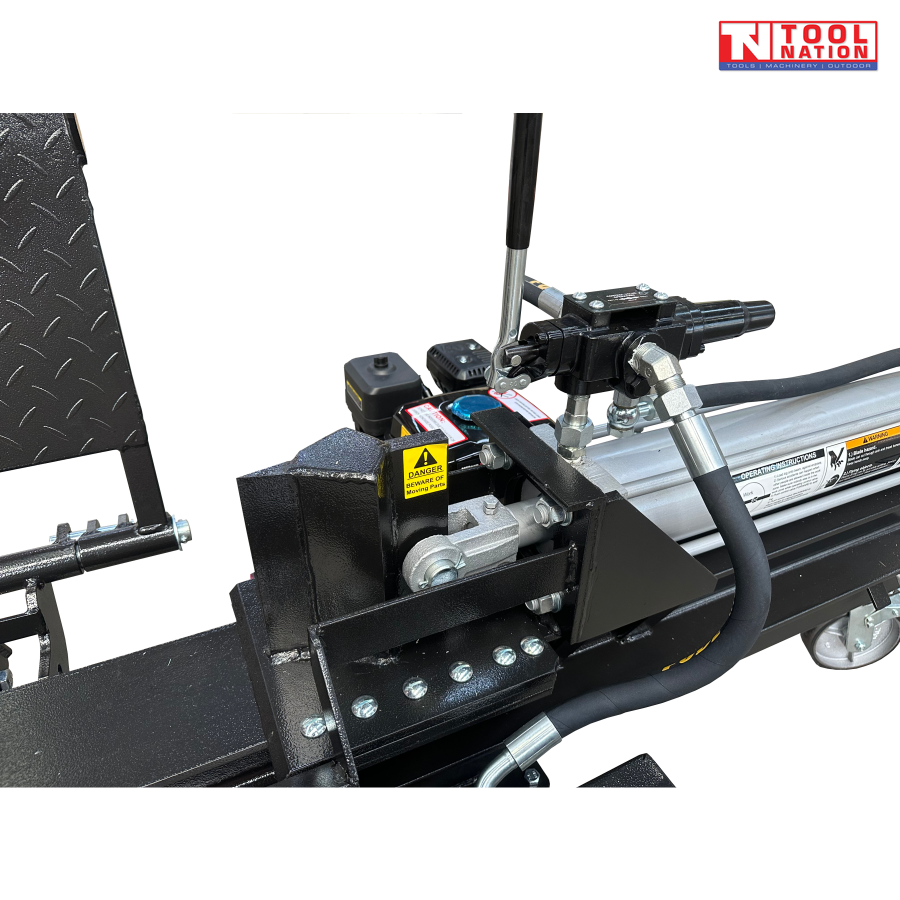

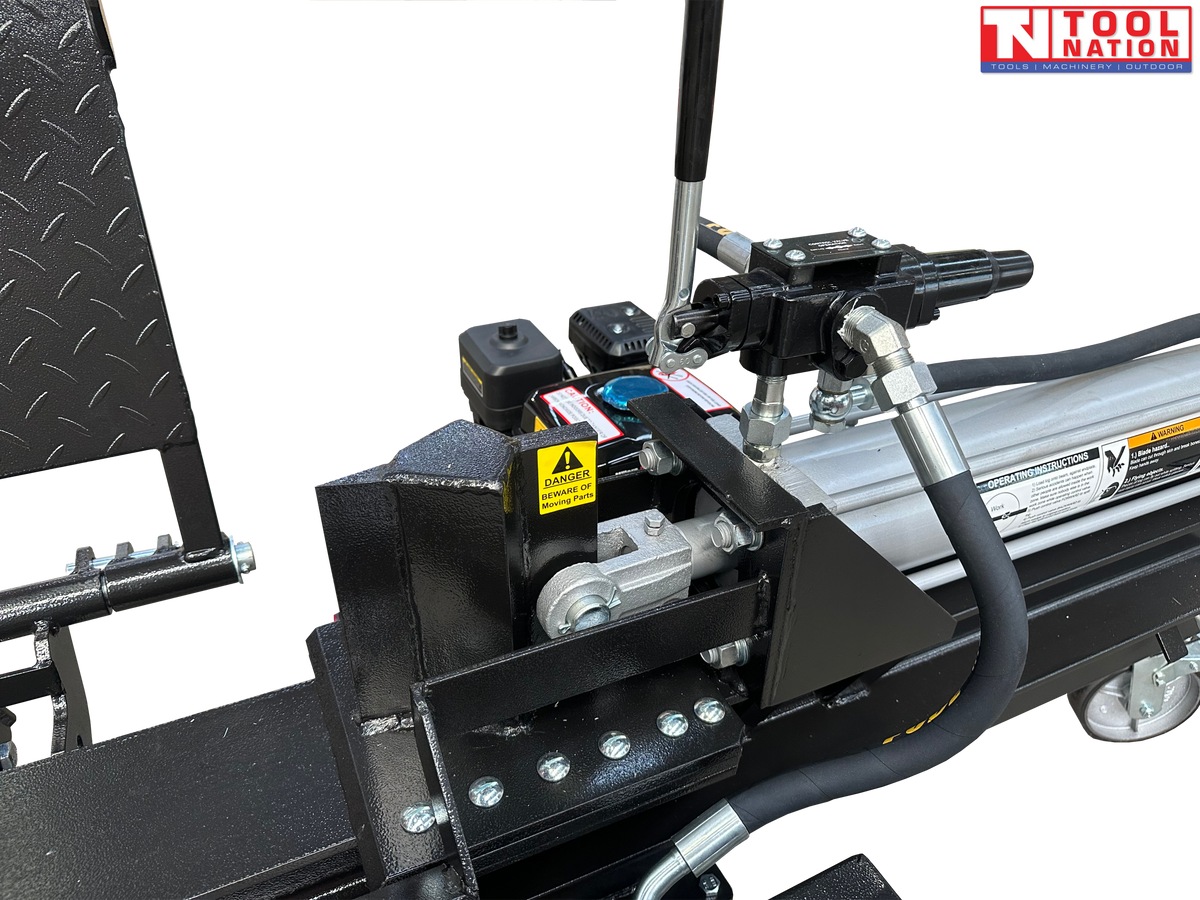

  • Automatic Return Control Valve

  • Maximum Splitting Force: 30 Ton

  • Wedge Height: 7” (178mm)

  • Split and Return Cycle Time: 17 seconds

  • Maximum Log Length: 24” (610mm)

  • Working Position: Horizontal and Vertical

  • Hydraulic Lifting Table

  • Jockey Wheel: 8” (200mm) x 2” (50mm)

  • Wheels and Tyres: 16” pneumatic

  • Maximum Recommended Towing Speed: 72 km/h

  • Package Dimensions: 187cm x 52cm x 93cm

  • Package Weight: 320kg

Specifications:

  • Engine: 6.5 horsepower, 4-stroke, OHV, air cooled, manual (recoil) start

  • Hydraulic Cylinder Size: 100mm diameter x 580mm stroke

  • Maximum Splitting Force: 30 Ton

  • Hydraulic Oil Supplied: 10 Litres ISO 46

  • Oil Tank Capacity: 12 Litres

  • Wedge Height: 7” (178mm)

  • Cycle Time: 17 seconds

  • Maximum Log Length: 24” (610mm)

  • Log Diameter: Suitable for logs up to 12” (305mm) in diameter

  • Hydraulic Lifting Table for easy log loading and unloading

  • Hydraulic Lifting Table Capacity: 150kg

  • Jockey Wheel: 8” (200mm) x 2” (50mm)

  • Pneumatic Wheels: 16”

  • Maximum Recommended Towing Speed: 72 km/h

  • Package Dimensions: 187cm x 52cm x 93cm

  • Package Weight: 320kg
