30 Ton Electric Start Log Splitter With Hydraulic Lift Table - Ls30Ltesbd

30 Ton Electric Start Log Splitter With Hydraulic Lift Table - Ls30Ltesbd

SKU: ATXLS30LTESBD
In stock
$2,575.00
Shipping calculated at checkout
LS30LTESBD

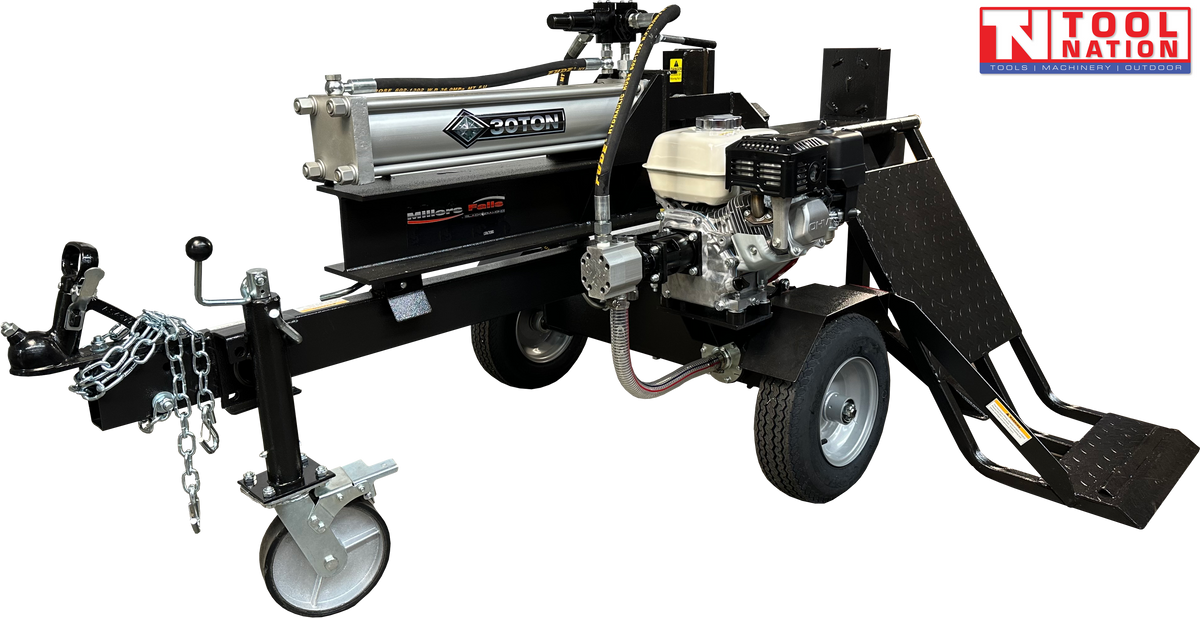

30 Ton Electric Start Log Splitter with Hydraulic Lift Table

The LS30LTESBD Log Splitter from Millers Falls Black Diamond is a powerful and efficient machine, designed for heavy-duty log splitting tasks. Powered by a 6.5 horsepower, 4-stroke OHV petrol engine with electric start, it provides a quick and easy ignition at the push of a button. This log splitter delivers a maximum 30 tons of splitting force, making it ideal for handling tough, large logs, including Australian hardwoods.

The 178mm hardened steel wedge is designed to split logs up to 610mm in length and 305mm in diameter, outperforming most other machines in its class. Equipped with a hydraulic lifting table, this model allows for easy log loading and unloading, saving your back from the strain of lifting heavy logs. The auto return valve ensures the ram retracts automatically when you release the lever, increasing efficiency when loading the next log.

The 16-inch pneumatic wheels and jockey wheel make this splitter easy to move around your property, while the 50mm cast steel coupling allows for safe towing at a maximum speed of 72 km/h. The 2-stage 11 GPM gear pump ensures maximum splitting efficiency and reduces the time it takes to reach full pressure.

Whether you are splitting logs for firewood or handling larger jobs, the LS30LTESBD is a reliable, durable, and powerful choice designed for both commercial and personal use.

Features:

  • Engine: 6.5 horsepower, 4 stroke, OHV, air cooled

  • Electric Start (Key Start) with Recoil Starter

  • Battery: 12V, 9AH maintenance-free, lead acid

  • Hydraulic Cylinder Size: 100mm diameter x 580mm stroke

  • Automatic Return Control Valve

  • Maximum Splitting Force: 30 Ton

  • Wedge Height: 7” (178mm)

  • Split and Return Cycle Time: 17 seconds

  • Maximum Log Length: 24” (610mm)

  • Working Position: Horizontal and Vertical

  • Hydraulic Lifting Table

  • Jockey Wheel: 8” (200mm) x 2” (50mm)

  • Wheels and Tyres: 16” pneumatic

  • Maximum Recommended Towing Speed: 72 km/h

  • Package Dimensions: 187cm x 52cm x 93cm

  • Package Weight: 323kg

Specifications:

  • Engine: 6.5 horsepower, 4-stroke, OHV, air cooled, electric (key) start

  • Hydraulic Cylinder Size: 100mm diameter x 580mm stroke

  • Maximum Splitting Force: 30 Ton

  • Hydraulic Oil Supplied: 10 Litres ISO 46

  • Oil Tank Capacity: 12 Litres

  • Wedge Height: 7” (178mm)

  • Cycle Time: 17 seconds

  • Maximum Log Length: 24” (610mm)

  • Log Diameter: Suitable for logs up to 12” (305mm) in diameter

  • Hydraulic Lifting Table for easy log loading and unloading

  • Hydraulic Lifting Table Capacity: 150kg

  • Jockey Wheel: 8” (200mm) x 2” (50mm)

  • Pneumatic Wheels: 16”

  • Maximum Recommended Towing Speed: 72 km/h

  • Package Dimensions: 187cm x 52cm x 93cm

  • Package Weight: 323kg
