SKU: ATXLS30WEJTTBD
In stock
$1,859.00
Shipping calculated at checkout
LS30WEJTTBD

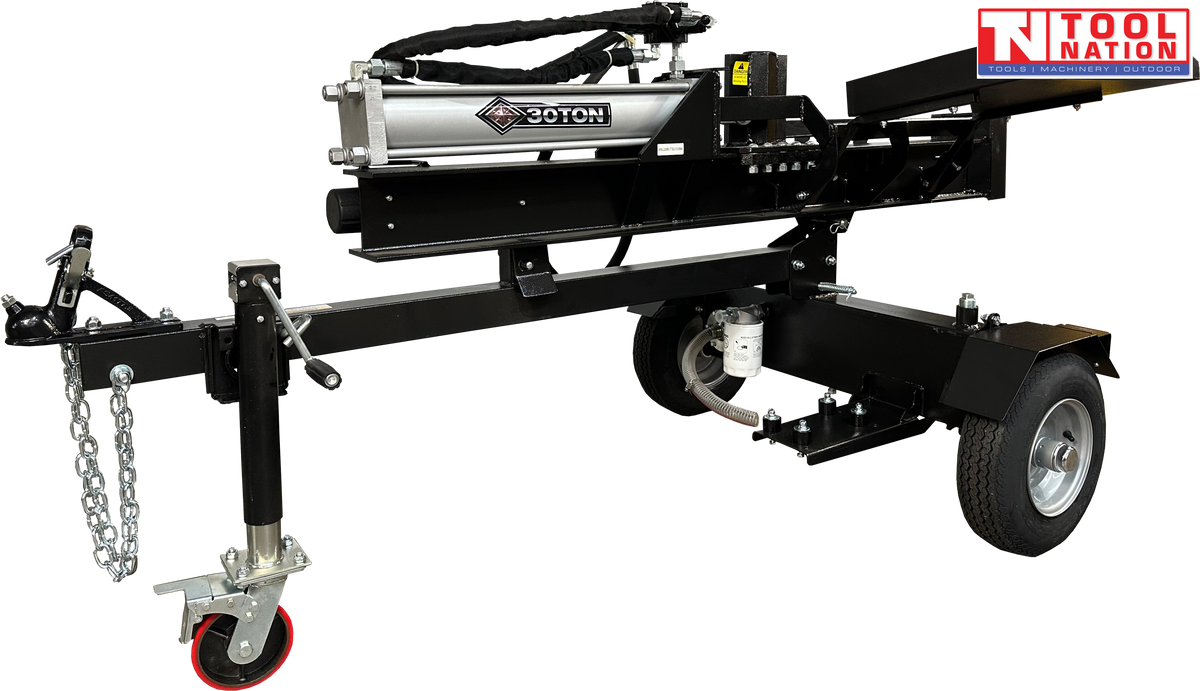

30 Ton Log Splitter without Engine

The LS30WEJTTBD Millers Falls Black Diamond Log Splitter is designed to deliver 30 tons of splitting force, capable of handling even the toughest Australian hardwoods. This model features a 200mm wear-proof hardened cast steel splitting wedge, offering excellent durability and splitting performance. It can split logs up to 610mm in length and 305mm in diameter, making it highly versatile for both residential and commercial use.

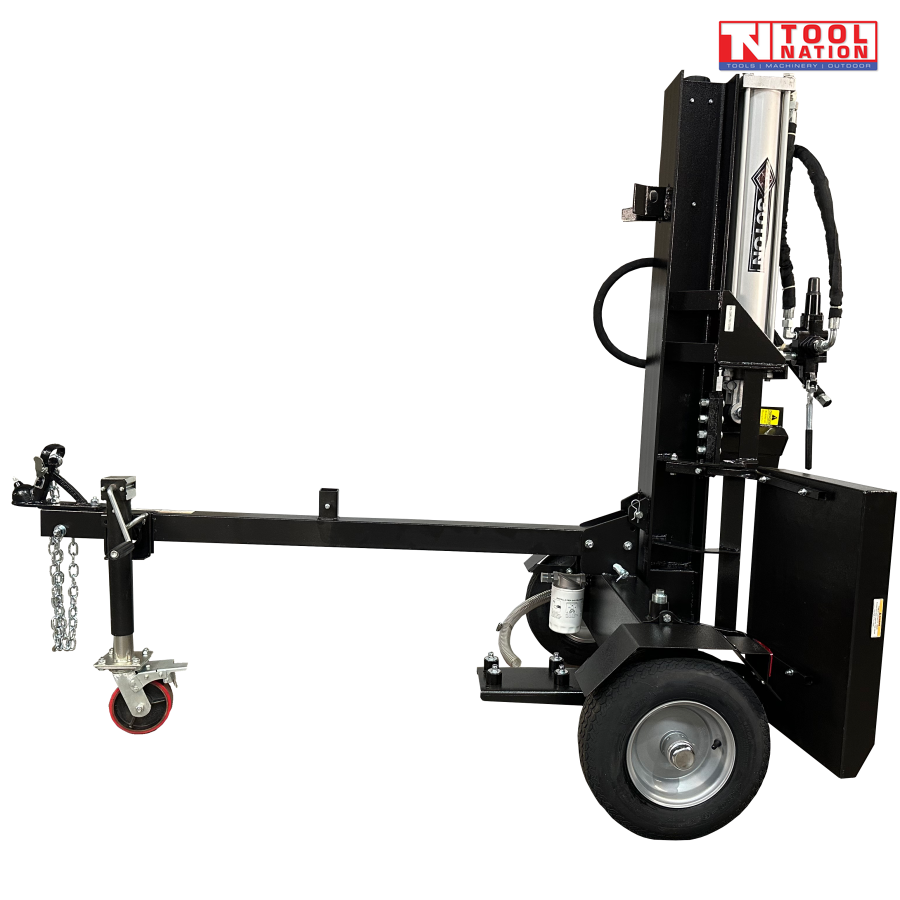

This log splitter can be operated in both horizontal and vertical positions, allowing you to comfortably tackle logs of different sizes. The auto return valve ensures the ram automatically retracts after each cycle, optimizing your time when loading new logs. It also includes a hydraulic lifting table to assist with log loading, making the task easier and less physically demanding.

This splitter comes without an engine, giving you the flexibility to use your own engine. It's equipped with a 14 GPM 2-stage gear pump and a 115mm x 575mm cylinder, which ensures fast and efficient operation, maximizing your splitting productivity. The 16” x 6.5” pneumatic wheels make it easy to move across your property.

Manufactured by Black Diamond, one of the largest log splitter manufacturers in the world, this model offers the power and durability required for high-performance wood splitting.

Features:

  • Engine: No engine included (customizable for user-supplied engine)

  • Maximum Splitting Force: 30 Ton

  • Hydraulic Cylinder Size: 115mm x 575mm

  • Hard Steel Wedge: 8” (200mm)

  • Log Capacity: Splits logs up to 24” (610mm) long and 12” (305mm) in diameter

  • Operating Positions: Horizontal and Vertical

  • Auto Return Valve: For faster operation

  • Hydraulic Lift Table: For easy log handling

  • Pneumatic Wheels: 16” x 6.5” D.O.T

  • Pump: 14 GPM 2-stage gear pump

  • Package Dimensions: Not specified

  • Package Weight: Not specified

Specifications:

  • Capacity: 30 Ton

  • Cylinder Size: 4-1/2” x 23” (115mm x 575mm)

  • Hydraulic Pump: 14 GPM, 2-stage gear pump

  • Splitting Wedge Height: 8” (200mm)

  • Hydraulic Oil Supplied: 10 Litres ISO 46

  • Oil Tank Capacity: 12 Litres

  • Maximum Log Length: 24” (610mm)

  • Log Diameter: Up to 12” (305mm)

  • Operating Position: Horizontal and Vertical

  • Lift Table Included

  • Pneumatic Wheels: 16” x 6.5”

  • No Engine Supplied

  • Shipping Dimensions: 187cm x 51cm x 68cm

  • Shipping Weight: 257kg
