40T Hydraulic Log Splitter - Fast Firewood Processing
40T Hydraulic Log Splitter - Fast Firewood Processing
40T Hydraulic Log Splitter - Fast Firewood Processing
40T Hydraulic Log Splitter - Fast Firewood Processing
40T Hydraulic Log Splitter - Fast Firewood Processing
40T Hydraulic Log Splitter - Fast Firewood Processing

40T Hydraulic Log Splitter - Fast Firewood Processing

SKU: ATXLS40BD
Out of stock
$10,000.00
Shipping calculated at checkout
LS40BD

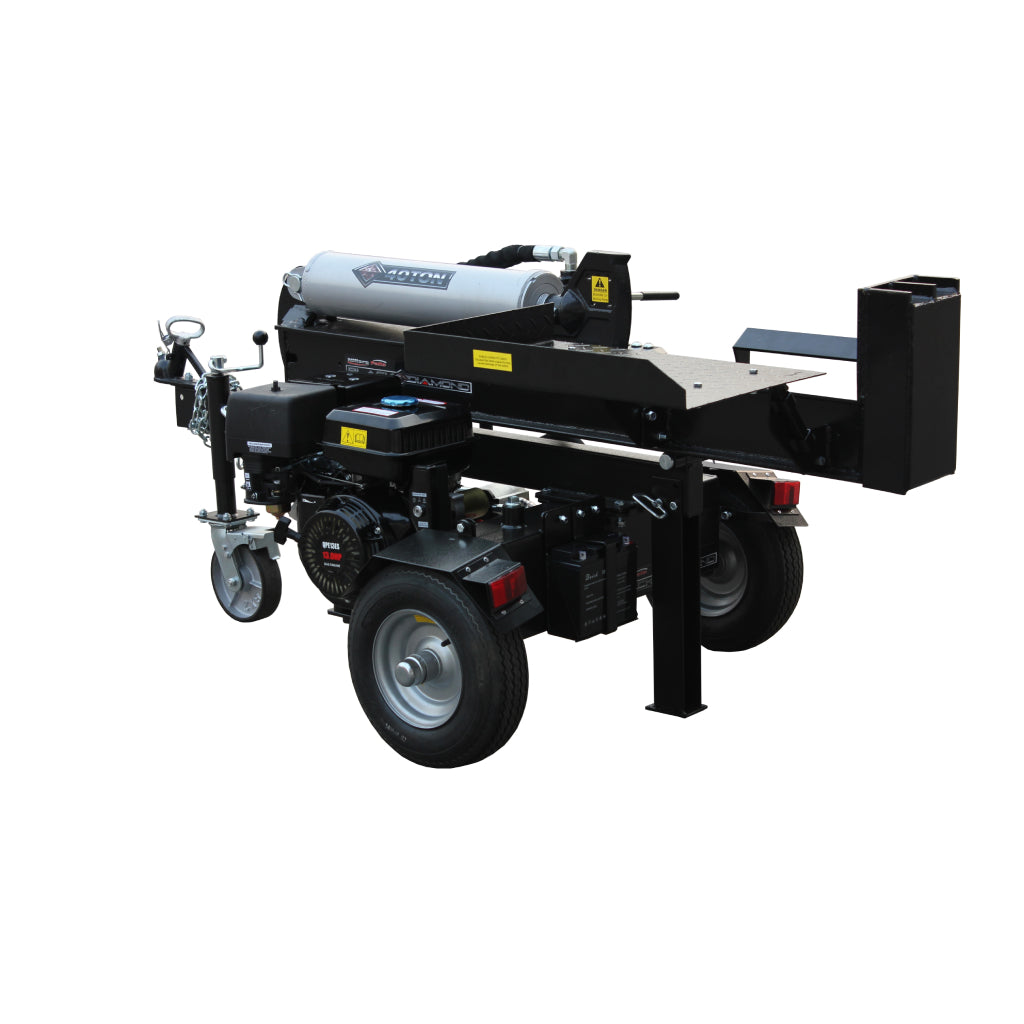

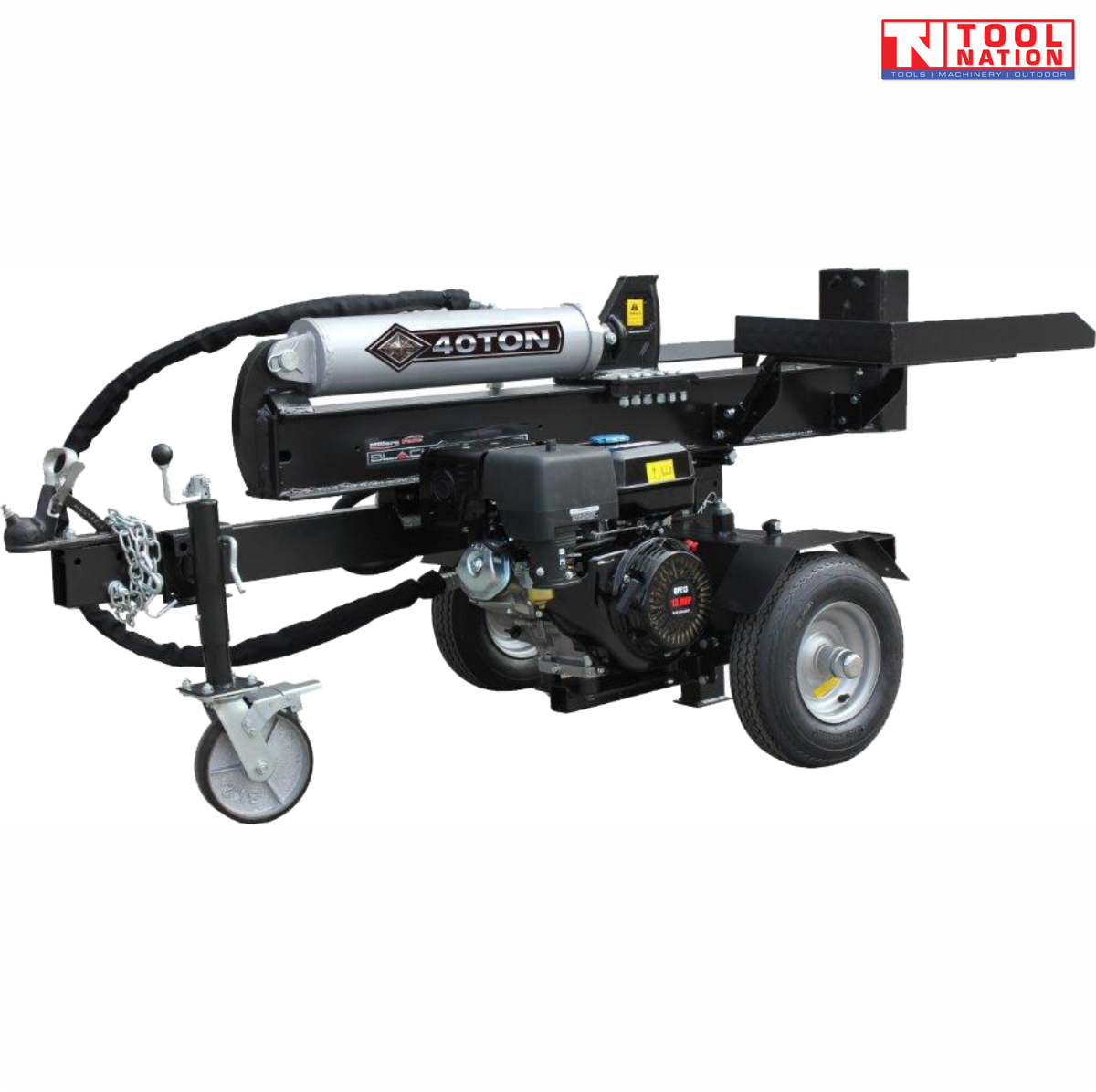

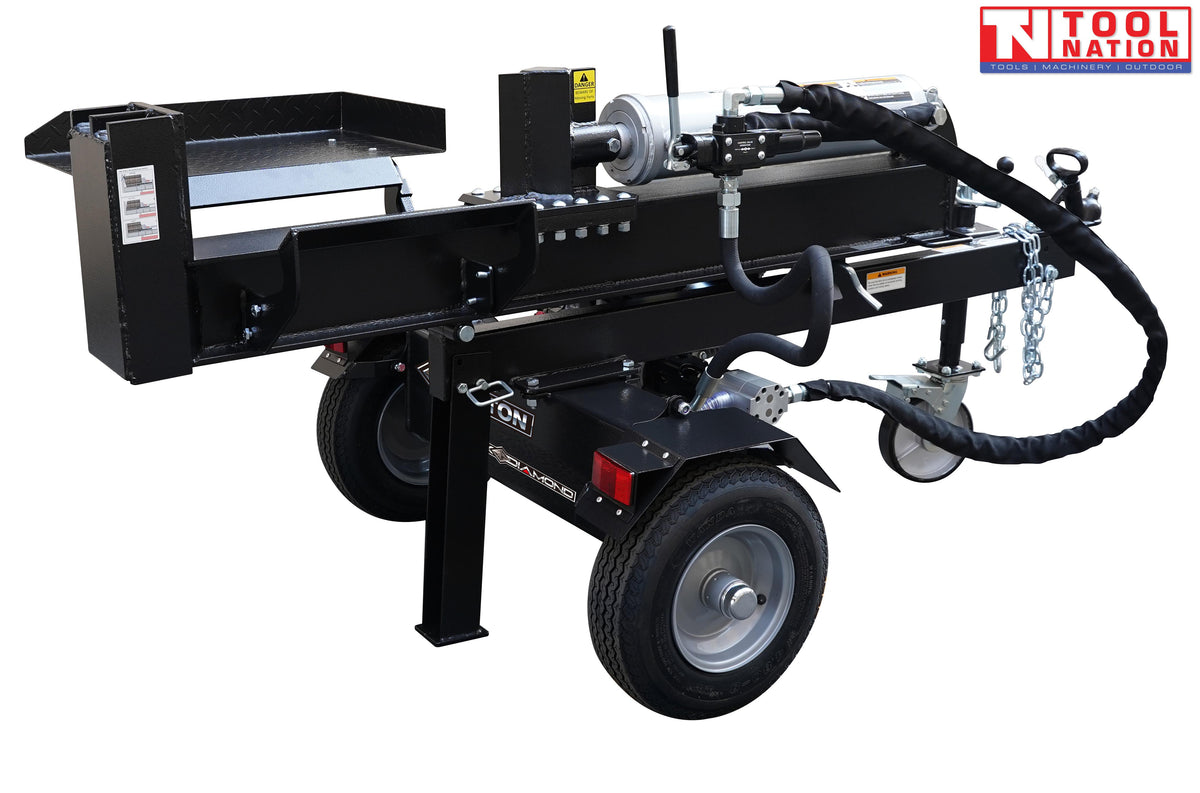

40 Ton Log Splitter

The LS40BD Millers Falls Black Diamond Log Splitter is built for heavy-duty performance, capable of splitting logs with 40 tons of force. Powered by a 13HP manual start engine, it is designed to handle the toughest Australian hardwoods with ease. The 8” heavy-duty cast steel wedge ensures maximum splitting power, while the 2-stage gear pump provides efficient hydraulic pressure to achieve a cycle time of 16 seconds.

This model features an auto return valve with a safe relief function, providing added safety during operation. It is equipped with a heavy-duty log table for easy loading and unloading of logs, and a 5” x 19.4” cylinder for optimal splitting force. The 16” DOT pneumatic wheels and 8” jockey wheel allow for easy towing at speeds up to 72 kph, but it should only be towed on private property.

For added convenience and safety, the splitter comes with a safe chain, wheel fenders, and reflectors to ensure visibility during transport. The LS40BD is ideal for those looking for high-performance, durable equipment for demanding firewood splitting tasks.

Features:

  • Engine: 13HP Manual start engine

  • Maximum Splitting Force: 40 Ton

  • Cylinder Size: 5” x 19.4”

  • Wedge: 8” heavy-duty cast steel wedge (wearproof)

  • Pump: 2-stage gear pump for a minimum 16-second cycle time

  • Auto Return Valve: Includes safe relief function

  • Log Capacity: Maximum log length 55cm, maximum diameter 30cm

  • Heavy-Duty Log Table: For easier log handling

  • Towing: 16” DOT pneumatic wheels and 8” jockey wheel

  • Maximum Towing Speed: 72 kph

  • Safety Features: Safe chain, wheel fenders, and reflectors

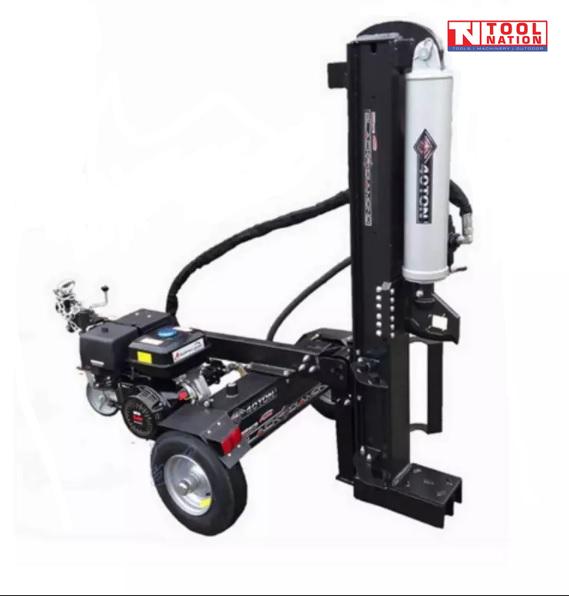

  • Operation: Horizontal and Vertical positions

  • Towing Restrictions: Only to be used on private property (not for public roads)

Specifications:

  • Maximum Splitting Force: 40 Ton

  • Wedge Height: 8” (200mm) heavy-duty cast steel, wearproof

  • Log Length Capacity: Up to 55cm

  • Log Diameter Capacity: Up to 30cm

  • Pump: 2-stage gear pump, 16s cycle time

  • Cylinder Size: 5” x 19.4”

  • Towing Wheels: 16” DOT pneumatic wheels

  • Hydraulic Oil: Supplied with 20 Litres OSO46 Oil

  • Jockey Wheel: 8” diameter x 2”

  • Maximum Towing Speed: 72 kph

  • Packing Dimensions: 172 x 52 x 79 cm

  • Shipping Weight: 320 kg

  • Weight: 315 kg
