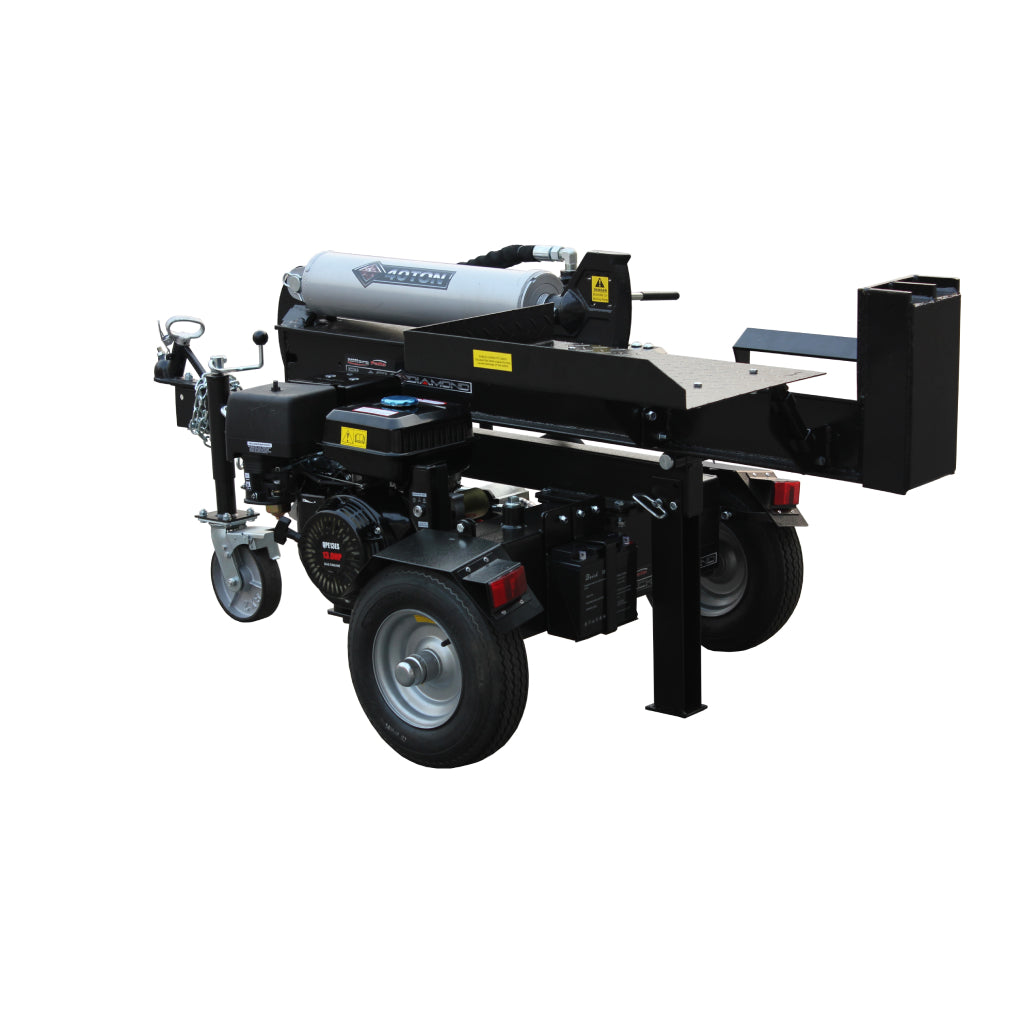

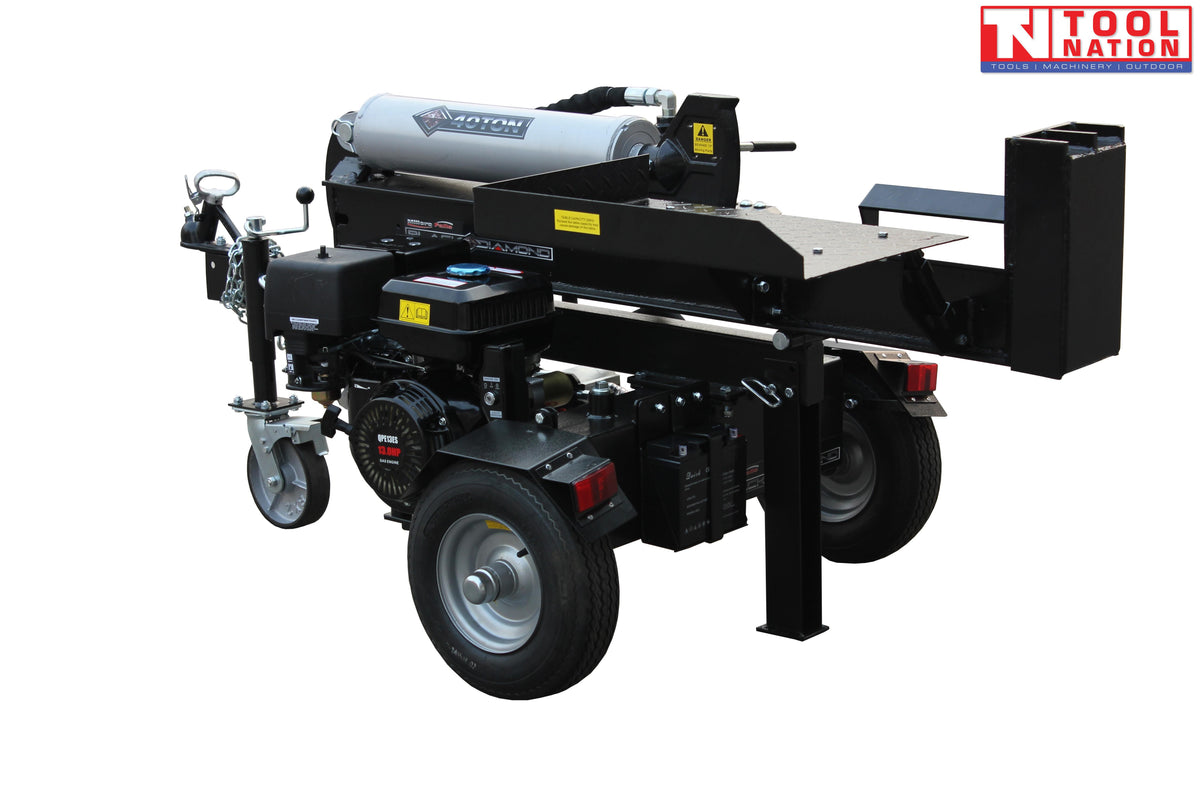

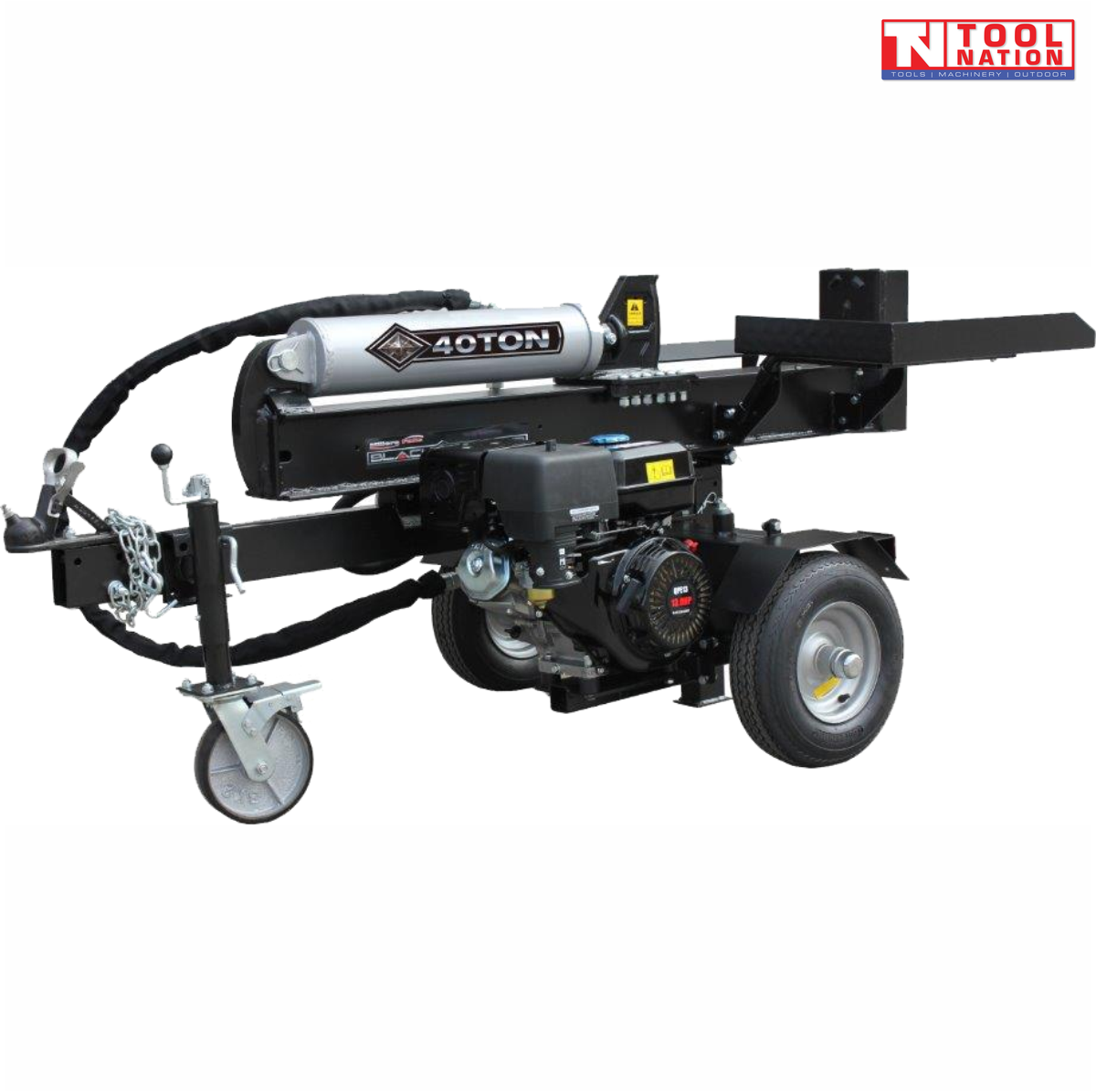

40 Ton Electric Start Log Splitter - Ls40Esbd
40 Ton Electric Start Log Splitter - Ls40Esbd
40 Ton Electric Start Log Splitter - Ls40Esbd
40 Ton Electric Start Log Splitter - Ls40Esbd
40 Ton Electric Start Log Splitter - Ls40Esbd
40 Ton Electric Start Log Splitter - Ls40Esbd

40 Ton Electric Start Log Splitter - Ls40Esbd

SKU: ATXLS40ESBD
Out of stock
$10,000.00
Shipping calculated at checkout
LS40ESBD

40 Ton Electric Start Log Splitter

The LS40ESBD Millers Falls Black Diamond Log Splitter offers powerful 40 Ton splitting force with a 13 horsepower OHV engine and electric start for easy operation. Designed for professional and heavy-duty firewood splitting tasks, this model is equipped with a 2-stage gear pump (11 GPM) and a 5” hydraulic cylinder for efficient performance, allowing it to handle the toughest logs with minimal effort. The automatic return control valve with safety release function ensures smooth operation and added safety.

The 8” hardened steel wedge provides the strength needed to easily split tough hardwoods, and the cycle time of 16 seconds ensures quick and efficient operation. The splitter operates in both horizontal and vertical positions, making it versatile for handling logs of various sizes.

This model features 16” pneumatic wheels for easy transport around your property, and the 8” jockey wheel offers additional maneuverability. The LS40ESBD is built to be towed with a maximum speed of 72 km/h (on private property only) and includes safety chains and reflectors for secure towing.

Features:

  • Engine: 13 horsepower, 4-stroke, OHV, air-cooled engine

  • Electric Start: 12V, 9AH maintenance-free lead-acid battery

  • Maximum Splitting Force: 40 Ton

  • Cylinder Size: 5” (125mm) diameter x 19.4” (495mm) stroke

  • Pump: 2-stage, 11 GPM gear pump

  • Wedge Height: 8” (203mm), heavy-duty hardened steel

  • Cycle Time: 16 seconds (split and return)

  • Log Length Capacity: Up to 21 1/2” (550mm)

  • Log Diameter Capacity: Up to 12” (305mm)

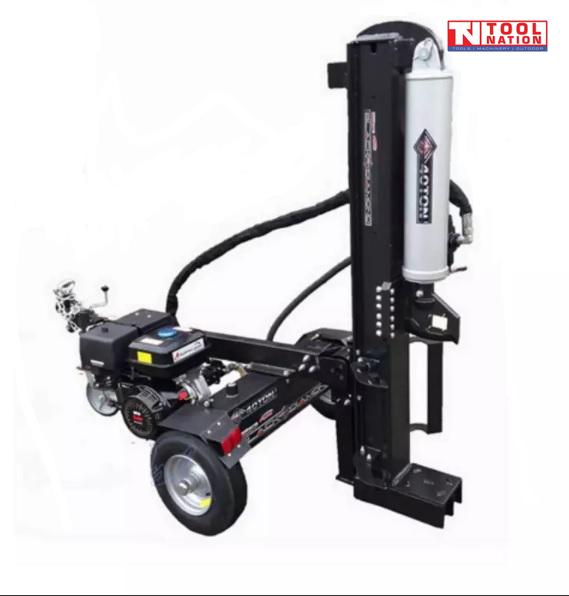

  • Working Positions: Horizontal and vertical

  • Towing Wheels: 16” pneumatic tyres

  • Jockey Wheel: 8” (200mm) x 2” (50mm)

  • Coupler: 50mm cast steel with safety chains

  • Towing Speed: Maximum 72 km/h (for private property use only)

  • Safety Features: Safety release valve, safety chains, reflectors

Specifications:

  • Engine: 13 horsepower, 4-stroke, OHV, air-cooled

  • Battery: 12 volt, 9AH maintenance-free, lead-acid

  • Cylinder: 5” (125mm) diameter x 19.4” (495mm) stroke

  • Pump: 2-stage, 11 GPM gear pump

  • Maximum Splitting Force: 40 Ton

  • Hydraulic Oil: Supplied with 20 Litres OSO46 Oil

  • Wedge: 8” (203mm), hardened steel

  • Cycle Time: 16 seconds

  • Maximum Log Length: 21 1/2” (550mm)

  • Maximum Log Diameter: 12” (305mm)

  • Working Positions: Horizontal and vertical

  • Wheels: 16” pneumatic tyres

  • Jockey Wheel: 8” (200mm) x 2” (50mm)

  • Coupler Size: 50mm cast steel with safety chains

  • Towing Speed: 72 km/h maximum (on private property)

  • Package Dimensions: 174 x 52 x 74 cm

  • Package Weight: 315 kg

  • Shipping Weight: 320 kg
