SKU: ATXLS45BD
In stock
$2,462.00 $4,111.00 Sale
Shipping calculated at checkout
LS45BD

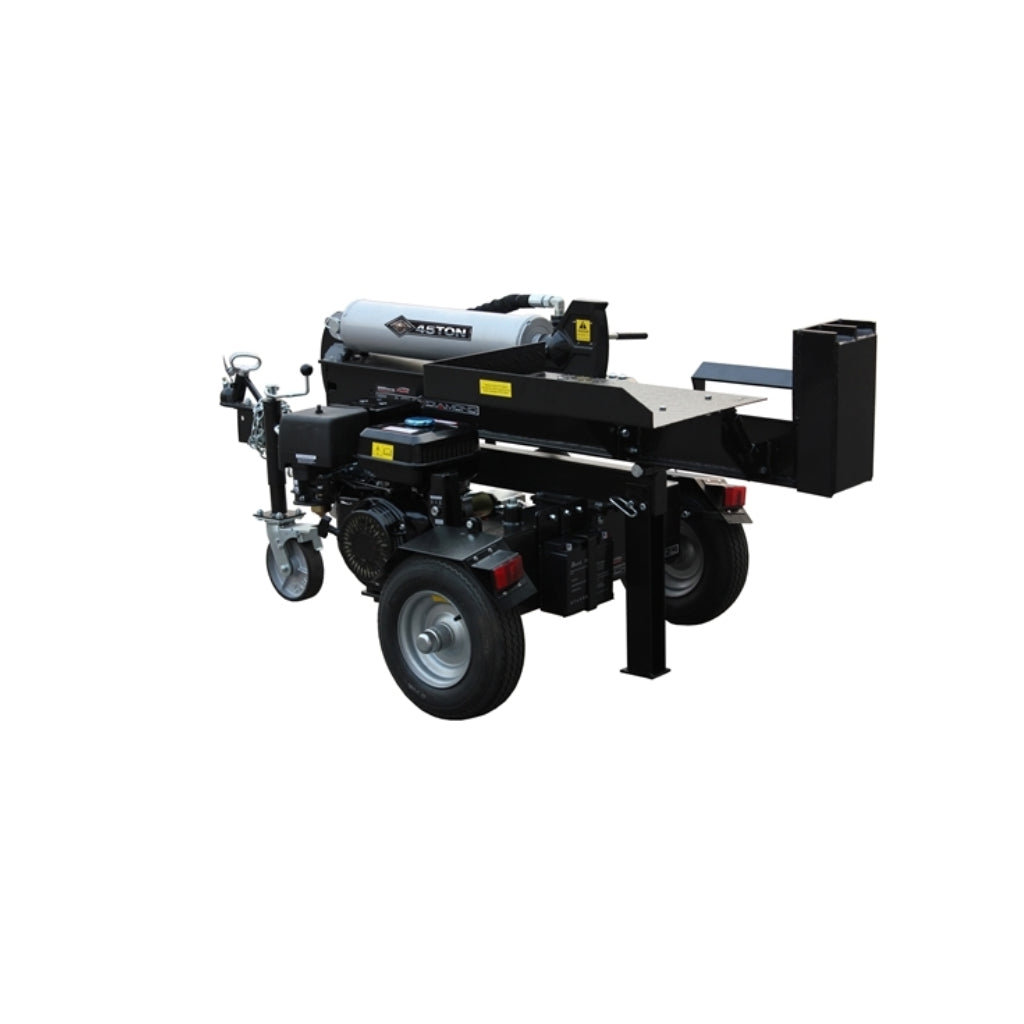

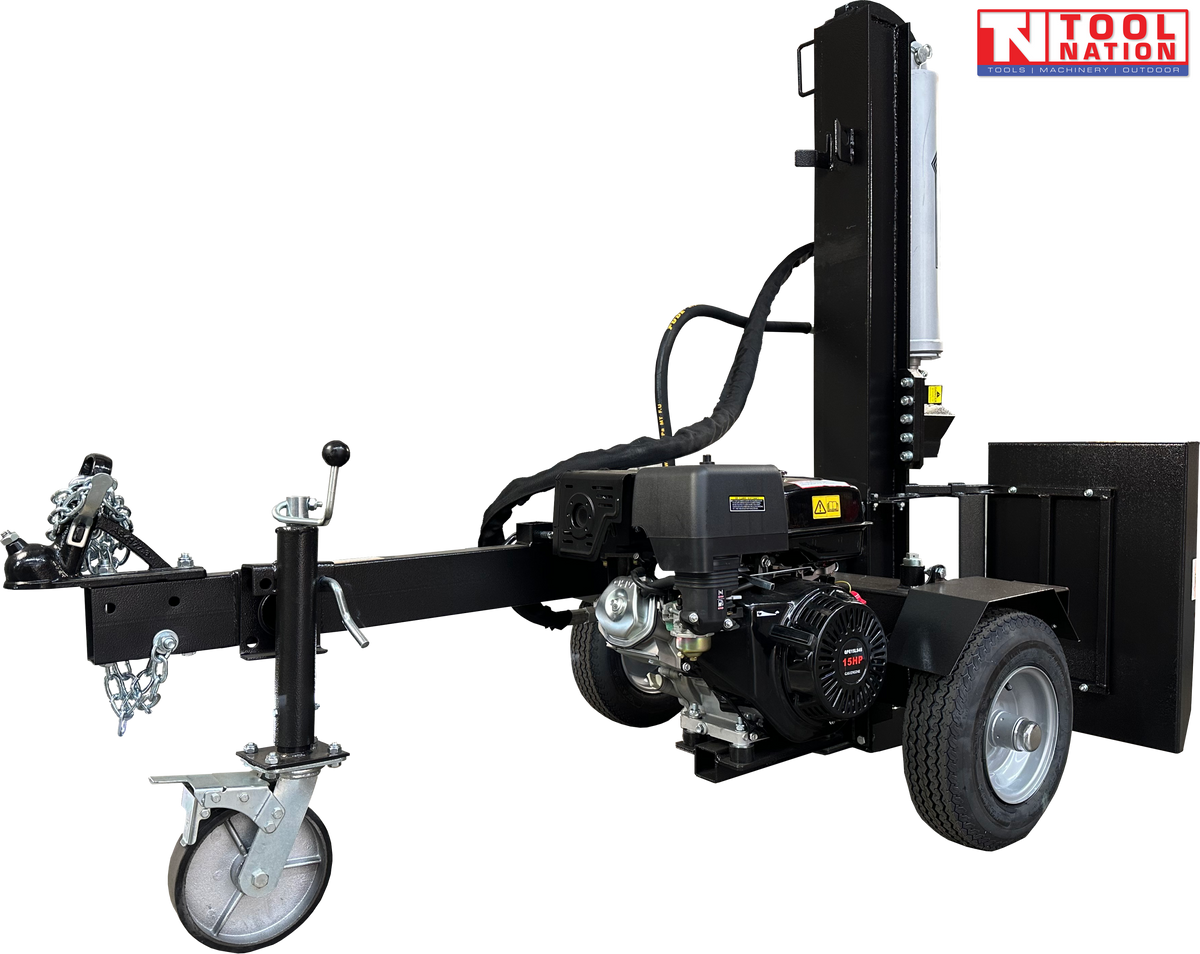

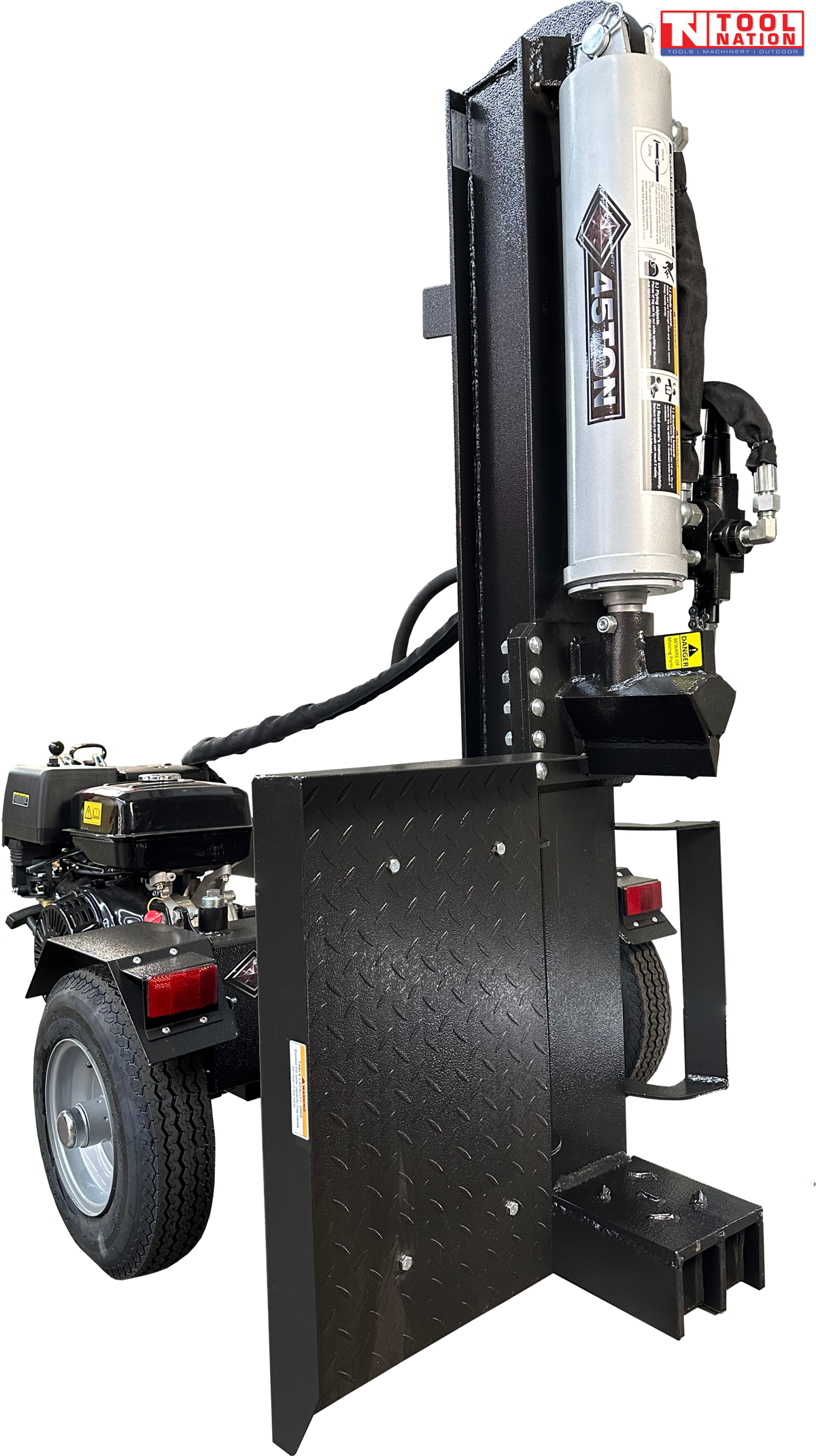

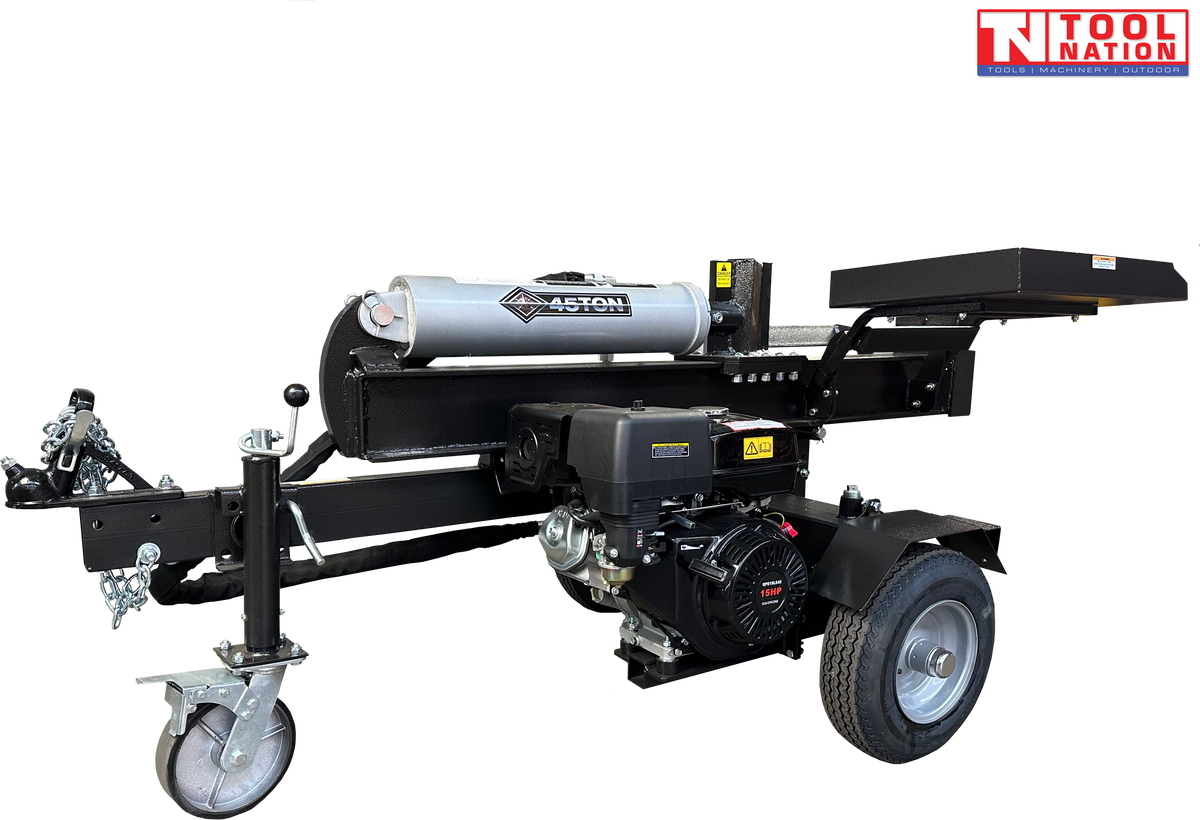

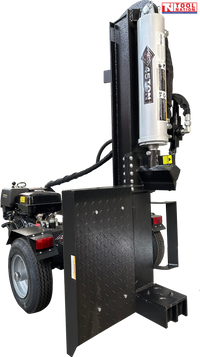

45 Ton Manual Start Log Splitter

The LS45BD Millers Falls Black Diamond Log Splitter is powered by a 15 horsepower manual start petrol engine, offering 45 Ton of splitting force for tackling heavy-duty splitting tasks. The 8” x 2” jockey wheel ensures easy maneuverability, while the 2-stage gear pump delivers fast cycle times, with a minimum 18-second cycle time. This splitter is suitable for both horizontal and vertical working positions, allowing flexibility in operation.

The 20 cm high heavy-duty cast steel wedge provides exceptional durability and efficiency when splitting logs. With the auto return valve and safe relief function, the splitter ensures smooth, safe, and quick operation. Designed for convenience and safety, it is equipped with 16” DOT pneumatic tyres for easy towing, with a maximum speed of 72 km/h (for private property use only).

Features:

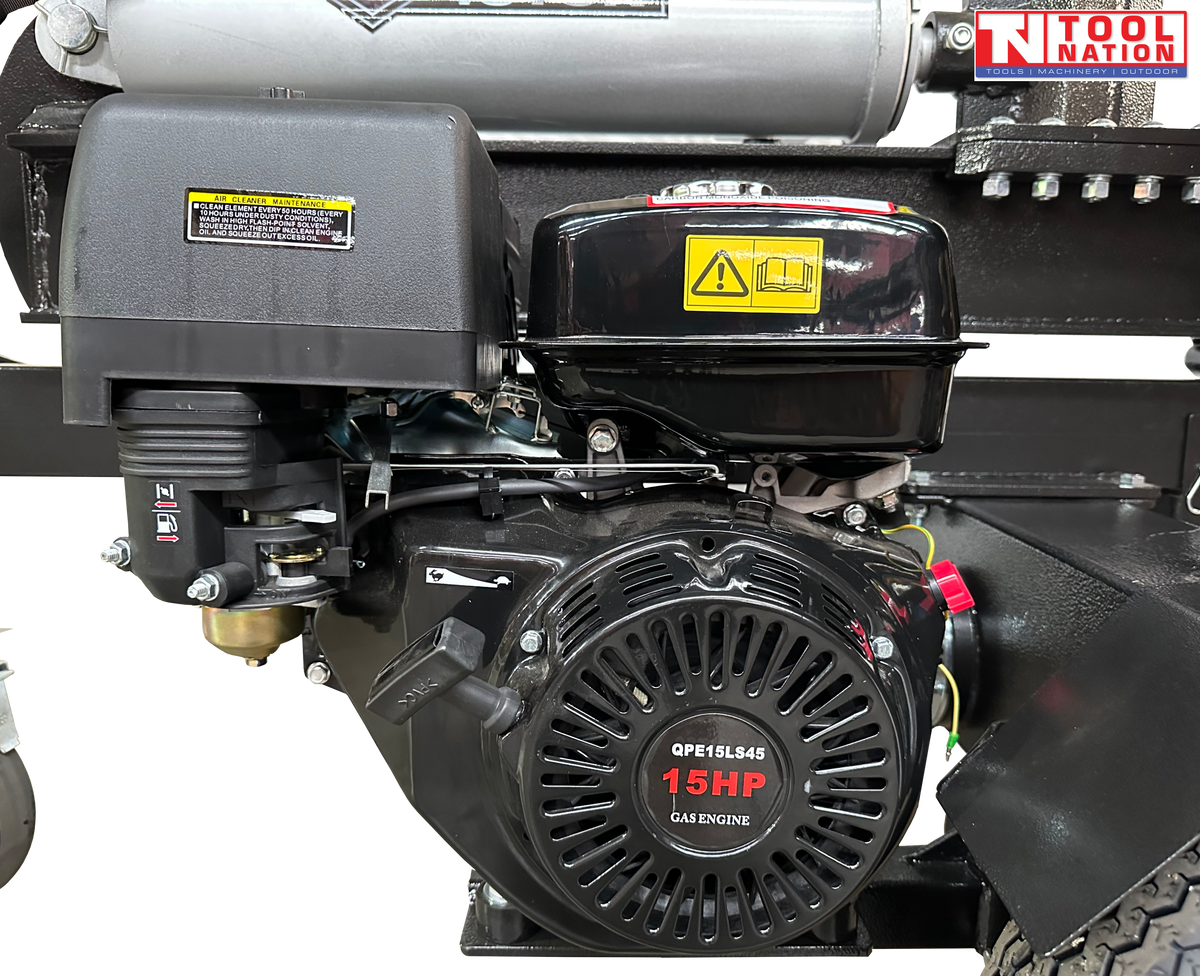

  • Engine: 15 horsepower, manual start, petrol engine

  • Maximum Splitting Force: 45 Ton

  • Working Positions: Horizontal and vertical

  • Wedge: 20 cm high heavy-duty cast steel wedge

  • Cycle Time: Minimum 18 seconds (split and return)

  • Log Length Capacity: Up to 55 cm

  • Jockey Wheel: 8” x 2” for easy moving

  • Auto Return Valve: With safe relief function

  • Wheels: 16” DOT pneumatic tyres

  • Maximum Towing Speed: 72 km/h (private property use only)

  • Safety Features: Auto return valve, safety relief function, DOT tyres

Specifications:

  • Engine: 15 horsepower, manual start, petrol engine

  • Maximum Splitting Force: 45 Ton

  • Cylinder Size: Heavy-duty, 5” x 19.4” hydraulic cylinder

  • Pump: 2-stage gear pump for 18s cycle time

  • Hydraulic Oil: Supplied with 20 Litres OSO46 Oil

  • Wedge Height: 20 cm (cast steel, wearproof)

  • Log Length Capacity: Up to 55 cm

  • Log Diameter Capacity: Up to 12” (305mm)

  • Cycle Time: Minimum 18 seconds

  • Working Positions: Horizontal and vertical

  • Wheels: 16” DOT pneumatic tyres

  • Jockey Wheel: 8” x 2” (200mm x 50mm)

  • Maximum Towing Speed: 72 km/h (private property use only)

  • Package Dimensions: 172 x 52 x 79 cm

  • Package Weight: 315 kg

  • Shipping Weight: 320 kg
