SKU: ATXLS45ESBD
Out of stock
$10,000.00
Shipping calculated at checkout
LS45ESBD

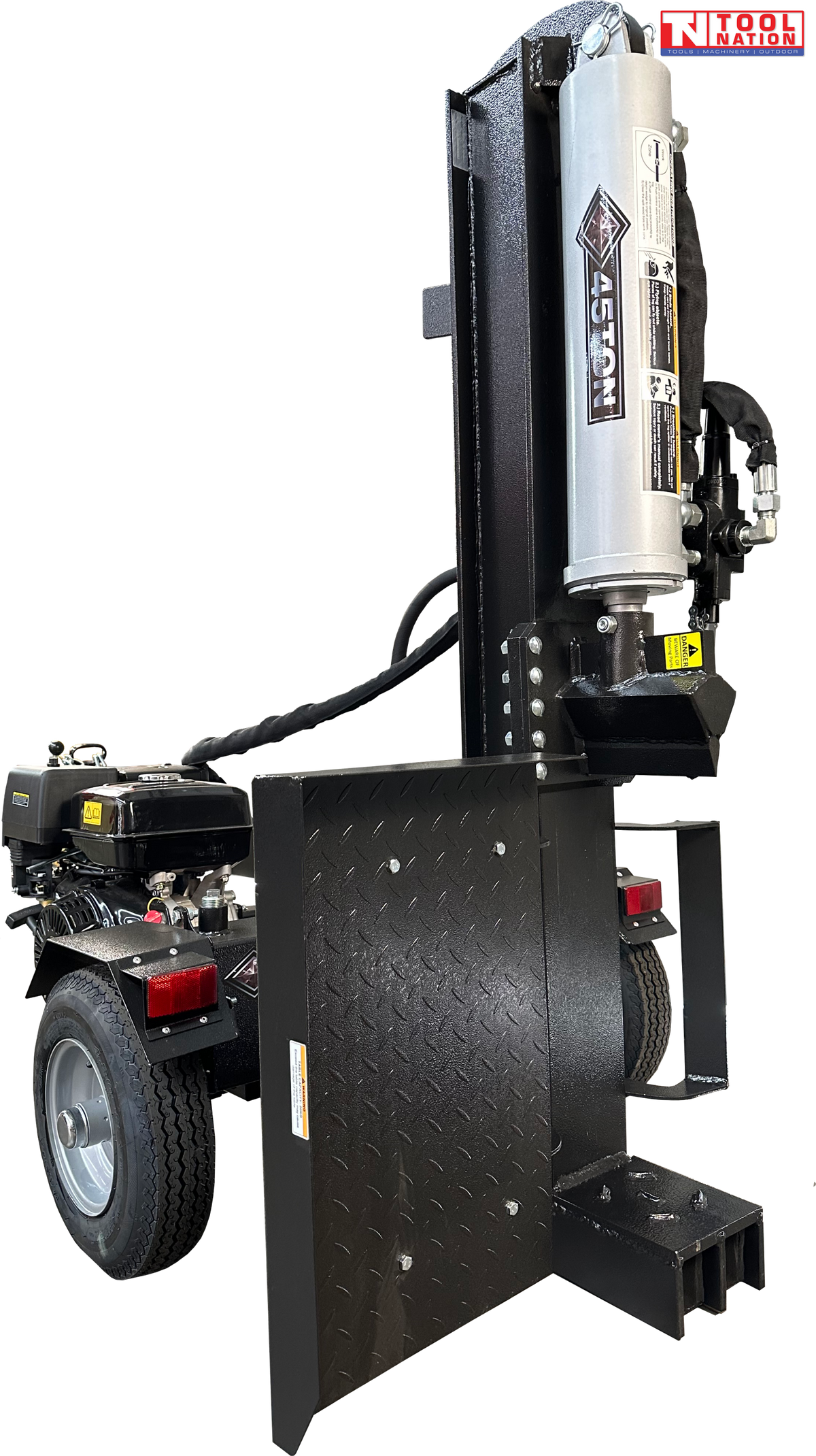

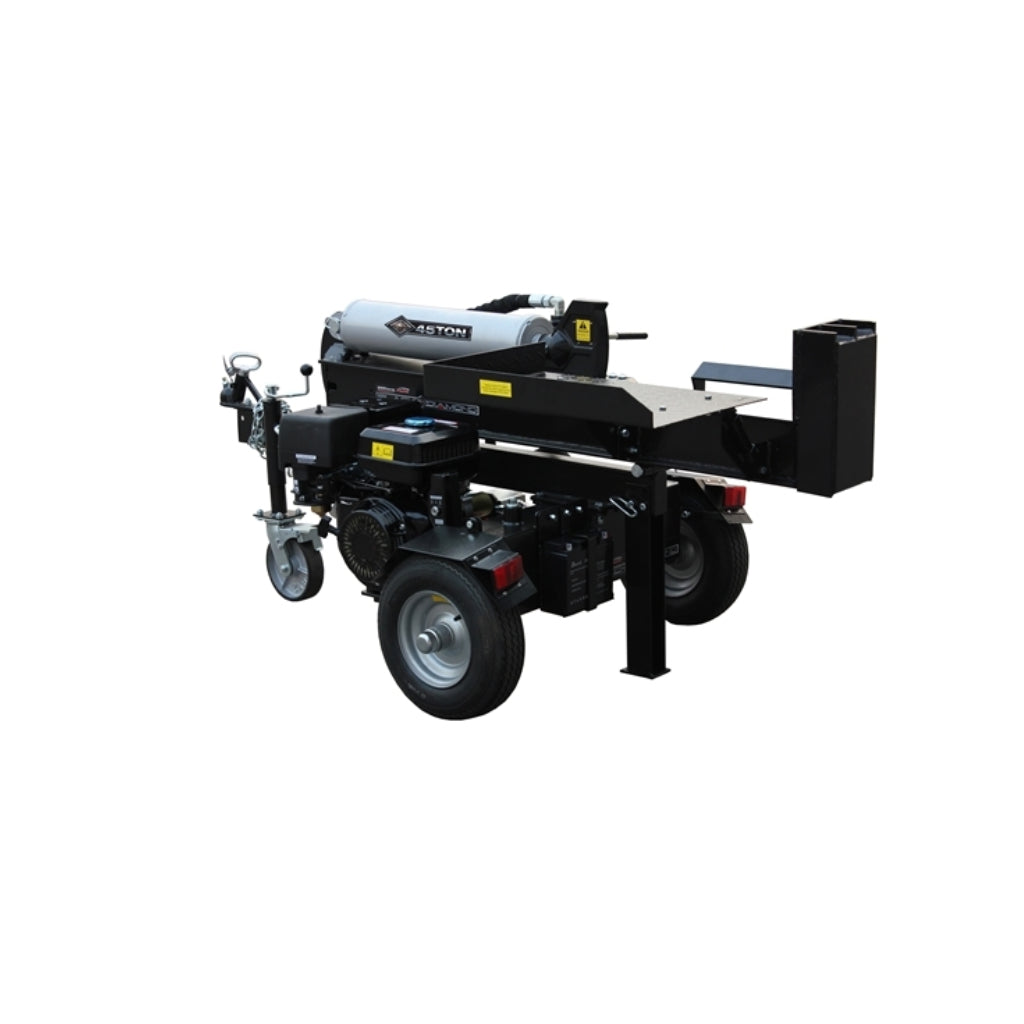

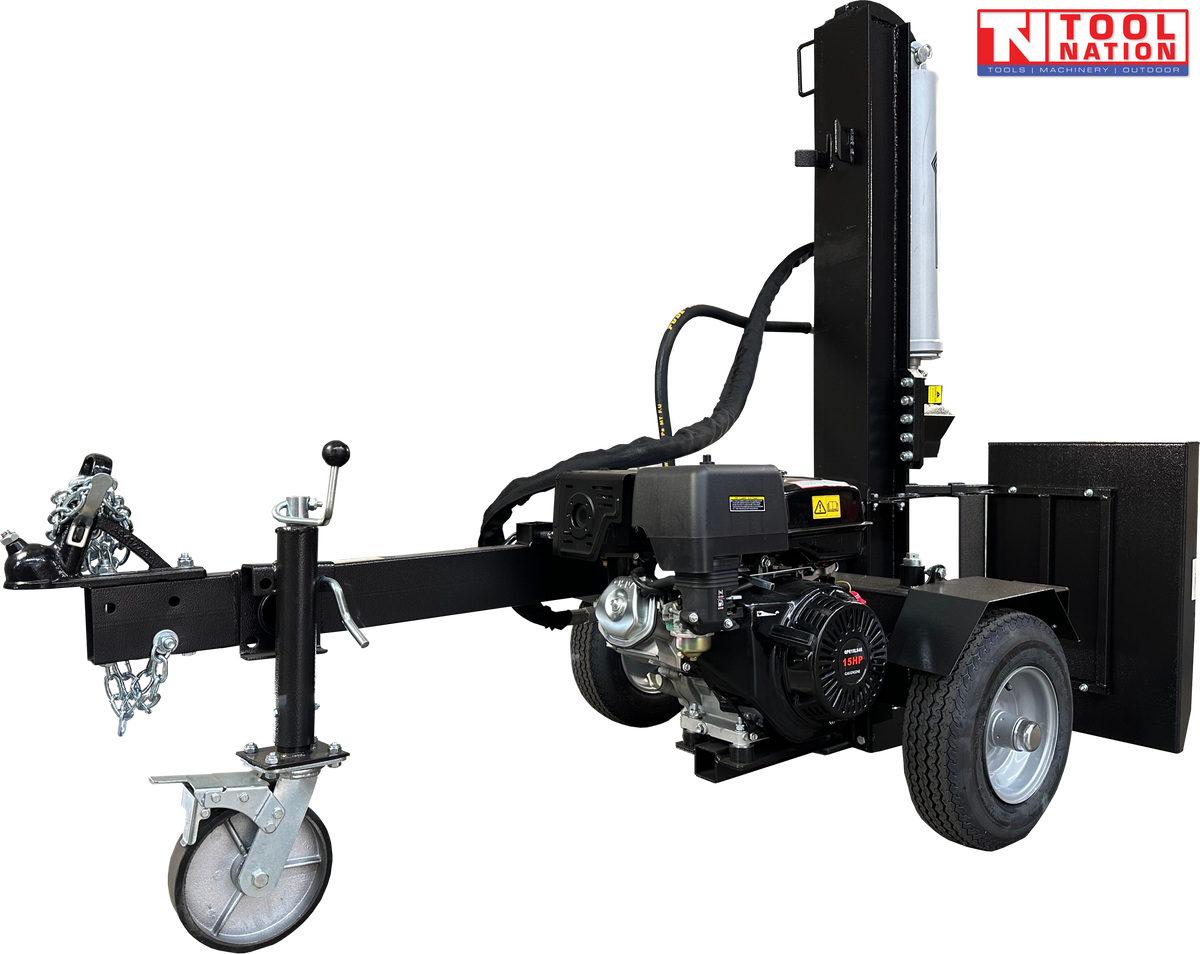

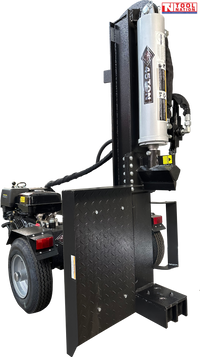

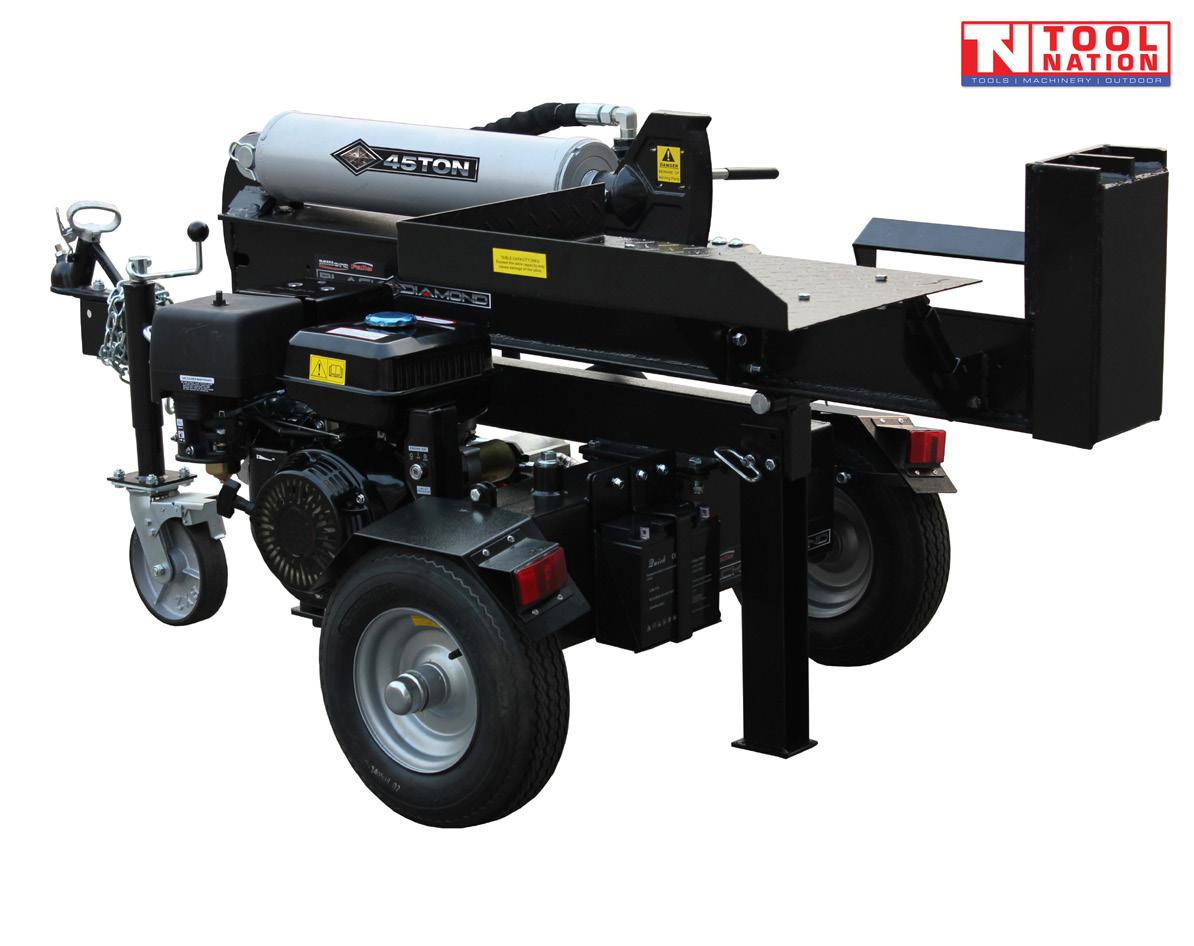

45 Ton Electric Start Log Splitter

The LS45ESBD Millers Falls Black Diamond Log Splitter delivers 45 Ton of splitting force, powered by a 15 horsepower OHV engine with electric start for easy operation. This heavy-duty splitter is designed for high-performance log splitting tasks, ideal for tackling tough hardwoods with ease. It features a 2-stage, 11 GPM gear pump and a 5” hydraulic cylinder (127mm x 493mm), ensuring fast cycle times and efficient power delivery.

The 8” hardened steel wedge provides exceptional strength, allowing the splitter to handle logs with a maximum length of 21 1/2” (550mm) and a diameter of up to 12” (305mm). The automatic return control valve with a safety release function enhances user safety and ensures smooth operation, while the splitter can be used in both horizontal and vertical positions.

This model features 16” x 6.5” pneumatic wheels with mudguards and rear reflectors for safe and easy transport. The 8” jockey wheel offers increased maneuverability, and the 50mm cast steel coupler with safety chains ensures secure towing. The LS45ESBD is ideal for heavy-duty splitting tasks, with a maximum towing speed of 72 km/h (private property use only).

Features:

  • Engine: 15 horsepower, 4-stroke, OHV, air-cooled engine

  • Electric Start: 12V, 9AH maintenance-free lead-acid battery

  • Maximum Splitting Force: 45 Ton

  • Cylinder Size: 5” (127mm) diameter x 19.4” (493mm) stroke

  • Pump: 2-stage, 11 GPM gear pump

  • Wedge Height: 8” (200mm), heavy-duty hardened steel

  • Cycle Time: 18 seconds (split and return)

  • Log Length Capacity: Up to 21 1/2” (550mm)

  • Log Diameter Capacity: Up to 12” (305mm)

  • Working Positions: Horizontal and vertical

  • Wheels: 16” x 6.5” pneumatic tyres with mudguards and rear reflectors

  • Jockey Wheel: 8” (200mm) x 2” (50mm)

  • Coupler: 50mm cast steel with safety chains

  • Towing Speed: Maximum 72 km/h (for private property use only)

  • Safety Features: Safety release valve, safety chains, mudguards, reflectors

Specifications:

  • Engine: 15 horsepower, 4-stroke, OHV, air-cooled

  • Battery: 12V, 9AH maintenance-free lead-acid

  • Cylinder: 5” (127mm) diameter x 19.4” (493mm) stroke

  • Hydraulic Oil: Supplied with 20 Litres OSO46 Oil

  • Pump: 2-stage, 11 GPM gear pump

  • Maximum Splitting Force: 45 Ton

  • Wedge: 8” (200mm), hardened steel

  • Cycle Time: 18 seconds

  • Maximum Log Length: 21 1/2” (550mm)

  • Maximum Log Diameter: 12” (305mm)

  • Working Positions: Horizontal and vertical

  • Wheels: 16” x 6.5” pneumatic tyres with mudguards and rear reflectors

  • Jockey Wheel: 8” (200mm) x 2” (50mm)

  • Coupler Size: 50mm cast steel with safety chains

  • Towing Speed: 72 km/h maximum (on private property)

  • Package Dimensions: 174 x 52 x 79 cm

  • Package Weight: 317 kg

  • Shipping Weight: 323 kg
