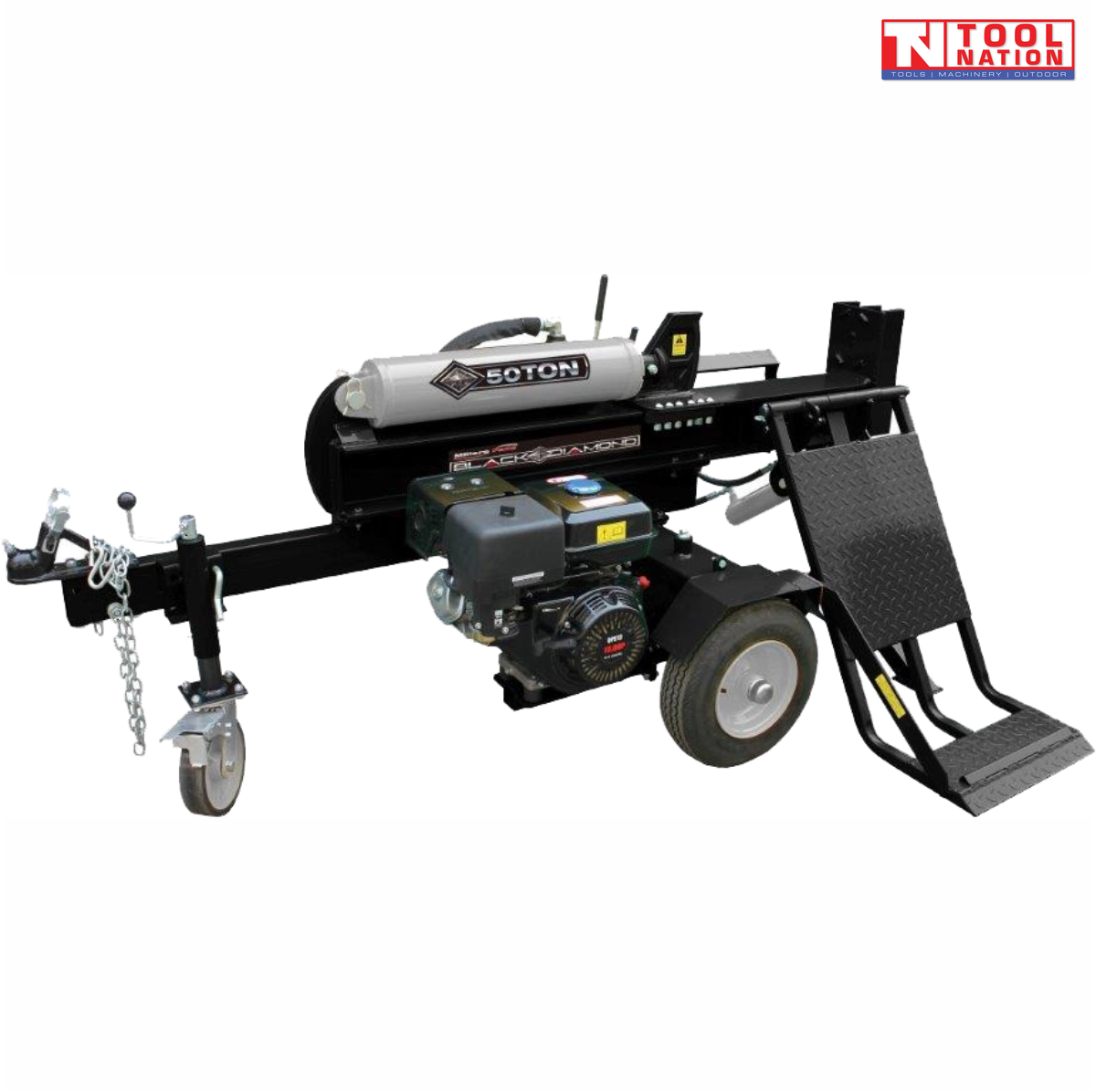

Towable 50-ton hydraulic log splitter with petrol engine and lift table attachment, Tool Nation Australia.
Rear view of towable 50-ton hydraulic log splitter with log lift table and heavy-duty steel frame, Tool Nation Australia.
Towable 50-ton hydraulic log splitter with petrol engine and lift table attachment, Tool Nation Australia.
Rear view of towable 50-ton hydraulic log splitter with log lift table and heavy-duty steel frame, Tool Nation Australia.

50T Hydraulic Log Splitter - Fast Firewood Processing

SKU: ATXLS50LTBD
Out of stock
$2,782.00
Shipping calculated at checkout
LS50LTBD

50 Ton Manual Start Log Splitter with Hydraulic Lift Table

The LS50LTBD Millers Falls Black Diamond 50 Ton Manual Start Log Splitter is engineered to handle heavy-duty splitting tasks with ease. Featuring a powerful 15 horsepower manual start petrol engine, it delivers an impressive 50 tons of splitting force. The 200mm wearproof hardened cast steel wedge outperforms many comparable log splitters with smaller wedges, providing superior strength and efficiency to split even the toughest Australian hardwoods.

Equipped with a hydraulic lifting table, this splitter allows for easy loading and unloading of logs, saving your back from unnecessary strain. The auto return valve ensures smooth operation by automatically retracting the ram when you release the lever. This splitter is designed for horizontal operation and comes with 16-inch pneumatic tyres and a 50mm cast steel coupler for easy towing across your property, making the splitter portable and convenient to move to the timber.

With its 2-stage gear pump and heavy-duty 5” x 19.4” hydraulic cylinder, the LS50LTBD builds to maximum pressure quickly, reducing your splitting time and effort. The quick-release jockey wheel allows for easy maneuvering, and the unit can be towed at a maximum speed of 72 km/h (private property use only).

Features:

  • Engine: 15 horsepower, 4-stroke, OHV, air-cooled, manual (recoil) start

  • Maximum Splitting Force: 50 Ton

  • Wedge: 200mm hardened cast steel wedge

  • Cycle Time: 18 seconds (split and return)

  • Log Length Capacity: Up to 55 cm

  • Log Diameter Capacity: Up to 12” (305mm)

  • Working Position: Horizontal only

  • Hydraulic Lifting Table: For easy log handling and minimal strain

  • Auto Return Valve: Automatically retracts the ram for easier loading

  • Wheels: 16” pneumatic tyres

  • Jockey Wheel: 8” x 2” (200mm x 50mm) for easy maneuverability

  • Coupler: 50mm cast steel with safety chains

  • Maximum Towing Speed: 72 km/h (private property use only)

  • Safety Features: Auto return valve, safety relief function, and safety chains

Specifications:

  • Engine: 15 horsepower, 4-stroke, OHV, air-cooled, manual (recoil) start

  • Maximum Splitting Force: 50 Ton

  • Cylinder Size: 5” (127mm) diameter x 19.4” (493mm) stroke

  • Pump: 2-stage gear pump, 11 GPM

  • Hydraulic Oil: Supplied with 20 Litres OSO46 Oil

  • Hydraulic Lifting Table Capacity: 150kg

  • Wedge Height: 8” (200mm), hardened cast steel

  • Cycle Time: 18 seconds (split and return)

  • Log Length Capacity: Up to 55 cm (550mm)

  • Log Diameter Capacity: Up to 12” (305mm)

  • Working Position: Horizontal only

  • Wheels: 16” pneumatic tyres

  • Jockey Wheel: 8” x 2” (200mm x 50mm)

  • Coupler: 50mm cast steel with safety chains

  • Maximum Towing Speed: 72 km/h (private property use only)

  • Package Dimensions: 173cm x 52cm x 105cm

  • Package Weight: 357 kg

  • Shipping Weight: 357 kg
