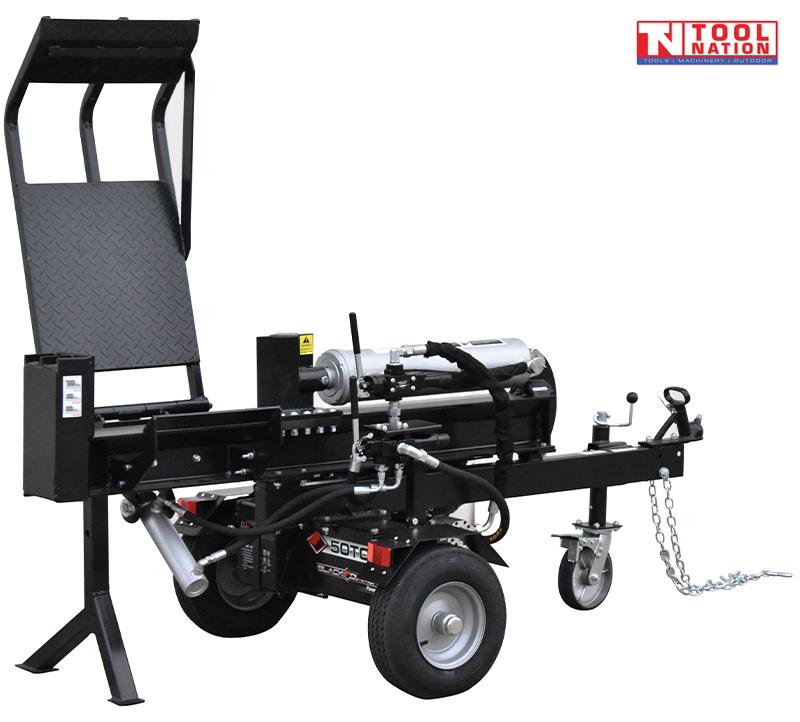

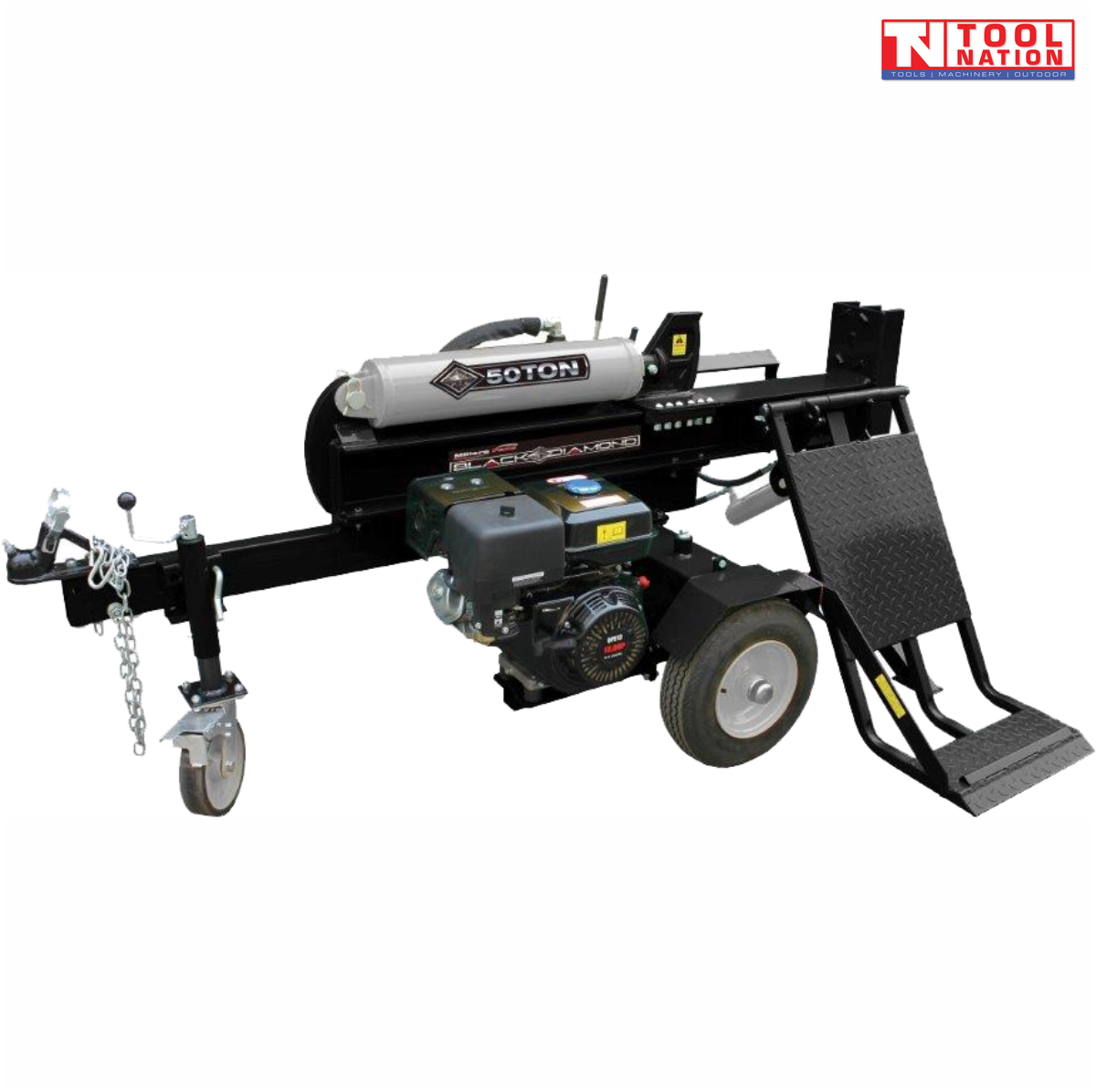

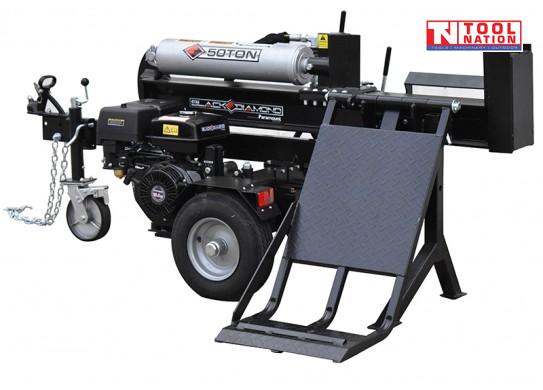

50 Ton Electric Start Log Splitter with Hydraulic Lift Table

The LS50LTESBD Millers Falls Black Diamond 50 Ton Electric Start Log Splitter is built to tackle the toughest log splitting tasks effortlessly. Powered by a 15 horsepower electric start petrol engine, this splitter delivers an impressive 50 tons of splitting force. It features a 200mm hardened cast steel wedge, designed to make quick work of even the hardest Australian hardwoods, surpassing the performance of other log splitters on the market with smaller wedges.

Equipped with a hydraulic lifting table, the LS50LTESBD offers enhanced user comfort by eliminating the need to lift logs onto the splitter. The auto return valve automatically retracts the ram, allowing you to load the next log with minimal effort. The splitter operates in the horizontal position and is easy to transport thanks to its 16-inch pneumatic tyres and 50mm cast steel coupler. The splitter can be towed at a maximum speed of 72 km/h (private property use only), making it highly portable across your property.

With its 2-stage gear pump and heavy-duty 5” x 19.4” hydraulic cylinder, the LS50LTESBD reaches maximum splitting pressure rapidly, reducing cycle times and increasing efficiency. The electric start feature ensures quick and effortless operation, making this splitter ideal for those who require both power and convenience.

Features:

  • Engine: 15 horsepower, 4-stroke, OHV, air-cooled, electric start

  • Maximum Splitting Force: 50 Ton

  • Wedge: 200mm hardened cast steel wedge

  • Cycle Time: 18 seconds (split and return)

  • Log Length Capacity: Up to 55 cm (550mm)

  • Log Diameter Capacity: Up to 12” (305mm)

  • Working Position: Horizontal only

  • Hydraulic Lifting Table: For easy log handling and minimal strain

  • Auto Return Valve: Automatically retracts the ram for easier loading

  • Wheels: 16” pneumatic tyres

  • Jockey Wheel: 8” x 2” (200mm x 50mm) for easy maneuverability

  • Coupler: 50mm cast steel with safety chains

  • Maximum Towing Speed: 72 km/h (private property use only)

  • Safety Features: Auto return valve, safety relief function, and safety chains

Specifications:

  • Engine: 15 horsepower, 4-stroke, OHV, air-cooled, electric start

  • Maximum Splitting Force: 50 Ton

  • Hydraulic Lifting Table Capacity: 150kg

  • Hydraulic Oil: Supplied with 20 Litres OSO46 Oil

  • Cylinder Size: 5” (127mm) diameter x 19.4” (493mm) stroke

  • Pump: 2-stage gear pump, 11 GPM

  • Wedge Height: 8” (200mm), hardened cast steel

  • Cycle Time: 18 seconds (split and return)

  • Log Length Capacity: Up to 55 cm (550mm)

  • Log Diameter Capacity: Up to 12” (305mm)

  • Working Position: Horizontal only

  • Wheels: 16” pneumatic tyres

  • Jockey Wheel: 8” x 2” (200mm x 50mm)

  • Coupler: 50mm cast steel with safety chains

  • Maximum Towing Speed: 72 km/h (private property use only)

  • Package Dimensions: 173cm x 52cm x 105cm

  • Package Weight: 361 kg

  • Shipping Weight: 361 kg
