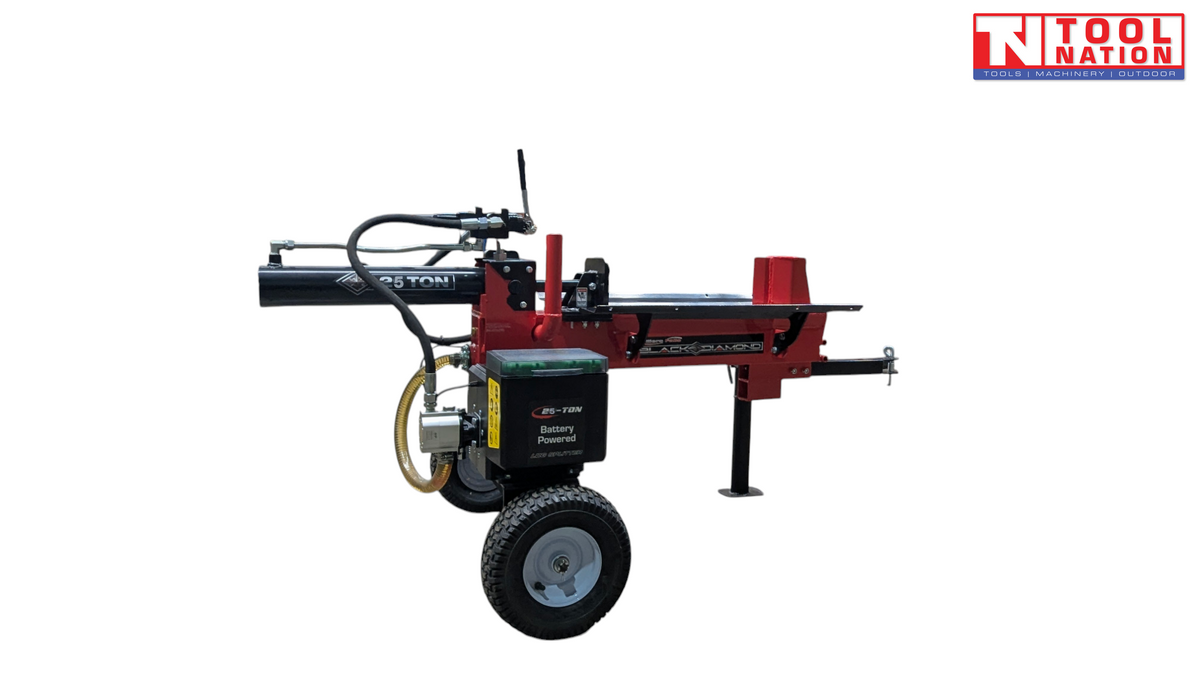

Millers Falls Black Diamond LSCC25BD 25 ton battery log splitter side view with 60V battery box and wheels

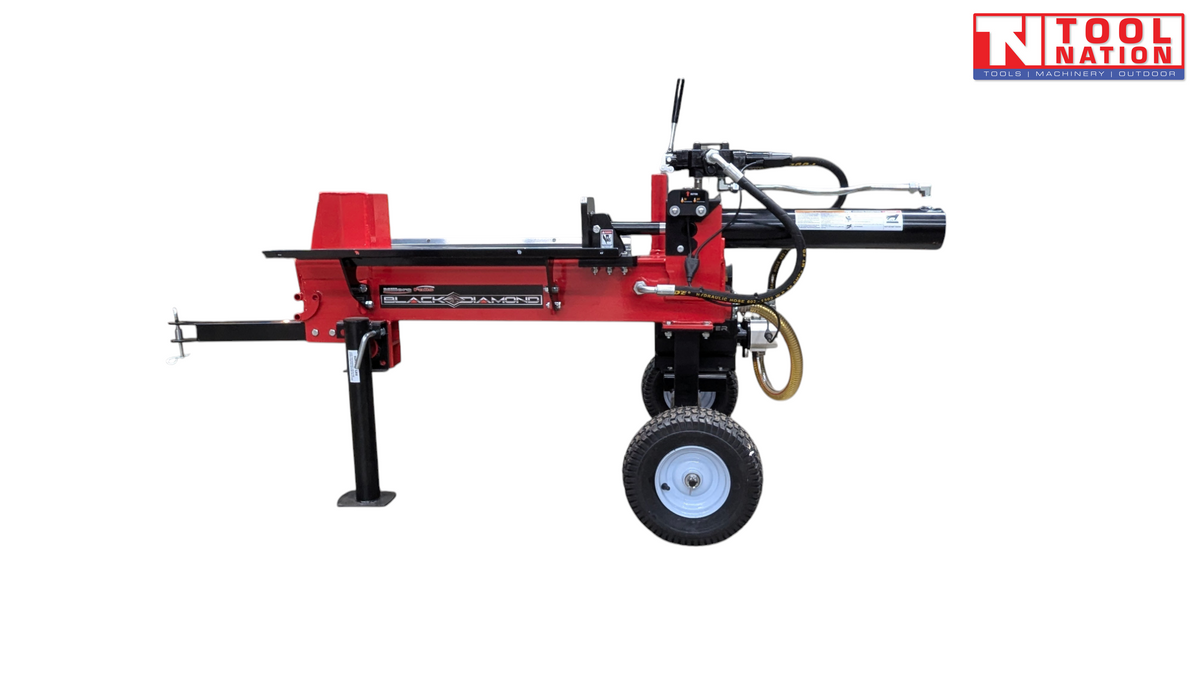

Black Diamond LSCC25BD 25 ton lithium battery log splitter opposite side profile with hydraulic cylinder and stand

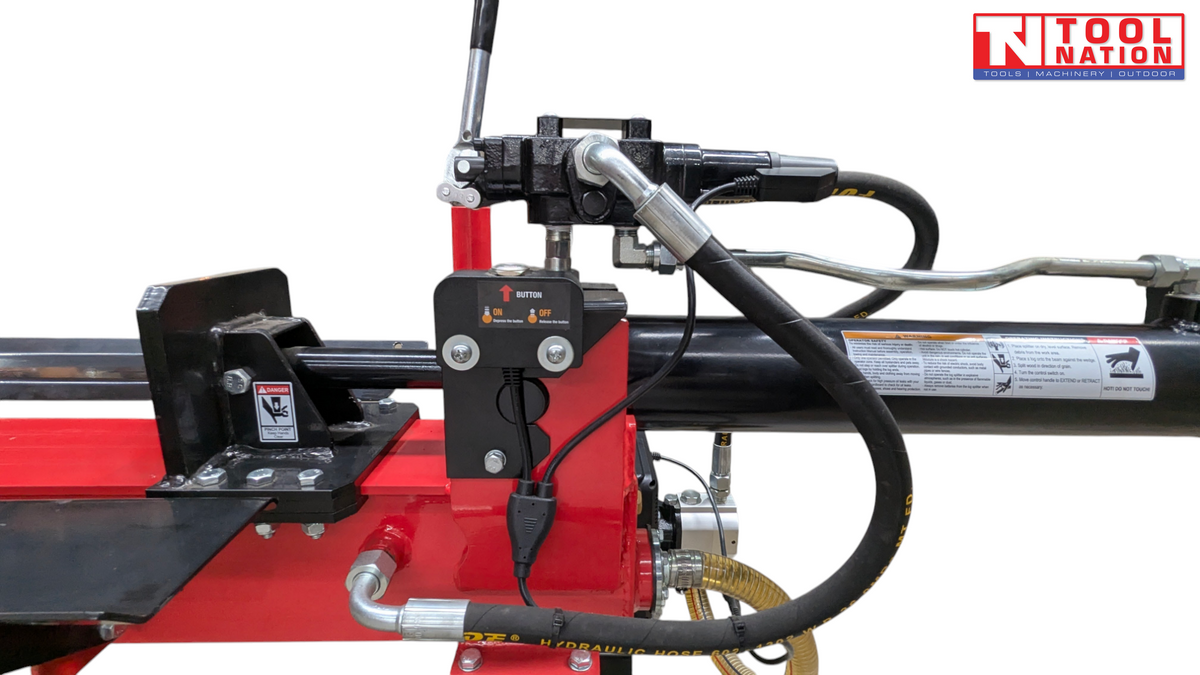

LSCC25BD 25 ton battery powered log splitter close-up showing control valve, lever and hydraulic hoses

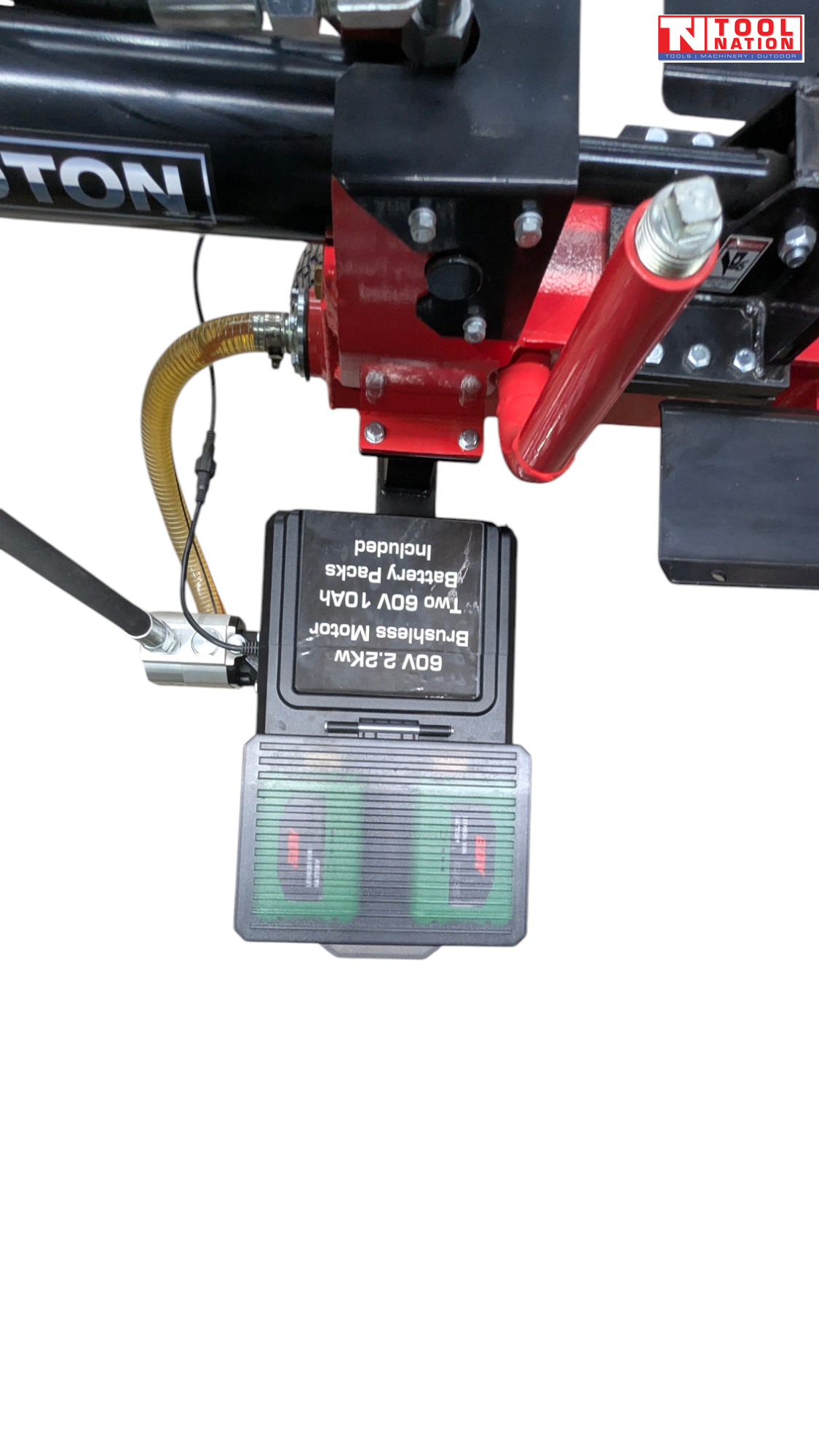

60V lithium battery pack close-up on Millers Falls Black Diamond LSCC25BD 25 ton log splitter

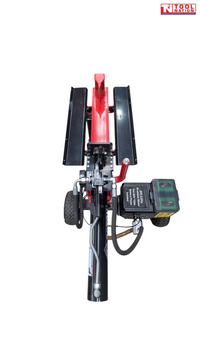

Top view of Black Diamond LSCC25BD 25 ton log splitter showing splitting beam and side rails

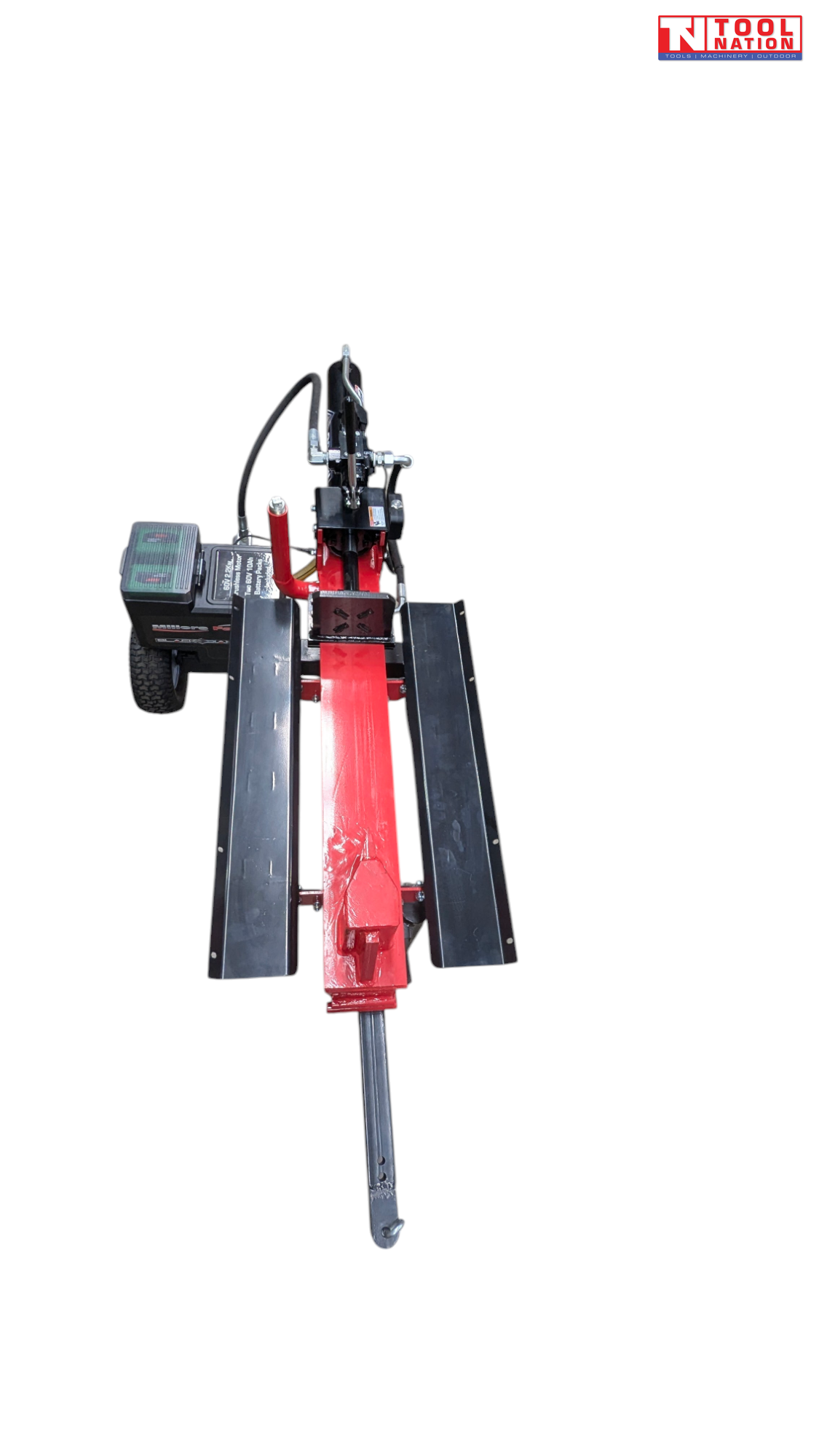

Rear top view of Millers Falls Black Diamond LSCC25BD 25 ton log splitter showing wedge end and battery mount
Millers Falls Black Diamond LSCC25BD 25 ton battery log splitter side view with 60V battery box and wheels
Black Diamond LSCC25BD 25 ton lithium battery log splitter opposite side profile with hydraulic cylinder and stand
LSCC25BD 25 ton battery powered log splitter close-up showing control valve, lever and hydraulic hoses
60V lithium battery pack close-up on Millers Falls Black Diamond LSCC25BD 25 ton log splitter
Top view of Black Diamond LSCC25BD 25 ton log splitter showing splitting beam and side rails
Rear top view of Millers Falls Black Diamond LSCC25BD 25 ton log splitter showing wedge end and battery mount

25T Hydraulic Log Splitter Battery Powered - Fast Firewood Processing

SKU: ATXLSCC25BD
Out of stock
$10,000.00
Shipping calculated at checkout
LSCC25BD

25 Ton Hydraulic Li-ion Battery Powered Log Splitter

The Millers Falls Black Diamond LSCC25BD 25 Ton Lithium-Ion battery powered Log Splitter offers unbeatable power and convenience for environmentally friendly wood splitting. Built with a powerful 60 Volt Brushless 2.2 kW Dc motor with 2 x 600WH lithium-ion batteries, this splitter is designed to handle the toughest Australian hardwoods with ease. Equipped with an impressive maximum 25 tons of splitting force and a 160mm hardened steel splitting wedge, it outperforms many comparable models on the market, providing both strength and efficiency for large-scale wood cutting jobs.

The auto-return control valve ensures that the ram retracts automatically when you release the lever, minimizing downtime between log loads and reducing physical strain. The 2-stage gear pump and heavy-duty hydraulic cylinder deliver high pressure quickly, enabling faster and more efficient splitting with each cycle.

The 13-inch DOT pneumatic tyres and quick-release jockey wheel make it easy to move the splitter around your property, while the std pin tow coupling allows for secure towing around your property using a ride on mower or quad bike. With its robust build and excellent performance, the LSCC25BD is perfect for anyone who needs a reliable, high-powered low noise splitter for regular use.

Features:

  • 60 Volt 2.2Kw DC Brushless Motor

  • 2 x 10Ah 60-volt Lithium-Ion Batteries

  • Up to 1.5 Hour Run Time

  • Push Button Start

  • Environmentally Friendly – Quiet no fumes operation

  • Quiet, clean, hassle free operation with little to no maintenance required.

  • Hydraulic Cylinder: 4” x 24” (100mm x 600mm) for powerful splitting

  • Maximum Splitting Force: 25 tons

  • Splitting Wedge: 160mm (6.5 inches) hardened steel wedge for superior durability

  • Cycle Time: 12 seconds for quick operation

  • Log Capacity: Splits logs up to 540mm (21 inches) in length

  • Hydraulic System: 2-stage gear pump, 10 GPM (gallons per minute)

  • Oil Tank Capacity: 14 litres

  • Wheels: 13-inch pneumatic tyres for mobility

  • Jockey Stand: Quick-release for easy movement

  • Towing: Suitable for off-road towing up to 30km/h

  • Auto Return Valve: Automatically retracts the ram when the lever is released

  • Heavy-Duty Construction: Extra heavy-duty I-beam construction for maximum performance

  • Battery Charger Included

Specifications:

  • Model: LSCC25BD

  • Splitting Force: 25 Tons

  • 60 Volt 2.2Kw DC Brushless Motor

  • 2 x 10Ah 60-volt Lithium-Ion Batteries

  • Hydraulic Cylinder: 100mm x 600mm

  • Maximum Log Length: 540mm

  • Hydraulic Oil Supplied: 10 Litres ISO 46

  • Oil Tank Capacity: 14 Litres

  • Cycle Time: 12 seconds

  • Net Weight: 125kg

  • Shipping Dimensions: 117cm x 71cm x 63cm

  • Shipping Weight: 174kg
