SKU: ATXPRESALR30T
In stock
$817.00
Shipping calculated at checkout
PRESALR30T

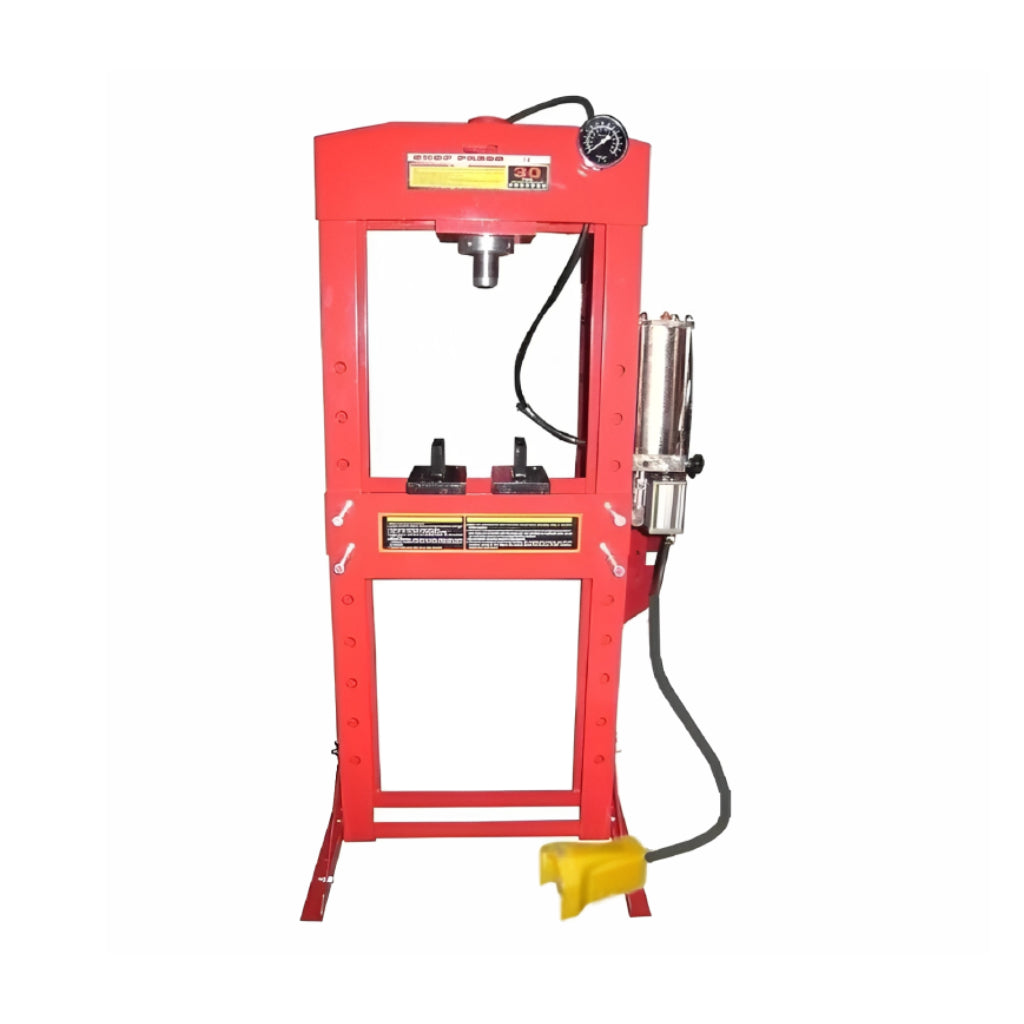

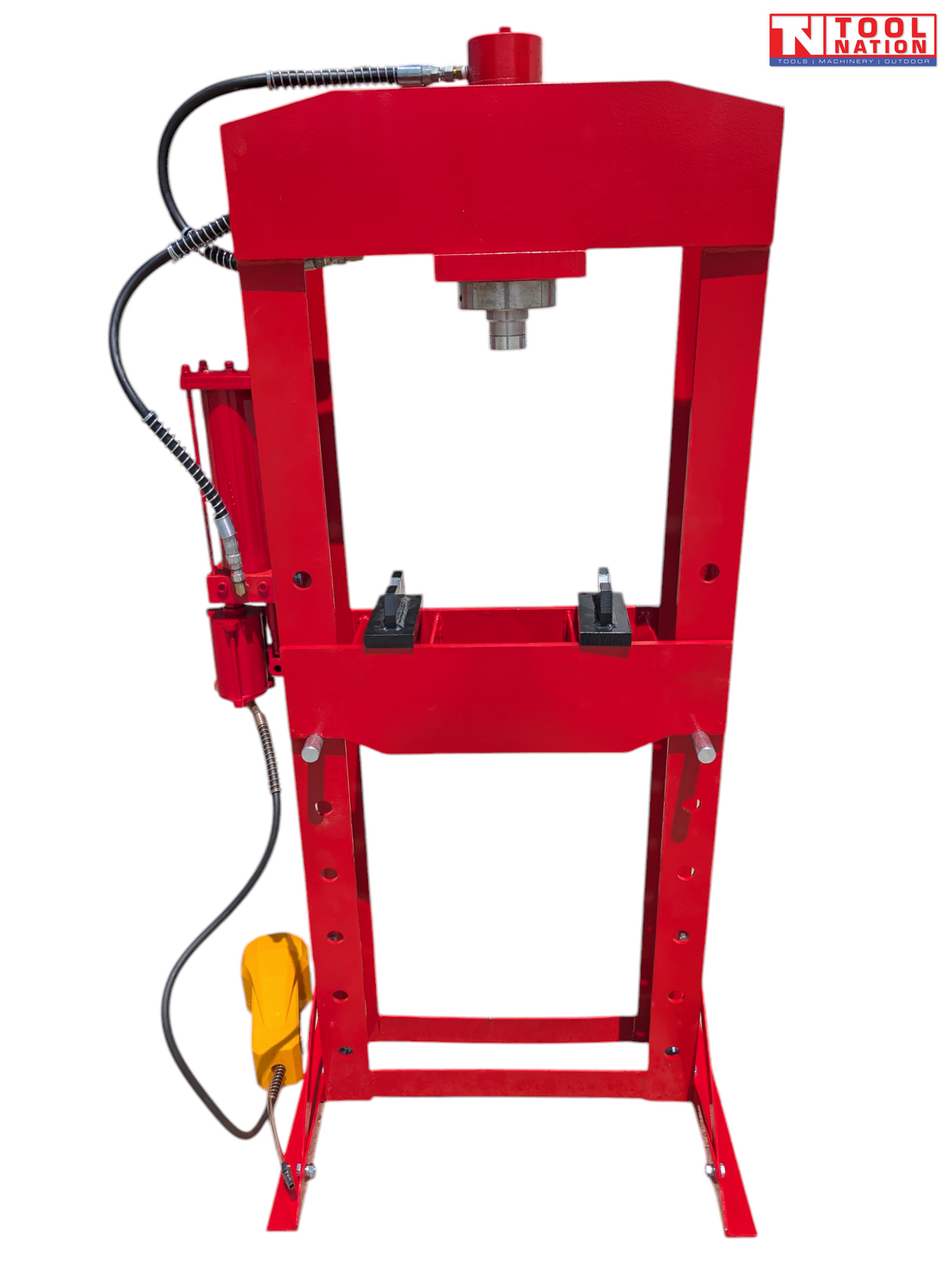

The PRESALR30T 30 Ton Air Hydraulic Shop Press is a powerhouse designed for professional mechanics, metal workers, and DIY enthusiasts alike. Offering unmatched performance, this heavy-duty press provides the versatility and power needed to tackle demanding pressing tasks with ease. Whether you're working on automotive repairs, metal fabrication, or other industrial tasks, the PRESALR30T makes quick work of bearing, bushing, ball joint removal, and other metalworking applications.

With a capacity of 30,000kg (30 tons), this press is engineered to handle the most challenging tasks, offering superior force to remove and press even the toughest and tightest-fitting components. The dual-operation mode allows you to switch between the speed and power of the air hydraulic system or the precision control of the manual operation, giving you the flexibility to adapt to a variety of pressing tasks with ease.

The sliding head design of the PRESALR30T ensures smooth, precise adjustments during use, allowing for greater flexibility and accuracy when positioning workpieces. This feature makes it easier to align materials and components correctly during pressing, reducing the risk of damage.

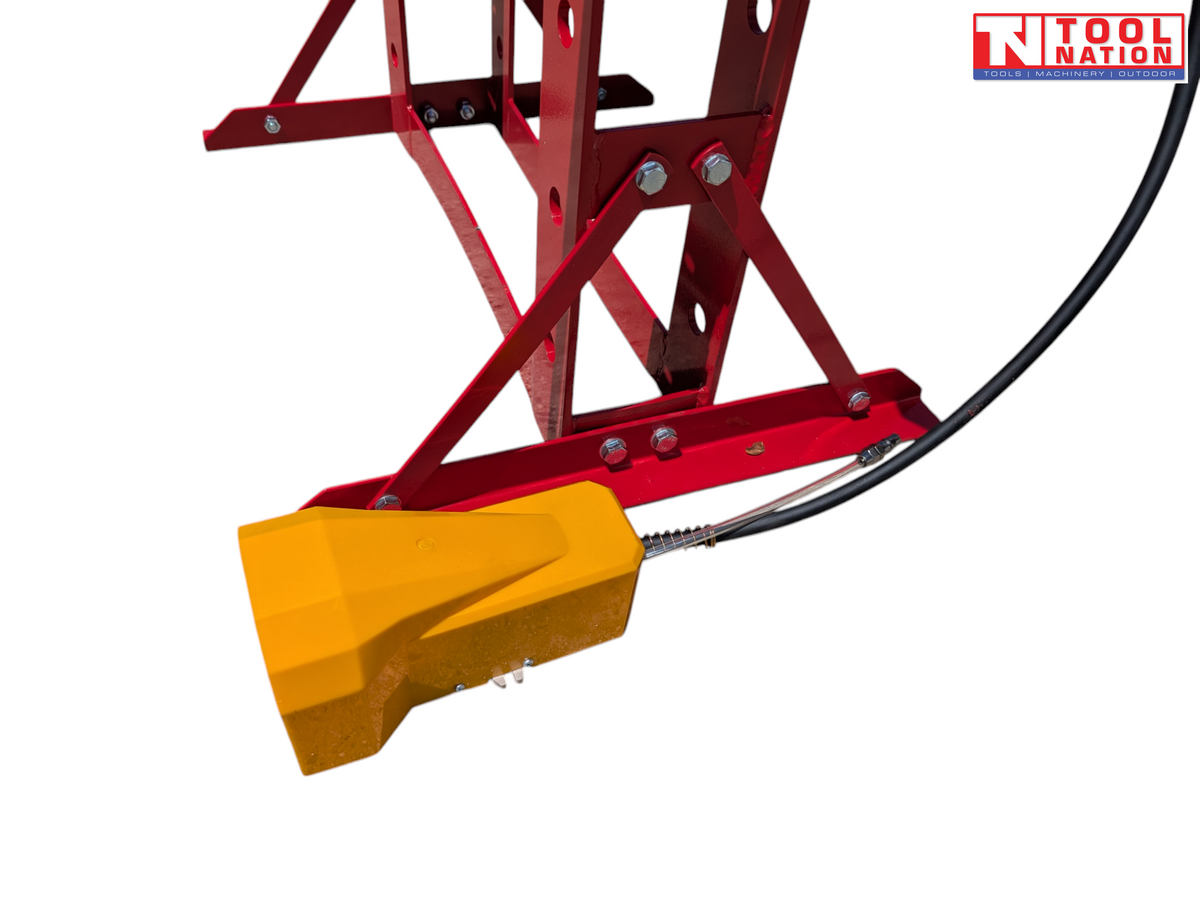

A key feature is the foot-operated valve, which allows you to keep both hands free for positioning and guiding materials while maintaining control over the press. This hands-free operation increases safety and productivity, ensuring you can work more efficiently.

The PRESALR30T also comes with an adjustable cross member that allows you to set up the press for maximum comfort and efficiency, so you can tailor it to your needs for optimal results. Its air pressure range of 0.75 – 0.85 Mpa ensures it works effectively with most industrial air systems.

Features:

  • Lifting Capacity: 30,000kg (30 tons), ideal for heavy-duty pressing tasks and handling large components.

  • Dual Operation: Choose between air hydraulic and manual operation for maximum versatility.

  • Working Range: Adjustable from 0mm to 970mm, accommodating a wide range of workpieces.

  • Sliding Head: Provides smooth and precise adjustments for better alignment and positioning.

  • Air Pressure: Operates within 0.75 – 0.85 Mpa, compatible with most industrial air systems.

  • Air Inlet Fitting: ¼ inch NPT, ensuring easy connection to air supply.

  • Foot Valve: Enables hands-free operation, improving safety and efficiency during use.

  • Adjustable Cross Member: Allows for easy setup and customization, ensuring maximum comfort and efficiency.

·         Dimensions: A-750mm, B-600MM, C-1800mm, D-120mm, E-445mm, F-150mm, G-870mm, H-140mm.

  •

Specifications:

  • Capacity: 30,000kg (30 tons)

  • Working Range: 0mm – 970mm

  • Stroke: Adjustable depending on task requirements

  • Air Pressure: 0.75 – 0.85 Mpa (110 - 145psi)

  • Air Inlet Fitting: ¼ inch NPT

  • Shipping Dimensions: 197cm x 80cm x 42cm

  • Net Weight: 185kg

  • Shipping Weight: 188kg
