Millers Falls 26hp Horizontal Shaft Engine - Electric Start
Millers Falls 26hp Horizontal Shaft Engine - Electric Start
Millers Falls 26hp Horizontal Shaft Engine - Electric Start
Millers Falls 26hp Horizontal Shaft Engine - Electric Start
Millers Falls 26hp Horizontal Shaft Engine - Electric Start
Millers Falls 26hp Horizontal Shaft Engine - Electric Start
Millers Falls 26hp Horizontal Shaft Engine - Electric Start
Millers Falls 26hp Horizontal Shaft Engine - Electric Start

Millers Falls 26hp Horizontal Shaft Engine - Electric Start

SKU: ATXQPE26ESS
Out of stock
$10,000.00
Shipping calculated at checkout
QPE26ESs

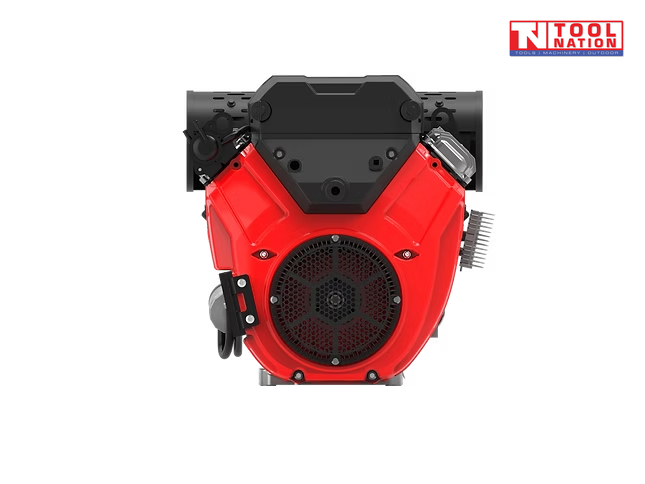

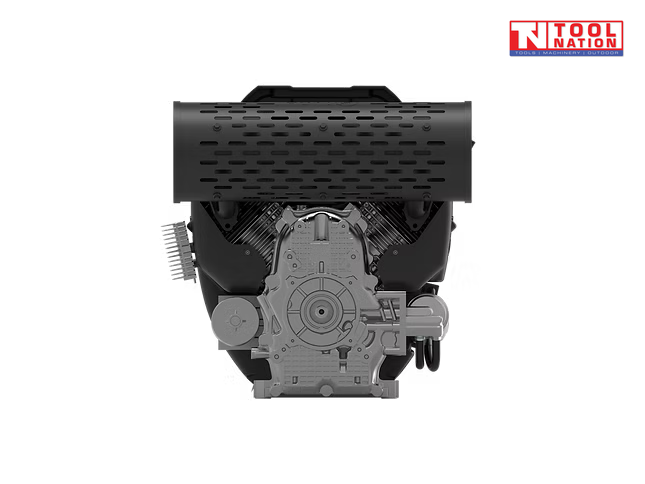

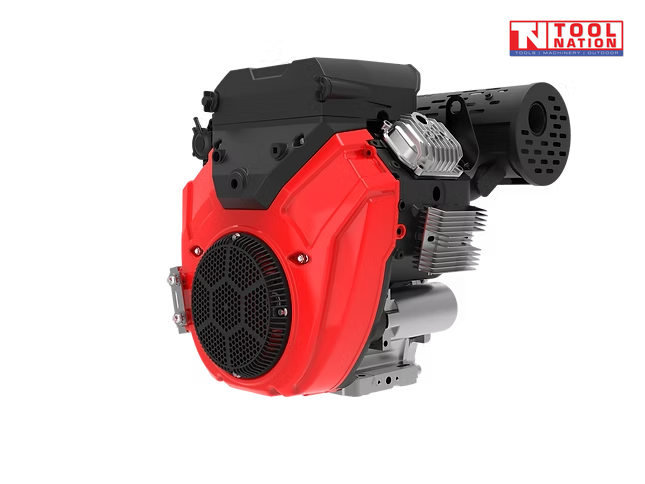

Millers Falls 26HP Horizontal Shaft Engine - Electric Start

Introducing the QPE26ESs, a dynamic 26HP electric start engine crafted with full commercial-grade construction, featuring a cast iron cylinder liner and durable design. Engineered for optimal power and torque, this powerhouse is the perfect choice for commercial ride-on mowers and zero-turn mowers. With its 1” crankshaft, the QPE26ESs serves as a direct replacement for popular models such as the Vanguard 23HP V-Twin Petrol Engine, Vanguard 26HP V-Twin Engine, Briggs & Stratton 27HP V-Twin Engine, and Kohler 25HP Engine.

The QPE26ESs features a 750cc displacement, delivering a powerful 18 kW (26 HP). With an 82×71 mm cylinder bore, this engine ensures efficient and tough performance. Operating at a maximum speed of 3600 r/min and producing 51 N·m of torque, it excels in performance and reliability. With a 2L oil capacity and compatibility with SAE 10W-30 oil, it’s designed for long-lasting operation. Compact dimensions of 670×500×585 mm and a weight of 46.5 kg make it robust yet manageable.

Features:
  • Brand: Millers Falls
  • Model: QPE26ESs
  • Type: 26HP Petrol Engine
  • Engine Type: Air-cooled, 4-stroke, V-Twin (horizontal shaft)
  • Displacement: 750cc
  • Low Oil Level Cut-Out Switch: Fitted
  • Compression Ratio: 8.5:1
  • Ignition System: Transistorised Magneto
  • Compatible as a replacement for multiple popular engines
  • Superior commercial-grade construction
Specifications:
  • Model: QPE26ESs
  • Bore & Stroke: 82 × 71 mm
  • Displacement: 750 cc
  • Rated Power: 26 HP
  • Measured PTO Power: 16 kW
  • Max Output Speed: 3600 rpm
  • Max Torque: 47 N·m
  • Idle Speed: 1440 rpm
  • Starting System: Electric
  • PTO Shaft Size: 25.4 mm (1")
  • Shaft Length: 89 mm
  • Engine Oil Capacity: 1.5 L
  • Recommended Oil: SAE 10W-30
  • Fuel Tank Capacity: N/A
  • Fuel Consumption: 374 g/kW·h (max power)
  • Packing Dimensions (L × W × H): 47 × 43 × 46 cm
  • Net Weight: 46.5 kg

Shipping cost is calculated at checkout.
