SKU: ATXQWD100ES
Out of stock
$10,000.00
Shipping calculated at checkout
QWD100ES

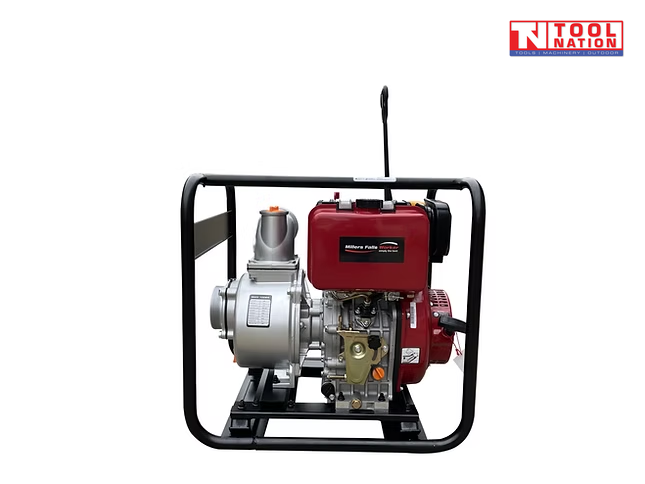

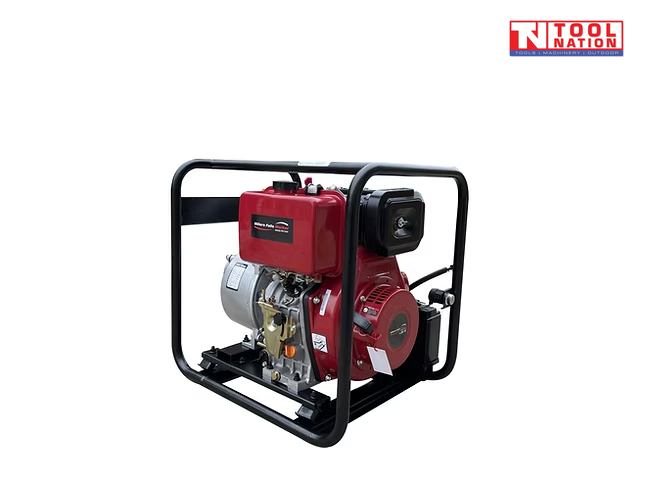

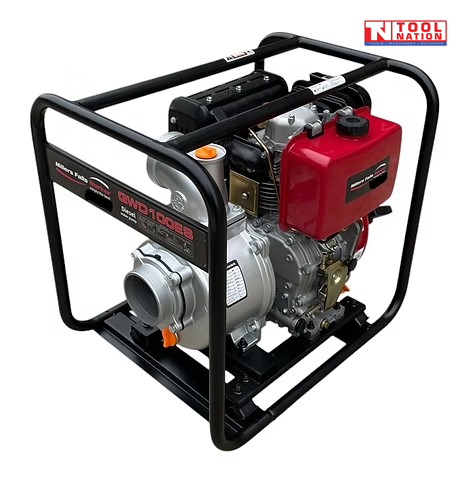

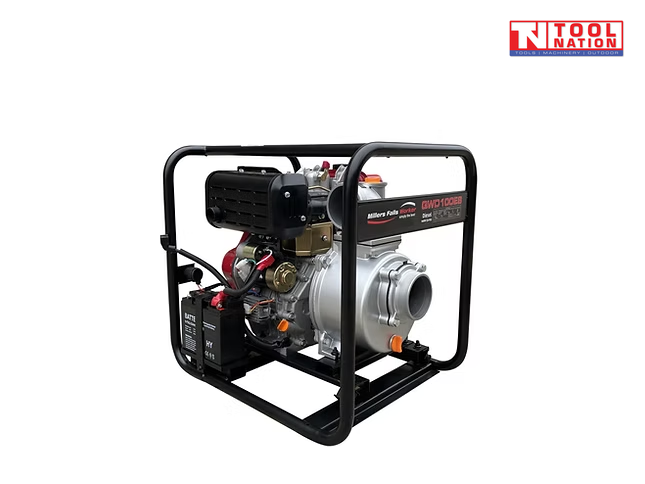

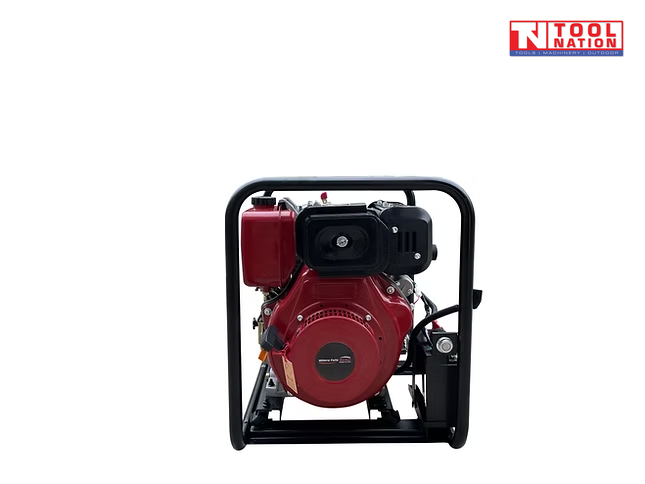

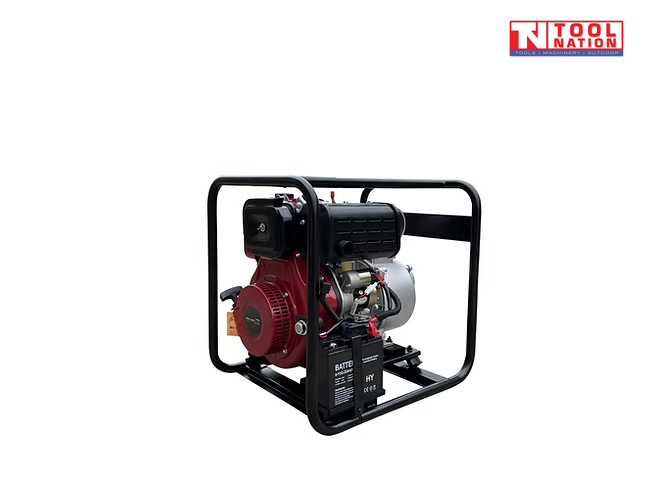

The QWD100ES is a high-capacity 4-inch Diesel Water Transfer Pump designed for demanding fluid transfer operations. Powered by a 10HP diesel engine, it delivers a maximum head of 32 meters and a capacity of 96m³/hr, ensuring efficient performance for large-scale applications. With 100mm suction and discharge ports, it provides optimal fluid intake and delivery. The pump also features a self-priming time of under 120 seconds for quick start-up. Its air-cooled, 4-stroke diesel engine ensures reliability, while both electric and recoil start options—combined with a 5.5L fuel tank—allow for extended operation in tough conditions.

Features:
  • Suction: 100mm for reliable fluid intake
  • Discharge Port Dia: 4” (100mm) for efficient fluid delivery
  • Max Head: 32m, providing reliable pressure for water transfer
  • Max Capacity: 96m³/hr for high-volume fluid transfer
  • Max Suction Head: 8m, allowing water intake from greater depths
  • Self-Priming Time: <120s for quick and efficient priming
  • Engine Type: Air-cooled, 4-stroke diesel for durability and longevity
  • Engine Continuous Output: 10HP at 3600 RPM for high performance
  • Electric & Recoil Start: Battery included for easy starting
  • Engine Fuel Tank: 5.5L for extended operation
  • Packing Dimensions: [To be provided]
  • Weight: [To be provided]
Specifications:
  • Suction: 100mm
  • Discharge Port Dia: 4” (100mm)
  • Max Head: 32m
  • Max Capacity: 96m³/hr
  • Max Suction Head: 8m
  • Self Priming Time: <120s
  • Engine Type: Air-cooled, 4-stroke diesel
  • Engine Continuous Output: 10HP @ 3600 RPM
  • Engine Fuel Tank: 5.5L
  • Weight: [Not provided]
  • Packing Dimensions: [Not provided]
