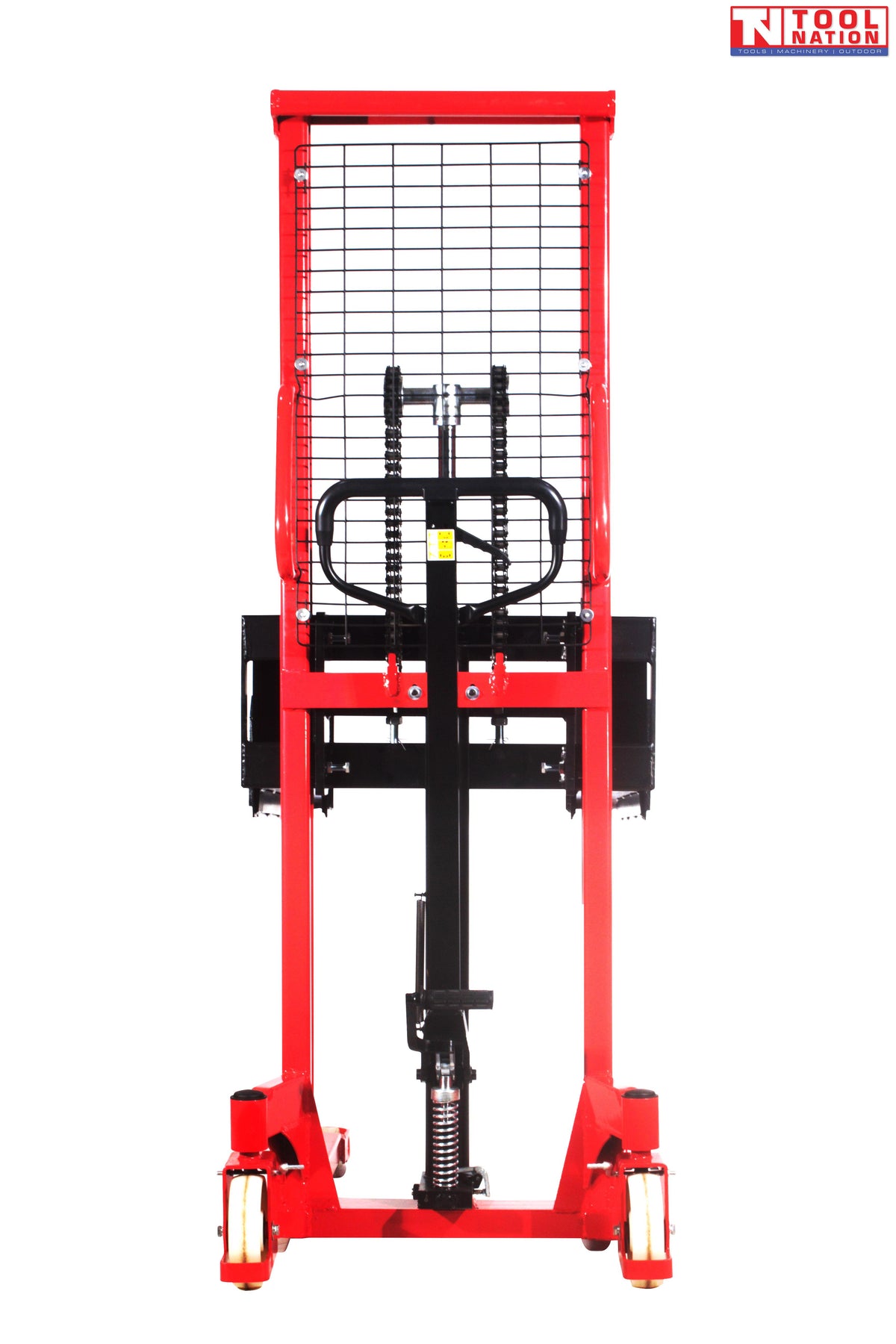

Pallet Stacker 1000kg Capacity Hydraulic Lift 1600mm Height Warehouse Tool
WH7615
1000kg Pallet Stacker
The WH7615 Pallet Stacker is an efficient and robust lifting solution designed for handling smaller to medium-sized loads with a lifting capacity of up to 1000kg. Constructed from high-quality steel, this stacker is durable and reliable, ensuring smooth operation for your material handling tasks. It features an adjustable lifting height from 90mm to 1600mm, making it versatile for a range of applications. The WH7615 is designed with easy-to-operate hydraulic controls and safety features to ensure safe and effective operation in any warehouse or industrial setting.
Features:
Capacity: 1000kg
Lifting Height: 90mm - 1600mm
Overall Length: 1424mm
Overall Width: 720mm
Overall Height: 1980mm
Fork Length: 1070mm
Fork Width: 140mm
Fork Outside Distance: 295mm - 680mm
Lifting Speed: ≥22mm/time
Descending Speed: Controllable
Center of Load: 500mm
Front Wheel Diameter: Φ80X60mm
Rear Wheel Diameter: Φ180X50mm
Self Weight: 170kg
Suitable for use on flat surfaces only
Hydraulic Oil: ISO VG32, 3.0L capacity
Specifications:
Model: WH7615
Capacity: 1000kg
Lifting Height: 90mm - 1600mm
Fork Length: 1070mm
Fork Width: 140mm
Fork Outside Distance: 295mm - 680mm
Lifting Speed: ≥22mm/time
Overall Dimensions: 1424 x 720 x 1980mm
Front Wheel Diameter: Φ80X60mm
Rear Wheel Diameter: Φ180X50mm
Self Weight: 170kg
