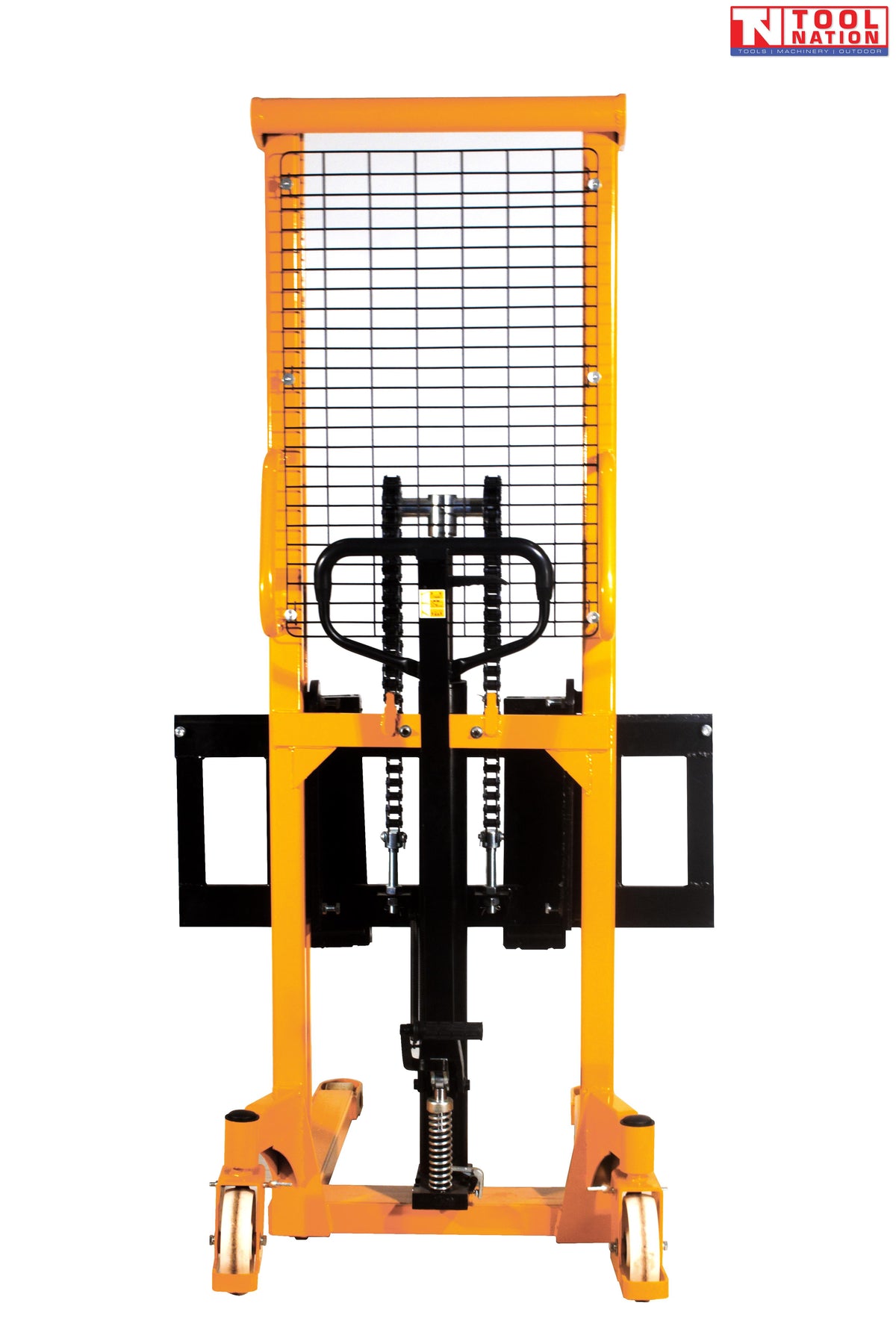

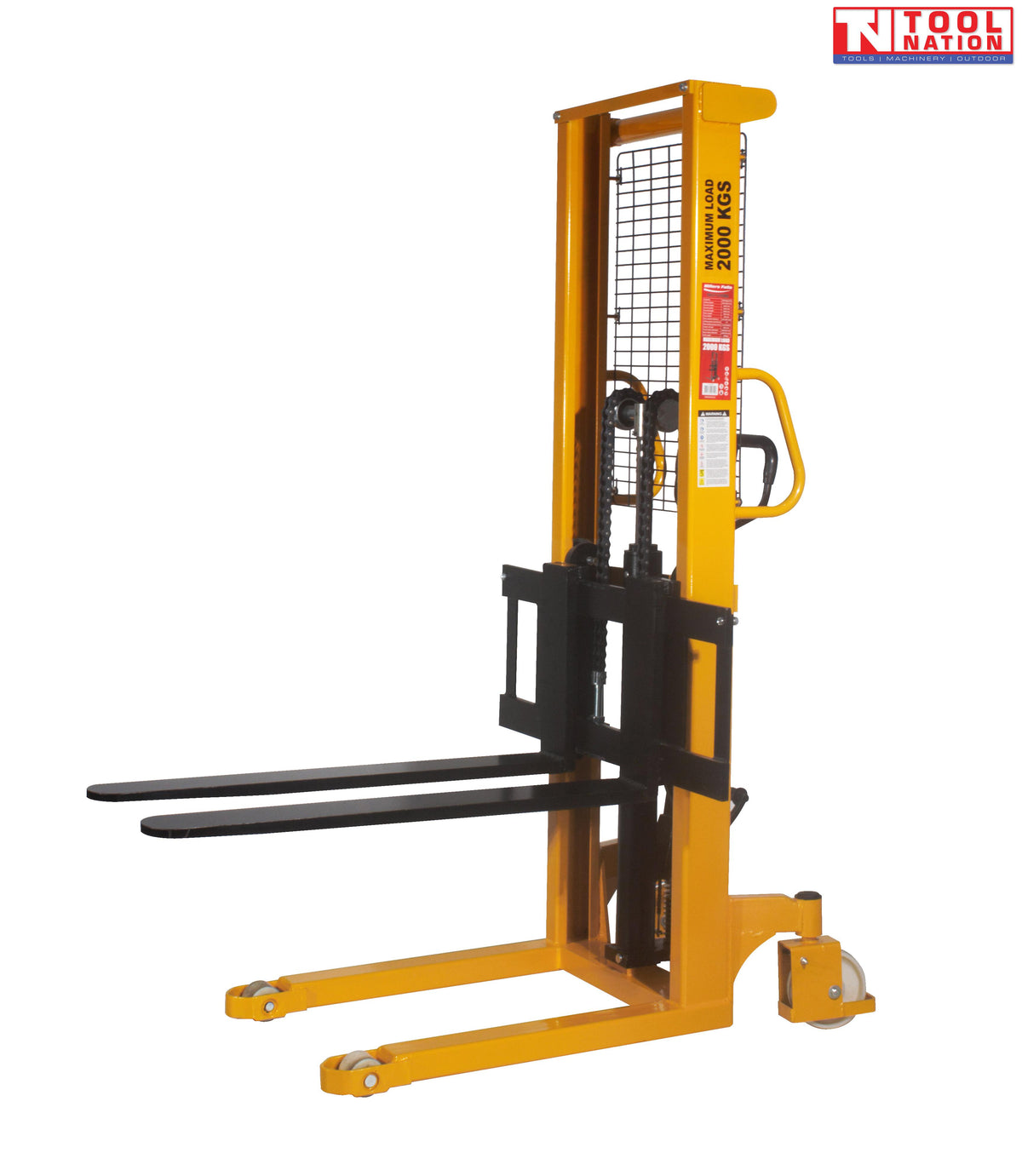

Pallet Stacker 2000kg Capacity Hydraulic Lift 1600mm Height Heavy Duty Use

SKU: ATXWH7617
In stock
$1,623.00
Shipping calculated at checkout
WH7617
2000kg Pallet Stacker

The WH7617 Pallet Stacker is a heavy-duty lifting solution designed to handle larger loads up to 2000kg. With an adjustable lifting height range from 90mm to 1600mm, this stacker is perfect for a variety of tasks in warehouses or industrial settings. Its durable steel construction and reliable hydraulic system ensure longevity and optimal performance. This model is particularly suitable for businesses that need a stacker with higher capacity and greater versatility.

Features:

  • Capacity: 2000kg

  • Lifting Height: 90mm - 1600mm

  • Overall Length: 1620mm

  • Overall Width: 1000mm

  • Overall Height: 2020mm

  • Fork Length: 1100mm

  • Fork Width: 120mm

  • Fork Outside Distance: 240mm - 950mm

  • Lifting Speed: ≥15mm/time

  • Descending Speed: Controllable

  • Center of Load: 500mm

  • Front Wheel Diameter: Φ80 60mm

  • Rear Wheel Diameter: Φ180 50mm

  • Self Weight: 255kg

  • Suitable for use on flat surfaces only

  • Hydraulic Oil: ISO VG32, 3.0L capacity

Specifications:

  • Model: WH7617

  • Capacity: 2000kg

  • Lifting Height: 90mm - 1600mm

  • Fork Length: 1100mm

  • Fork Width: 120mm

  • Fork Outside Distance: 240mm - 950mm

  • Lifting Speed: ≥15mm/time

  • Overall Dimensions: 1620 x 1000 x 2020mm

  • Front Wheel Diameter: Φ80 60mm

  • Rear Wheel Diameter: Φ180 50mm

  • Self Weight: 255kg
