Alloy Material Duct Lifter 340kg Capacity 5m Height Hand Crank HVAC Lift

SKU: ATXWH8005
Out of stock
$2,827.00
Shipping calculated at checkout
WH8005

Alloy Material & Duct Lifter – 5 Metre

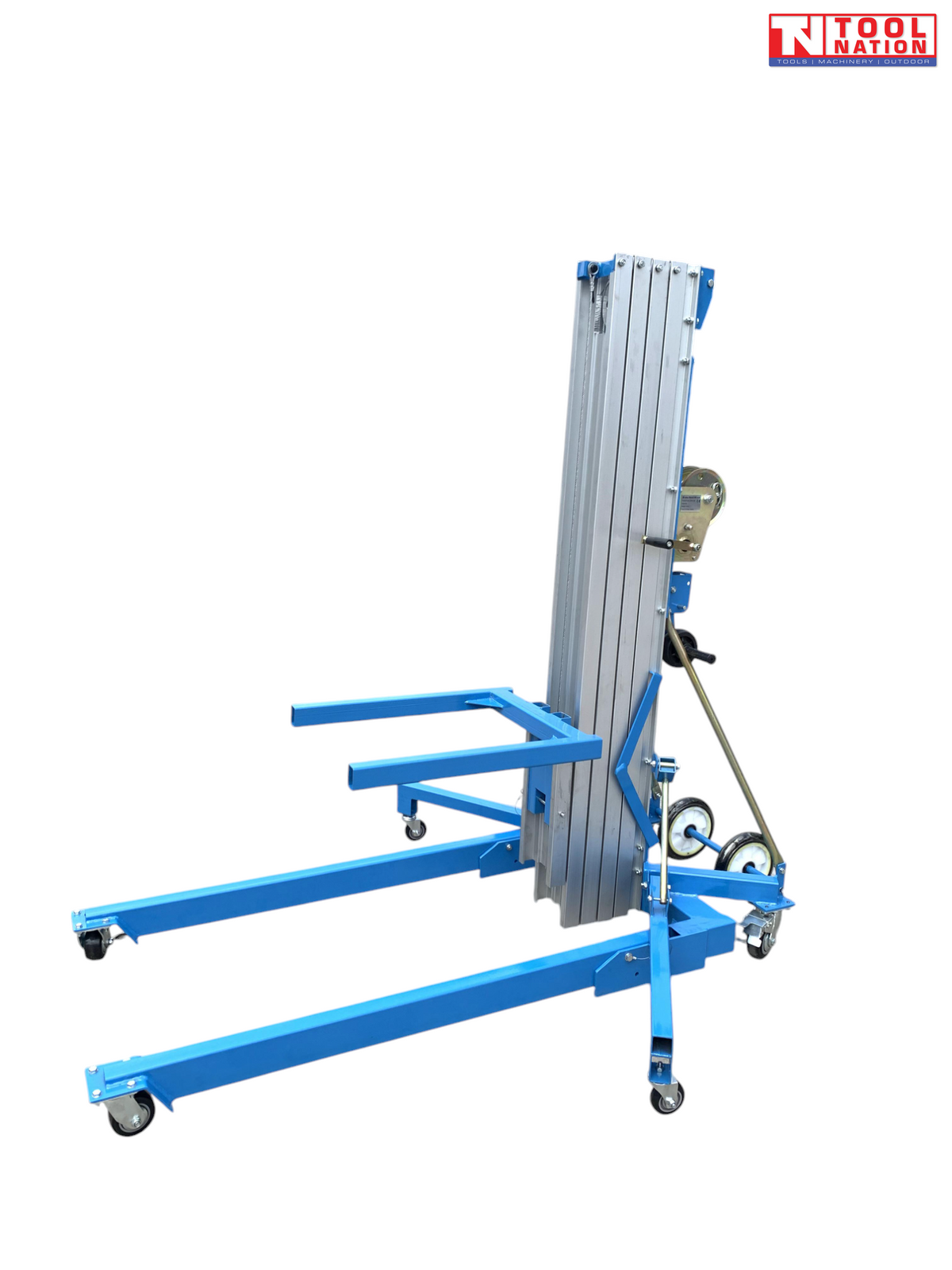

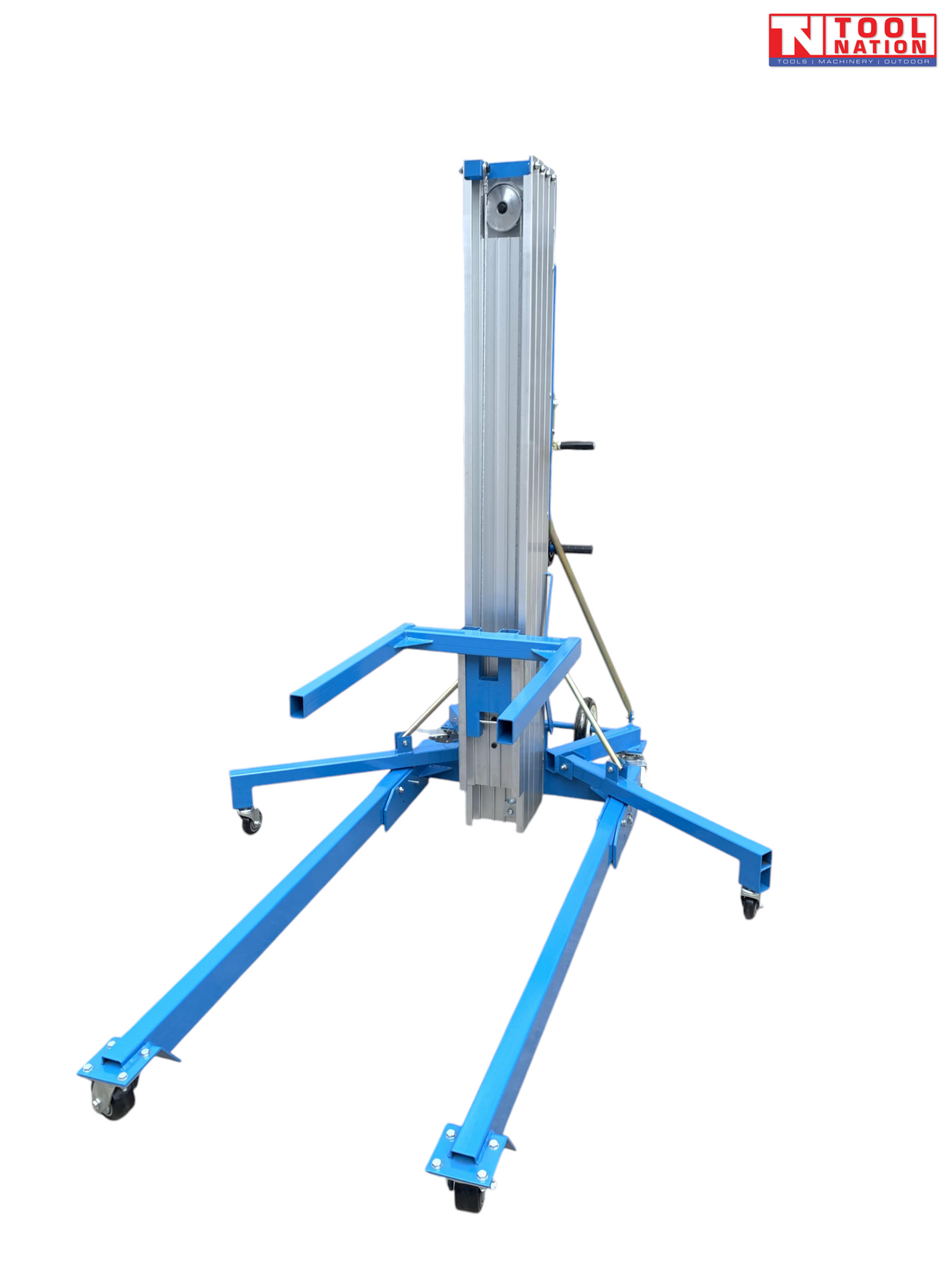

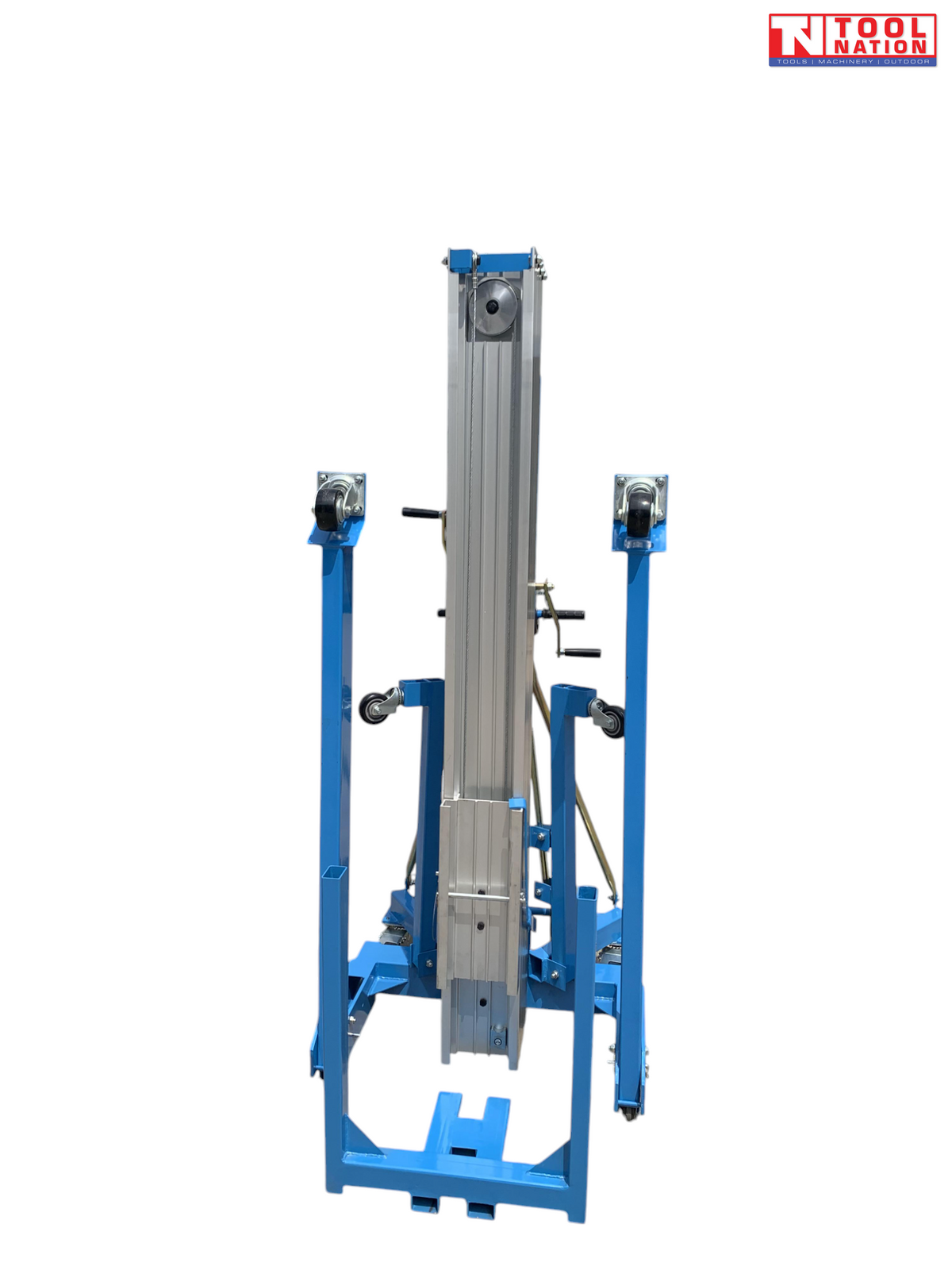

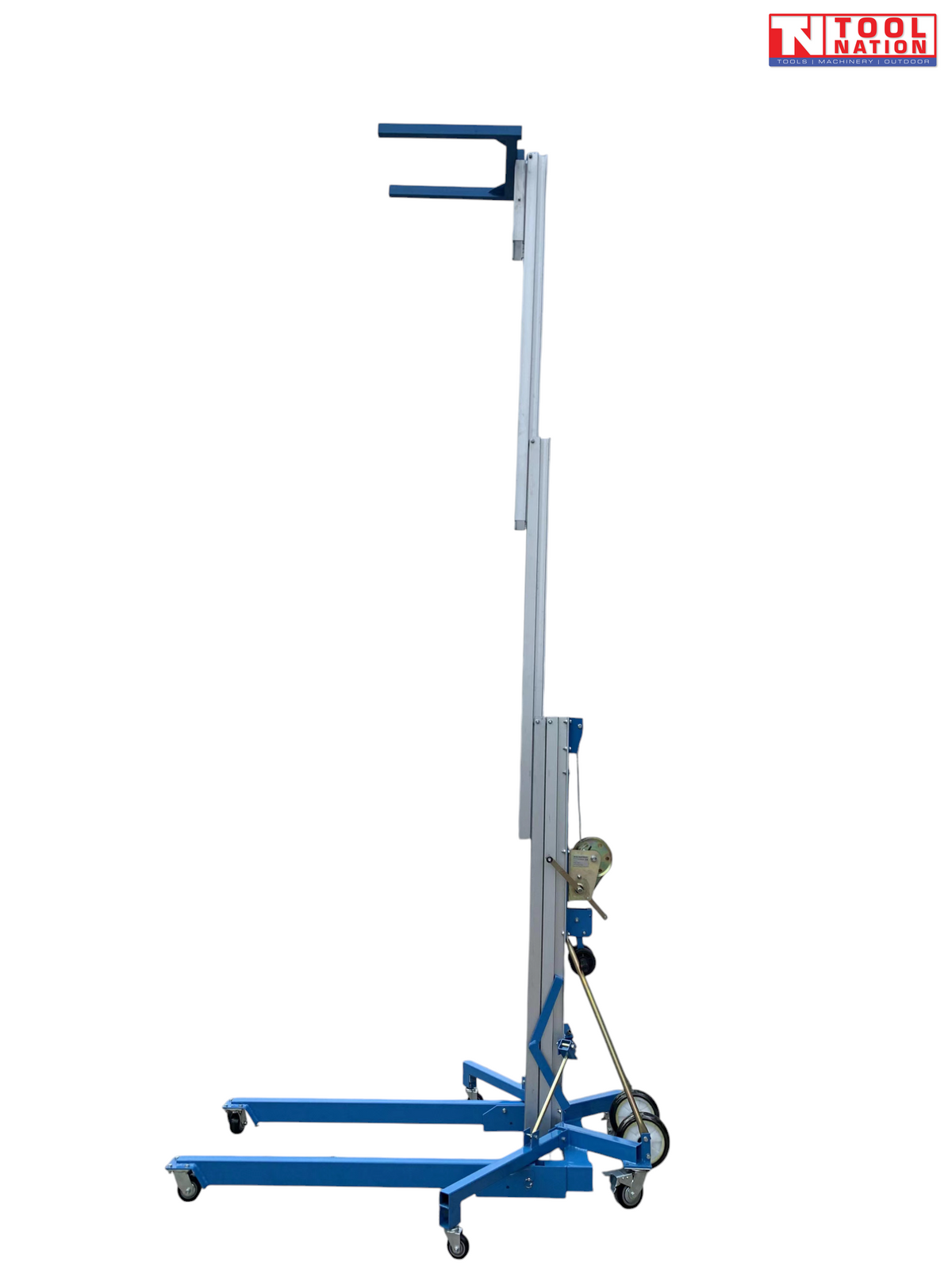

The WH8005 Alloy Material & Duct Lifter is a high-capacity, hand-operated lifting solution engineered for safe and efficient handling of heavy materials up to 340kg. Designed to reach lift heights of up to 5 metres, this versatile unit is ideal for installing ducting, lifting HVAC components, or managing general material handling tasks on worksites or in warehouses. With a durable alloy construction, easy-to-use hand crank operation, and a stable base, the WH8005 provides dependable performance and mobility in demanding environments.



Features:
  • Capacity: 340kg

  • Maximum Lift Height: 5000mm

  • Fork Size: 700 x 550mm

  • Cable Diameter: 6mm

  • Hand Crank Operation for controlled lifting

  • Sturdy alloy construction for strength and reduced weight

  • Stable footprint for secure lifting

  • Suitable for ducting, HVAC installs, and general lifting tasks

Specifications:
  • Model: WH8005

  • Capacity: 340kg

  • Lift Height: 5000mm

  • Fork Size: 700 x 550mm

  • Cable Diameter: 6mm

  • Overall Width: 750mm

  • Overall Length: 1400mm

  • Overall Height: 1980mm

  • Packing Dimensions: 800 x 850 x 2050mm

  • Net Weight: 170kg

  • Gross Weight: 200kg
