SKU: ATXZJB4116A
In stock
$410.00
Shipping calculated at checkout
ZJB4116A

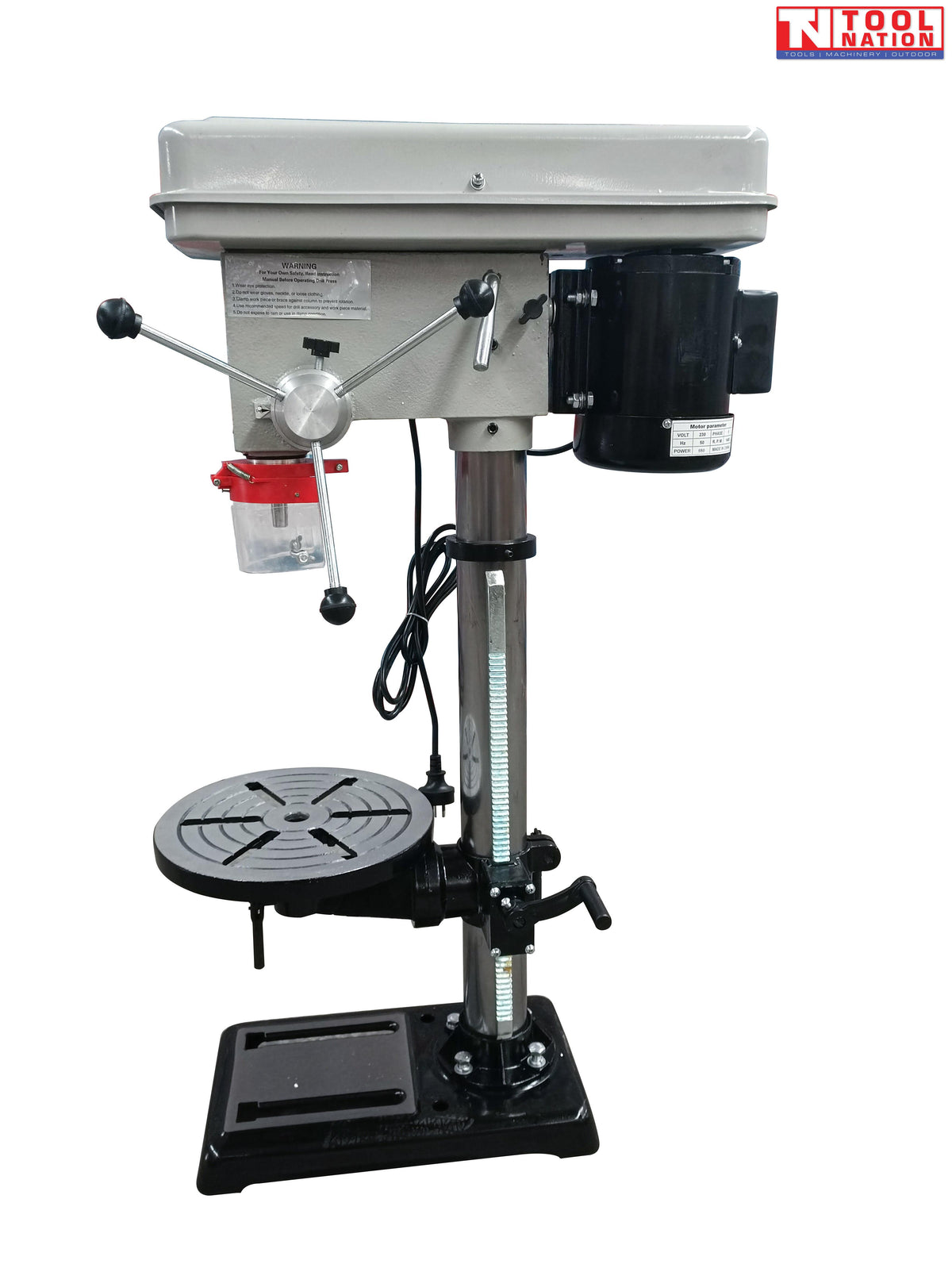

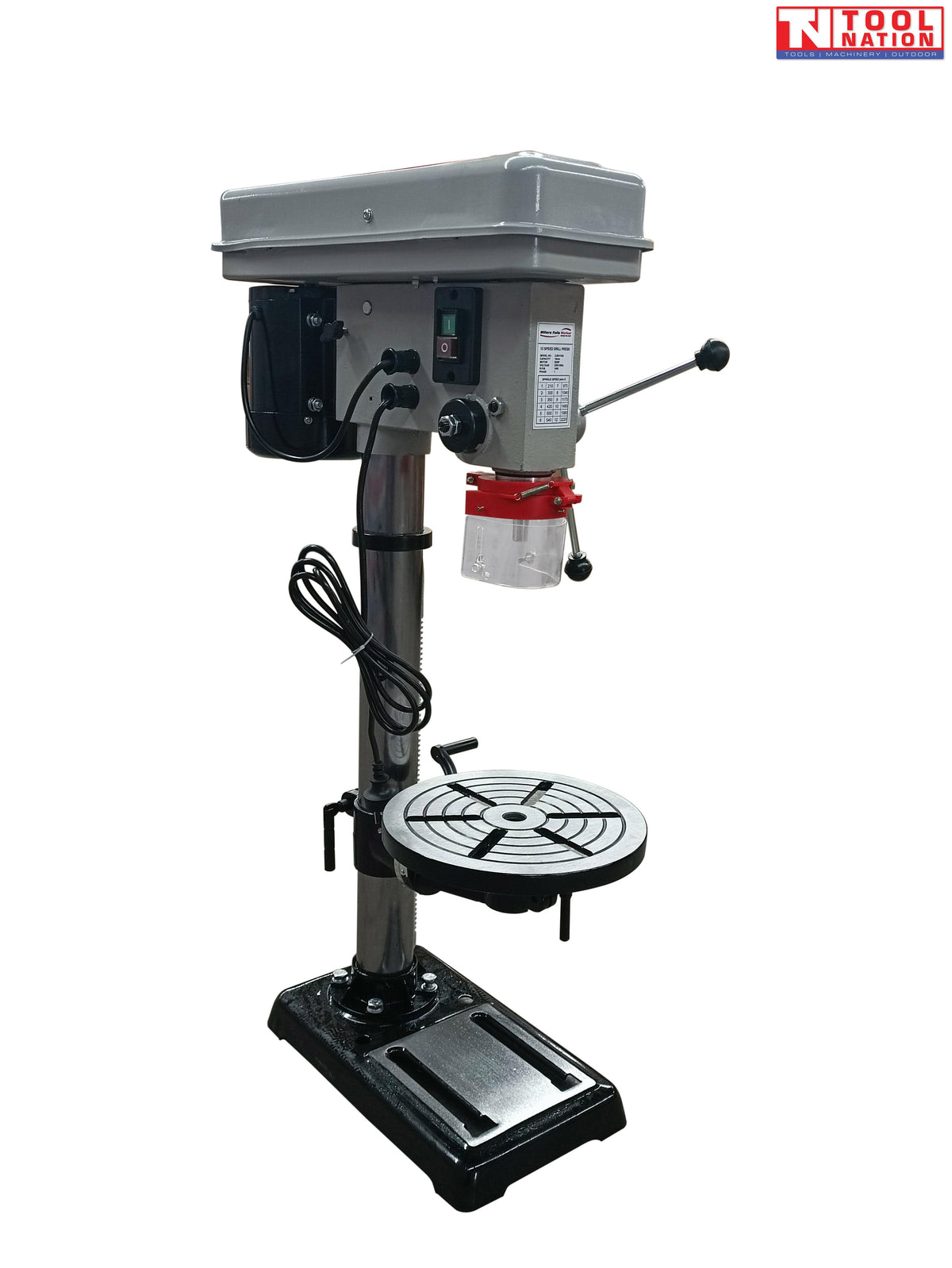

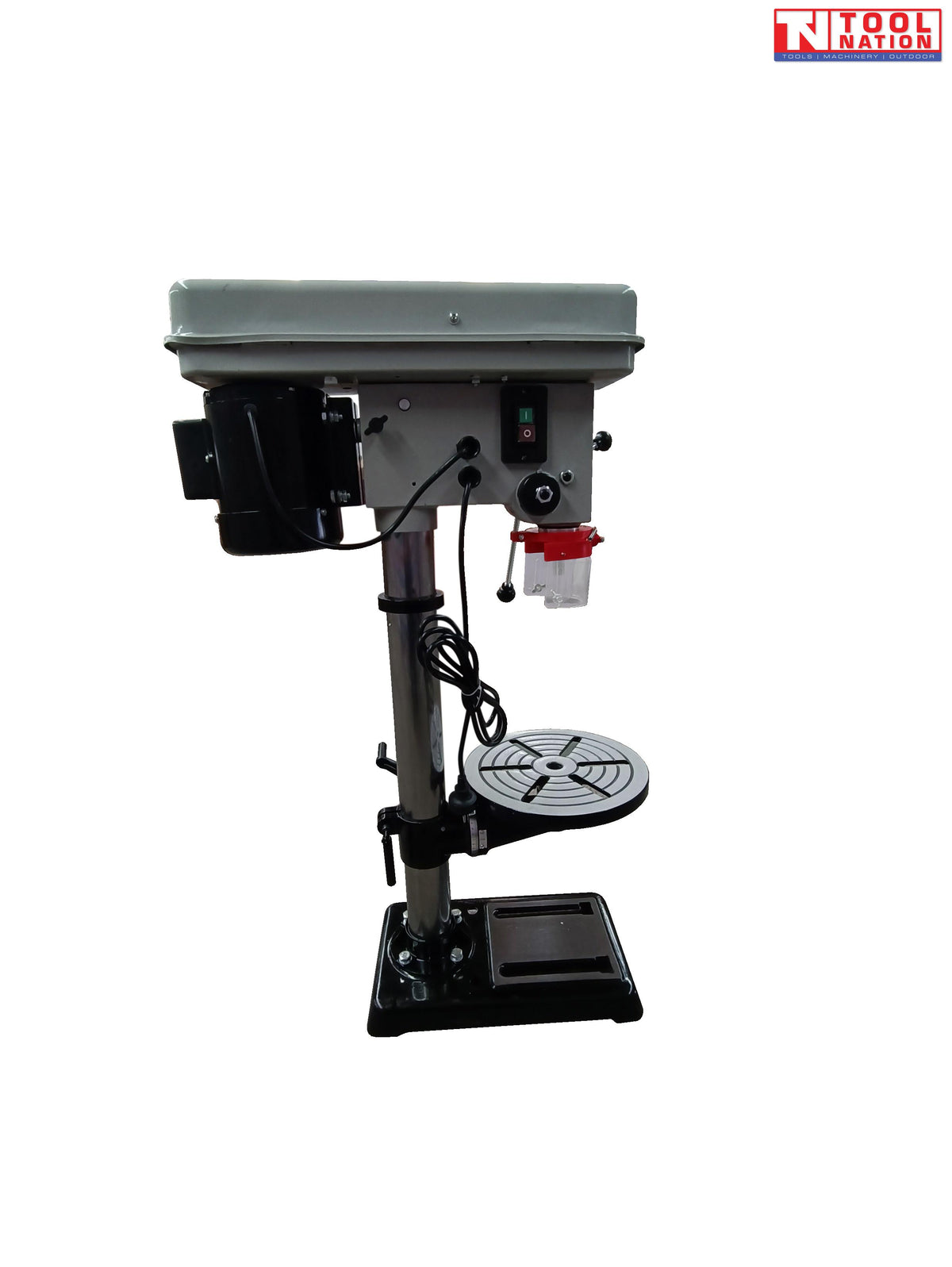

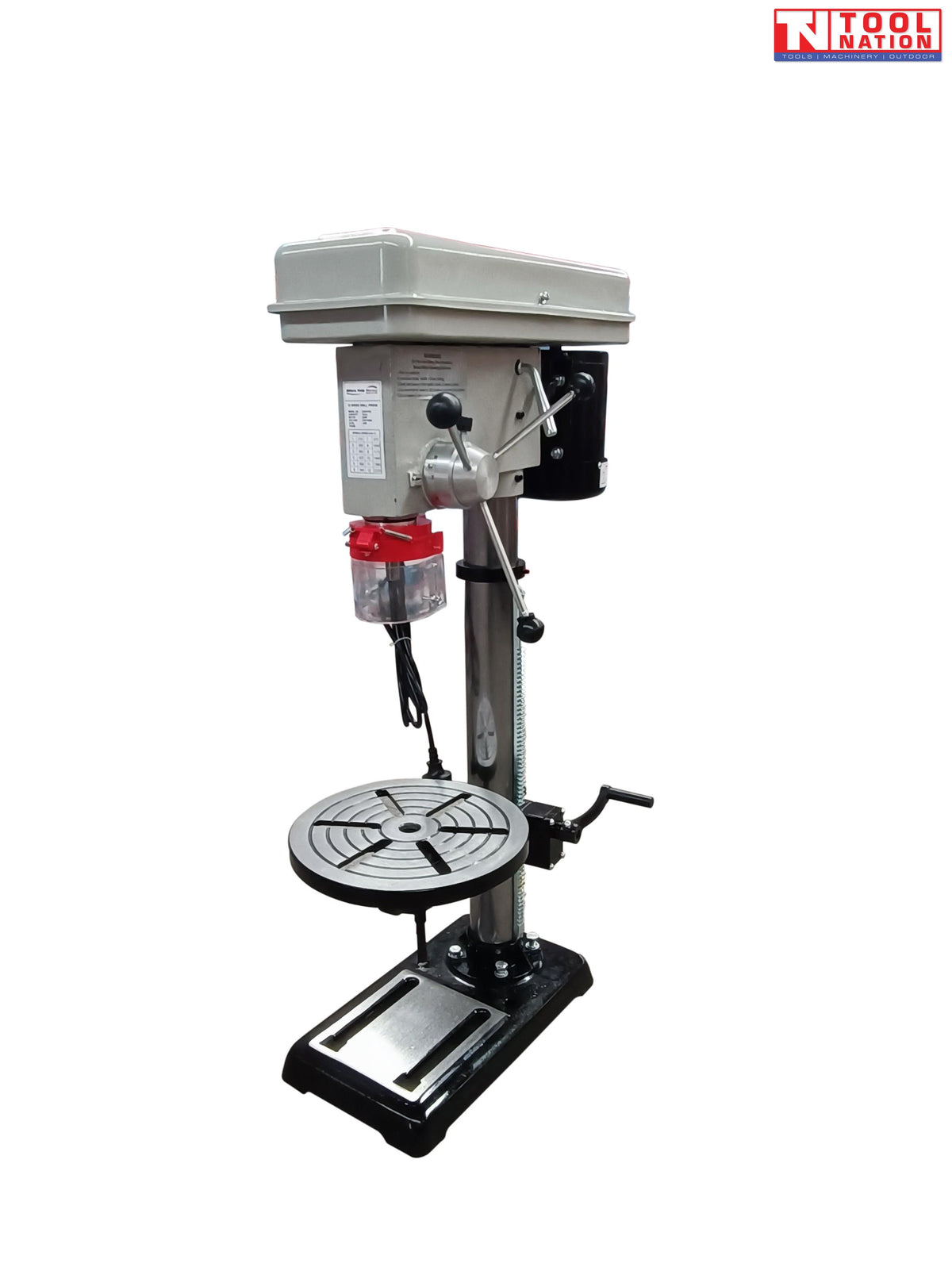

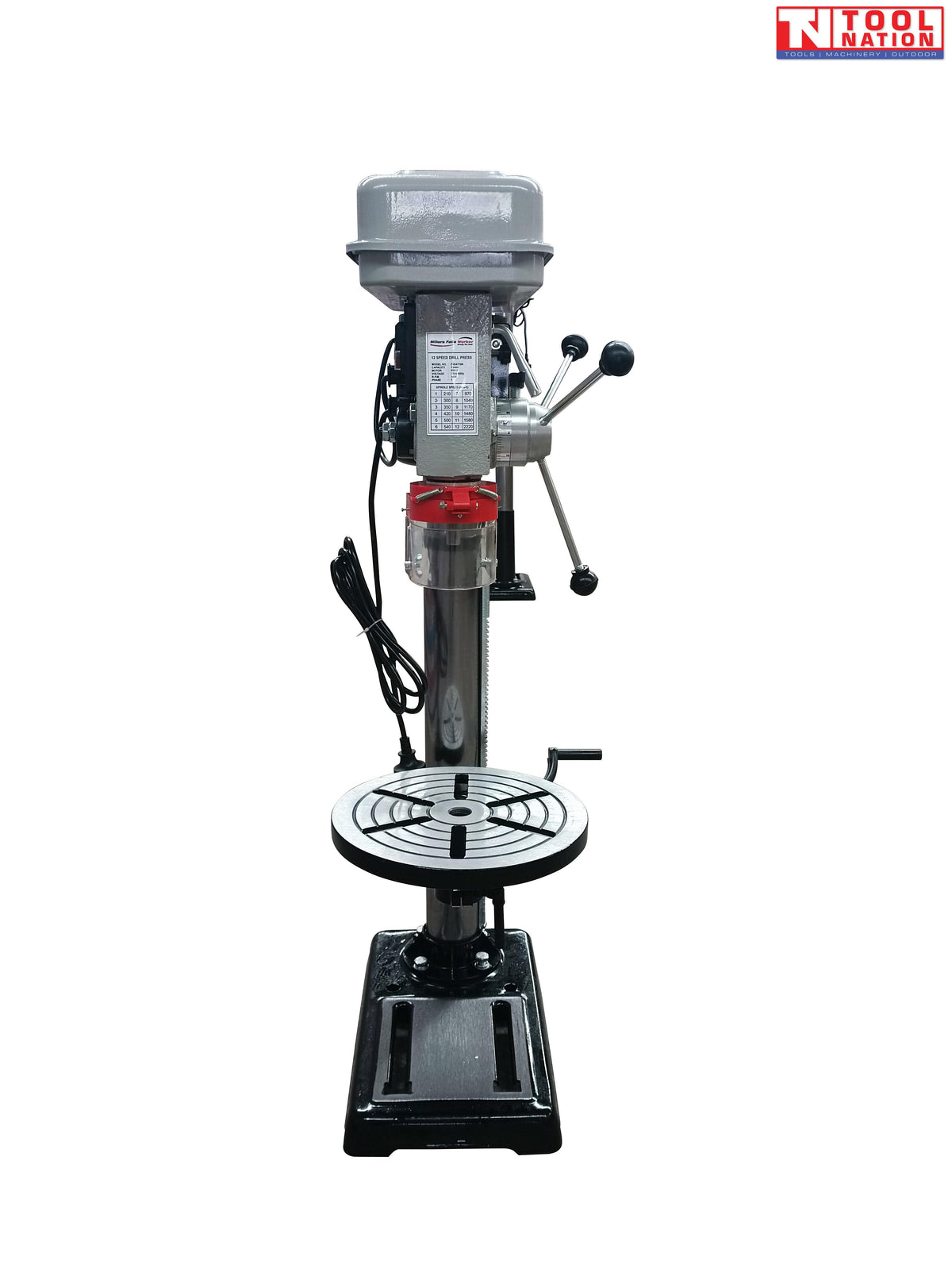

The ZJB4116A Bench Drill is designed to provide precise and reliable drilling performance for a variety of tasks. Powered by a 550W 4-pole motor, this drill offers smooth and efficient operation. With an adjustable spindle speed range from 210rpm to 2200rpm, it provides versatility for different drilling applications. The drill features a 3-16mm chuck size and a 16mm drilling capacity, making it suitable for a wide range of materials and applications. The adjustable spindle travel of 80mm and a maximum distance of 450mm from spindle to table add flexibility, while the rack and pinion system ensures smooth adjustments. Ideal for use in workshops and professional environments, the ZJB4116A provides durability and accuracy for various drilling needs.

Motor Description: The ZJB4116A Bench Drill is equipped with a 550W 4-pole motor that operates at 1440 rpm, ensuring efficient and consistent drilling power. It offers reliable performance for a wide range of tasks and is designed for durability and longevity. The motor is optimized for stable operation, providing smooth performance for tasks requiring variable spindle speeds.

Features:

  • Motor Wattage: 550W 4-pole motor provides consistent power for efficient drilling.

  • Motor Speed: Operates at 1440 rpm for steady performance during drilling tasks.

  • Chuck Size: 3-16mm chuck size for versatility in bit selection.

  • Capacity: 16mm drilling capacity, making it suitable for various applications.

  • Morse Taper: MT2 taper for secure spindle fit.

  • Swing: 340mm swing for accommodating a wide range of workpieces.

  • Spindle Travel: 80mm of spindle travel allows flexibility for different drilling depths.

  • Adjustable Spindle to Table Distance: Maximum distance of 450mm, adjustable to accommodate various workpiece sizes.

  • Base Size: 410mm x 240mm base for stability during operation.

  • Table Size: 310mm round diameter table for easy positioning of workpieces.

  • Rack & Pinion: Yes, for smooth and accurate height adjustments of the table.

  • Spindle Speeds: 12 spindle speed settings from 210rpm to 2200rpm for varied drilling tasks.

  • Overall Height: 990mm height for versatile use in a variety of spaces.

  • Weight: Net weight of 27kg provides stability for consistent performance.

Specifications:

  • Model: ZJB4116A

  • Motor Wattage: 550W, 4 POLE

  • Motor Speed: 1440 rpm

  • Chuck Size: 3-16mm

  • Capacity: 16mm

  • Morse Taper: MT2

  • Swing: 340mm

  • Spindle Travel: 80mm

  • Maximum Distance Spindle to Table: 450mm (adjustable)

  • Base Size: 410mm x 240mm

  • Table Size: 310mm round diameter

  • Rack & Pinion: Yes

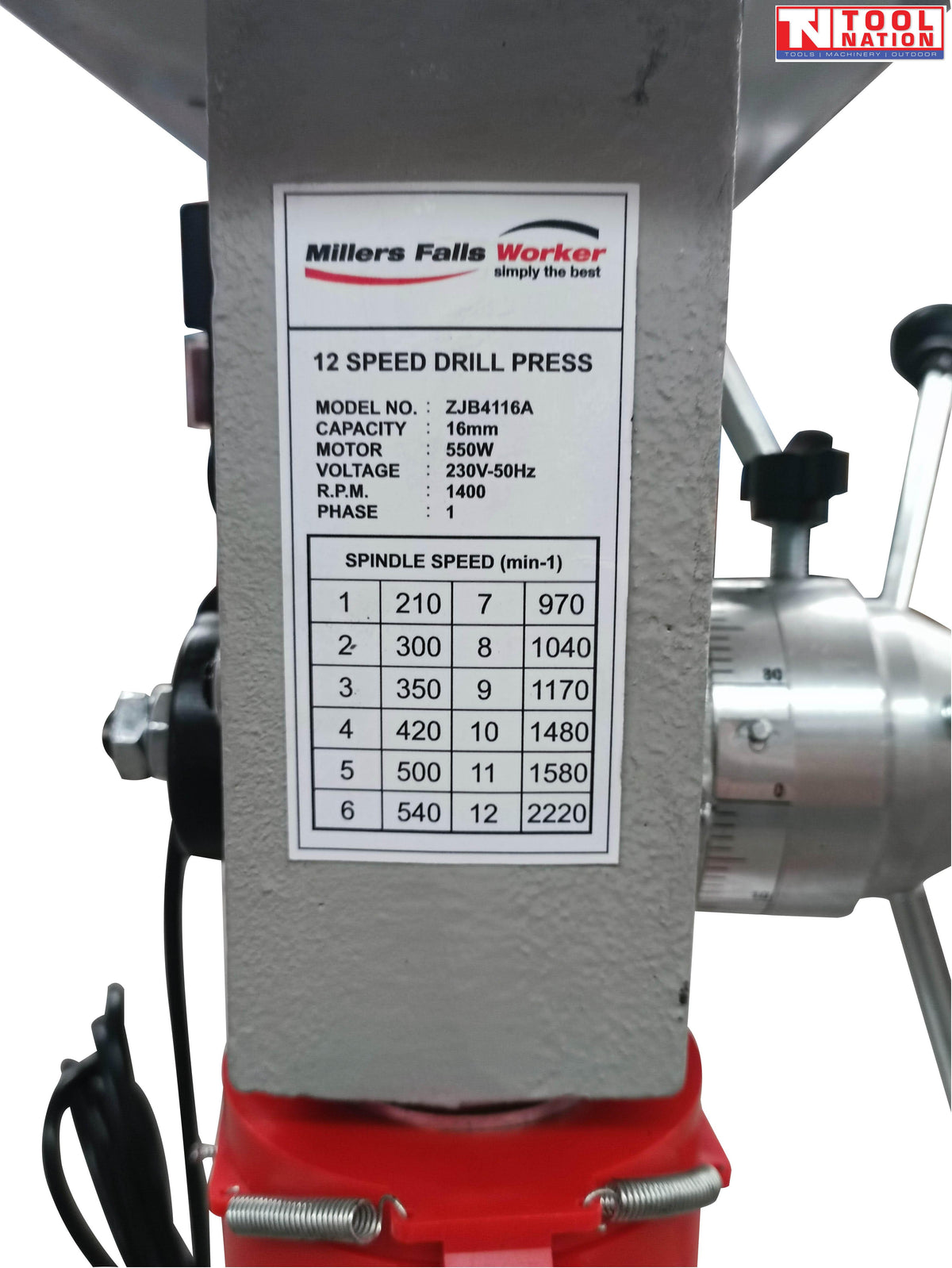

  • Spindle Speeds (Grades): 12

  • Spindle Speeds: 210rpm - 2200rpm (adjustable)

  • Overall Height: 990mm

  • Net Weight: 27kg

  • Shipping Dimensions: 760mm x 490mm x 260mm

  • Shipping Weight: 30kg
